Description

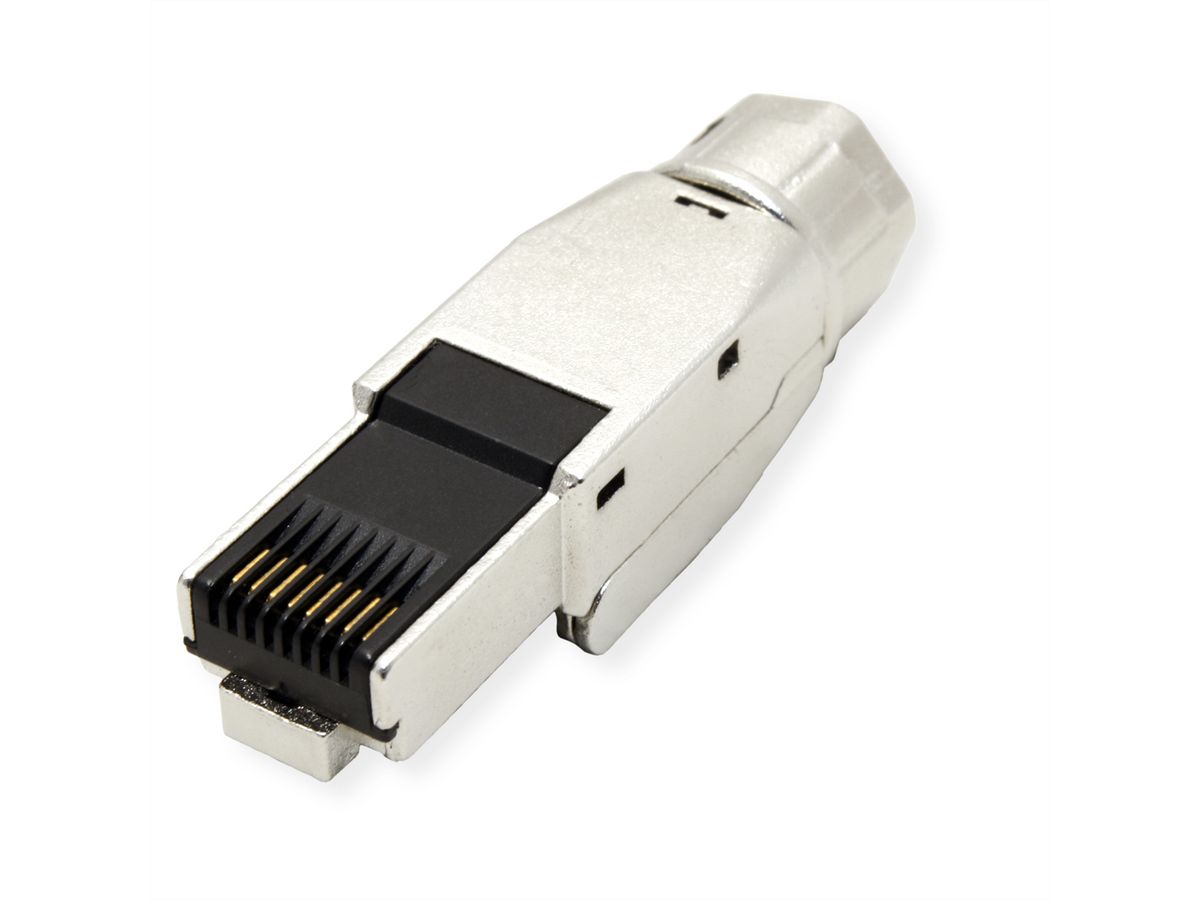

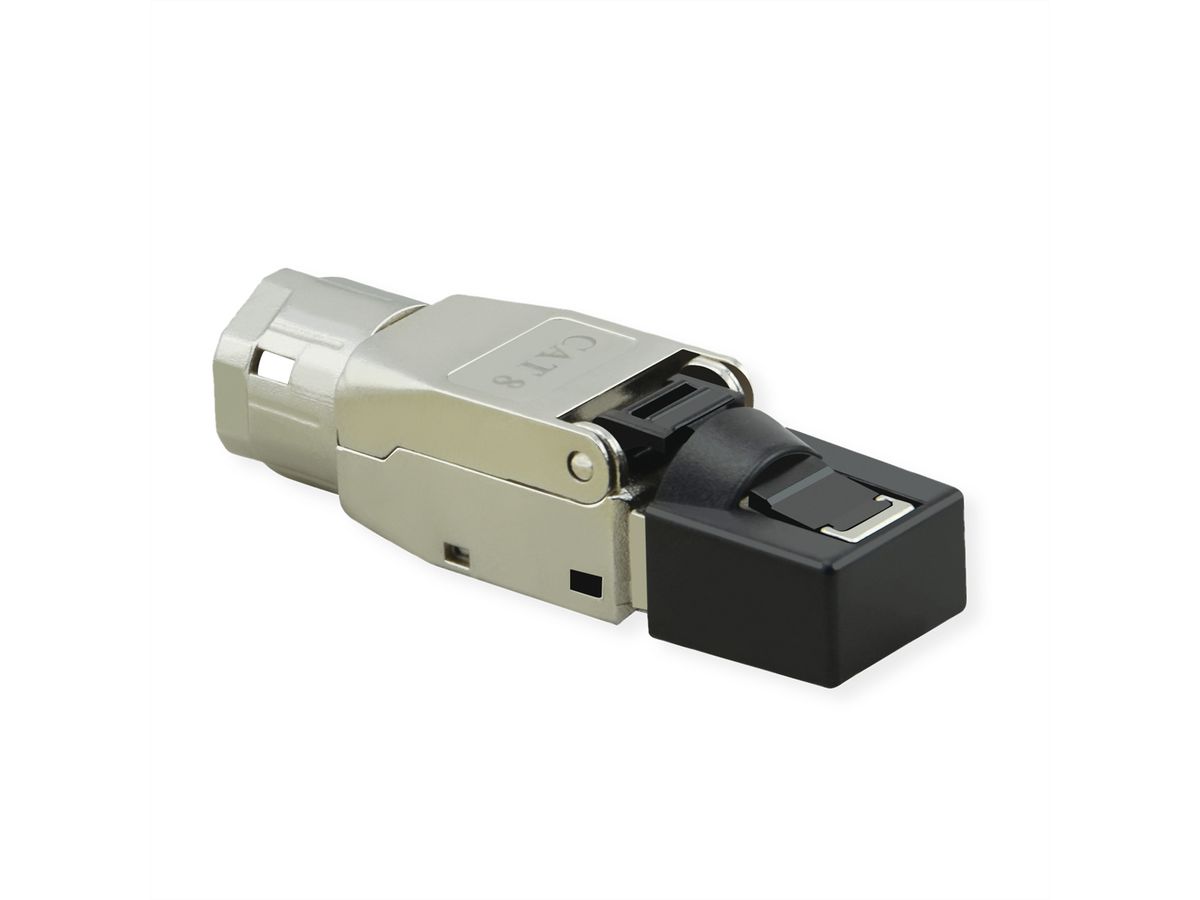

8-wire RJ45 Cat.8 (Class I) field connector plug for an easy, fast and reliable assembly without special tools.

• Full shielded with zinc alloy housing
• T568A & T568B wiring
• Cat. 8 channel performance verified
• Solid: 1/22AWG(0.65MM)-1/26AWG(0.4MM)
• Stranded: 7/22AWG-7/26AWG
• For cables with outer diameters of 5.0 to 8.5mm
• Suitable for PoE+ (IEEE 802.3at) applications

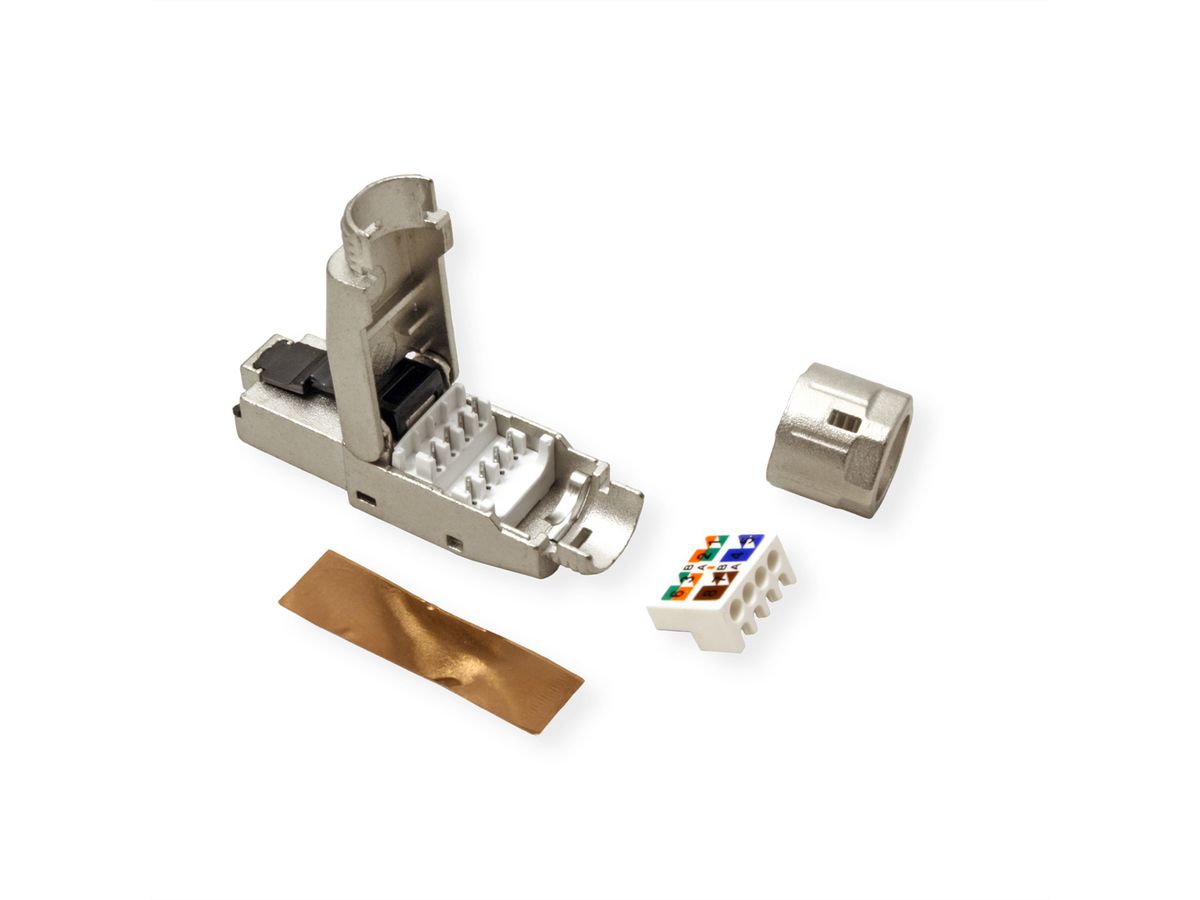

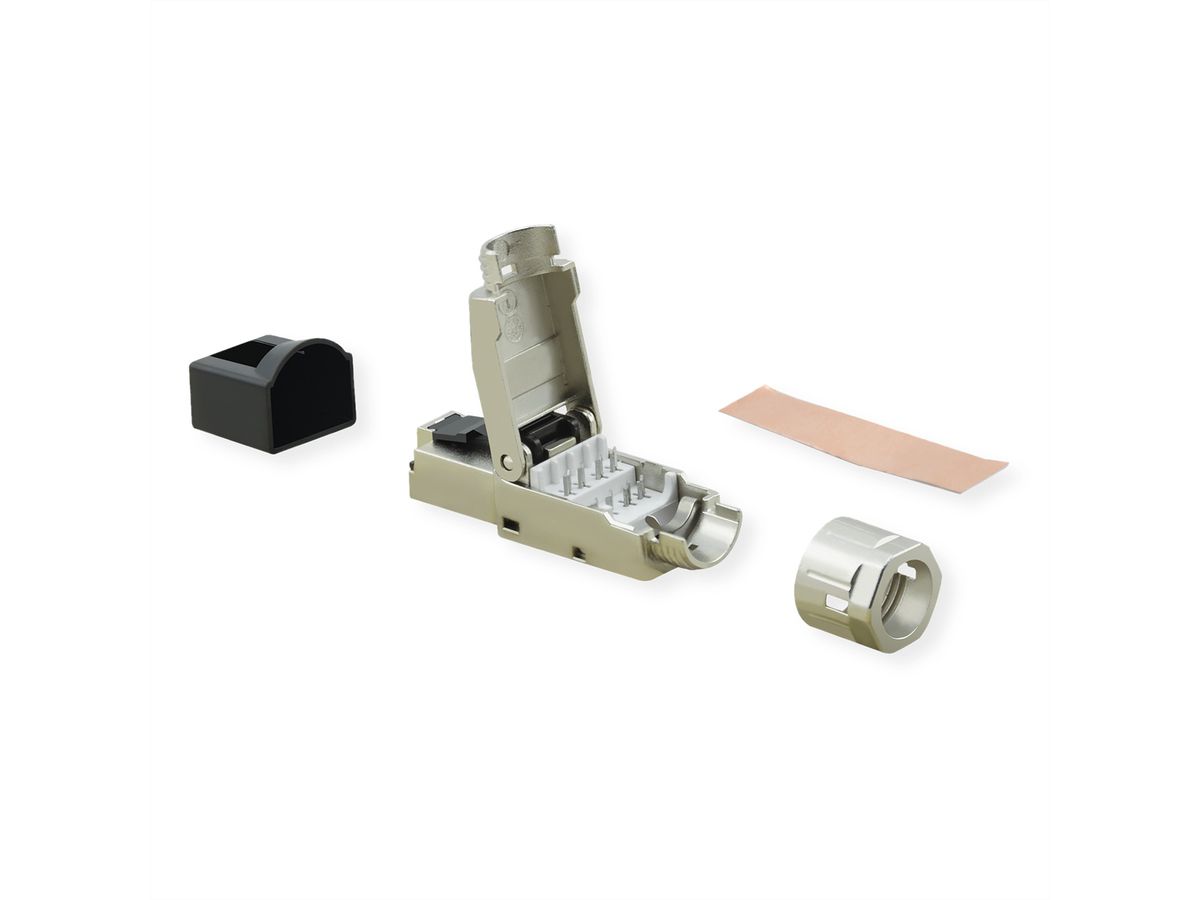

• Easy, quick and reliable installation, no special tool required
• The ring ensures 360° forwarding of the shielding of the cable to the shielding of the plug

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	silver
Shield type	Screened
Transfer quality	Cat8.1 / Class I
Shield contacts	ja
separate strain relief	yes
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	13 mm
Width	14 mm
Depth	48 mm
Weight	19 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	30 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.025 kg
Material (casing)	Zinc alloy

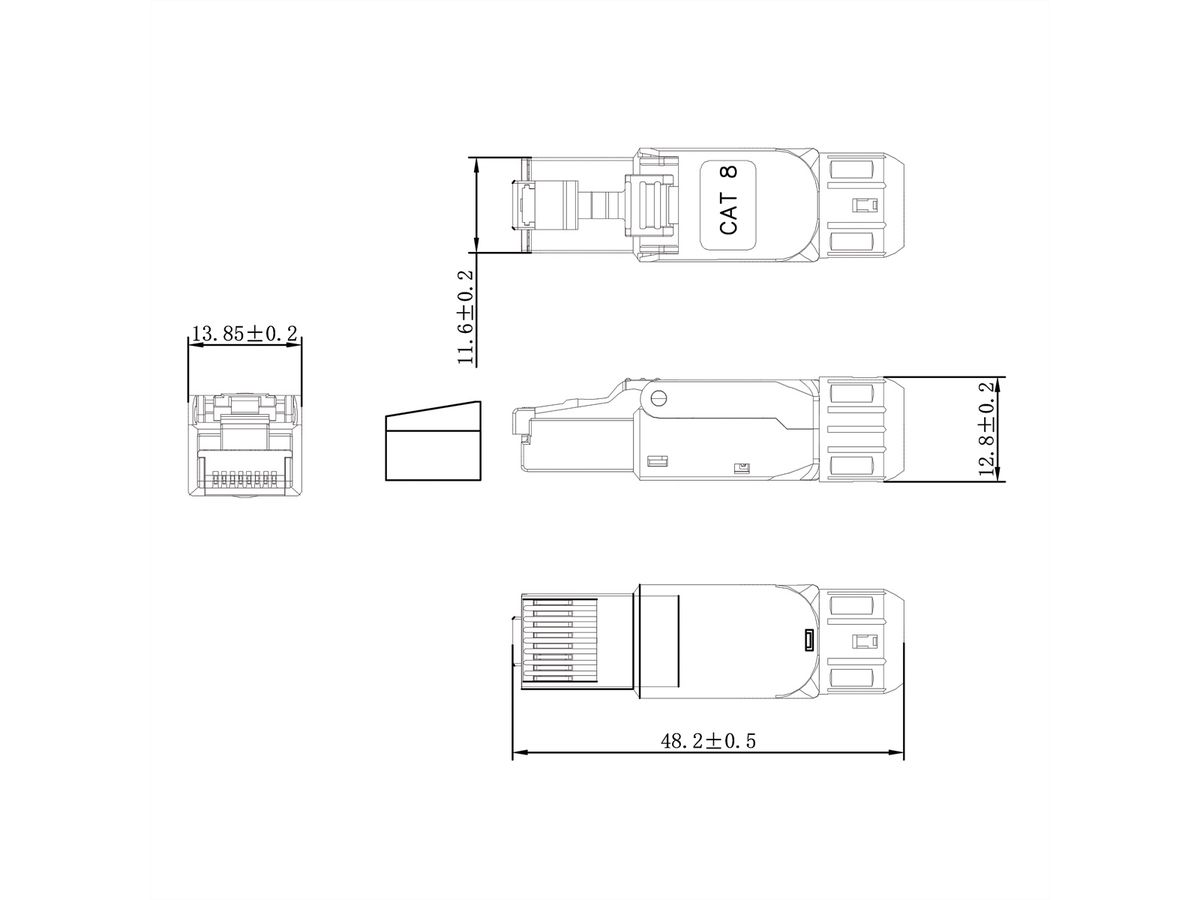

Dimensions (HxWxD)	13 mm x 14 mm x 48 mm

Downloads

Product data sheet - English (47.8 KB)

Download
