VALUE HDMI Splitter, 1x2, 4K60Hz

VALUE HDMI Splitter, 1x2, 4K60Hz

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 01/30/2025
Item no. 14993583
Brand / Manufacturer VALUE
Manuf. item no. 14.99.3583
EAN 7630049633292

Description

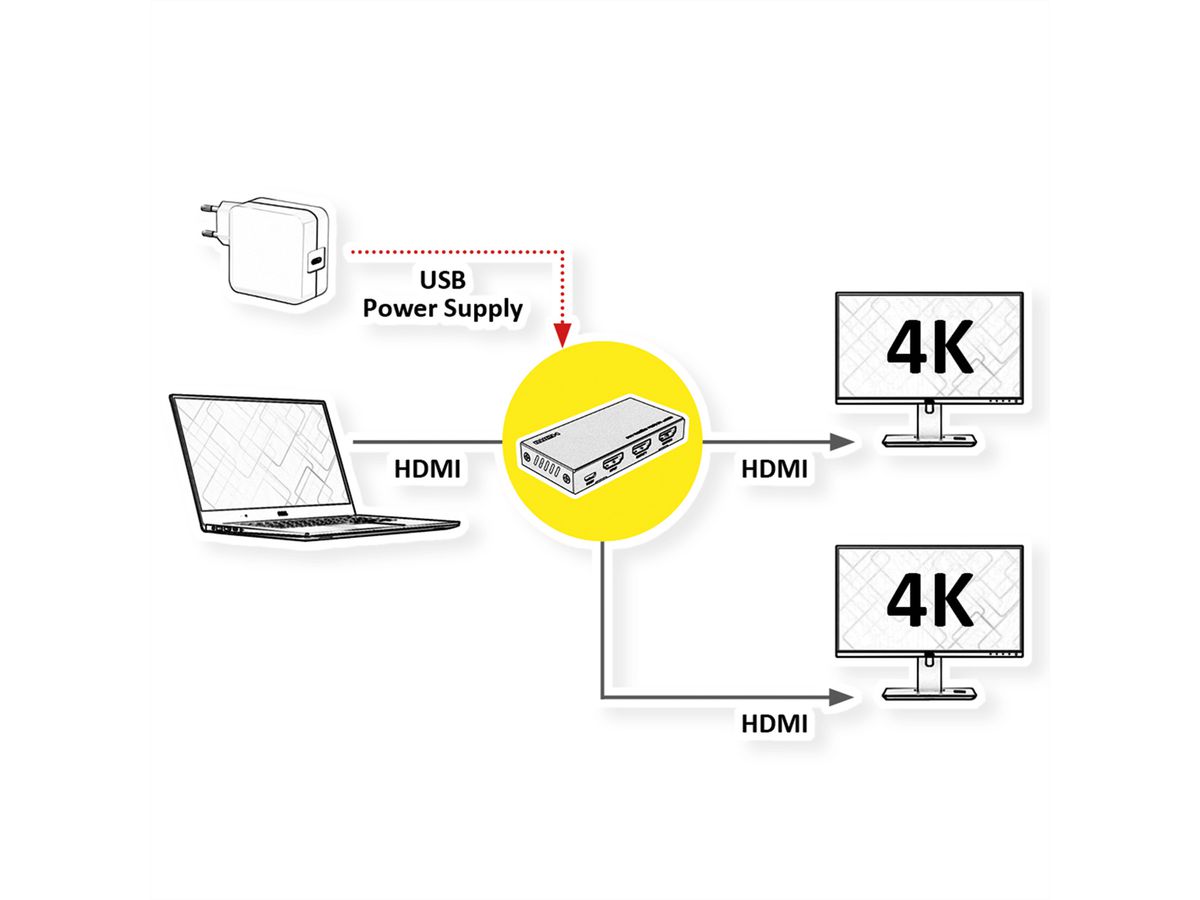

This 4K@60Hz HDMI Splitter1x2 allows you to share two HDMI displays or projectors with an HDMI-enabled audio/video source device. It is backwards compatible with previous HDMI revisions and therefore also supports HDMI devices with 1080p / 720p video resolution. It has three different EDID modes: Auto/Copy/Downscaler.

  • Duplicates a HDMI video signal to two HDMI video signals with a resolution of up to 4K@60Hz

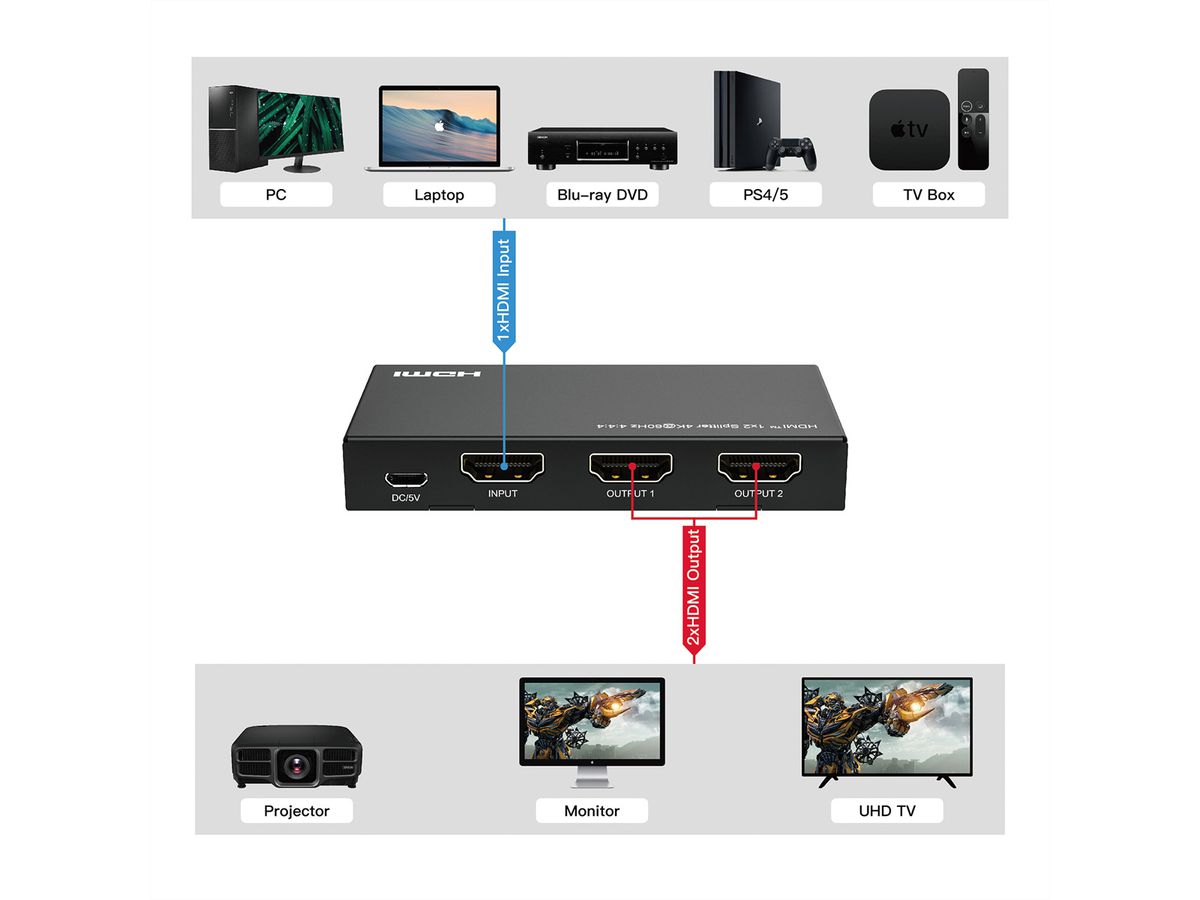

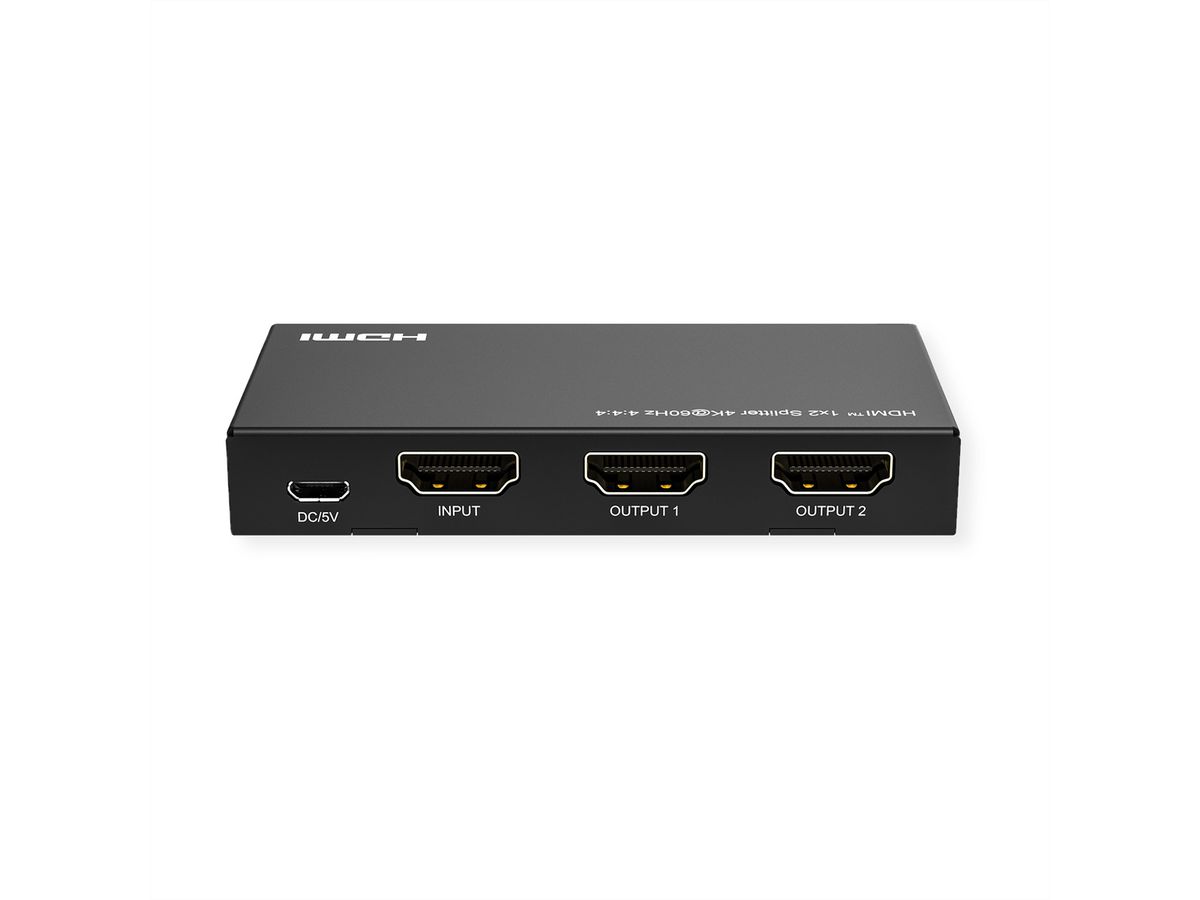

  • Connectors: 1 HDMI Input (e.g. DVD-player) and 2 HDMI outputs
  • Supports max. 3840 x 2160 @60Hz
  • Plug & play, easy to install and simple to operate
  • No software installation required

High resolution up to 4K@60Hz YUV 4:4:4 and full 3D video format
HDCP 2.2 and HDCP 1.4 / High Dynamic Range (HDR) video.
600MHz/6Gbps per channel (18Gbps all channels) bandwidth / 12bit per channel (36bit all channels) deep color.
Uncompressed audio such as LPCM.
Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby Tru

3 different EDID modes - Auto/Copy/Downscaler.

1. Normal Auto EDID Mode:
Retrieves the lower resolution and audio format of both outputs for the input device to output that signal to both outputs.

2. Copy EDID Mode:
Copies the resolution and audio format of output 1 for the input device to output that signal to both outputs.

3. Downscaler EDID Mode:
Mixed resolutions are supported. For two screens with same refresh rates, but different resolutions, one of the two output signals can be
downscaled from 4K to 1080p.

Specifications

Manufacturer VALUE
Product group Splitters and selectors
Product type HDMI-Video-Splitter
Colour black
Scope of delivery Splitter, Manual, USB power supply cable
Interface HDMI
Inputs 1
Outputs 2
Video input 1x HDMI Female
Video output 2x HDMI Female
Max. resolution (nom.) 3840 x 2160 @60Hz
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Operating temperature min. 0 °C
Operating temperature max. 70 °C
Height 14 mm
Width 90 mm
Depth 44 mm
Weight 87 g
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0 kg
Dimensions (HxWxD) 14 x 90 x 44 mm

Downloads

Product data sheet - English (65.2 KB)

Download

User manual - Deutsch (286.2 KB)

Download

User manual - English (264.7 KB)

Download

User manual - Français (267.2 KB)

Download
