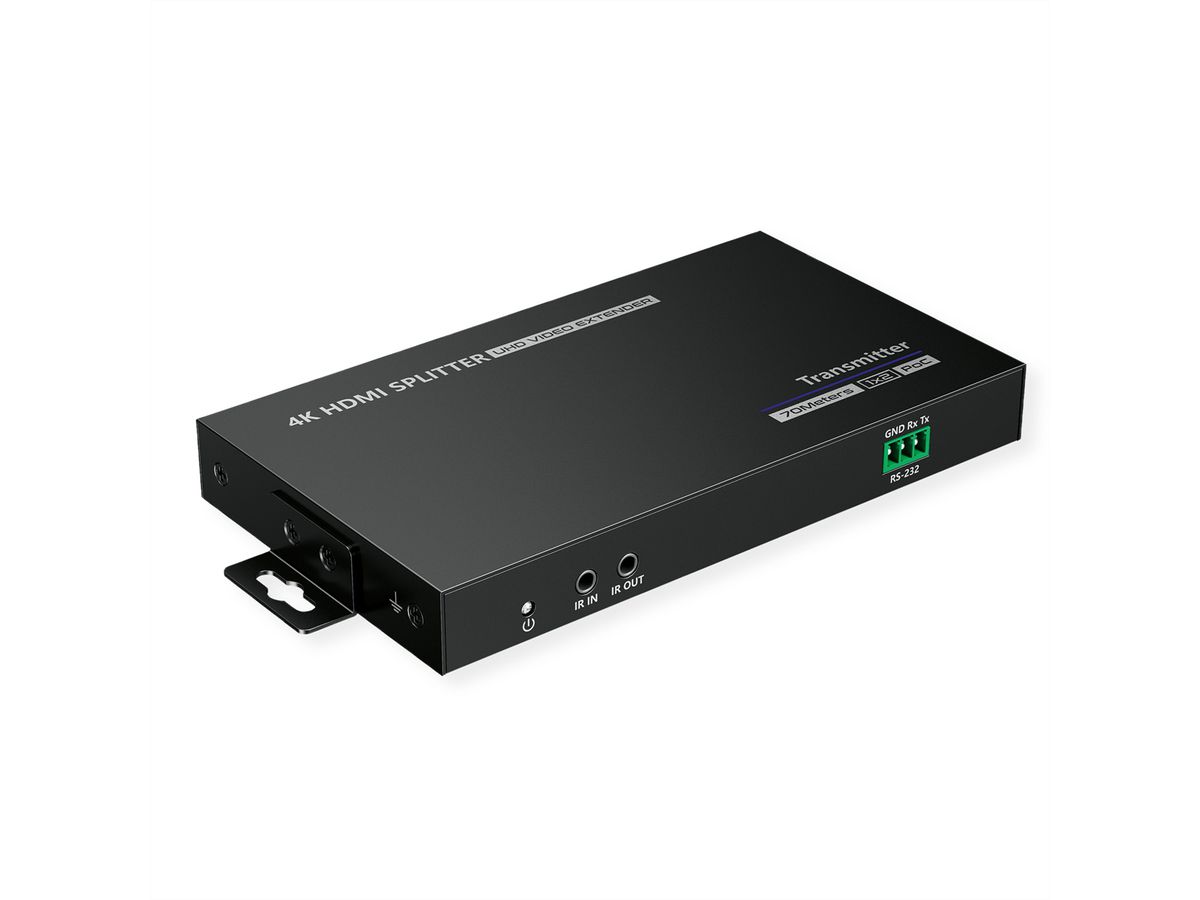

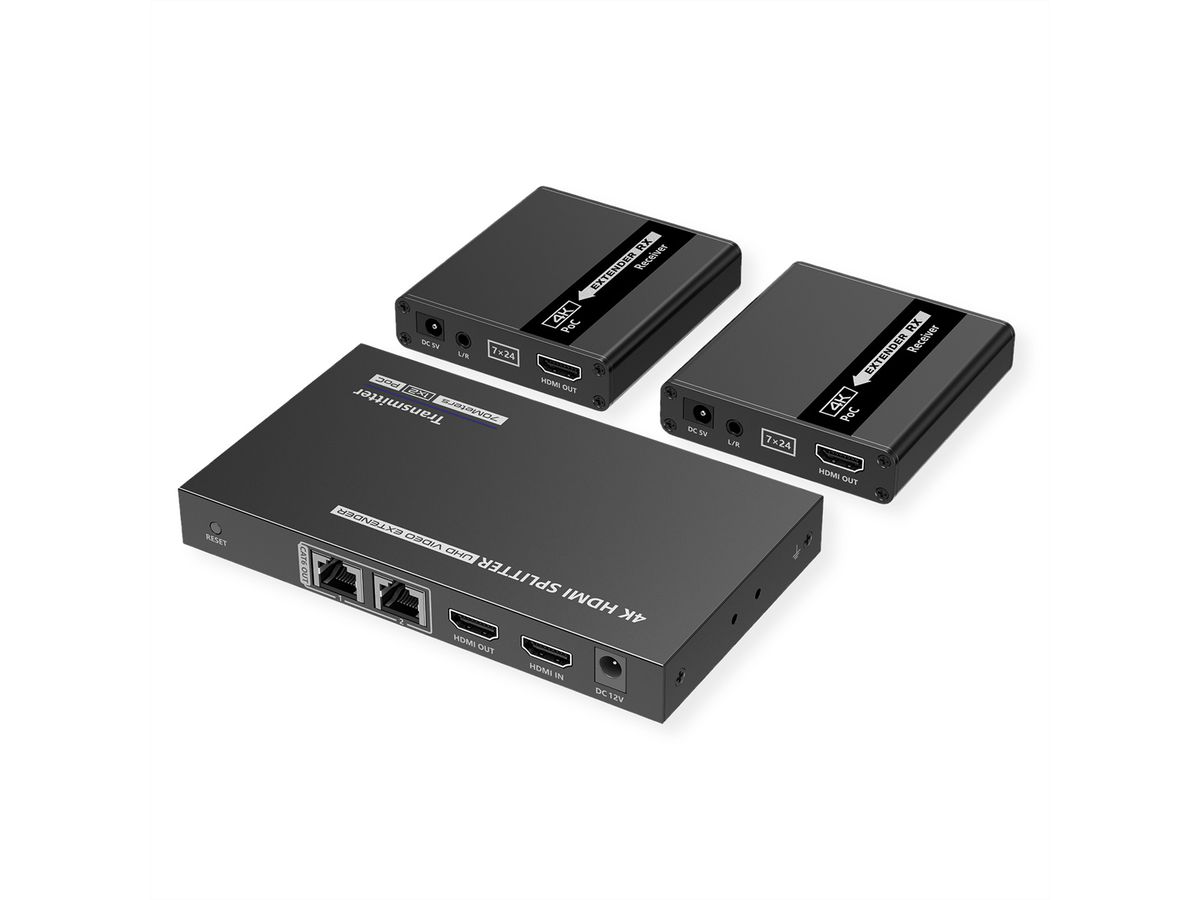

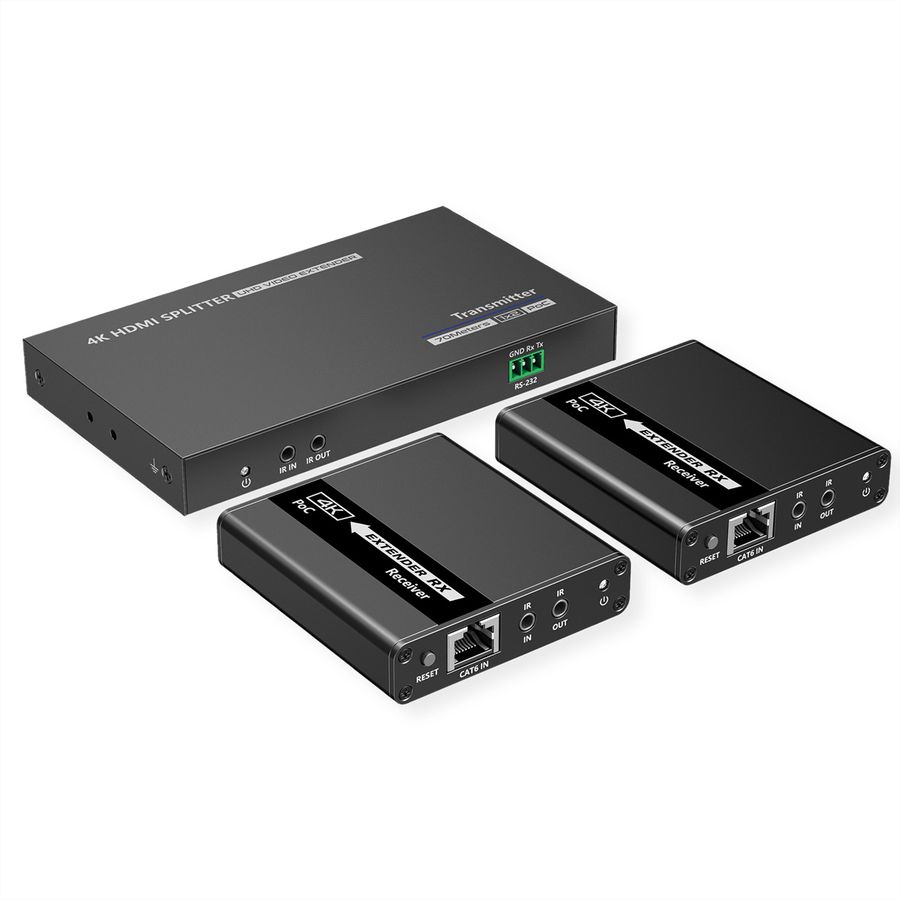

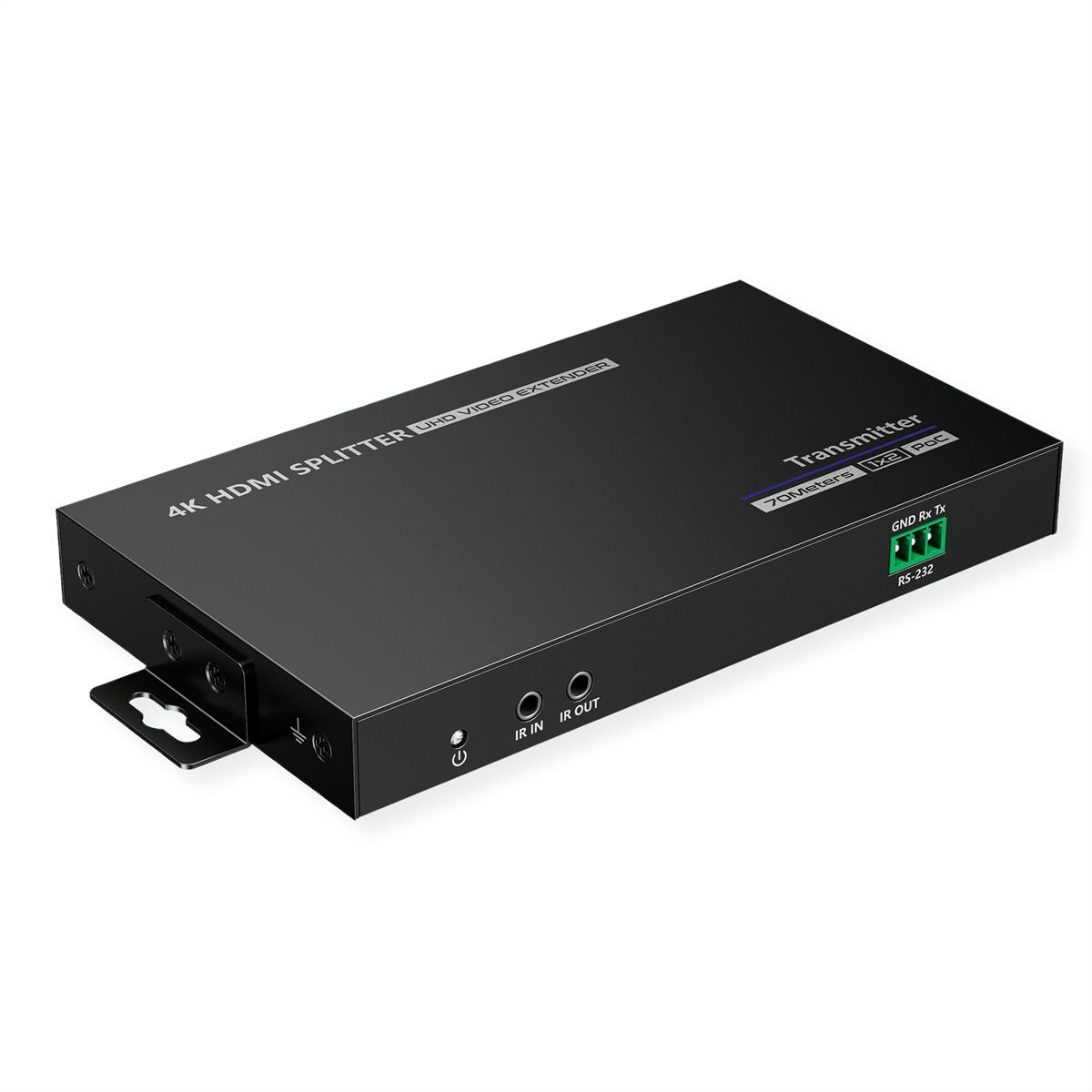

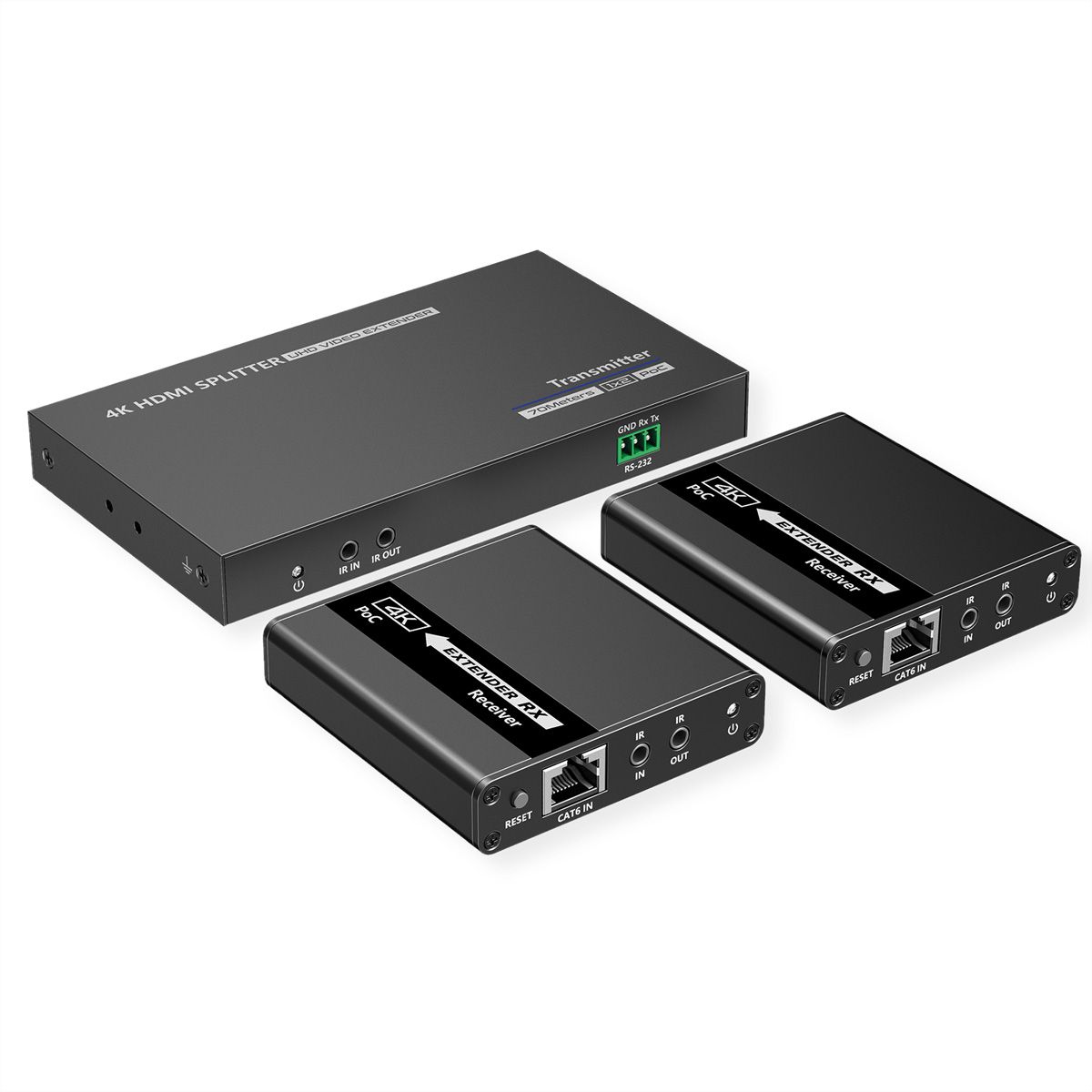

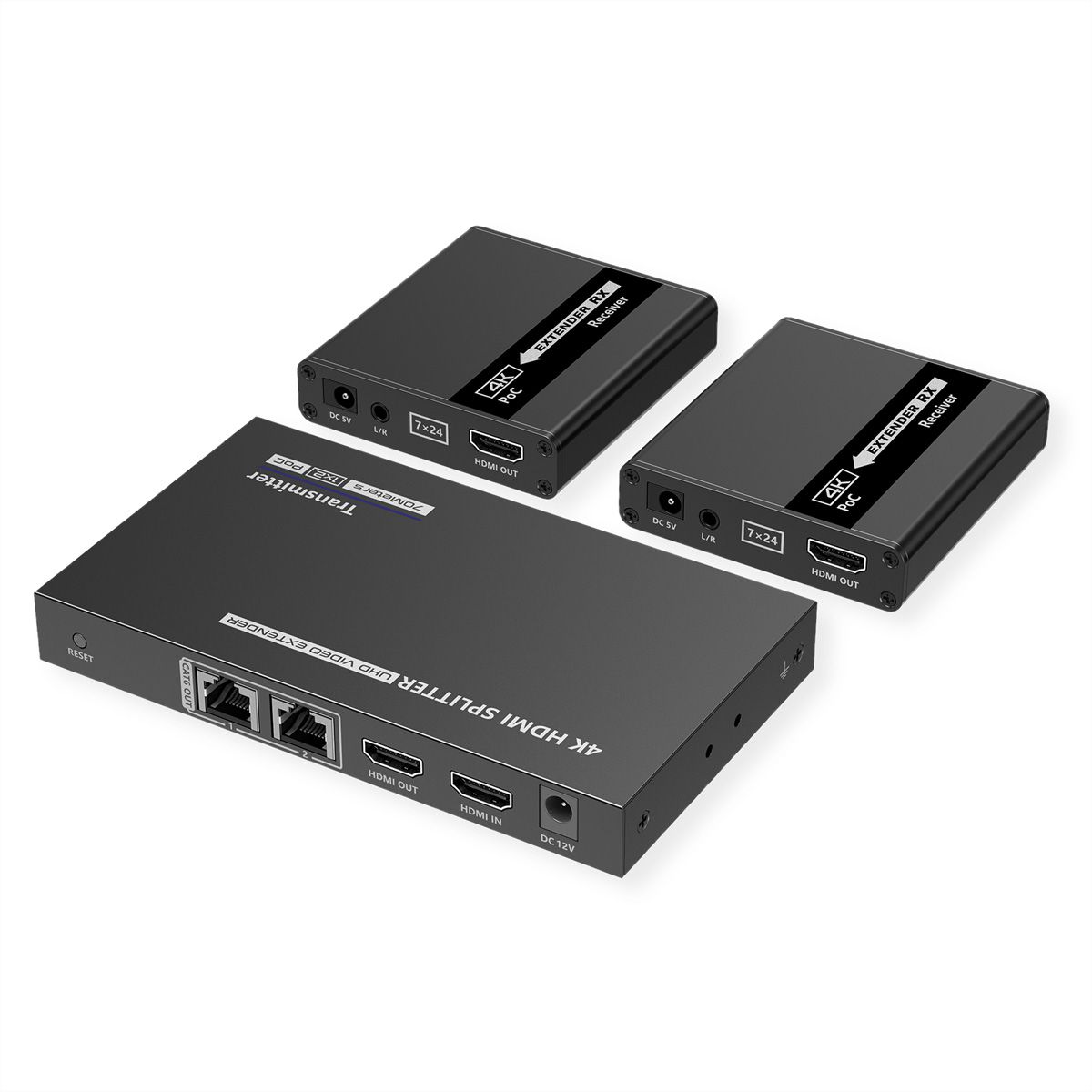

VALUE HDMI Splitter 1x3 with Extender 1x2 over Twisted Pair, 40m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 14993464 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. item no. | 14.99.3464 |
| EAN | 7630049626904 |
| Item weight | 0.8 kg |
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description

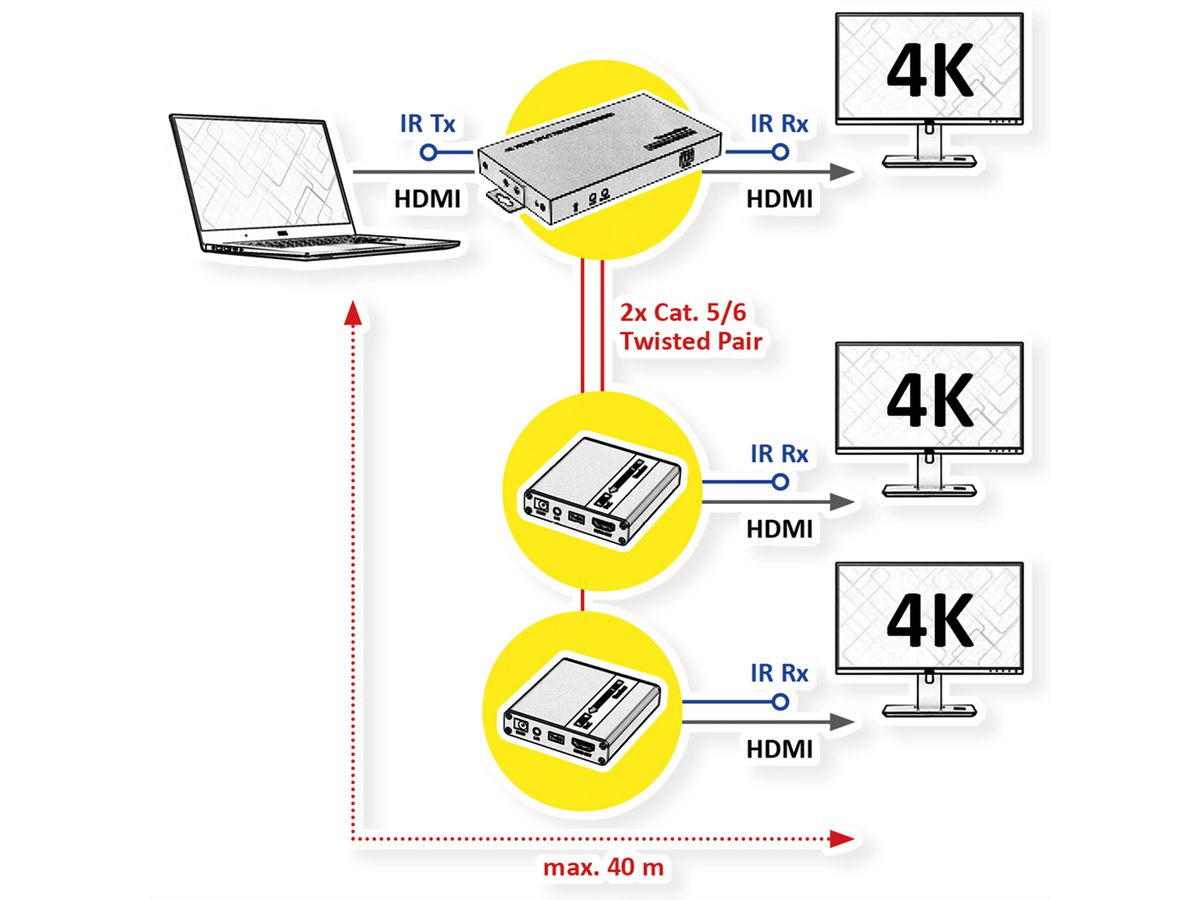

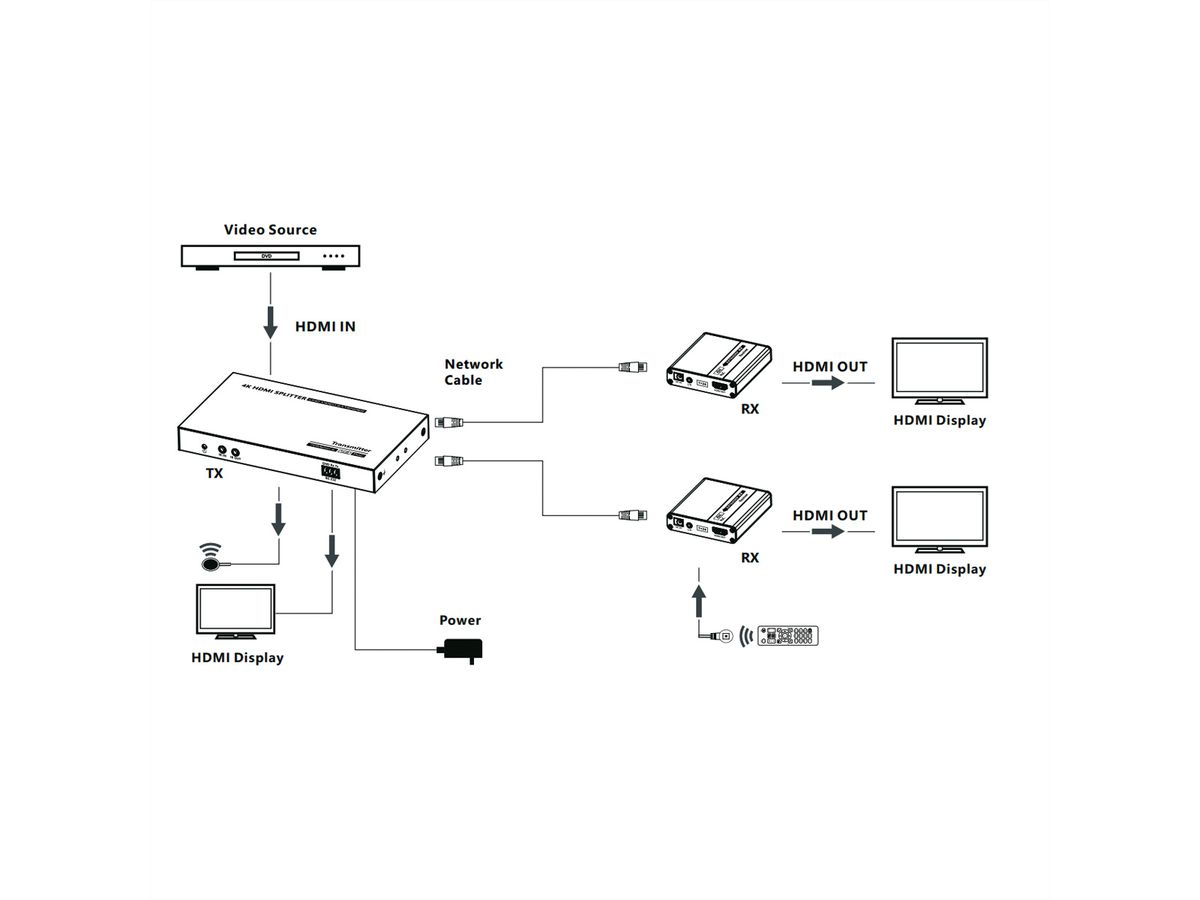

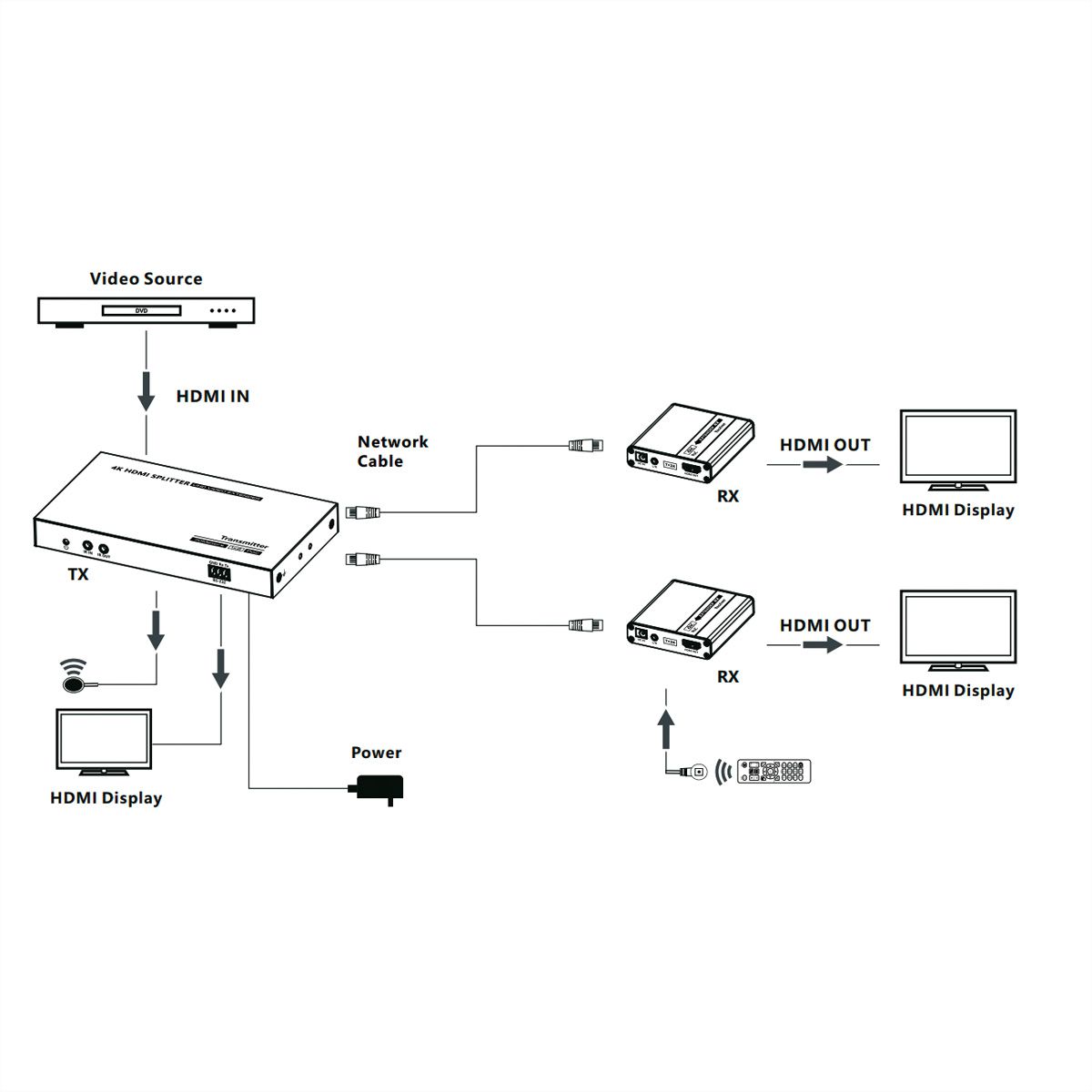

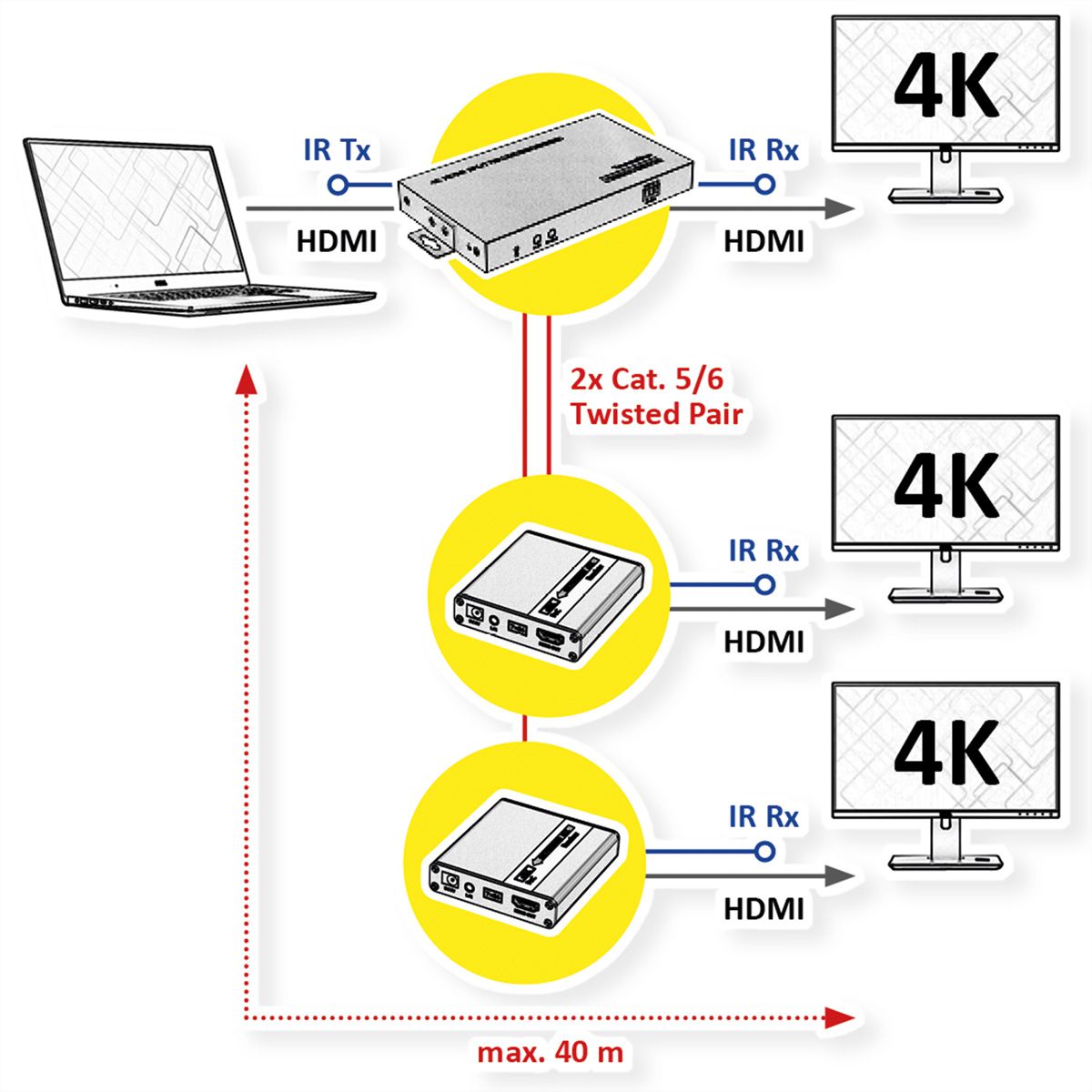

HDMI video splitter 1x3 and HDMI video extender 1x2 via twisted pair cable up to 40 meters at up to 4K 30Hz
Suitable for advertising, studios, multimedia classrooms, etc.- HDMI extender kit with splitter functionality (1 input / 3 outputs)
- It distributes 1 HDMI input signal to 3 identical signal outputs
- Two signal outputs can be extended up to 40 meters
- Max. supported resolution: 4K30Hz
- Bi-directional IR passthrough
- 3.5mm L/R audio output functions
- Supported Audio Formats: PCM, LPCM, DTS-HD, DTS-Audio
- Stable metal casing
- Dimensions: TX: 151.5x86.5x19mm // RX: 75x80x18mm
- Power supply included in delivery
- Contents: Transmitter, 2x Receiver, 3x power supply (TX: 1x 12 VDC, 1A, RX: 2x 5VDC, 1A; ), manual
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Splitters and selectors |
| Product type | HDMI Extender |
| Colour | black |
| Scope of delivery | Transmitter, 2x Receiver, 3x power supply (RX: 2x 5VDC, 1A; TX: 1x 12 VDC, 1A), manual |
| Interface | HDMI |
| Max. distance | 40 m |
| Video input | HDMI 1.4 |
| Video output | HDMI 1.4 |
| Video band width | up to 10,2 Gbps |
| Max. resolution | 3840 x 2160 @30Hz (4K, Full HD) |
| Dimensions (HxWxD) | TX: 151.5x86.5x19mm // RX: 75x80x18mm |
| Power supply output | TX: DC 12V, 1A RX: DC 5V; 1A |
| Technical particularity | extends the signal up to 40m |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Height | 19 mm |
| Width | 150 mm |
| Depth | 167 mm |
| Weight | 600 g |
| Height of packaging (single piece) | 90 mm |
| Width of packaging (single piece) | 170 mm |
| Depth of packaging (single piece) | 230 mm |
| Package weight (single piece) | 0.8 kg |
| Power supply unit | 1 an Receiver |
