The own brand VALUE stands for attractive prices and tested quality.
With the VALUE products you get the best possible price in terms of quality and product features.
:strip_icc():strip_exif()/bilder/s21/21993049_2016_m_0_hi.jpg "VALUE Junction Box Cat.6A (Class EA), STP")
:strip_icc():strip_exif()/bilder/s21/21993049_2000_p_0_lo.jpg "VALUE Junction Box Cat.6A (Class EA), STP")
:strip_icc():strip_exif()/bilder/s21/21993049_2000_p_1_lo.jpg "VALUE Junction Box Cat.6A (Class EA), STP")
:strip_icc():strip_exif()/bilder/s21/21993049_2000_p_2_lo.jpg "VALUE Junction Box Cat.6A (Class EA), STP")

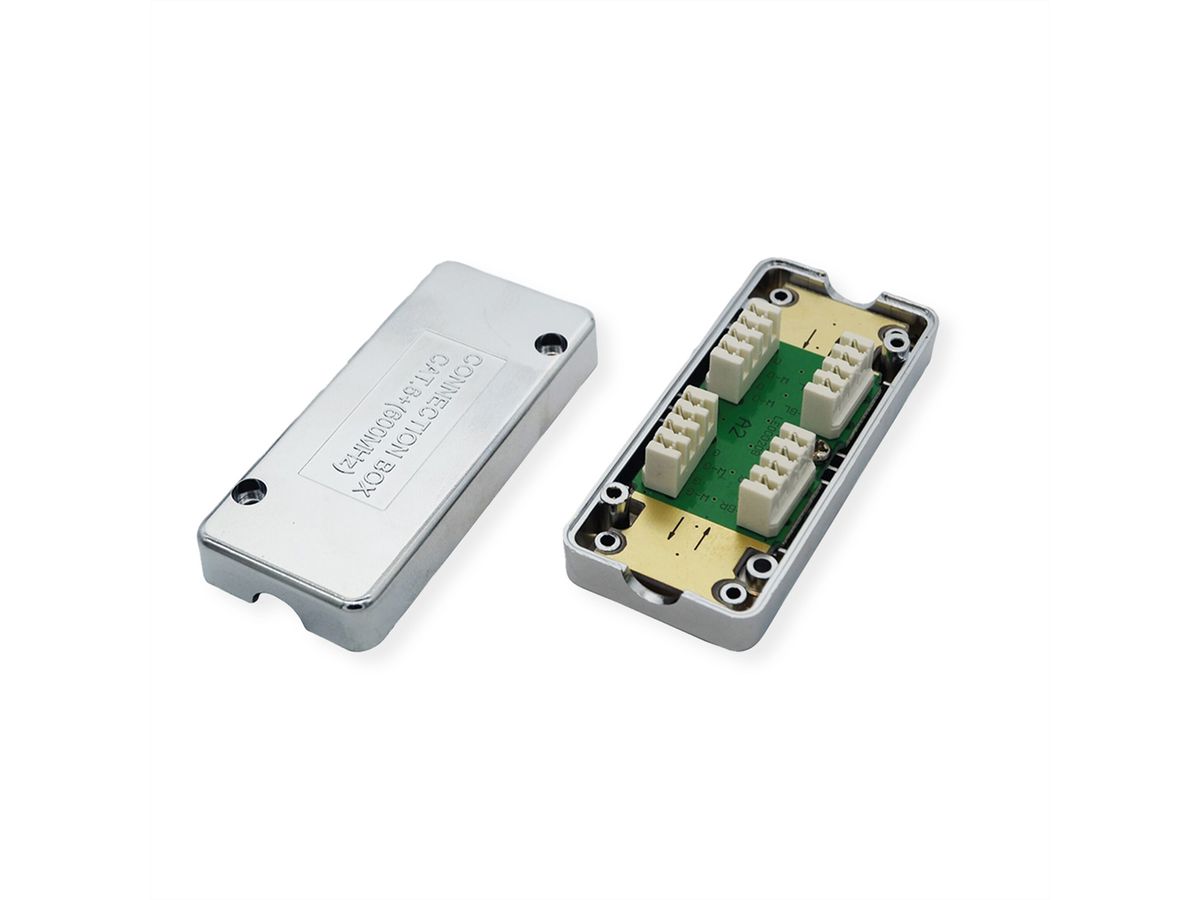

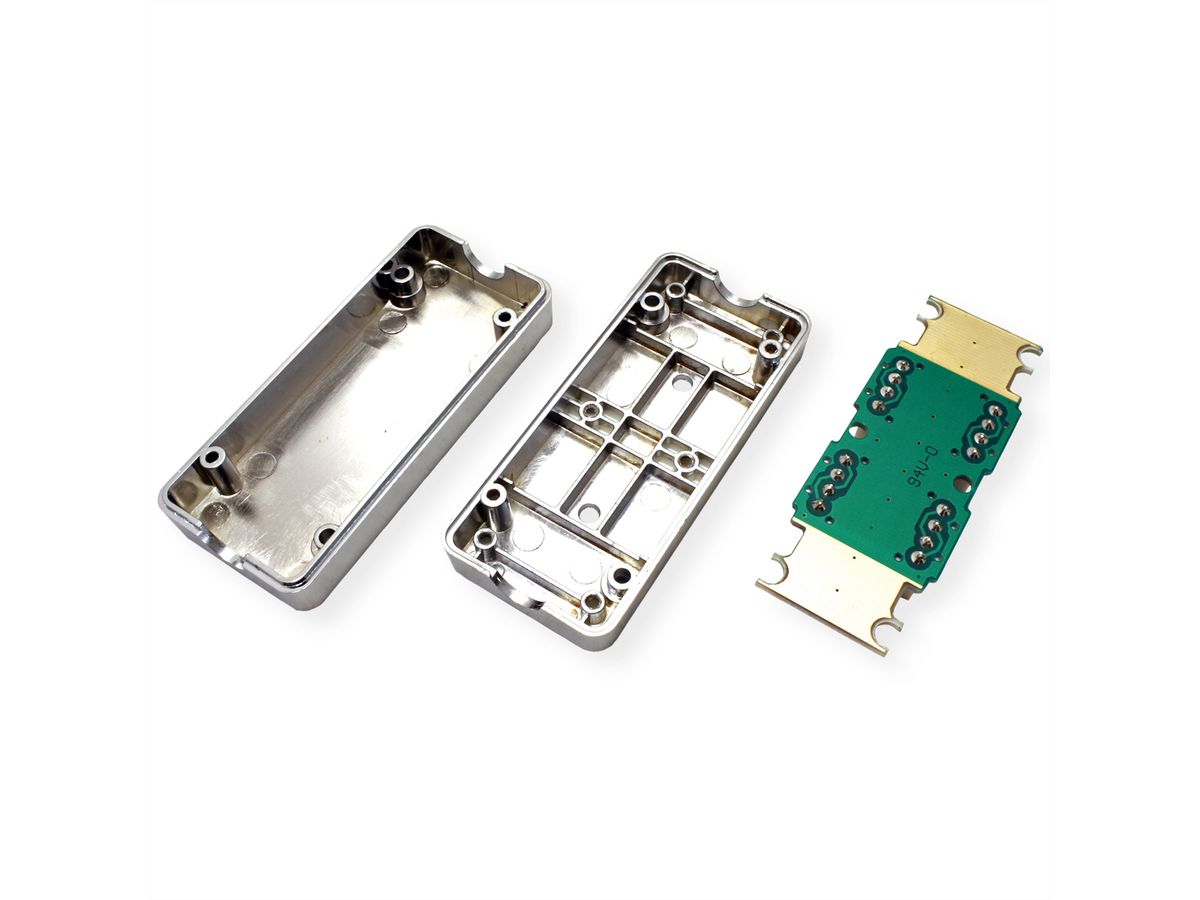

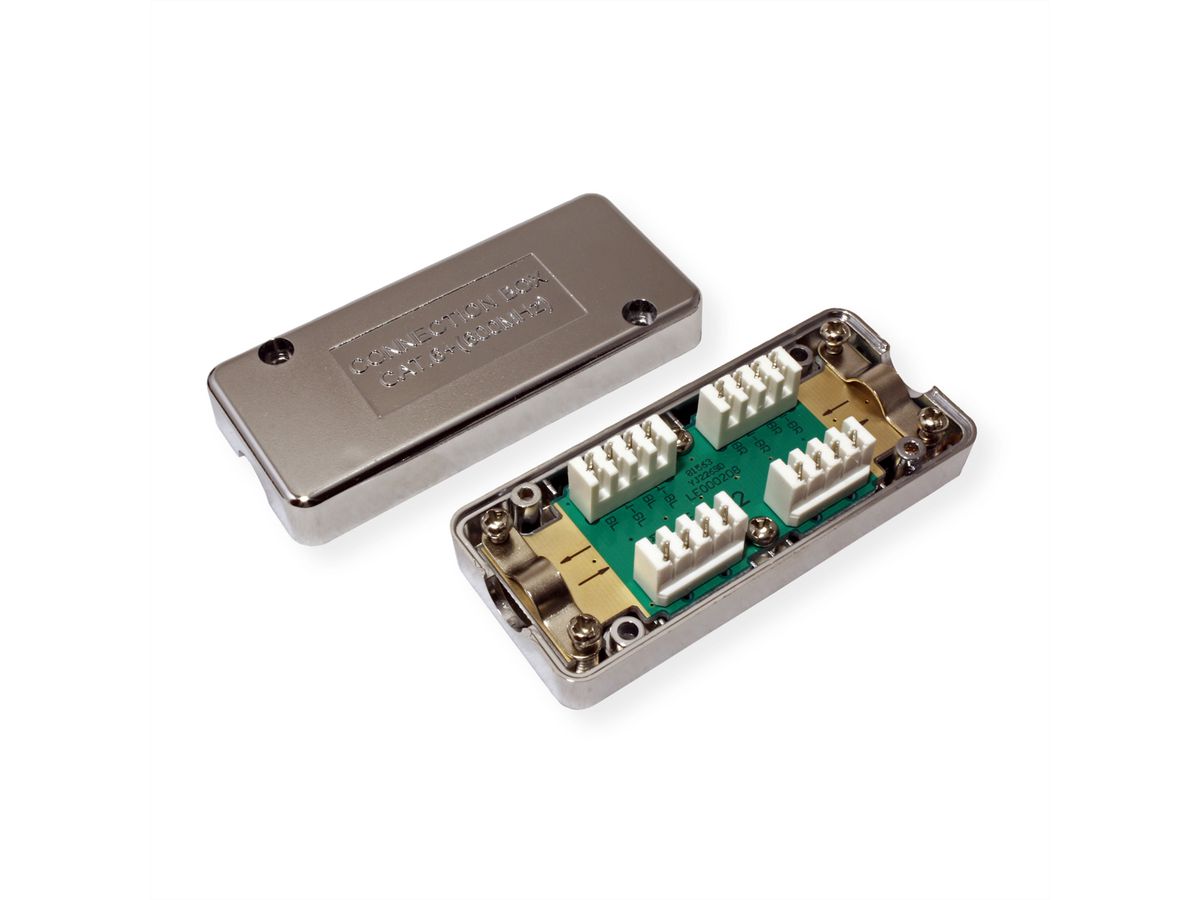

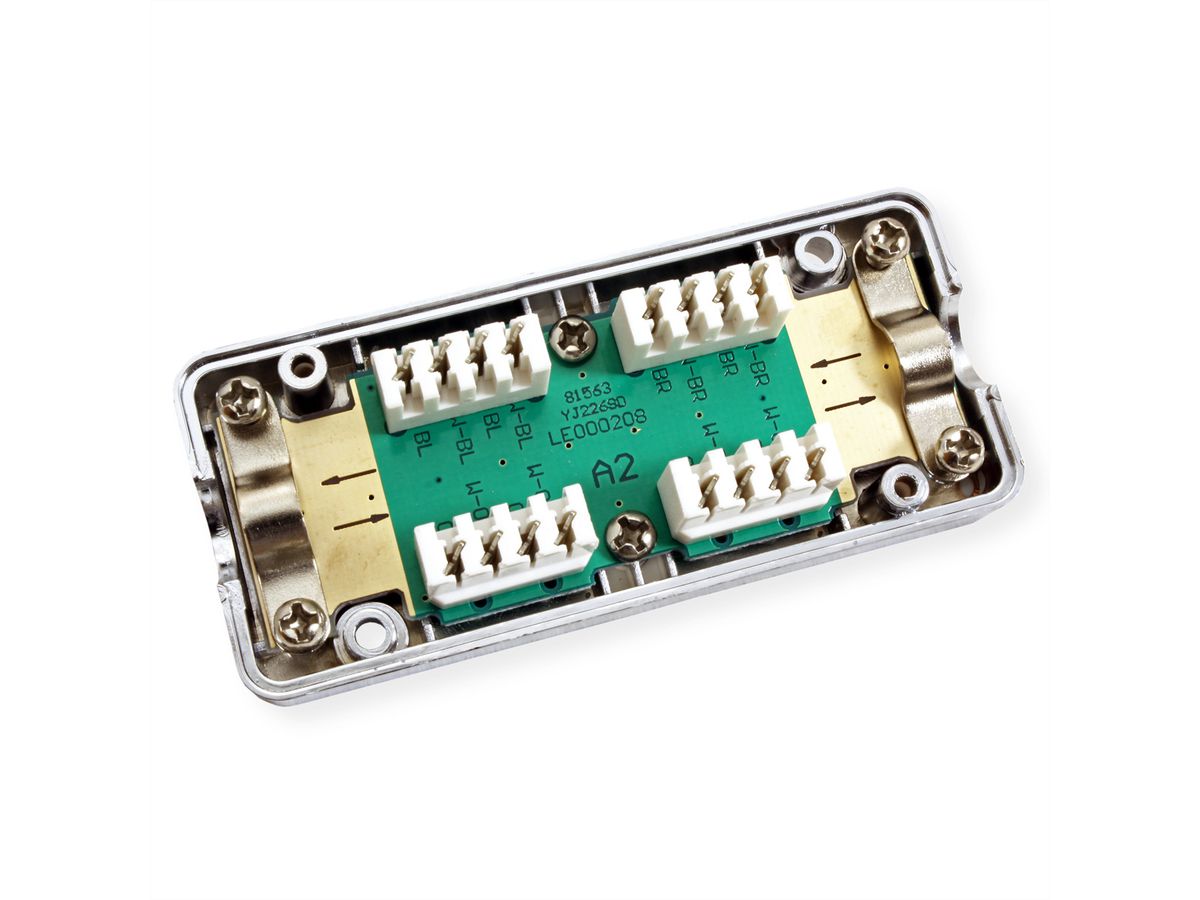

VALUE Junction Box Cat.6A (Class EA), STP
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21993049 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. item no. | 21.99.3049 |
| EAN | 7611990144389 |
| Item weight | 0.01 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
- The VALUE Junction box is used to repair or extend shielded Cat. 6a cables
- With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 6.2mm can be installed
- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
- With the use of the STP type junction box, it's safe against electrical and magnetical interferences
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Connection technology TP |
| Product type | Network junction box |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Assembly cable connection | Krone LSAplus |
| Assignment | EIA/TIA 568B |
| Shield contacts | yes |
| separate strain relief | no |
| Connection direction | Straight |
| Dimensions (HxWxD) | 23 x 37 x 84 mm |
| Height | 23 mm |
| Width | 37 mm |
| Depth | 84 mm |
| Weight | 49.4 g |
| Height of packaging (single piece) | 30 mm |
| Width of packaging (single piece) | 40 mm |
| Depth of packaging (single piece) | 90 mm |
| Package weight (single piece) | 0.01 kg |
