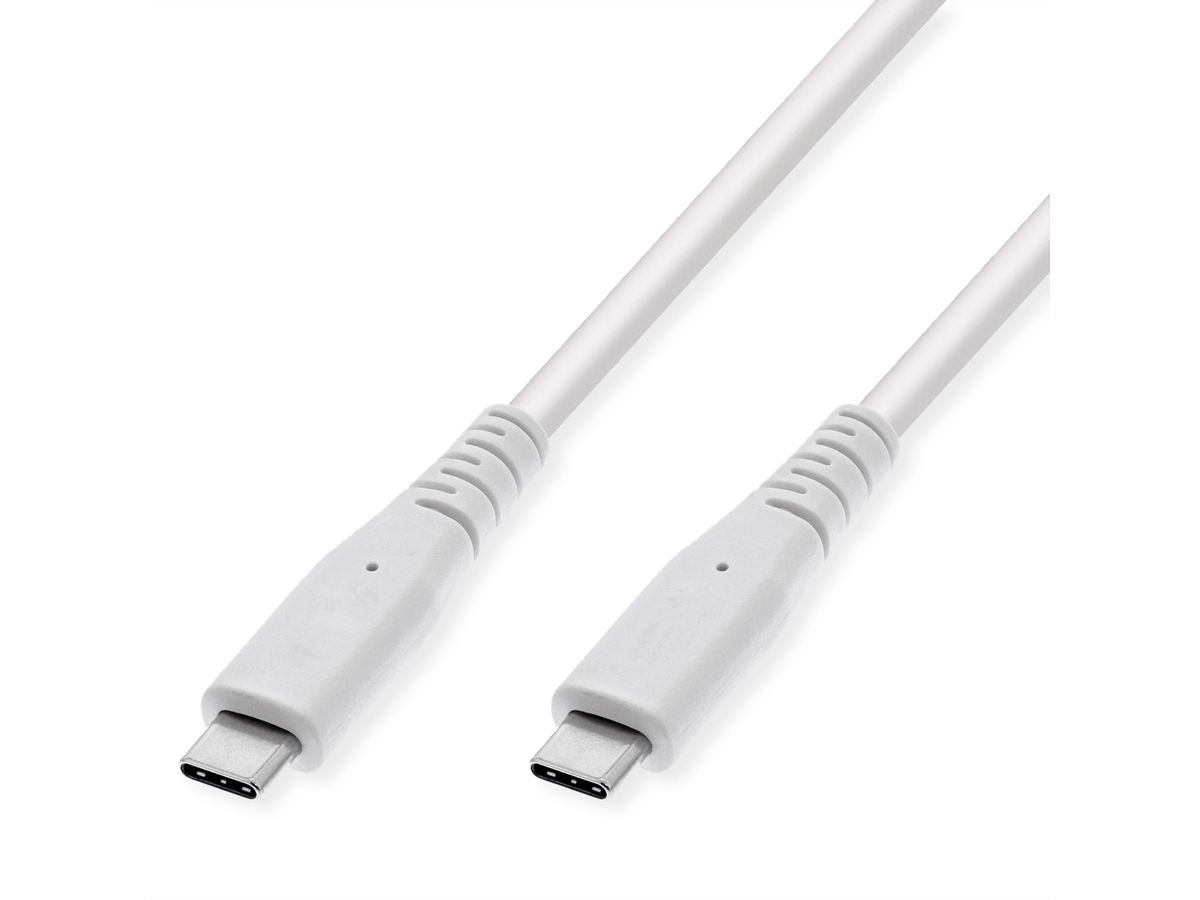

VALUE USB 3.2 Gen 2 Compatible Cable, PD (Power Delivery) 60W, C-C, M/M, white, 3 m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription

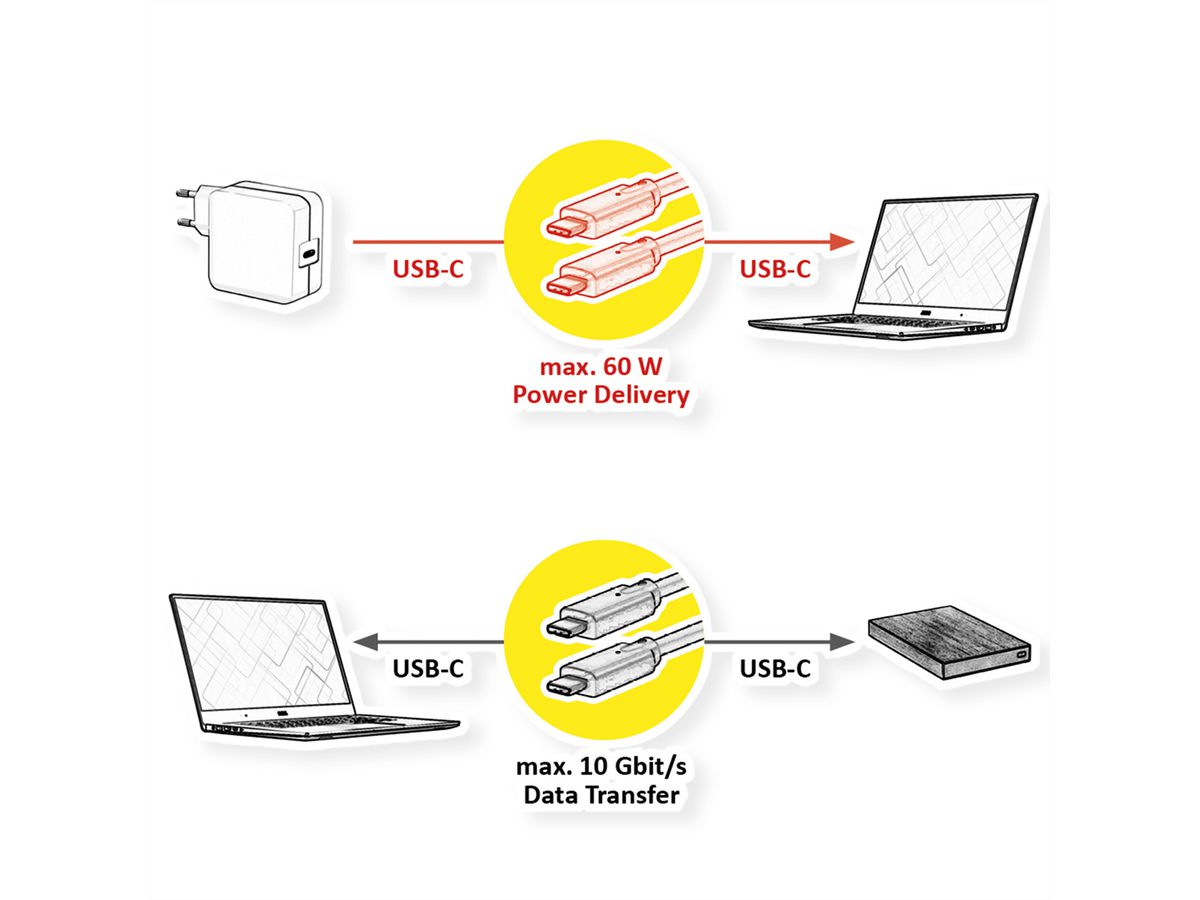

USB 3.1 / USB 3.2 Gen 2 compatible cable with a data transmission rate of up to 10 Gbit/s and Power Delivery support of up to 60W!
- High quality USB 3.1 / USB 3.2 Gen 2 compatible cable with improved shielding
- With the reversible Type C connectors at both ends
- Gold-plated contacts for low wear at high plugging cycles
- Suitable for data transfer rates of up to 10 Gbit/s
- Supports USB Power Delivery to 60W
- Supports video transfer
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
Manufacturer | VALUE |
---|---|
Product group | Cable |
Product type | USB 3.2 Cable |
Colour | white |
Length | 3 m |
Transfer quality | USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1) |
Connection ports | USB Type C (USB-C) Male / USB Type C (USB-C) Male |
Side 1 Connector Type | USB Type C (USB-C) |
Side 1 Connector Gender | Male |
Side 2 Connector Type | USB Type C (USB-C) |
Side 2 Connector Gender | Male |
Colour (Cable) | white |
Maximum data transfer rate | 10 Gbit/s |
Area of application | External |
Supported charging technology | USB-PD - USB Power Delivery |
Power (max.) | 60 W |
Cable shielding | Screened |
Operating temperature min. | 0 °C |
Operating temperature max. | 45 °C |
Storage temperature min. | -20 °C |
Storage temperature max. | 70 °C |
Weight | 211 g |
Height of packaging (single piece) | 30 mm |
Width of packaging (single piece) | 170 mm |
Depth of packaging (single piece) | 170 mm |
Package weight (single piece) | 0.13 kg |
Material (external cable mantle) | TPE |
