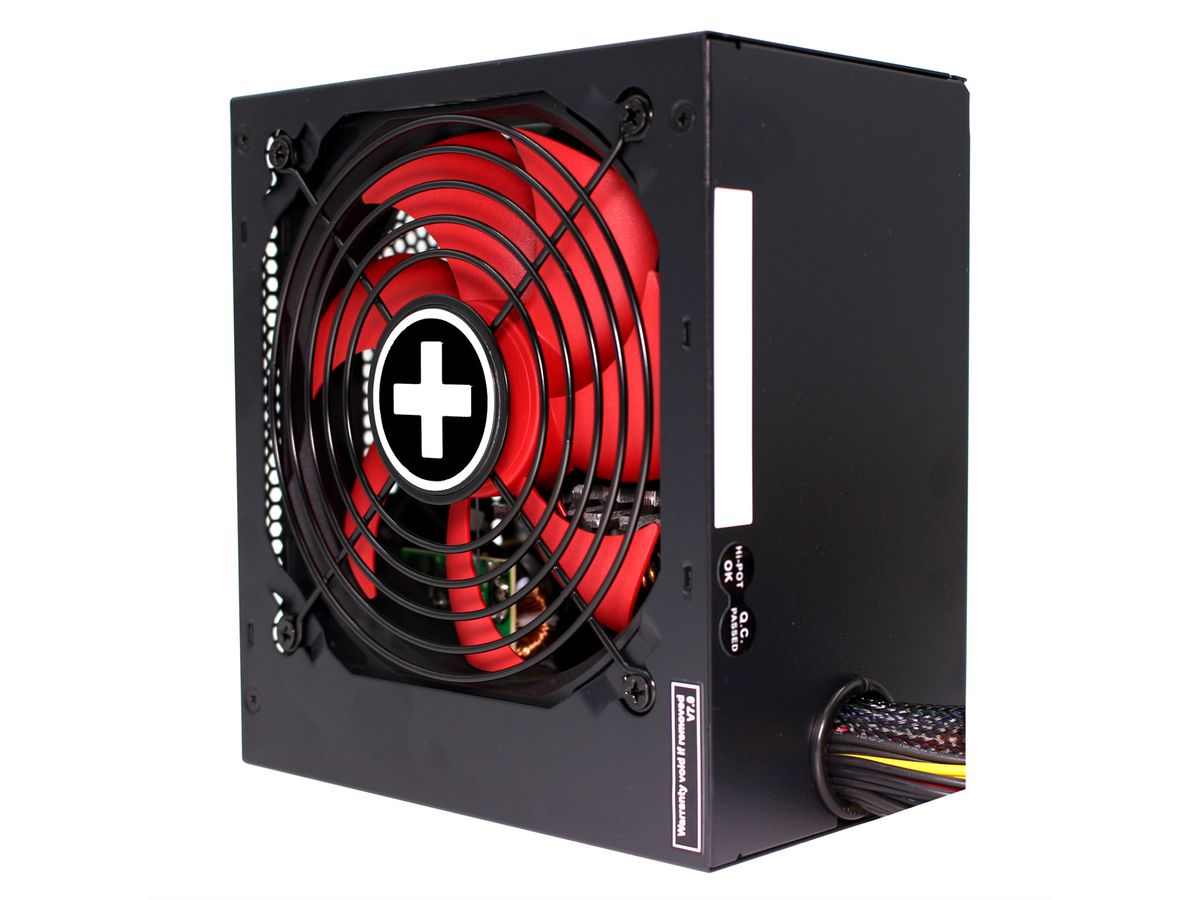

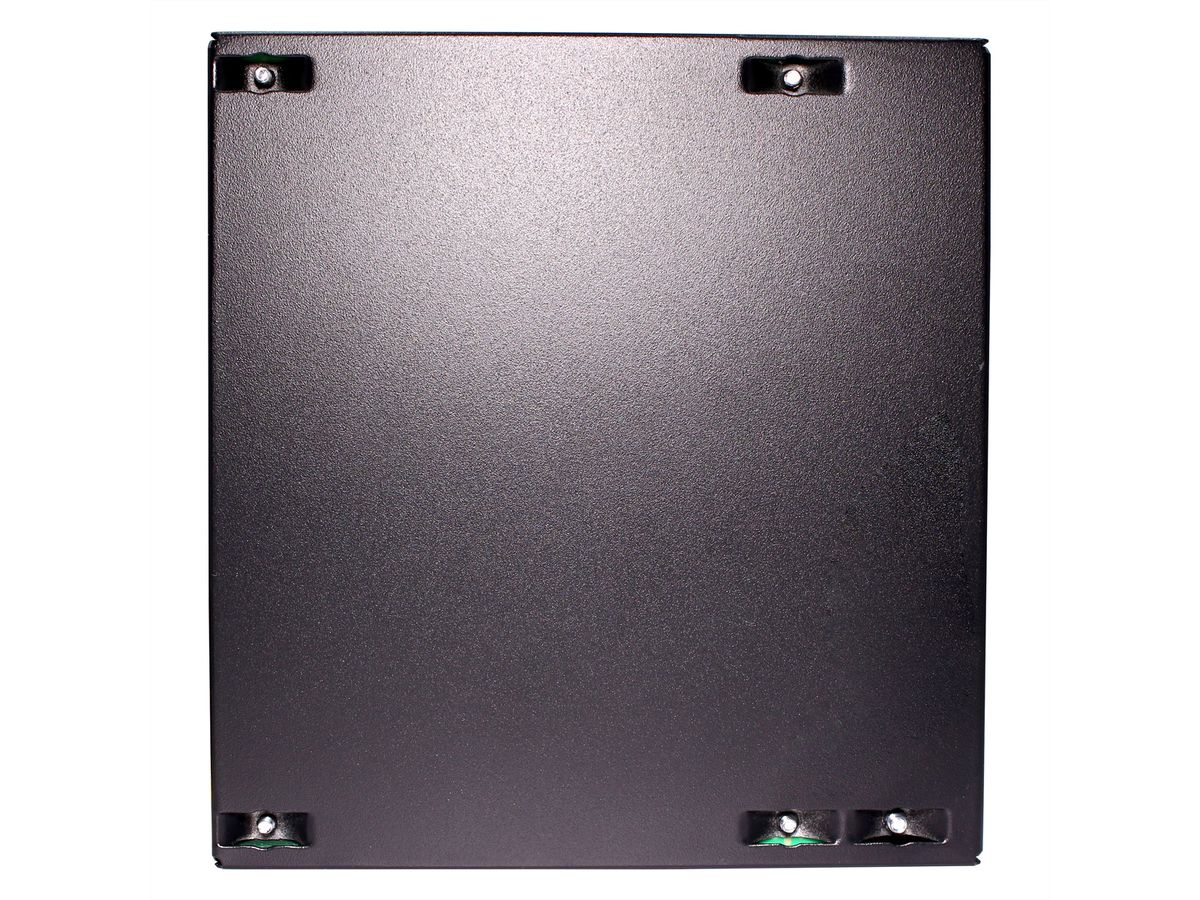

Xilence XP550R10 550W PC Power Supply, 80+ Bronze, Gaming, ATX

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	19104362
Brand / Manufacturer	XILENCE
Manuf. item no.	XN215
EAN	4044953501685
Item weight	1.792 kg
Colour
Output (complete)

Description

The 80+BRONZE certified Gaming Series ensures maximum voltage stability in tough gaming environment with its DC/DC technology.

Four integrated safety circuits also ensure safe operation at all times. Thanks to the integrated fan, the power supply keeps a cool head even in heated gaming sessions.

Gaming BRONZE Series

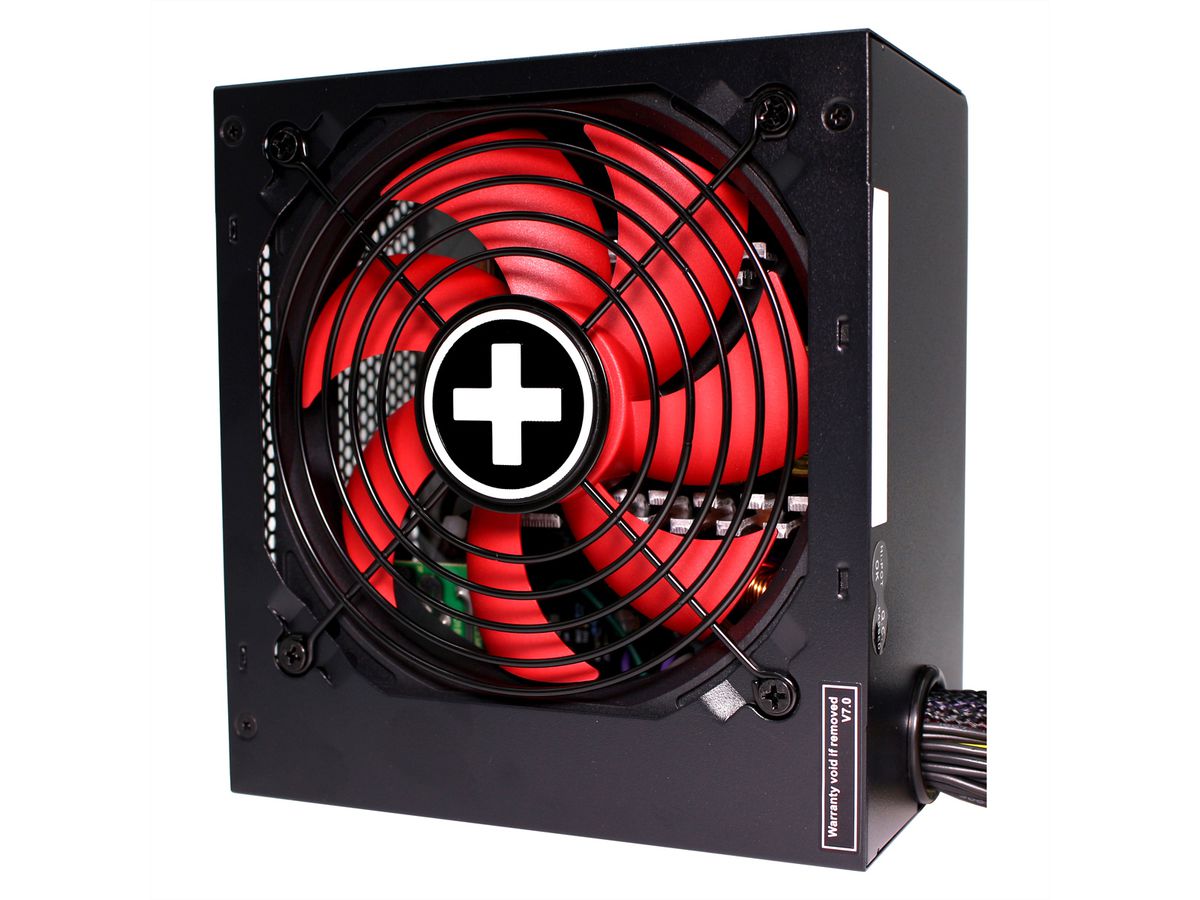

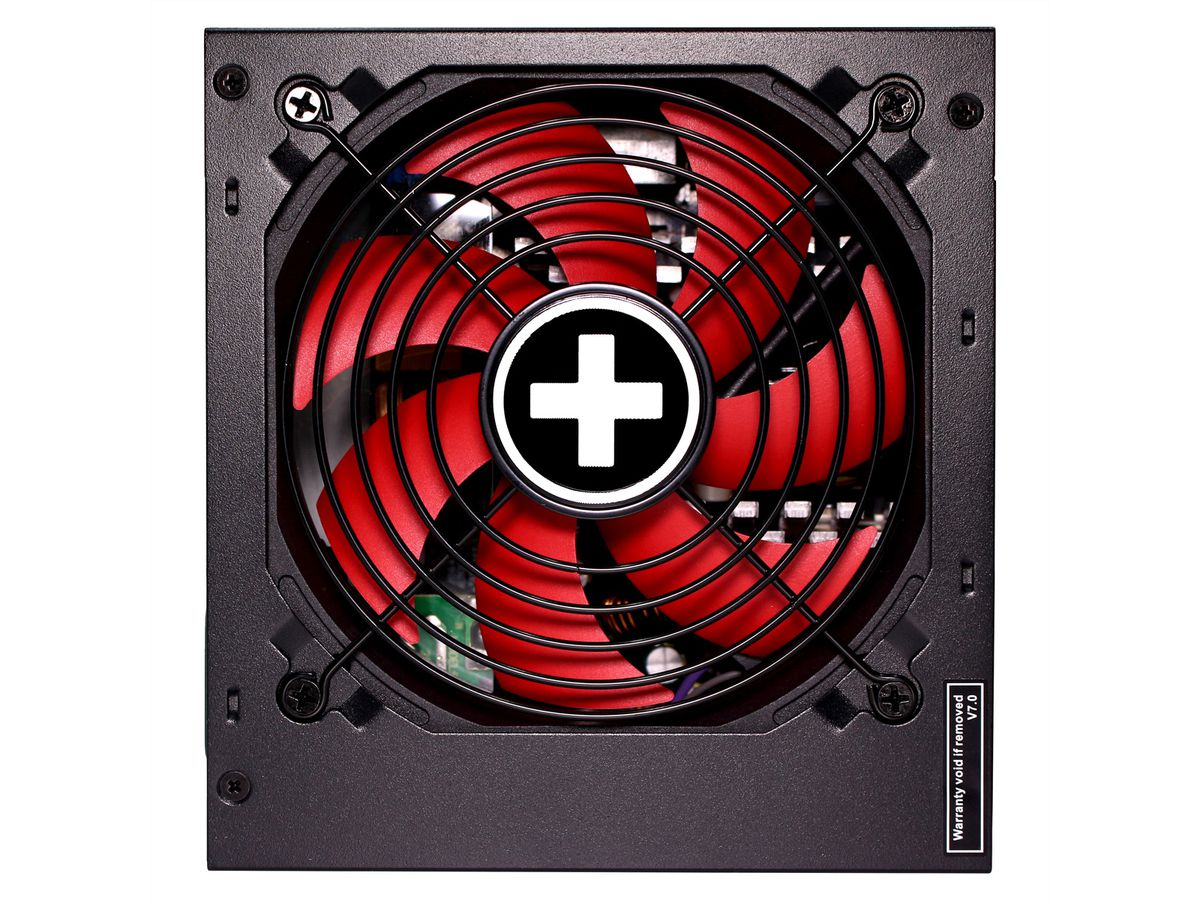

Whisper-quiet cooling: Large 120mm fan
Excellent airflow design for improved heat dissipation
Complete safety equipment with:

-OVP (surge protection)
-UVP (undervoltage protection)
-SCP (short circuit protection)
-OLP (Overload Protection)

Low stand-by power consumption

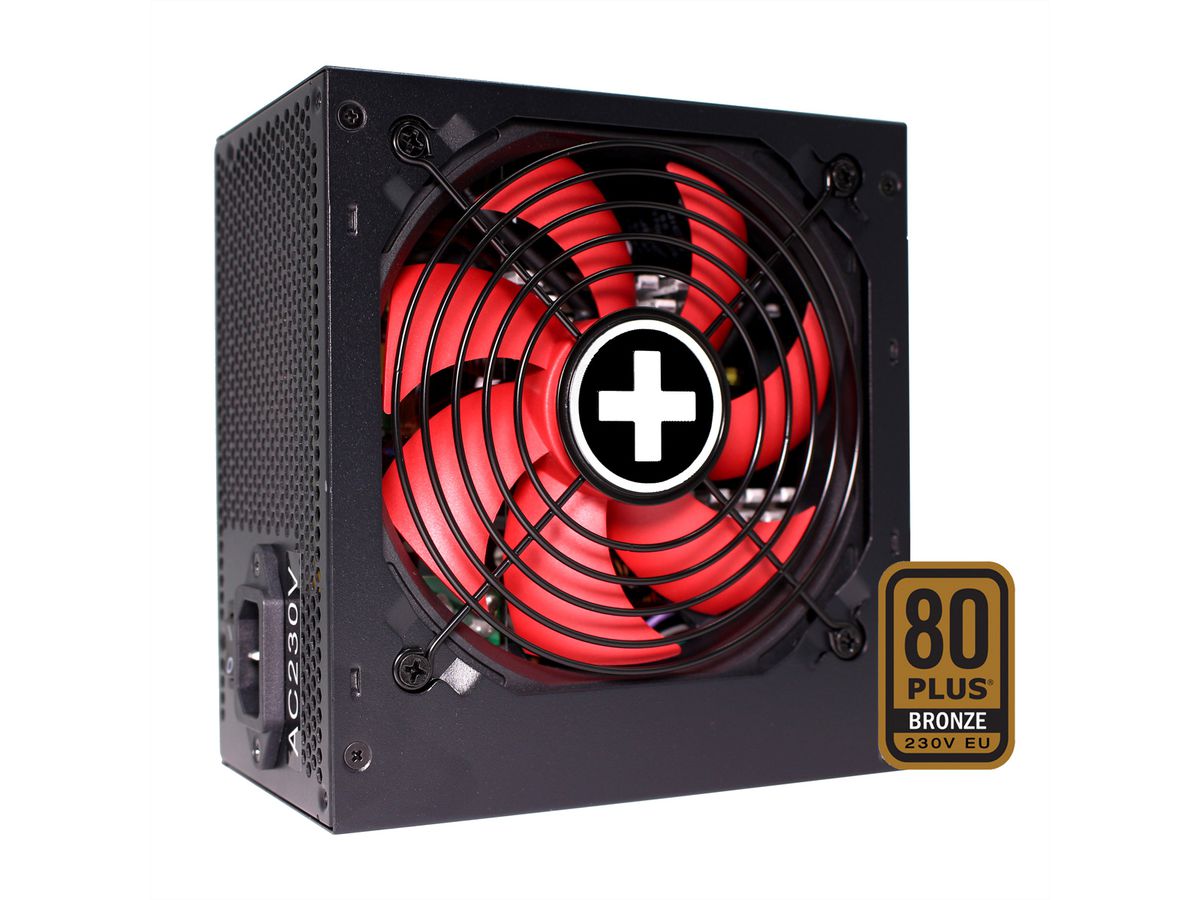

High energy efficiency: 80PLUS®BRONZE certified
Active PFC

Specifications

Manufacturer	XILENCE
Product group	Power Supply Units
Product type	ATX 2.4 Power Supply
Colour	black

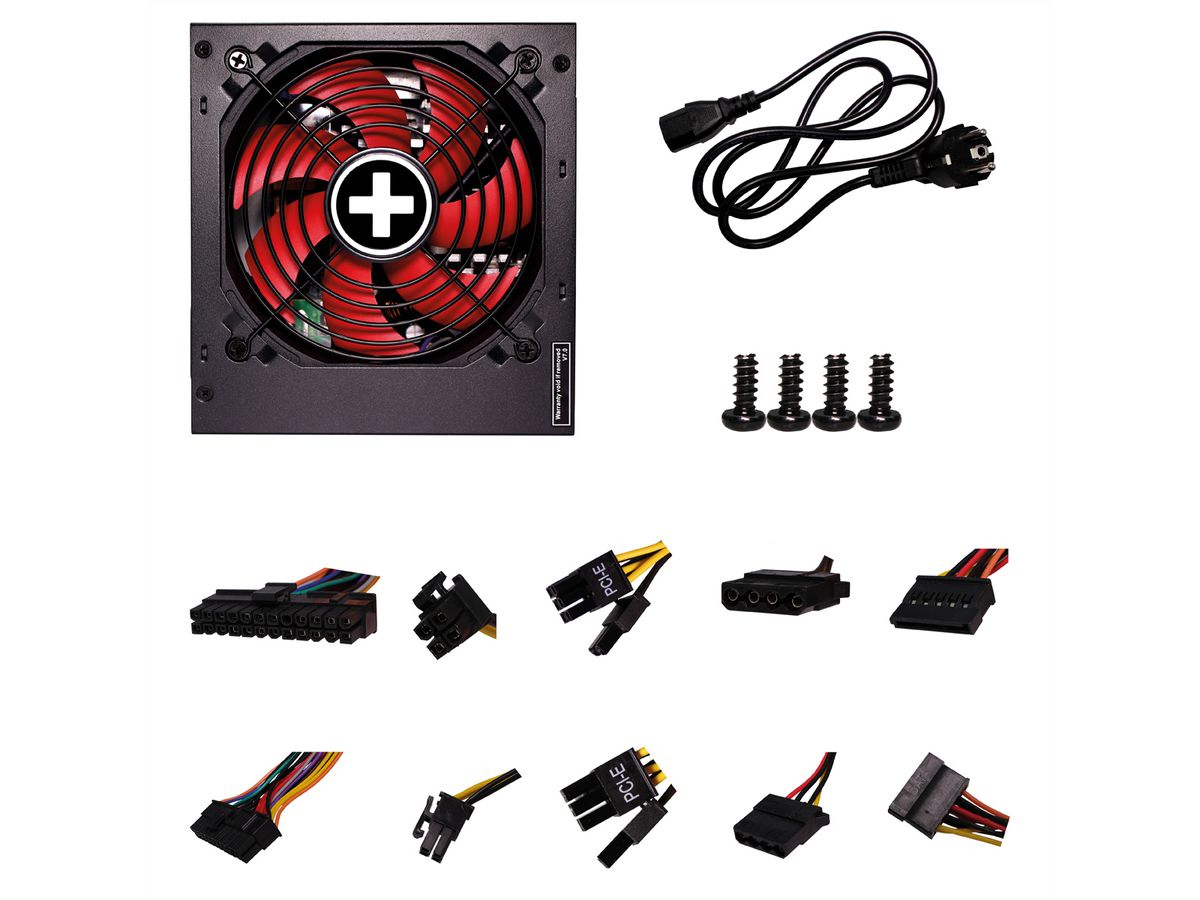

Scope of delivery	XP550R10 PC power supply, mounting screws, power cable
Mounting form	ATX

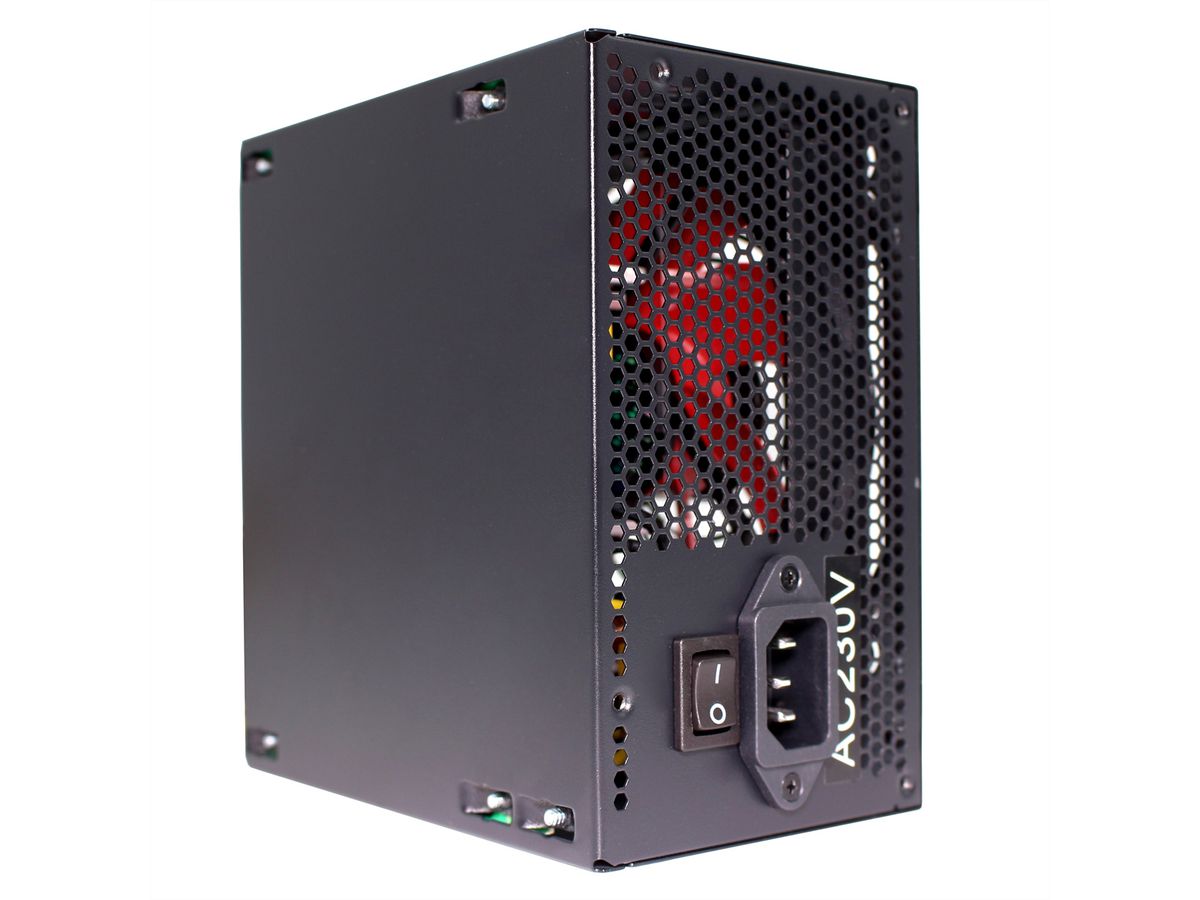

ON/OFF Switch	yes
Output (complete)	550 W
Continuous Power	550 W
Peak Power	550 W
Operating voltage	200 - 240V / 50Hz-60Hz
Quantity of fans	1
Fan type	120 mm
Noise level spinning (max.)	27 dB (A)
Efficiency (230V)	85 %

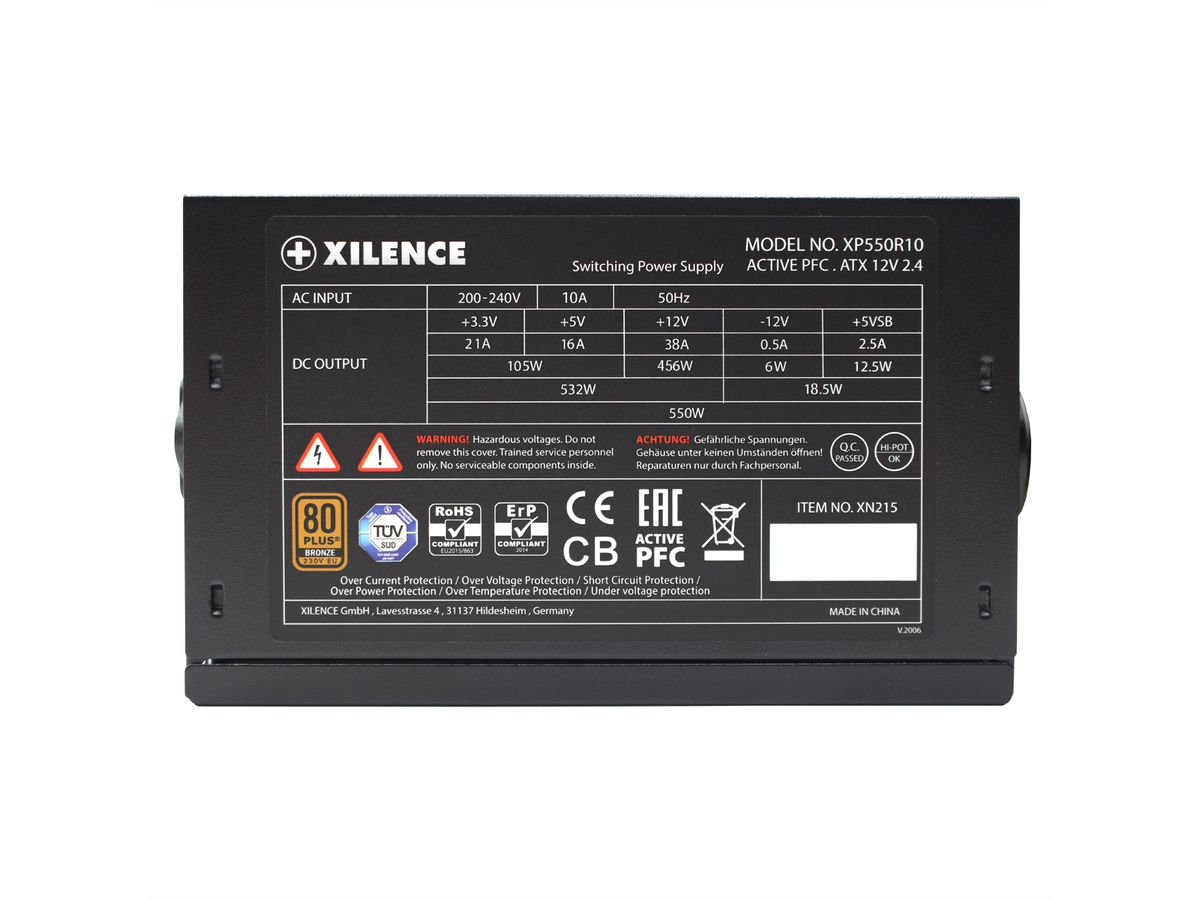

Output 3,3V	21,0 A
Output 5V	16,0 A
Output -5V	-
Output 12V	38,0 A
Output -12V	0,5 A
Output +5V (Standby)	2,5 A
Plug	1x 20+4 PIN, 1x 4+4 PIN (8 PIN), 2x PCI-E 6+2 PIN, 3x IDE 4 PIN, 6x SATA 5 PIN
PFC	Active
Safety circuits	OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OLP (Over Load Protection)
Cable management	no
Technical particularity	Black with red fan
Height	86 mm
Width	150 mm
Depth	140 mm
Weight	1.75 kg
Height of packaging (single piece)	110 mm
Width of packaging (single piece)	190 mm
Depth of packaging (single piece)	270 mm
Package weight (single piece)	1.792 kg

Downloads

Manufacturer data sheet - Français (1.4 MB)

Download

Manufacturer data sheet - Nederlands (1.2 MB)

Download

Manufacturer data sheet - Deutsch (805.4 KB)

Download

Manufacturer data sheet - English (1.2 MB)

Download
