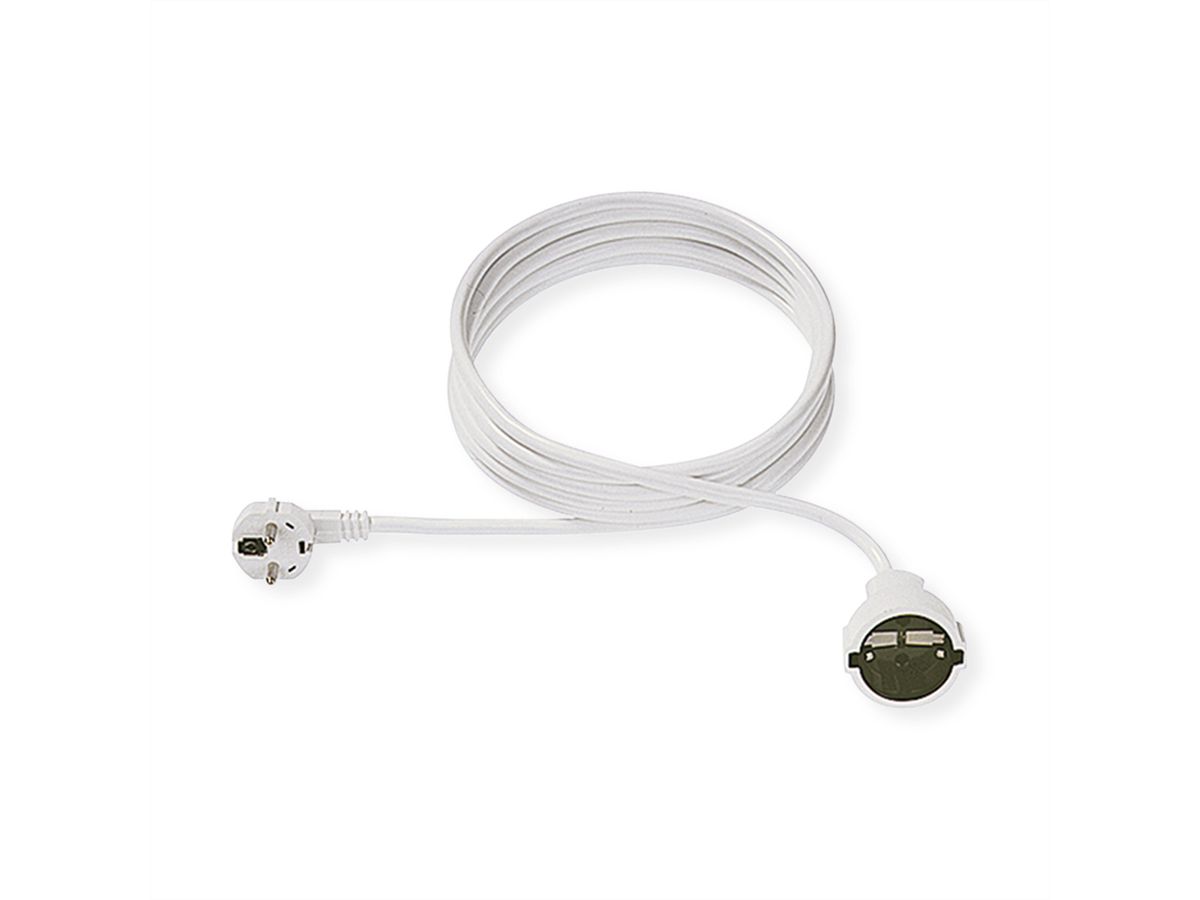

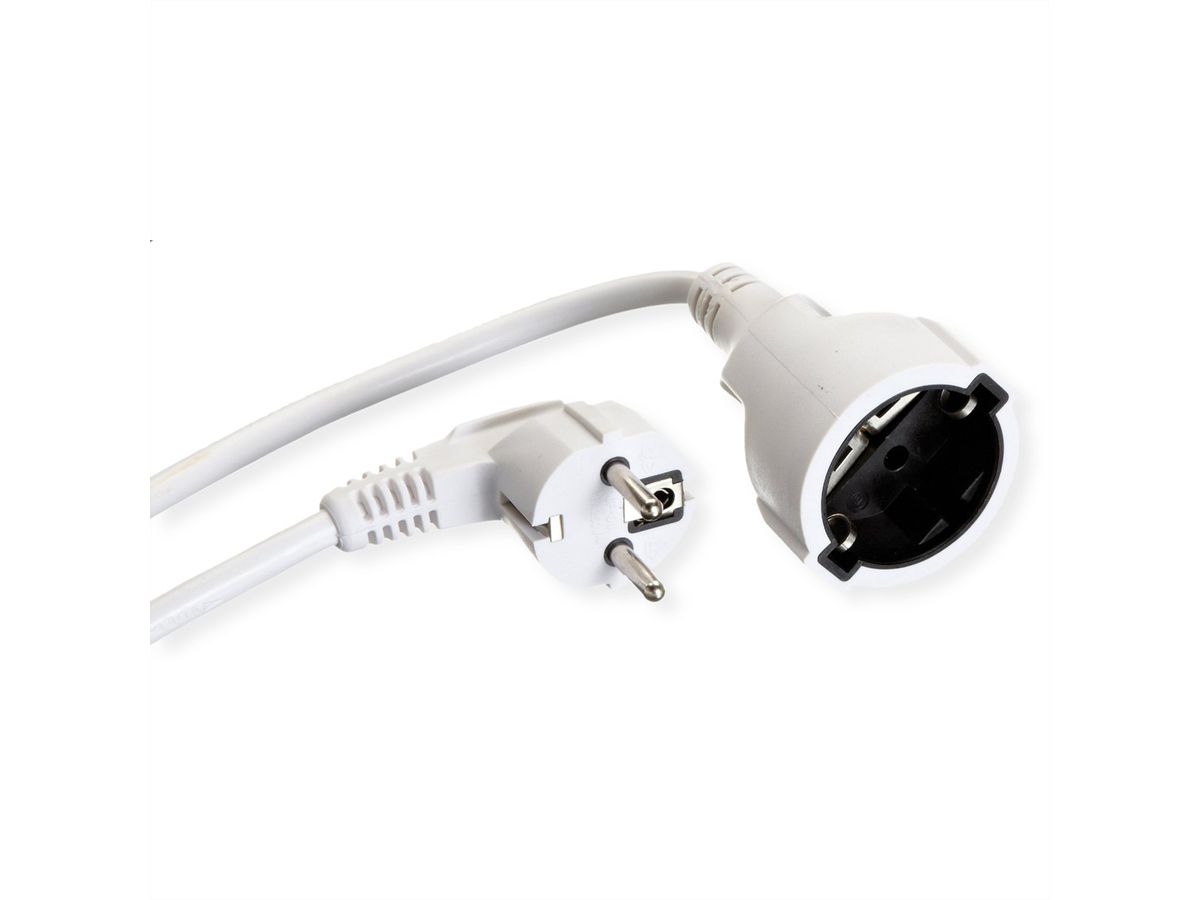

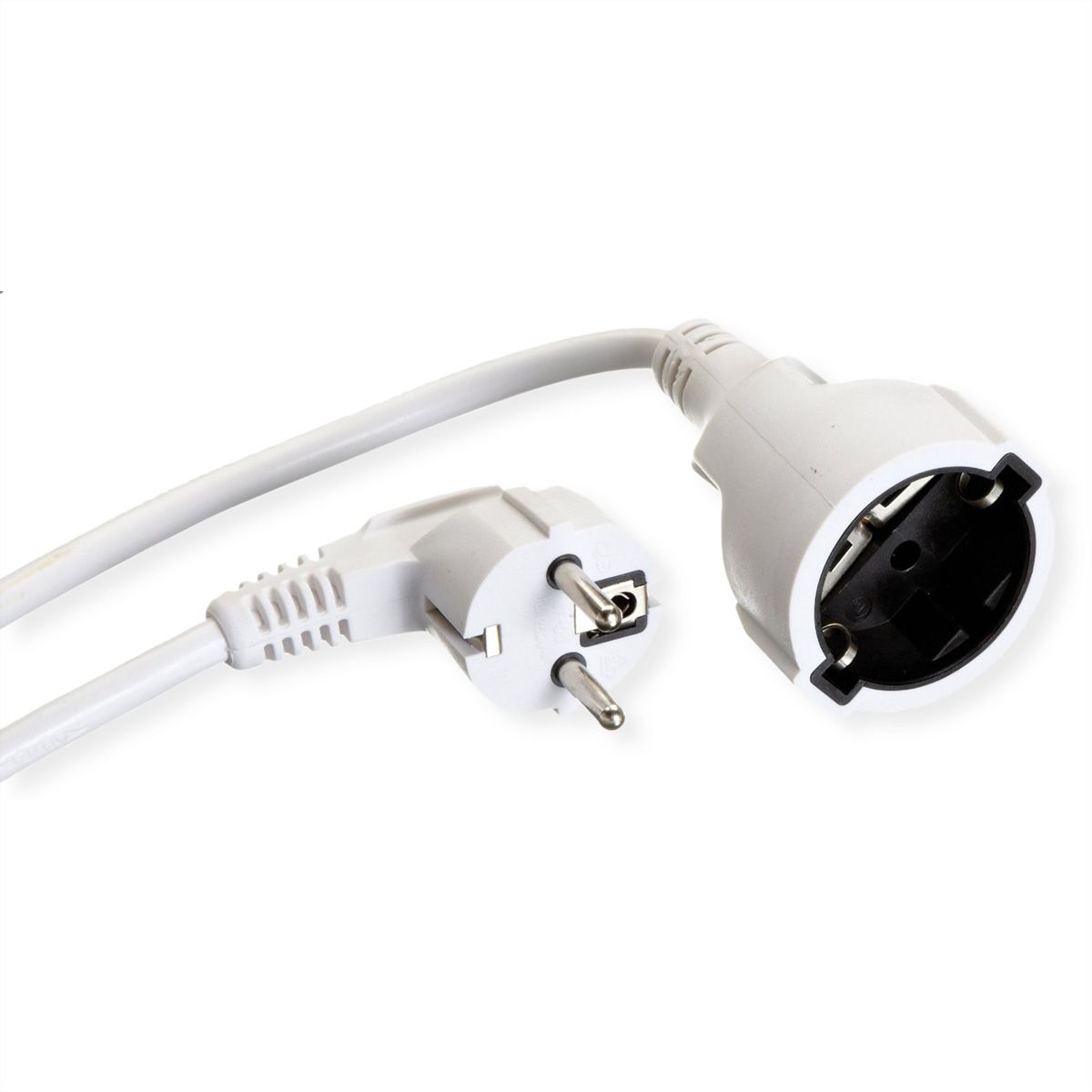

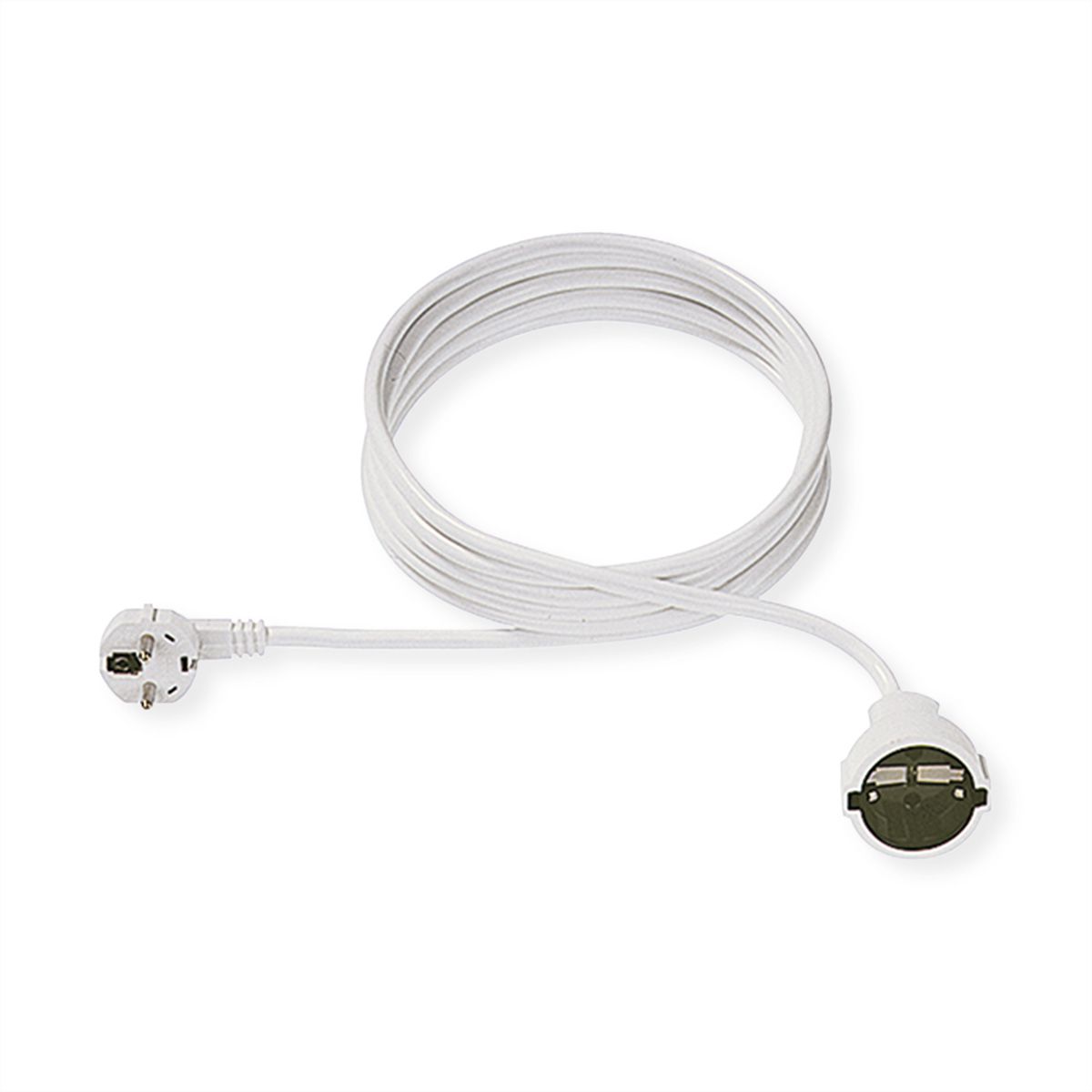

BACHMANN extension cable with earthing contact, 230VAC, white, 15 m

BACHMANN extension cable with earthing contact, 230VAC, white, 15 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19071666
Brand / Manufacturer BACHMANN
Manuf. item no. 341.281
EAN 4016514008087
Item weight 1.664 kg
Colour
Length
BACHMANN

Description

AC power extension cable - Extension cable with earthing contact plug and coupling, 16A/230V~

- Connections: Earthing contact, CEE 7/7 plug / earthing contact, CEE 7/7 socket - Supply cable: H05VV-F 3G 1.50mm²

Specifications

Manufacturer BACHMANN
Product group Power Cables
Product type Power Extensions
Colour white
Length 15 m
Connection ports 3P. German, CEE 7/7, Type-E/F Male / 3P. German, CEE 7/3, Type-F Female
Max. current 16 A
Max. voltage 250V AC
Max. power 3600W
Cable material H05VV-F
Conductor cross section (mm²) 1,5
Material identification H05VV-F
External diameter of cable 8 mm
Quantity of wires 3
Side 1 description Schuko male
Side 1 connector external diameter (mm) 38
Side 2 description Schuko female
Side 2 connector external diameter (mm) 52
Side 1 Connector Type 3P. German, CEE 7/7, Type-E/F
Side 1 Connector Gender Male
Side 2 Connector Type 3P. German, CEE 7/3, Type-F
Side 2 Connector Gender Female
Regional use Germany, Austria, Netherlands
Protection class (IP Code) IP20
Operating temperature min. 5 °C
Operating temperature max. 35 °C
Height 70 mm
Width 250 mm
Depth 250 mm
Weight 1.28 kg
Height of packaging (single piece) 100 mm
Width of packaging (single piece) 210 mm
Depth of packaging (single piece) 240 mm
Package weight (single piece) 1.664 kg
