BACHMANN extension cable with earthing contact, 230VAC, white, 5 m

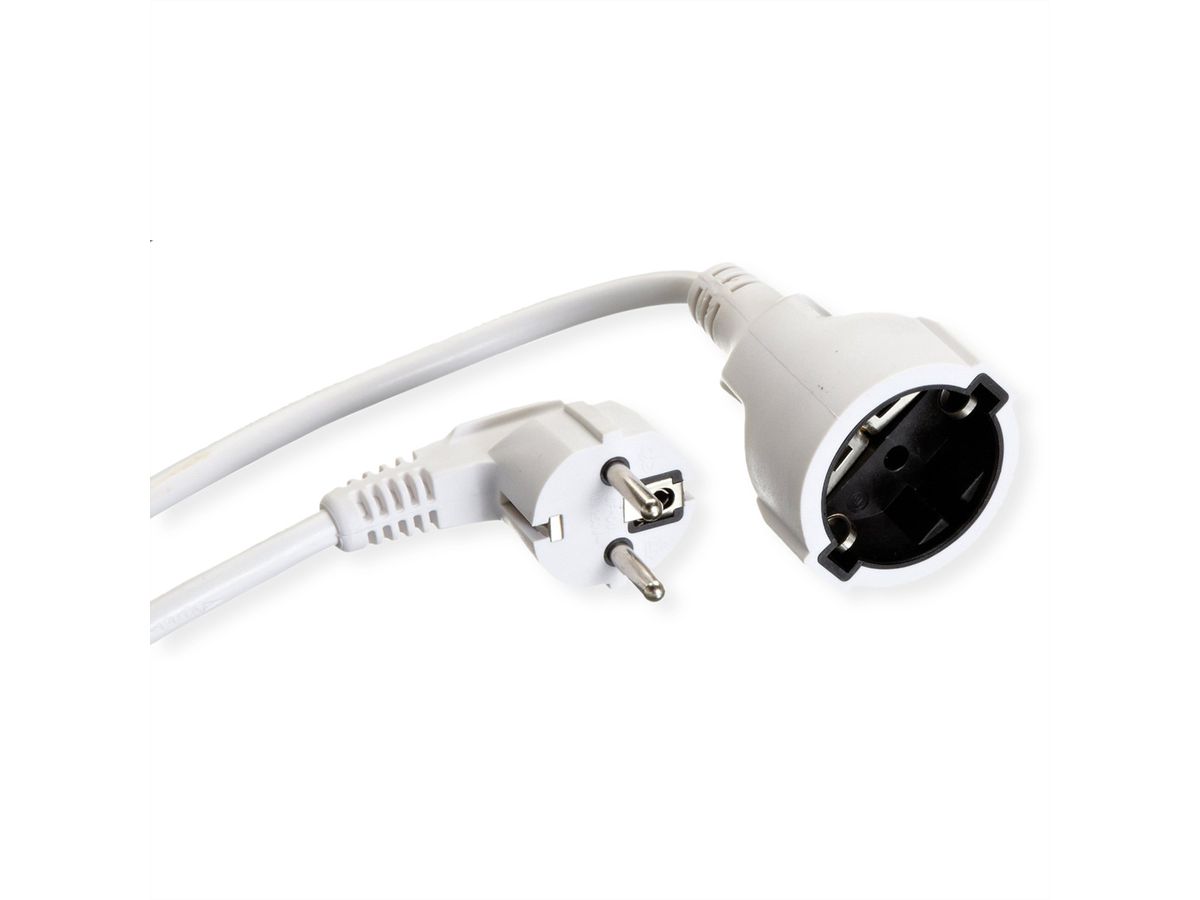

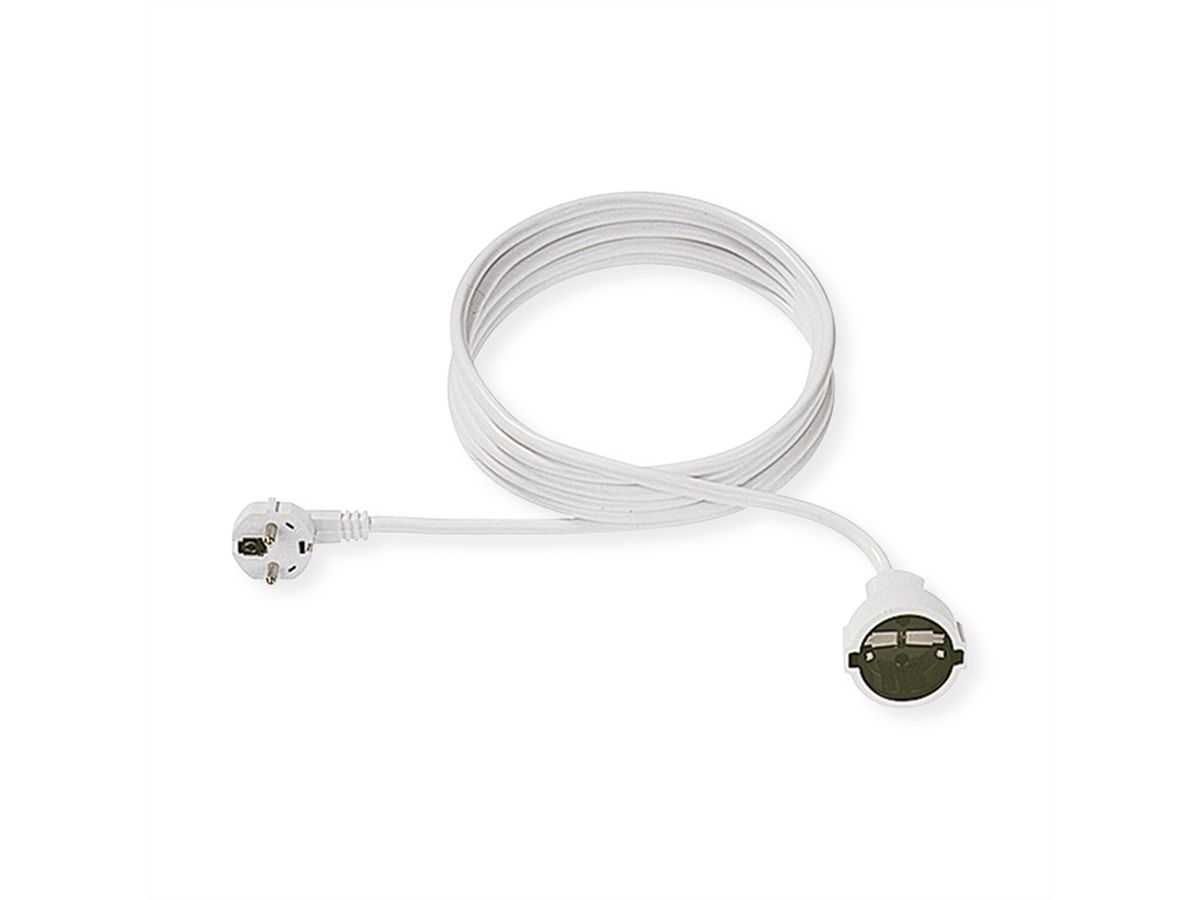

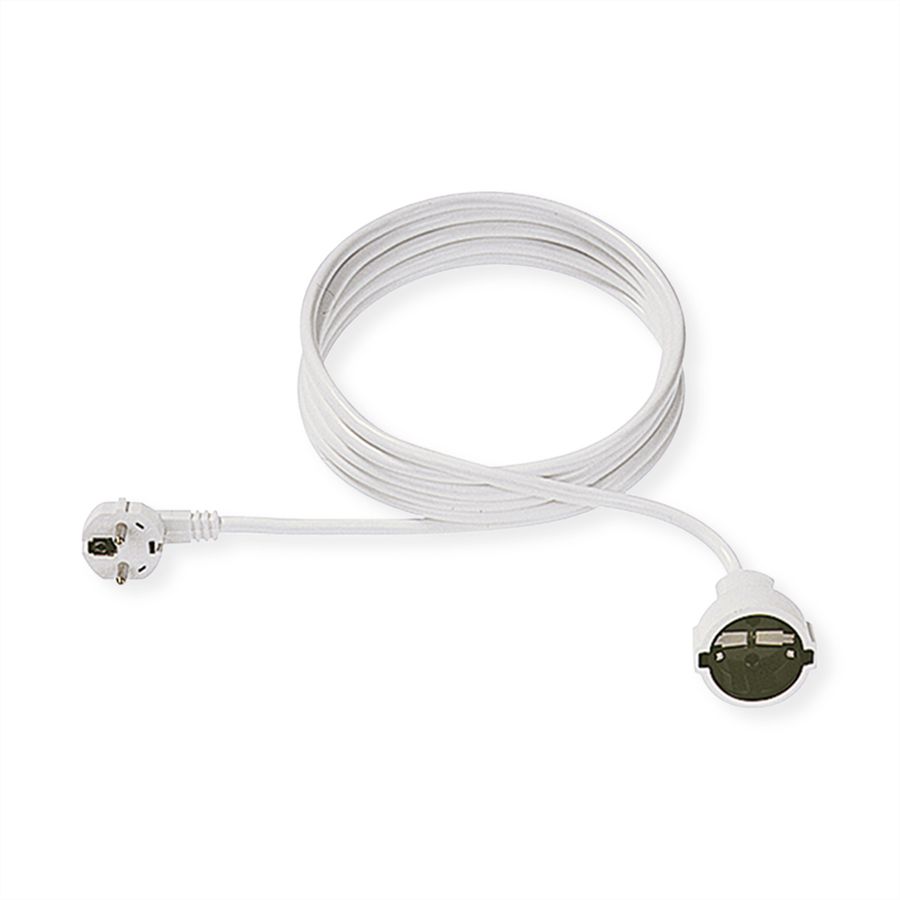

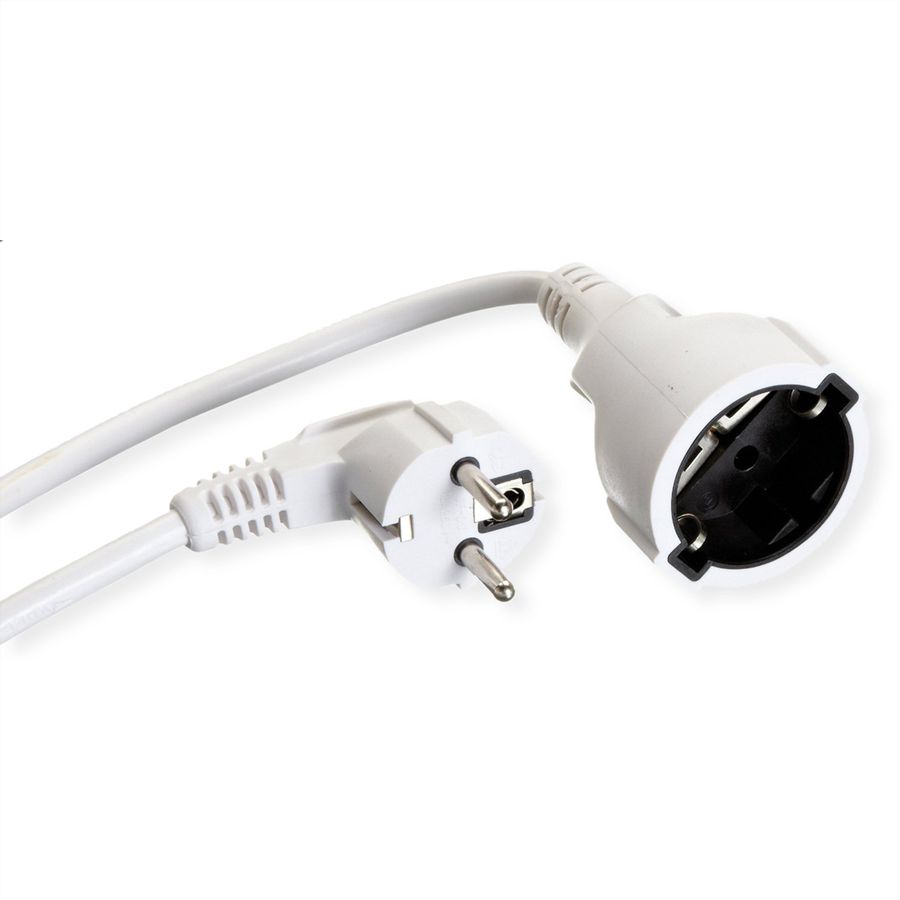

BACHMANN extension cable with earthing contact, 230VAC, white, 5 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19071162
Brand / Manufacturer BACHMANN
Manuf. item no. 341.286
EAN 4016514000739
Item weight 0.624 kg
Colour
Length
BACHMANN

Description

AC power extension cable - Extension cable with earthing contact plug and coupling, 16A/230V~

- Connections: earthing contact, CEE 7/7 plug / earthing contact, CEE 7/7 socket - supply cable: H05VV-F 3G 1.50mm²

Specifications

Manufacturer BACHMANN
Product group Power Cables
Product type Power Extensions
Colour white
Length 5 m
Connection ports 3P. German, CEE 7/7, Type-E/F Male / 3P. German, CEE 7/3, Type-F Female
Max. current 16 A
Max. voltage 250V AC
Max. power 3600W
Cable material H05VV-F
Conductor cross section (mm²) 1,5
Material identification H05VV-F
External diameter of cable 8 mm
Quantity of wires 3
Side 1 description Schuko Stecker
Side 1 connector external diameter (mm) 38
Side 2 description Schuko Buchse
Side 2 connector external diameter (mm) 52
Side 1 Connector Type 3P. German, CEE 7/7, Type-E/F
Side 1 Connector Gender Male
Side 2 Connector Type 3P. German, CEE 7/3, Type-F
Side 2 Connector Gender Female
Regional use Germany, Austria, Netherlands
Protection class (IP Code) IP20
Operating temperature min. 5 °C
Operating temperature max. 35 °C
Height 55 mm
Width 190 mm
Depth 190 mm
Weight 0.75 kg
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 200 mm
Depth of packaging (single piece) 240 mm
Package weight (single piece) 0.624 kg
