EXSYS EX-13102 USB zu 1S Seriell RS-485 Konverter-Board (FTDI Chipsatz)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/06/2024

Item no.	15063485
Brand / Manufacturer	EXSYS
Manuf. item no.	EX-13102
EAN	4718359131226
Item weight	0.007 kg

Description

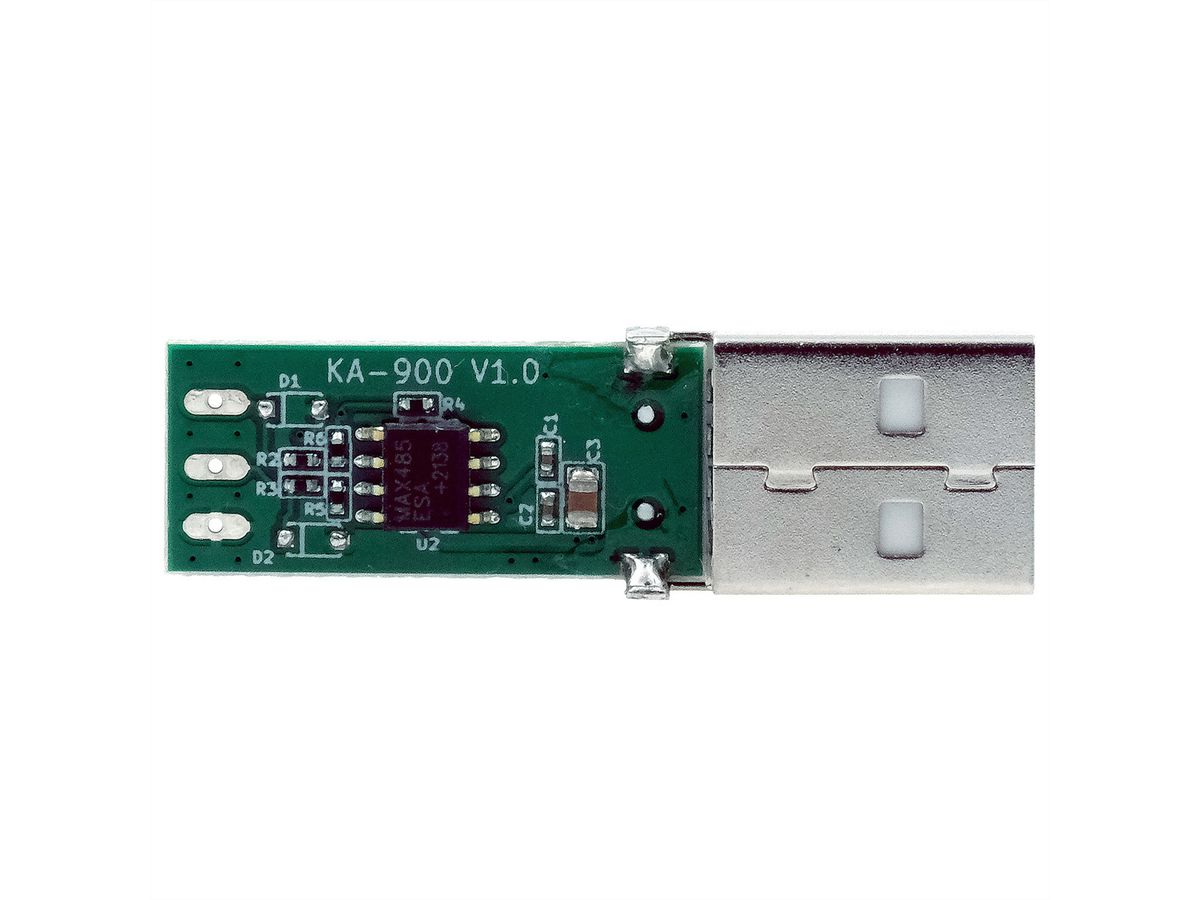

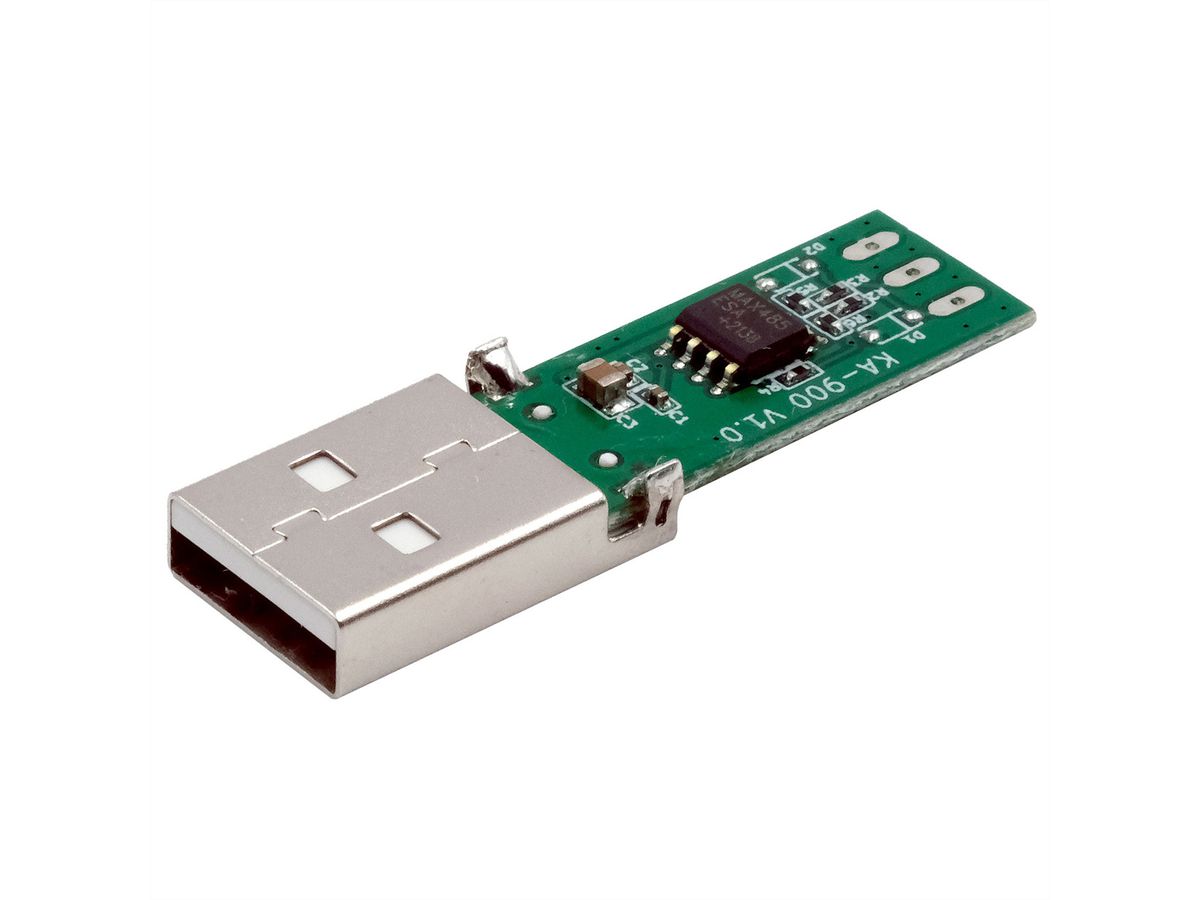

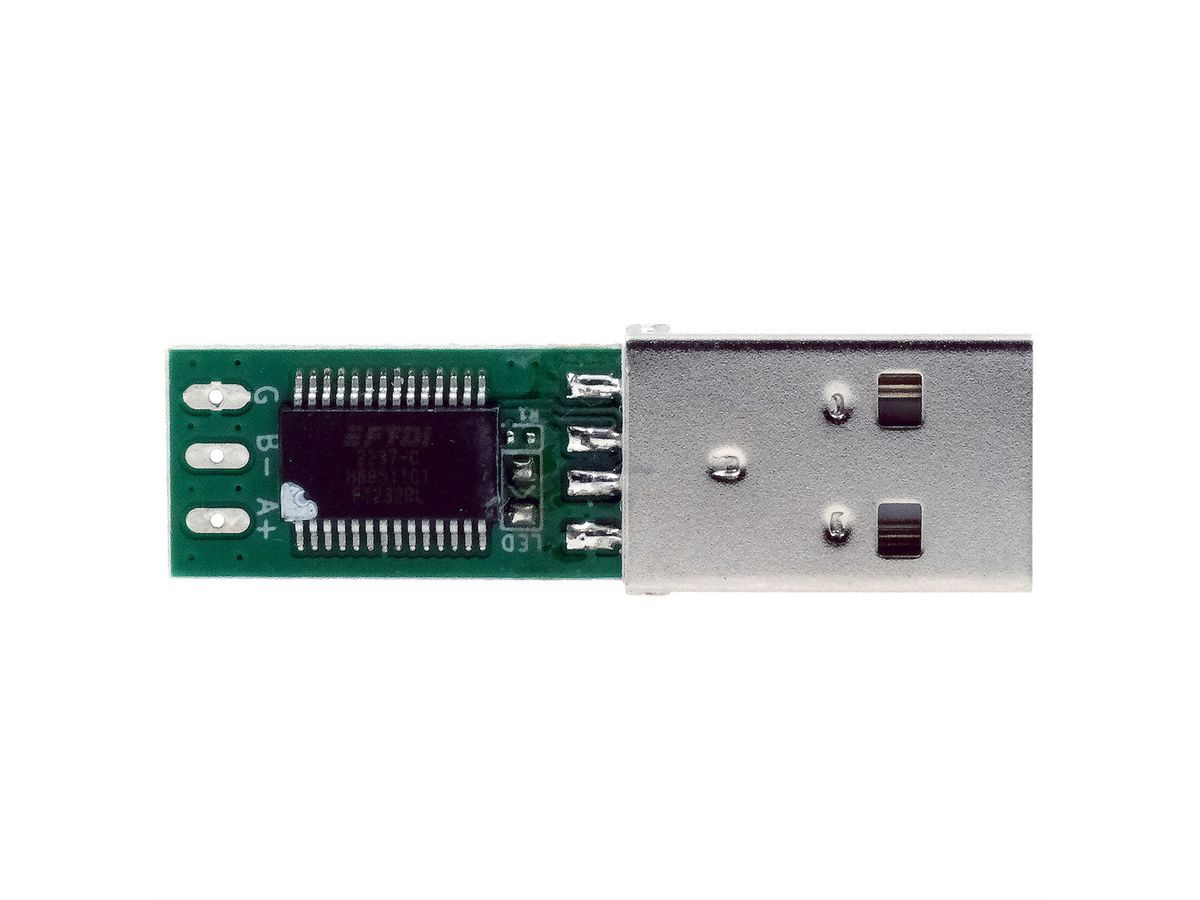

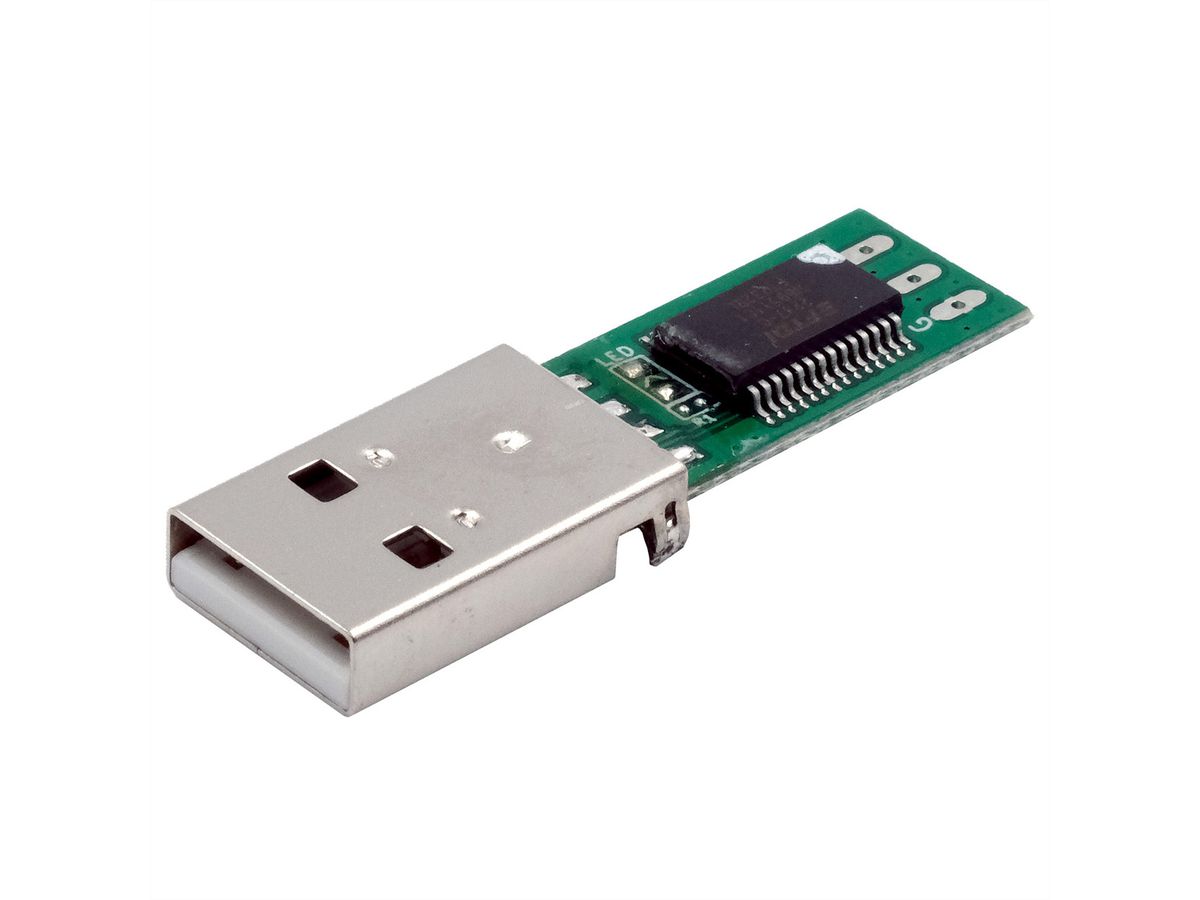

Das EX-13102 USB zu RS485 UART Konverter-Board besteht aus einer Platine mit fest montiertem USB-Stecker und einem FTDI-Chip FT232RL, der alle USB-Signale und -Protokolle verarbeitet.
Es eignet sich ideal für Testzwecke oder zum erstellen von USB zu Seriell Kabeln nach eigenen Kriterien.

Schnittstelle RS-485
Signale: T/R+, T/R-, GND
Datenübertragungsrate: 300 bps bis 3 Mbps
Stromversorgung vom USB Bus (Bus Power)
Erweiterter Temperaturbereich: -40°C bis 85°C
Chipsatz: FTDI

Specifications

Manufacturer	EXSYS
Product group	Adapter, Terminatoren, Konverter
Product type	USB-Seriell Konverter
Colour	black
Length	1 m
Scope of delivery	EX-13102
Side 1 connection (PC)	USB-A
Side 2 connection (Peripherals)	Löten
Side 1 Connector Type	USB 2.0 Typ A
Side 1 Connector Gender	Männlich (Stecker)
Side 2 Connector Type	offenes Ende
Area of application	extern
Operating temperature min.	-40 °C
Operating temperature max.	85 °C
Height	4.6 mm
Width	12 mm
Depth	40 mm
Weight	30 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	150 mm
Package weight (single piece)	0.007 kg

Downloads

Manufacturer data sheet - Deutsch (1.3 MB)

Download

Manufacturer data sheet - English (1.3 MB)

Download
