Description

ROLINE 19 inch wall-mounted housing Basic 12 U 540x400 WxD kit black

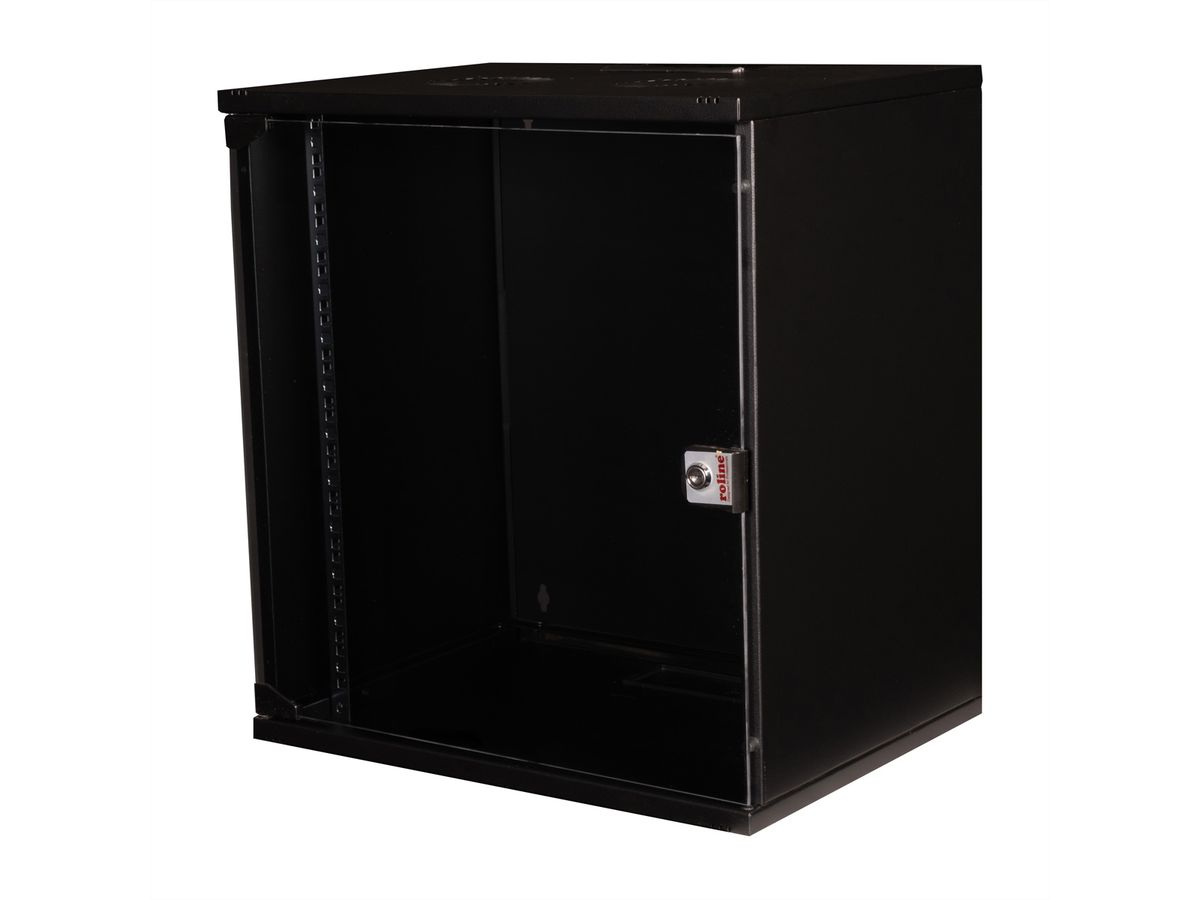

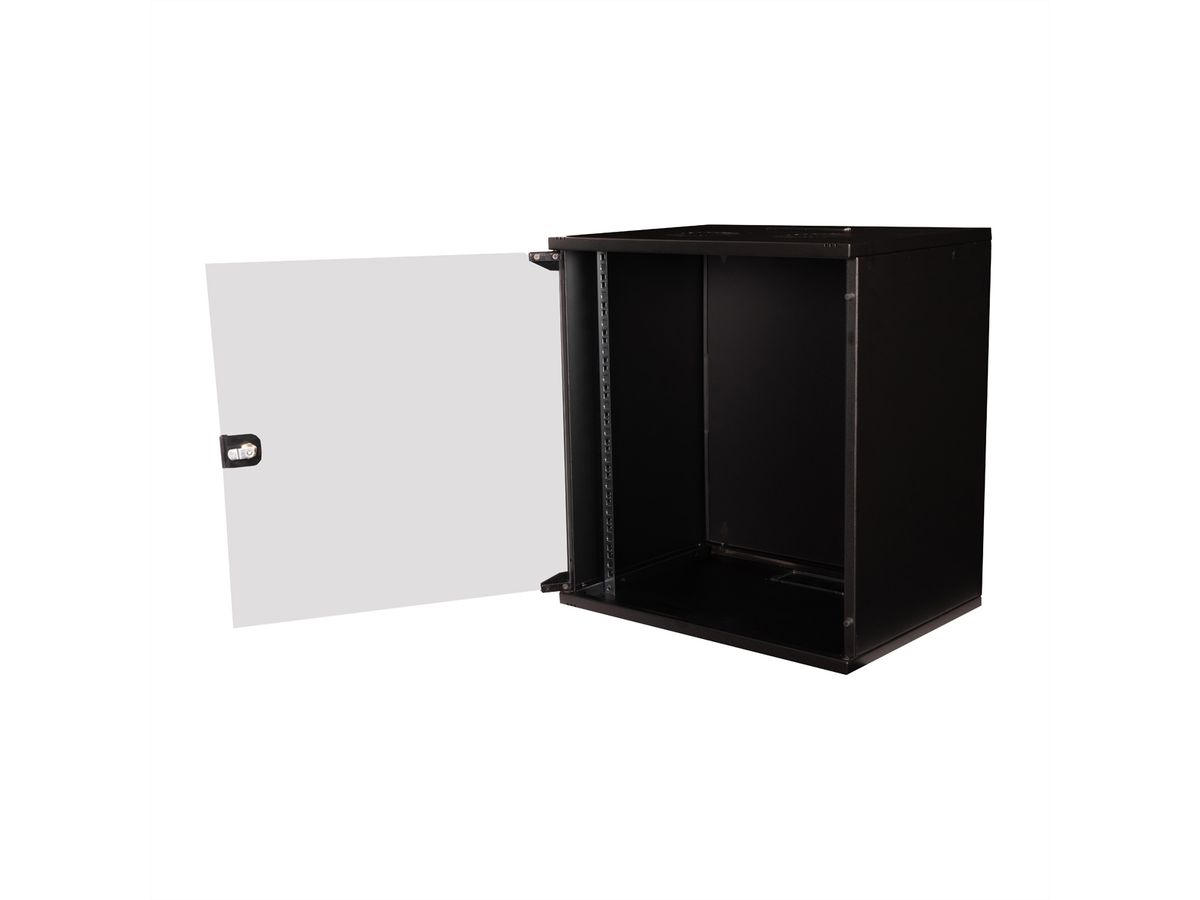

The 19" wall-mounted cabinets in the ROLINE Basic series are supplied unassembled as a flat pack (kit). Available in four different height units and equipped with a full glass door and cable entries with brushes on the top and bottom, they are ideal for sub-distribution or for setting up a small to medium-sized network. Inside, a pair of galvanised 19" profile rails with readable height units are installed, which are adjustable in depth. Each enclosure consists of a robust steel construction made of up to 1.5 mm thick sheet steel and is available electrostatically powder-coated in the standard colours grey (RAL 7035) and black (RAL 9005). The door hinge can be changed if required. Installation is quick and easy thanks to the enclosed installation instructions.

Specifications

Manufacturer	ROLINE

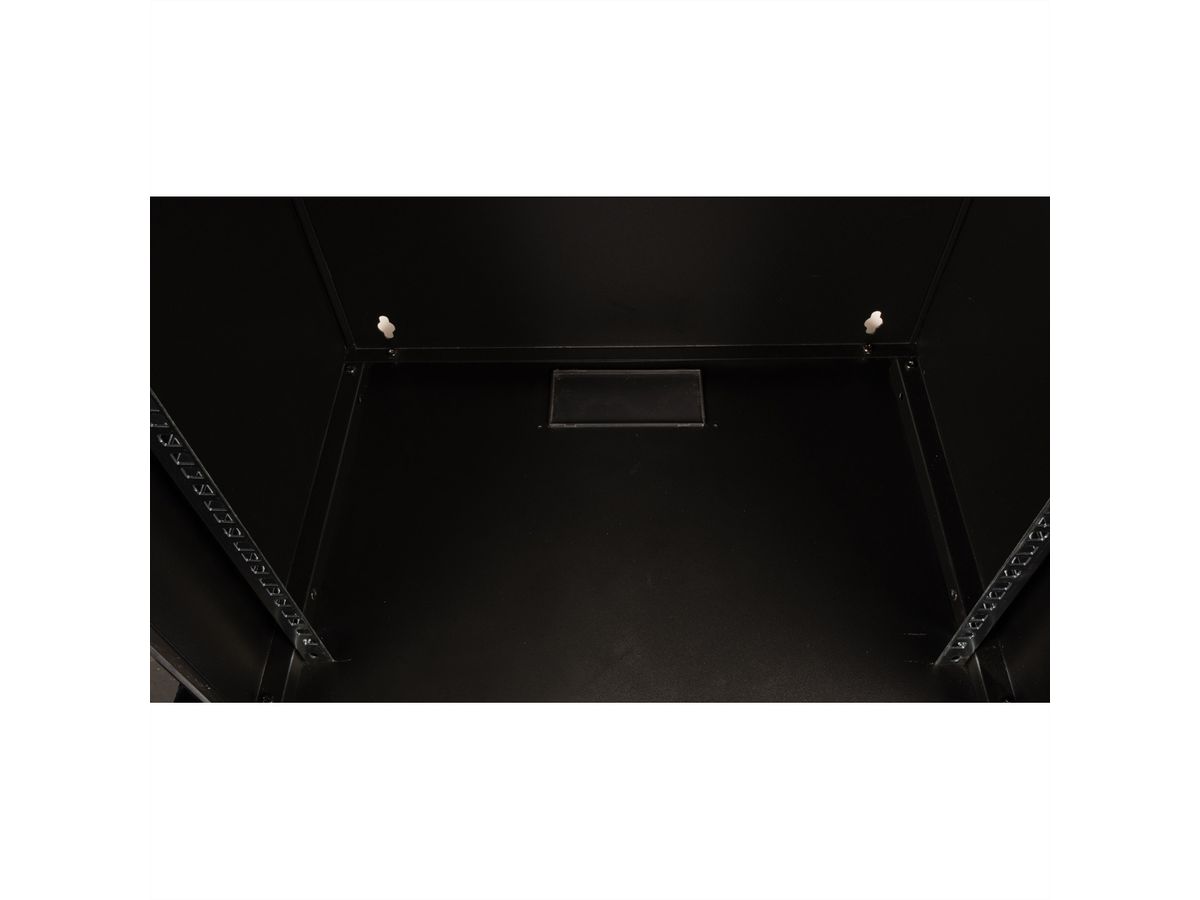

Product group	19"- / 10" technology
Product type	19"-wall housing
Colour	black
Scope of delivery	19-inch wall-mounted housing Basic 12 U as a kit, 2x keys, assembly instructions
Height units	12 U
Minimum rack depth supported	360 mm
Maximum rack depth supported	380 mm
delivery condition	Flatpack, disassembled
Material group	Steel
Wall mountable	yes
Adjustable feets	no
Protection class (IP Code)	IP20
Soundproof	no
Front	Glass door
Rack rails	yes
Side panels included	yes
Removeable side panels	no
Removable front door	yes
Removable back door	no
Ventilation	Passive
RAL colour	RAL 9005 Jet black
Height	595 mm
Width	540 mm
Depth	400 mm
Weight	13.5 kg
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	580 mm
Depth of packaging (single piece)	650 mm
Package weight (single piece)	14.9 kg

Downloads

Product data sheet - English (31.7 KB)

Download

Manufacturer data sheet - English (1.2 MB)

Download
