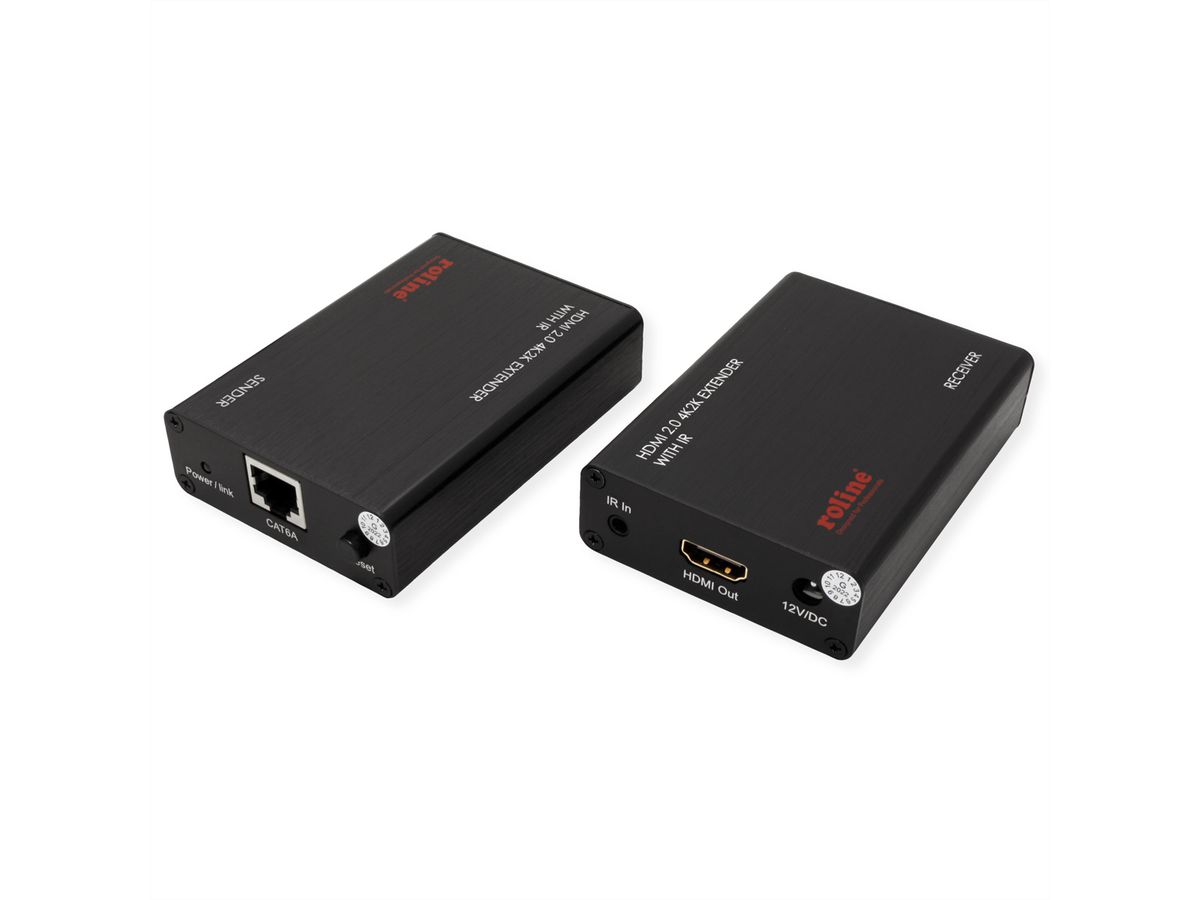

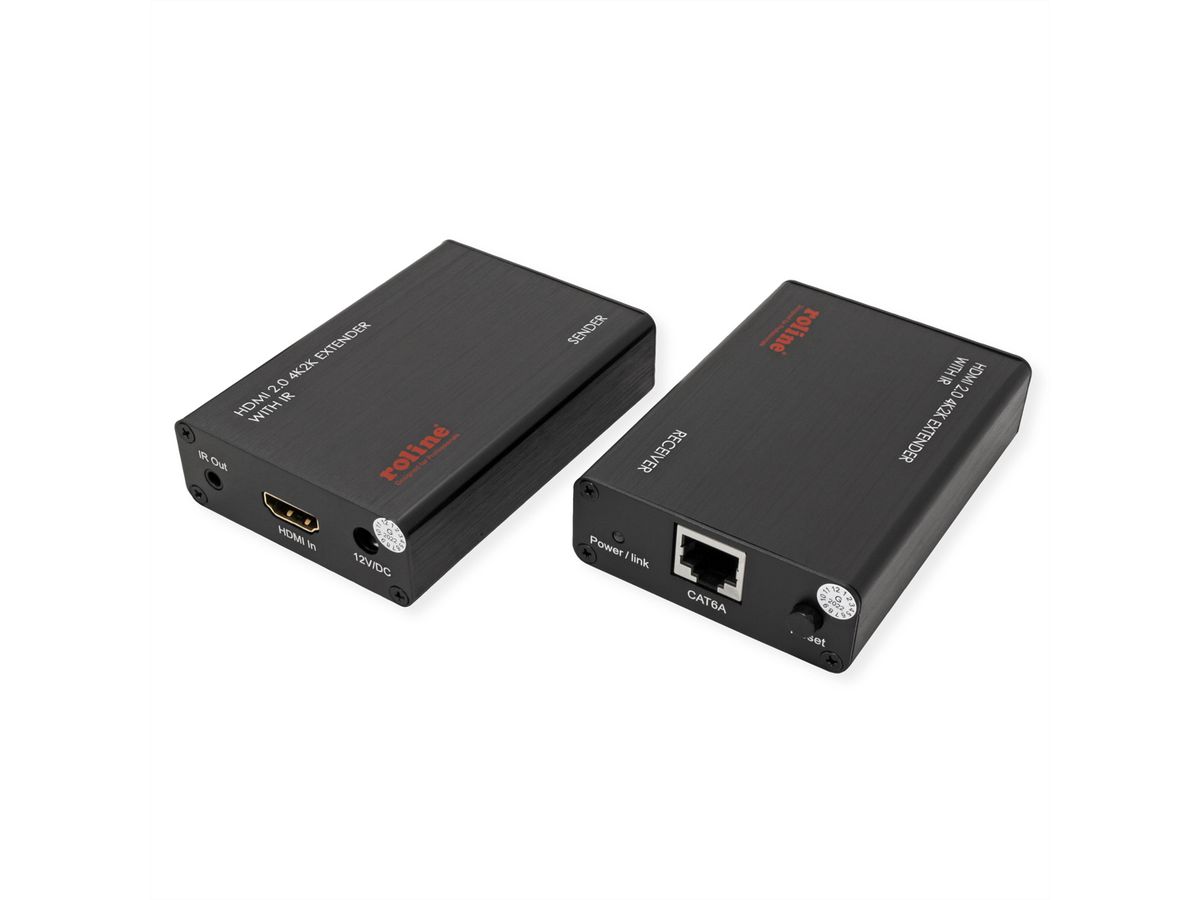

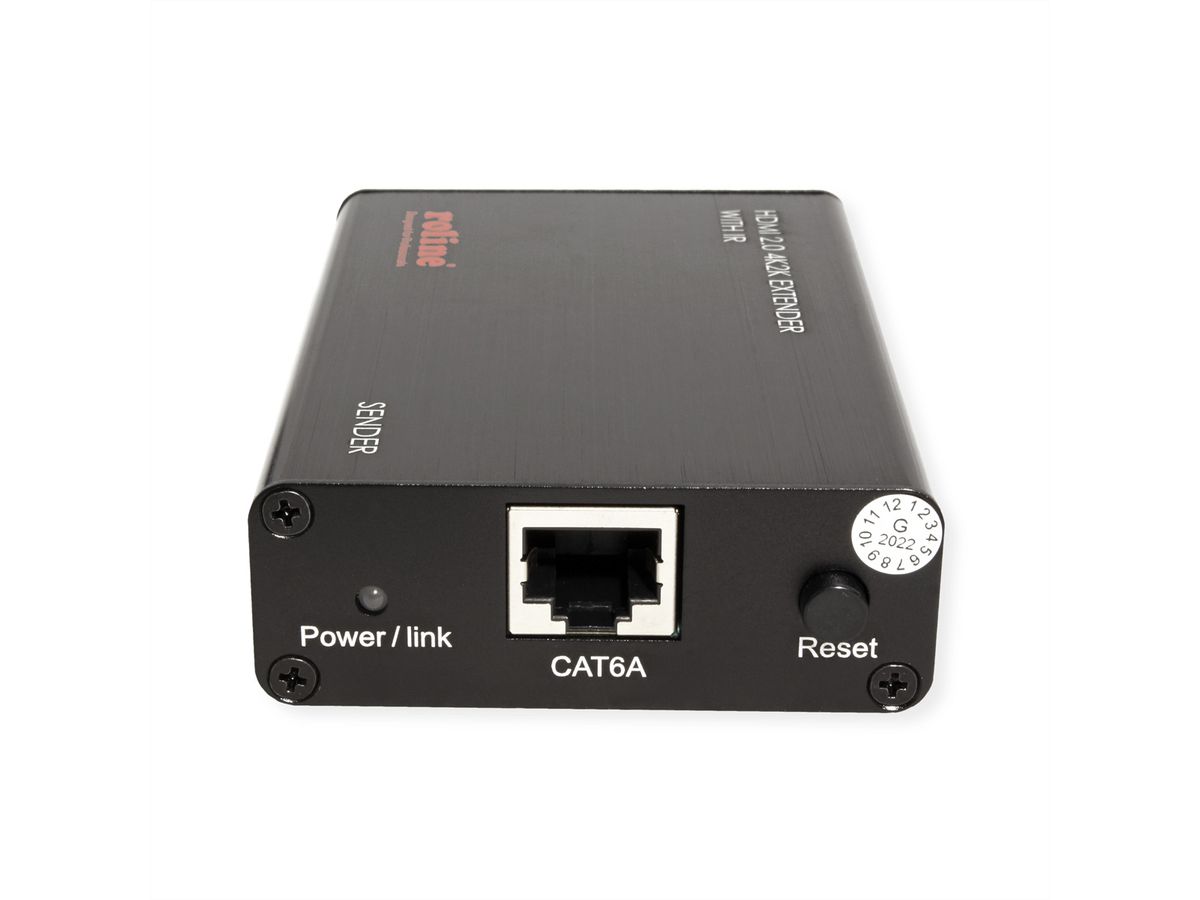

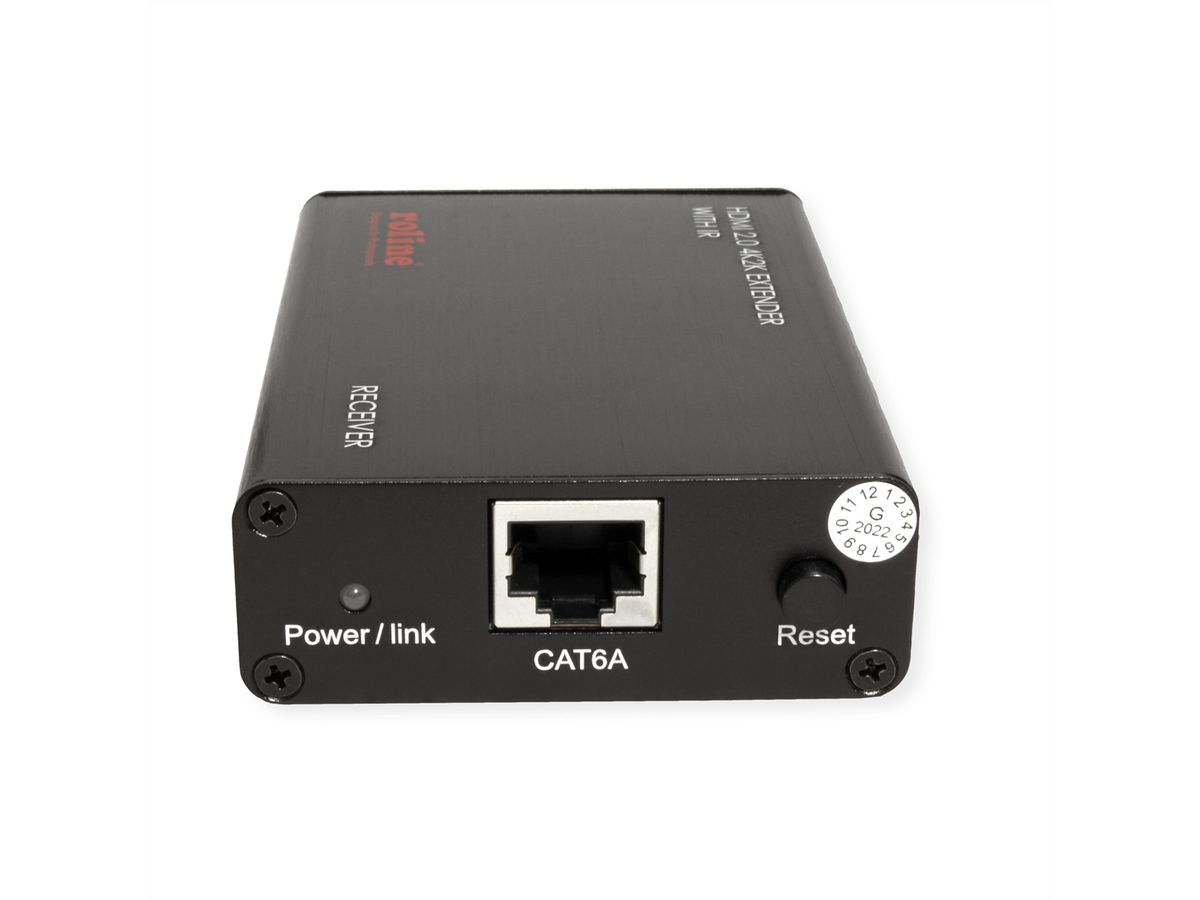

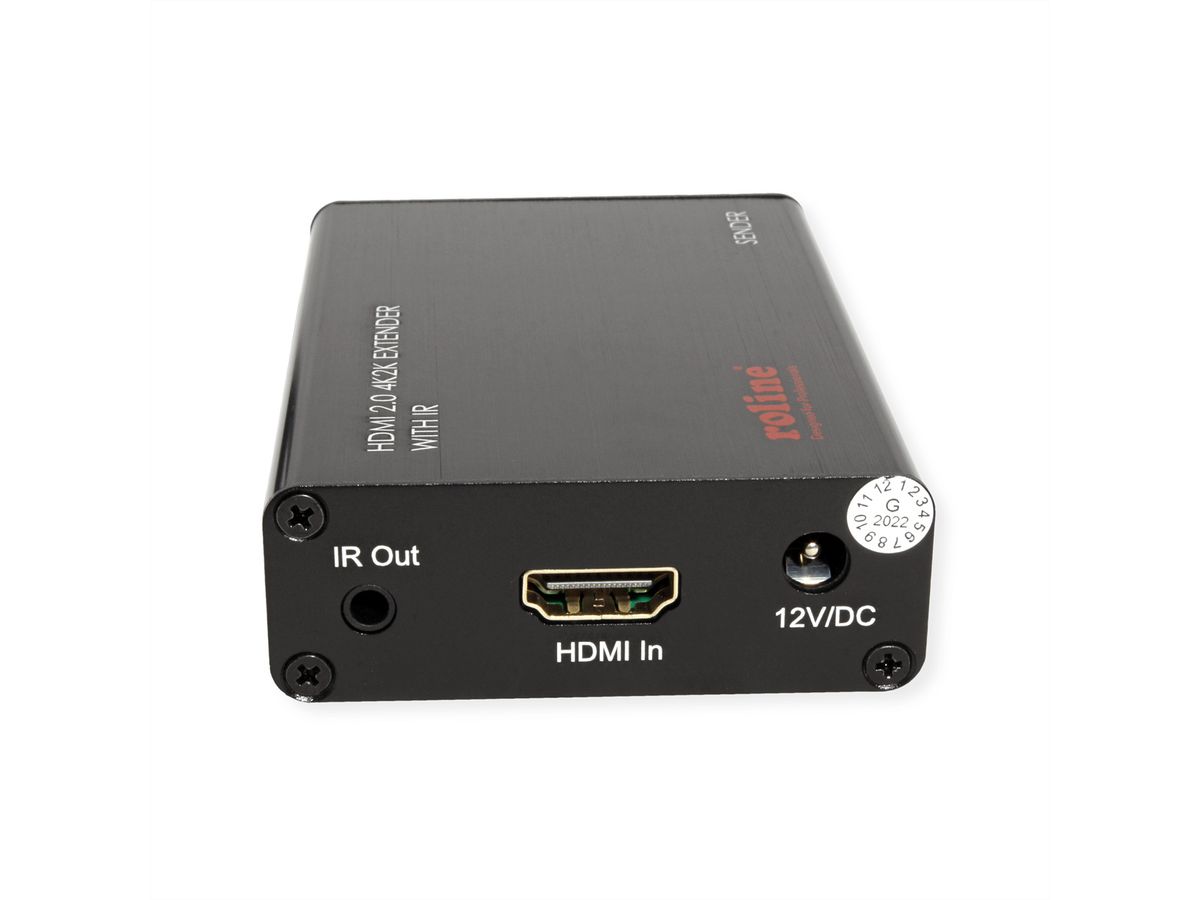

ROLINE Audio/Video System, HDMI, via Cat.6A, 4K@60Hz, 30m/45m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14013417
Brand / Manufacturer	ROLINE
Manuf. item no.	14.01.3417
EAN	7630049615380
Item weight	0.25 kg

Description

The ROLINE HDMI A/V system transmits an HDMI signal from a source device like a DVD player, a PC/laptop or a console via Cat.6A cable to a display device like a TV, monitor or beamer/projector - with a resolution of up to 3840x2160 @60Hz (max. 30m) or 1920x1080 @60Hz (max. 45m)!

Audio / video transmission is via HDMI and CAT. 6a cable. Up to 4k (3840x2160) @60Hz at a distance of up to 30m can be achieved. At longer distances of up to 45m the resolution is reduced to Full HD (1920x1080) @60Hz.

Transmits HDMI signals from source devices such as DVD players, PCs/laptops or consoles to a TV, monitor or beamer/projector.
Resolution: 4k (3840x2160) @60Hz at up to 30m; Full HD (1920x1080) @60Hz at up to 45m
HDCP compatible
Supports 3D video transmission
Black metal housing

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI Extender
Colour	black
Scope of delivery	transmitter, receiver, 1 power supply, manual
Interface	HDMI
Max. distance	45 m
Video input	HDMI
Video output	HDMI
Max. resolution (nom.)	2160p
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Dimensions (HxWxD)	92 x 23 x 63 mm
Power supply unit	Wallmount socket
Power supply output	12VDC, 2A
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Height	92 mm
Width	23 mm
Depth	63 mm
Weight	219.9 g
Height of packaging (single piece)	100 mm
Width of packaging (single piece)	200 mm
Depth of packaging (single piece)	300 mm
Package weight (single piece)	0.25 kg
Technical particularity	VGA / HDMI signal over WLAN or LAN
