VALUE HDMI Extender over Twisted Pair, 25 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14993460
Brand / Manufacturer	VALUE
Manuf. item no.	14.99.3460
EAN	7611990179633
Item weight	0.48 kg

Description

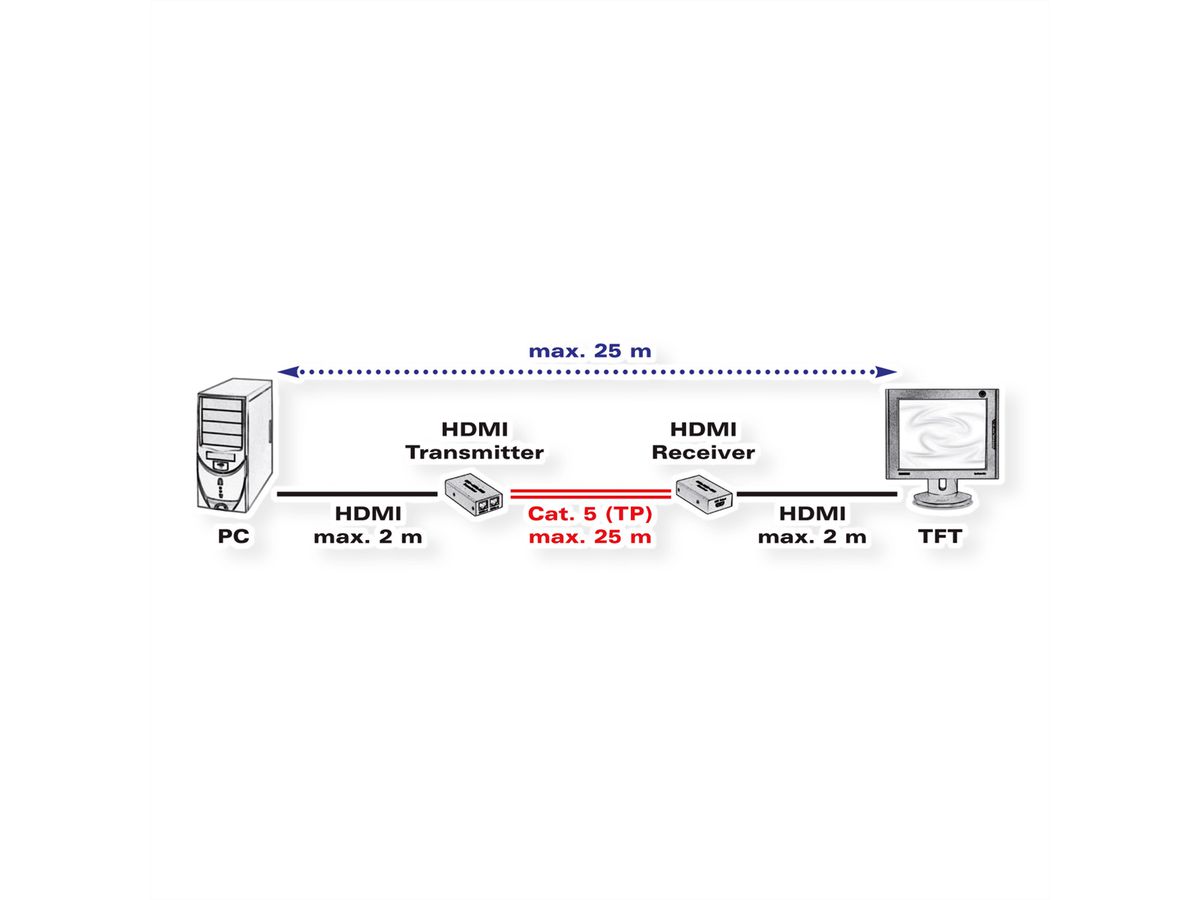

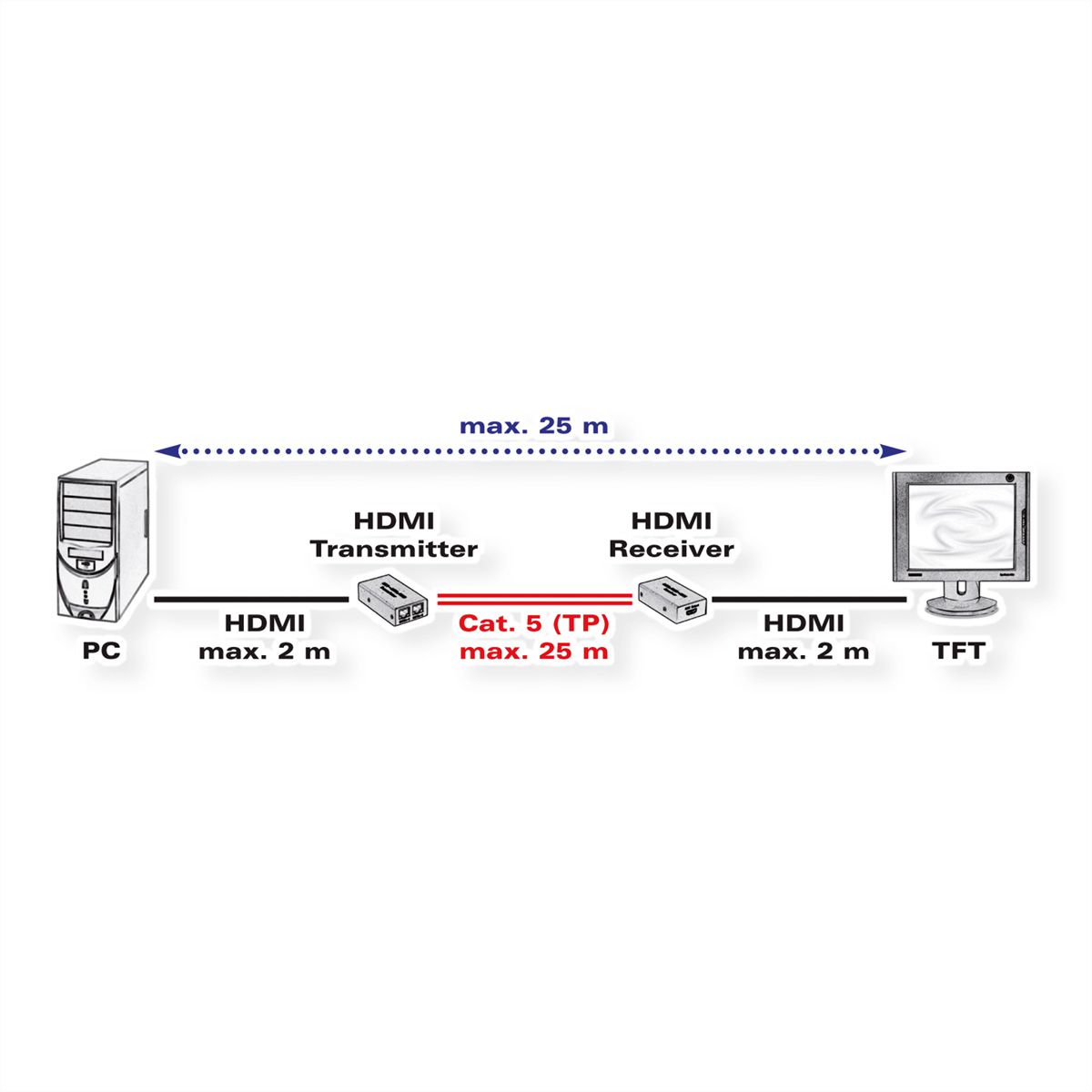

The transmission distance of the HDMI signal can be extended up to 25 meters by using two Cat. 5e/6 cables
Max. resolution (nominal) while using two Cat.5e cables, 25 m: 1080p
HDCP pass-through
Stable metal casing
Power supply included in delivery

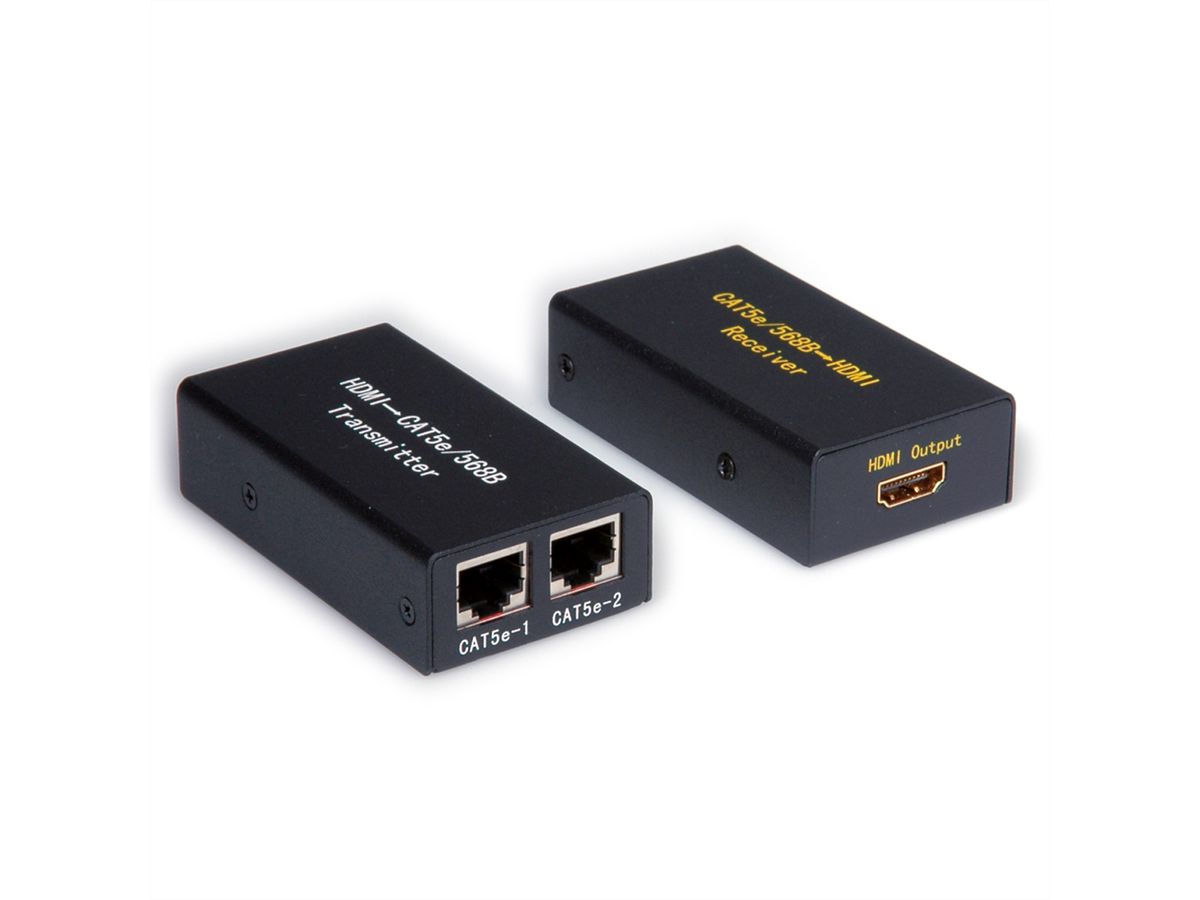

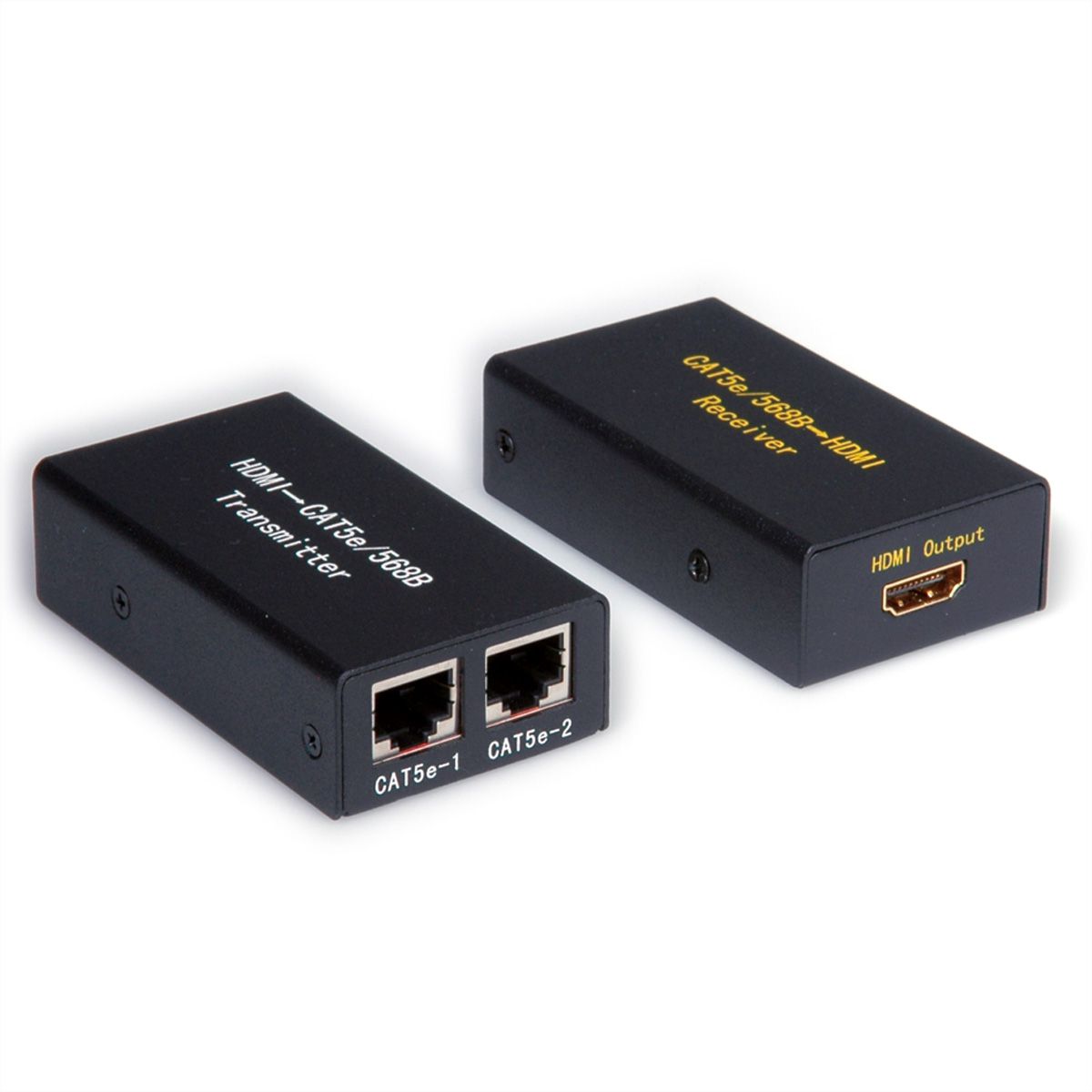

Contents: Transmitter (2x RJ-45 F, HDMI F), Receiver (2x RJ-45, HDMI F), 1x power supply (5V DC, 2A) for receiver, manual

Specifications

Manufacturer	VALUE
Product group	Splitters and selectors
Product type	HDMI Extender
Colour	black
Scope of delivery	Transmitter (2x RJ-45 F, HDMI F), Receiver (2x RJ-45, HDMI F), 1x power supply (5V, 2A) for receiver, manual
Interface	HDMI
Max. distance	25 m
Video input	HDMI 1.3
Video output	HDMI 1.3
Video band width	up to 2.25 Gbps
Max. resolution (nom.)	1920x1200; 1080p
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Dimensions (HxWxD)	20 x 45 x 80 mm
Power supply unit	1 an Receiver
Power supply output	DC 5V; 2A
Technical particularity	extends the signal up to 30m
Height	20 mm
Width	45 mm
Depth	80 mm
Weight	246 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	110 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.48 kg
