Description

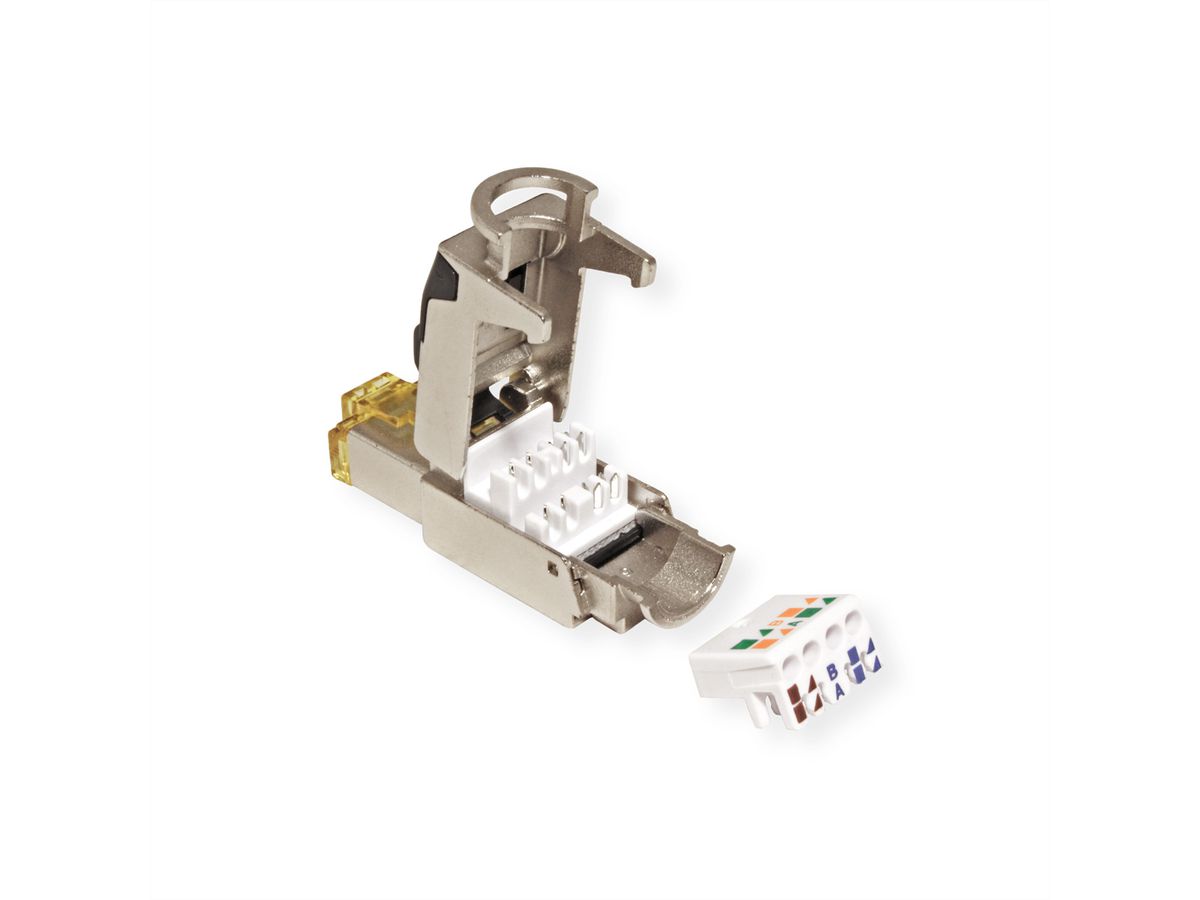

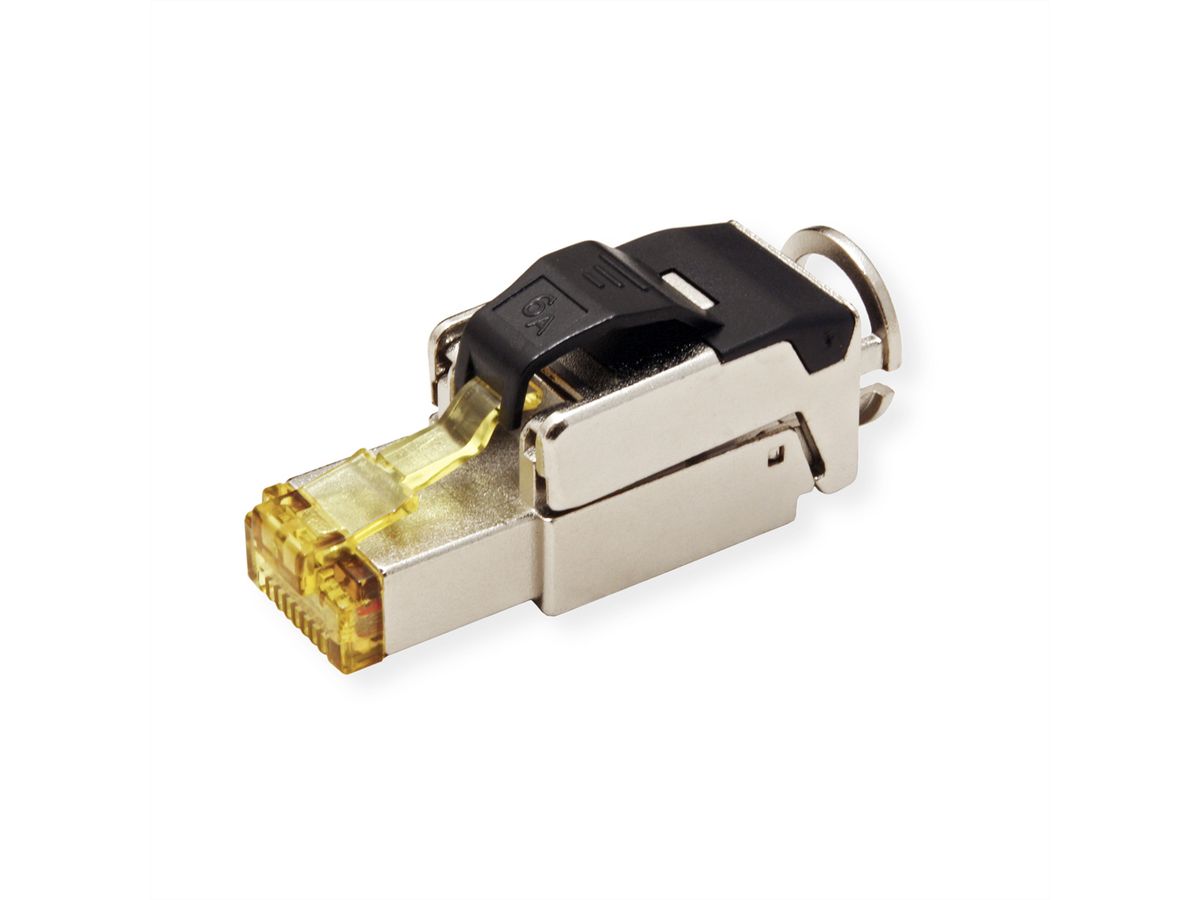

• Fast and easy tool-free installable unshielded RJ45 connector
• Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
• Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
• For cable with outer diameter OD: 6.0 - 9.0mm
• Pair management according to TIA 568B and TIA 568A colour codes
• Robust zinc die-cast housing

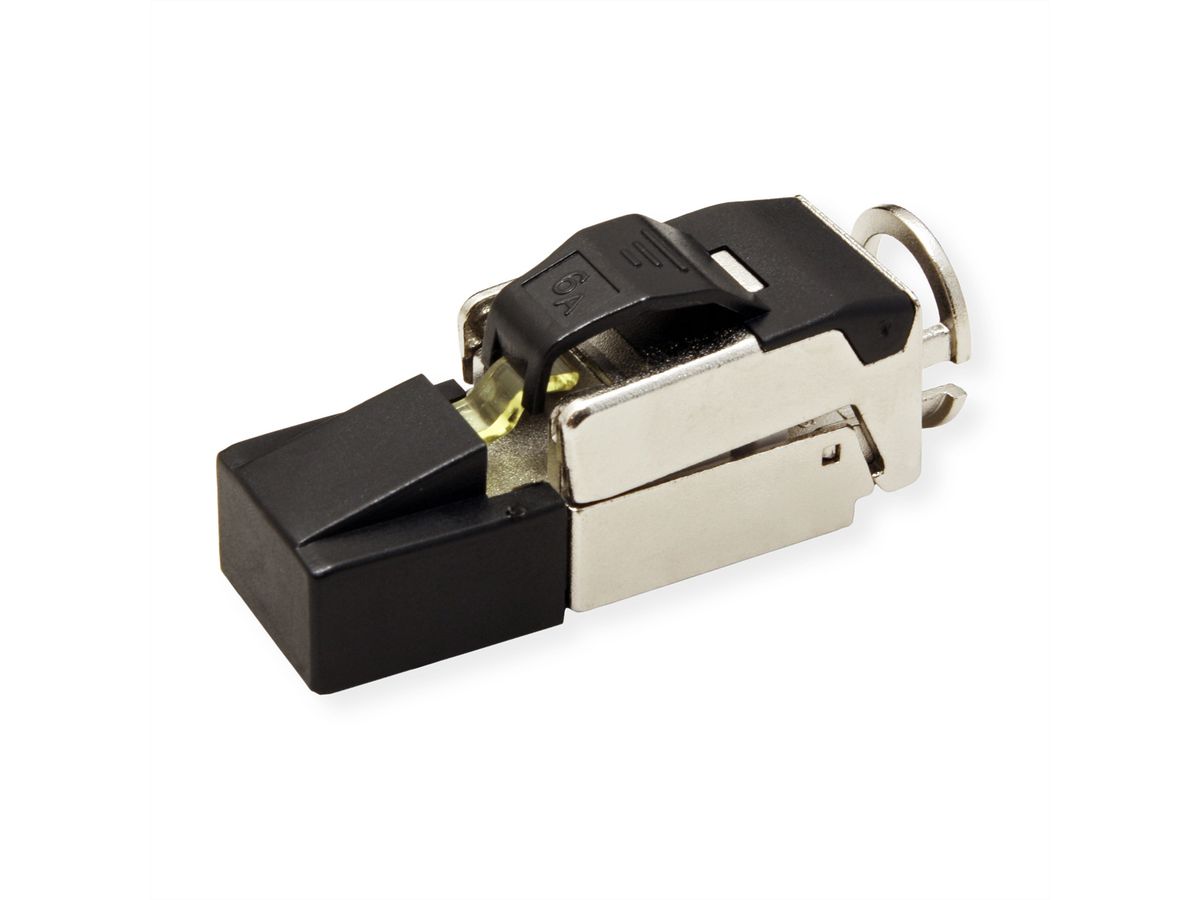

• Strain relief with cable tie and black transparent dust cup and boot
• Color: silver

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Shield contacts	ja
separate strain relief	yes
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	16.8 mm
Width	13.8 mm
Depth	41.8 mm
Weight	14.8 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.019 kg
