Description

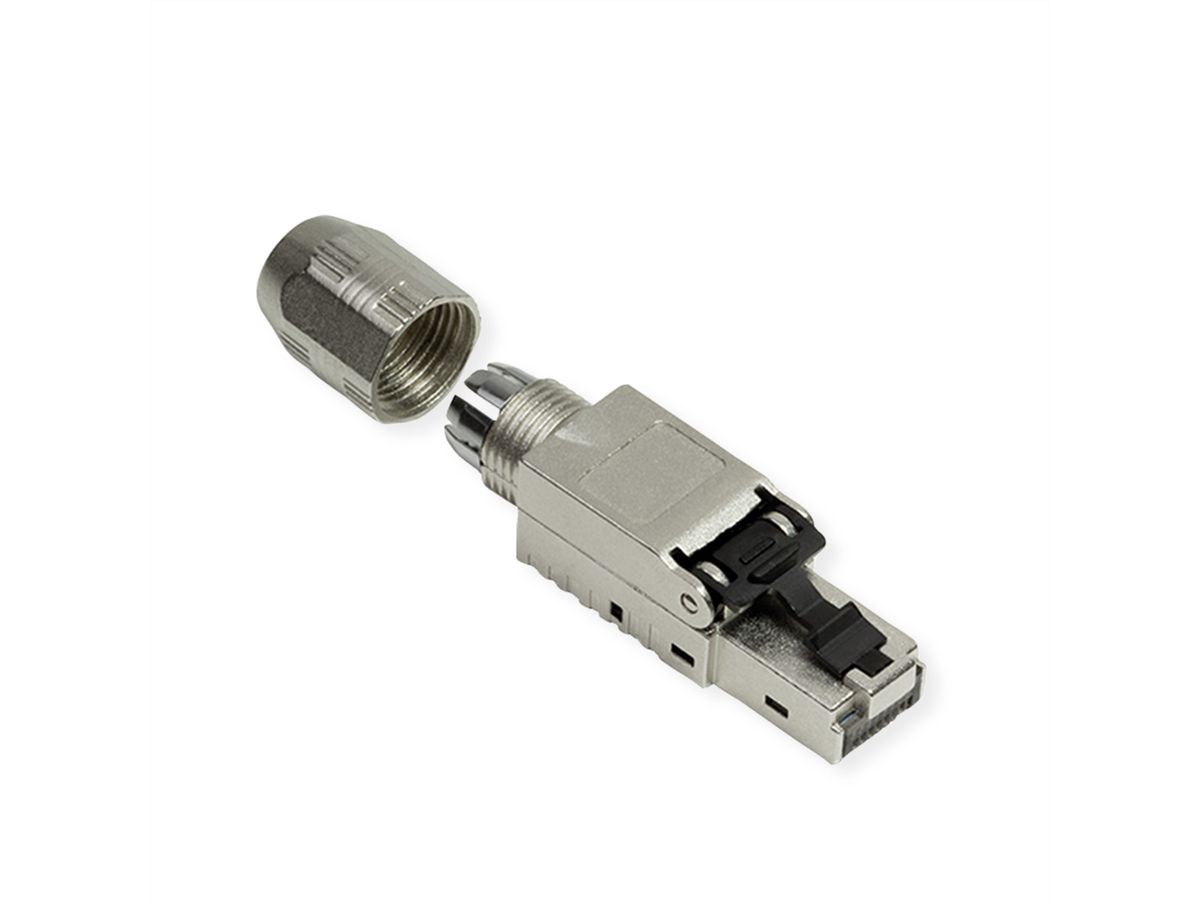

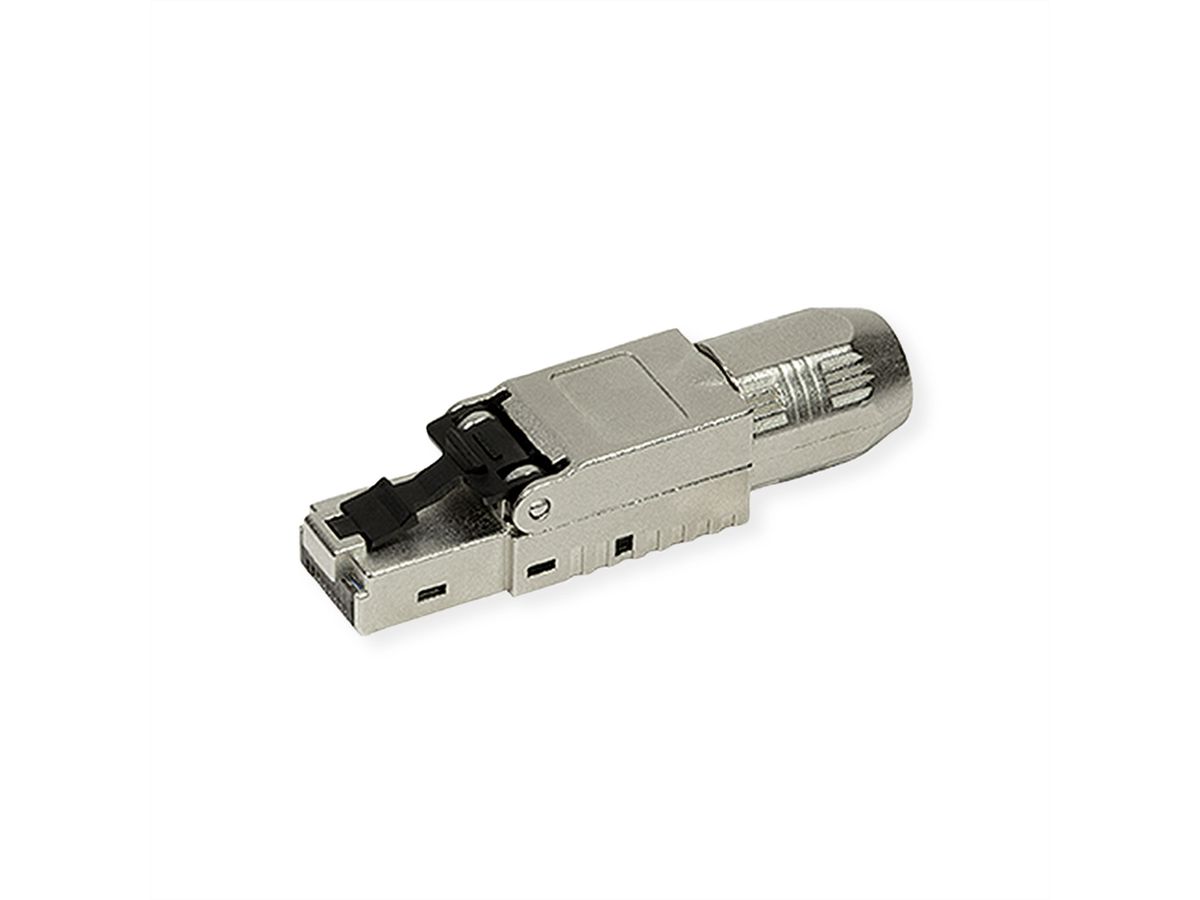

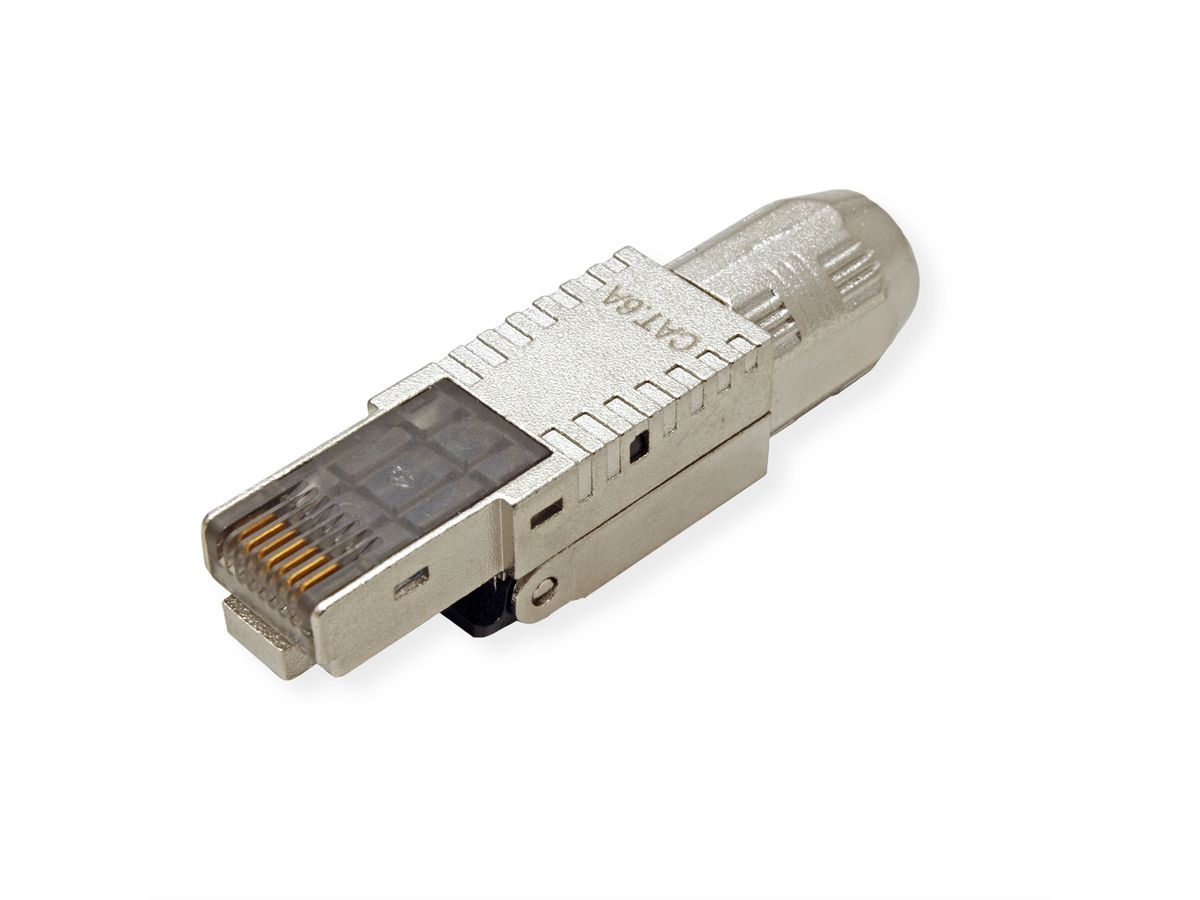

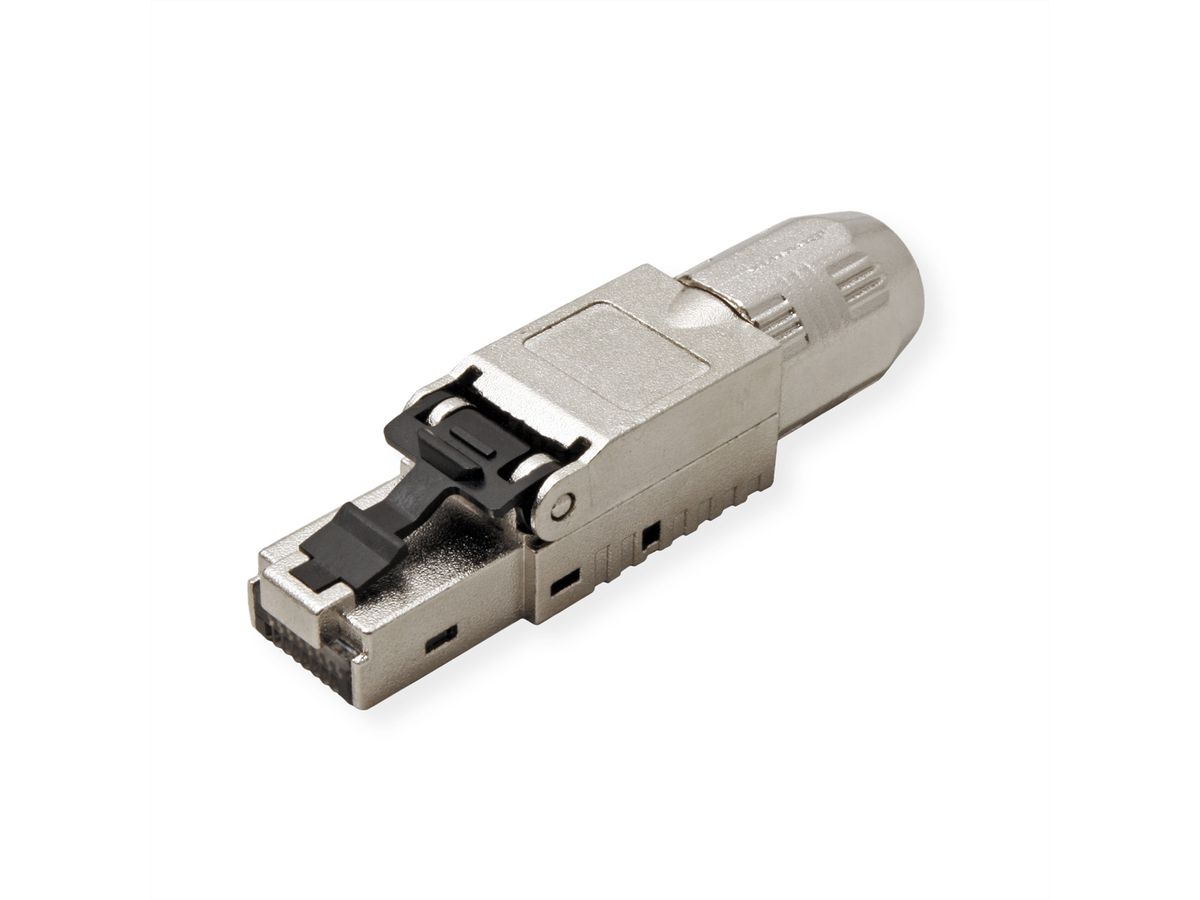

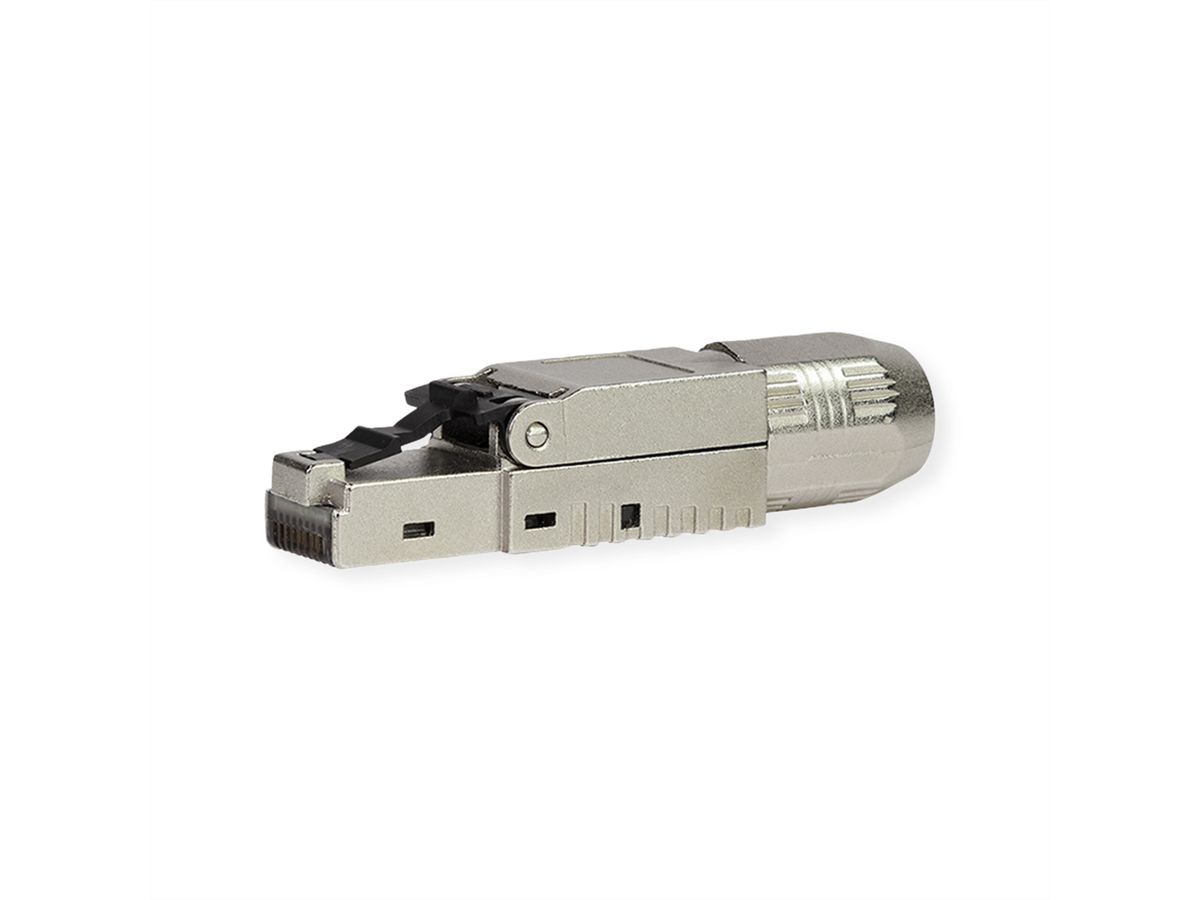

• Fast and easy tool-free installable unshielded RJ45 connector
• Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7

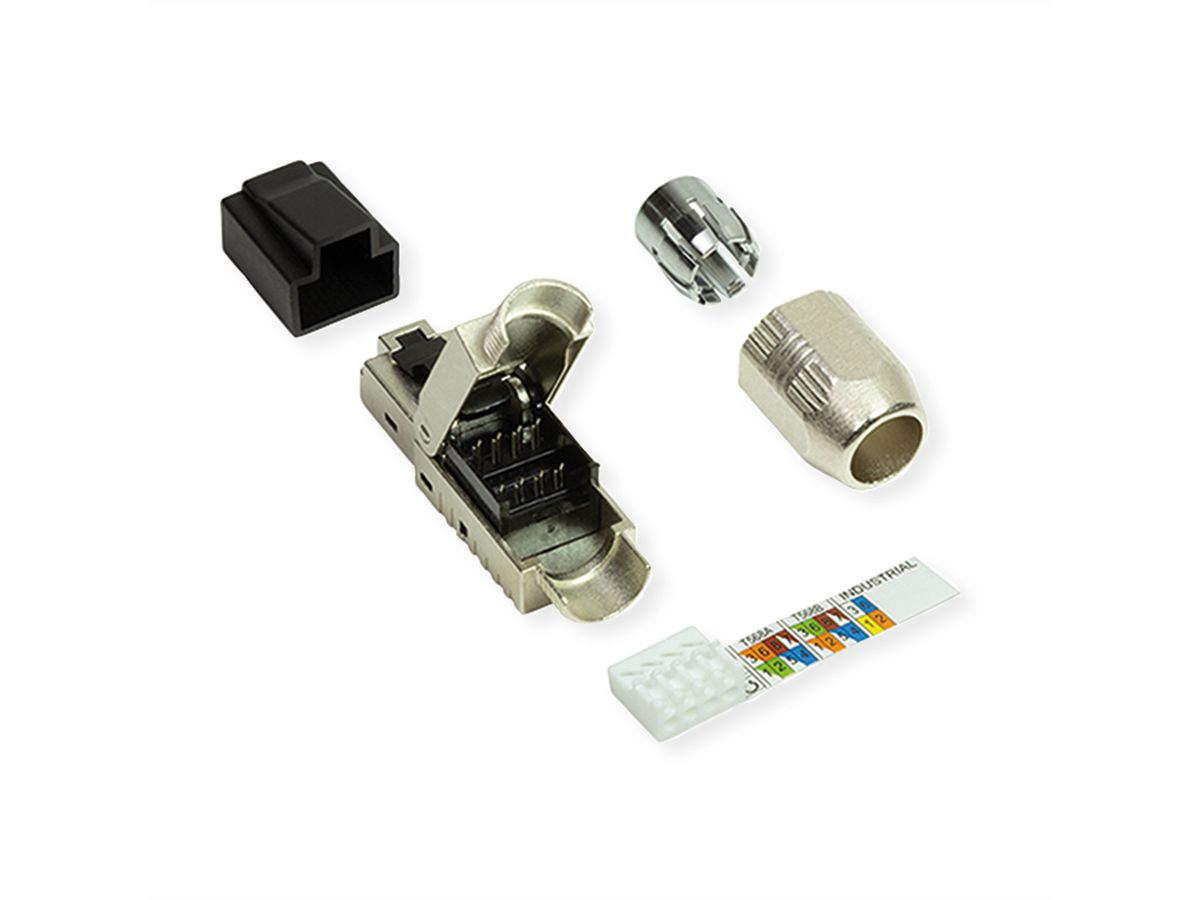

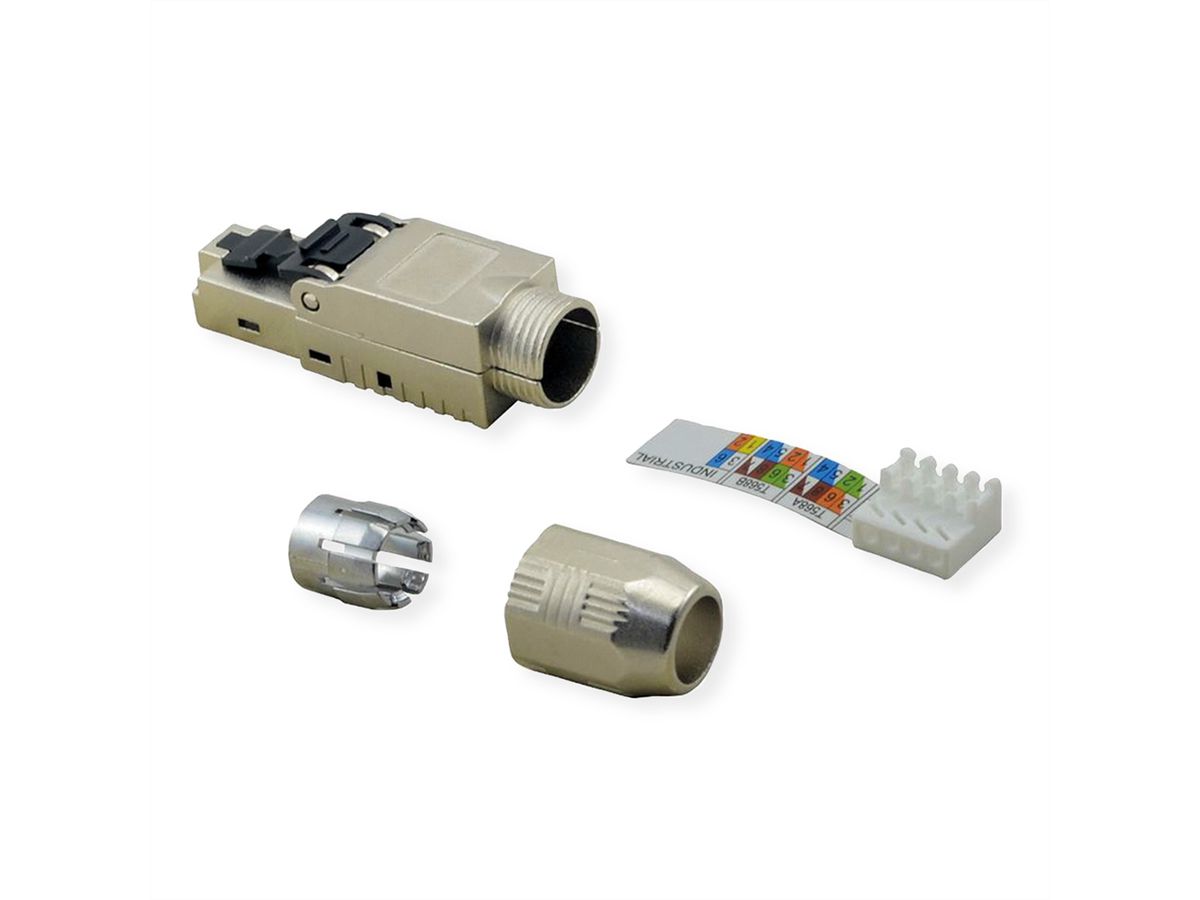

• Compact cable manager for round AWG22/1-26/1(1/0.65-1/0.4mm) and stranded cable AWG 22/7-26/7 For cable OD:5.0-8.5mm
• For cable with outer diameter OD: 5.0 - 8.5mm

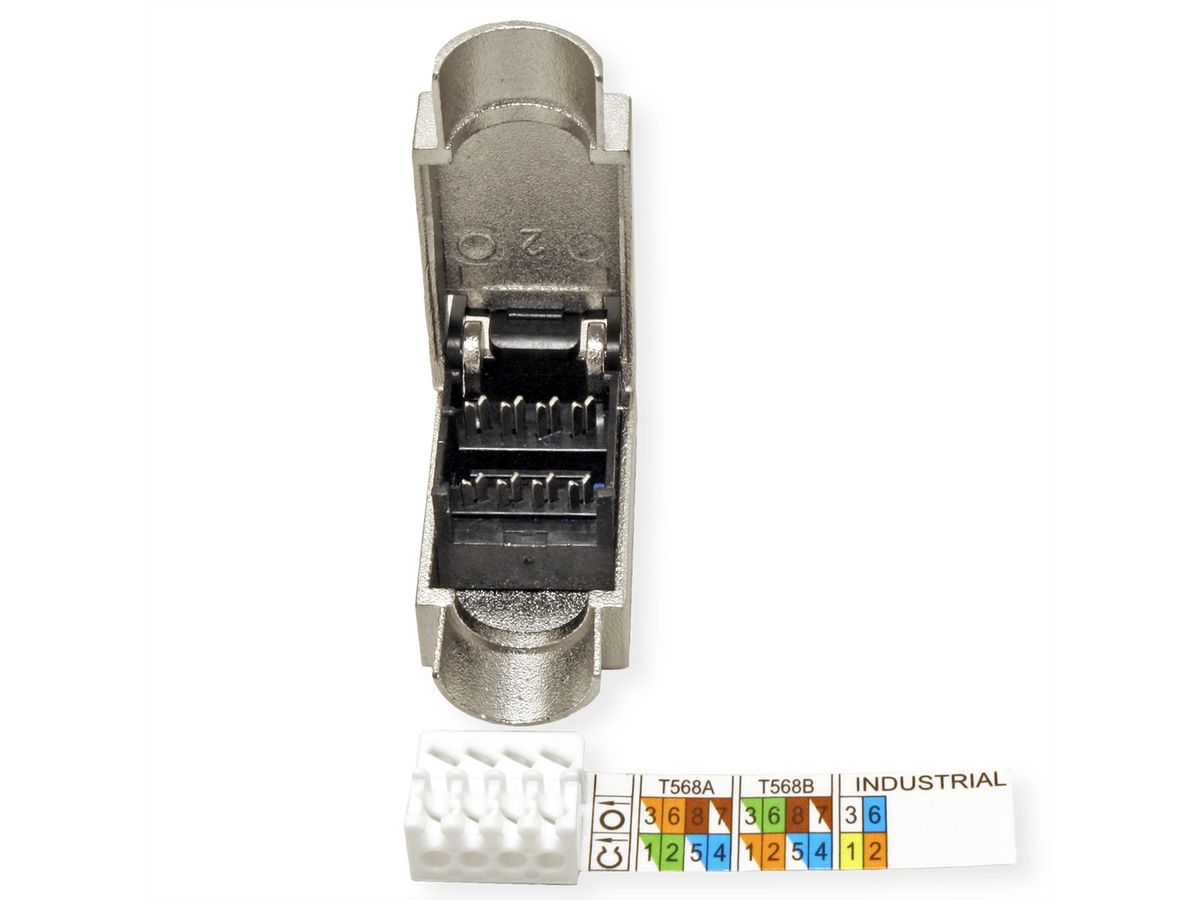

• Pair management according to TIA 568B and TIA 568A colour codes
• Robust zinc die-cast housing

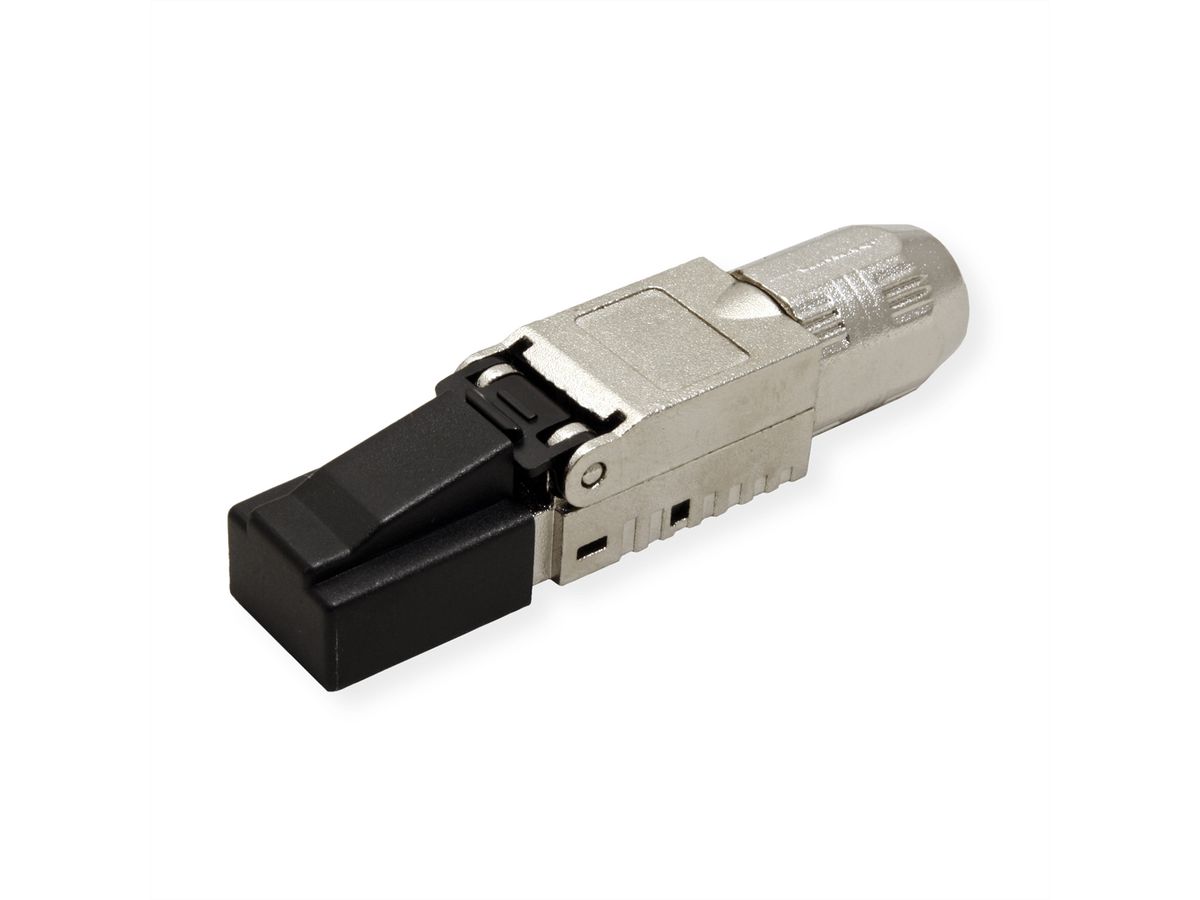

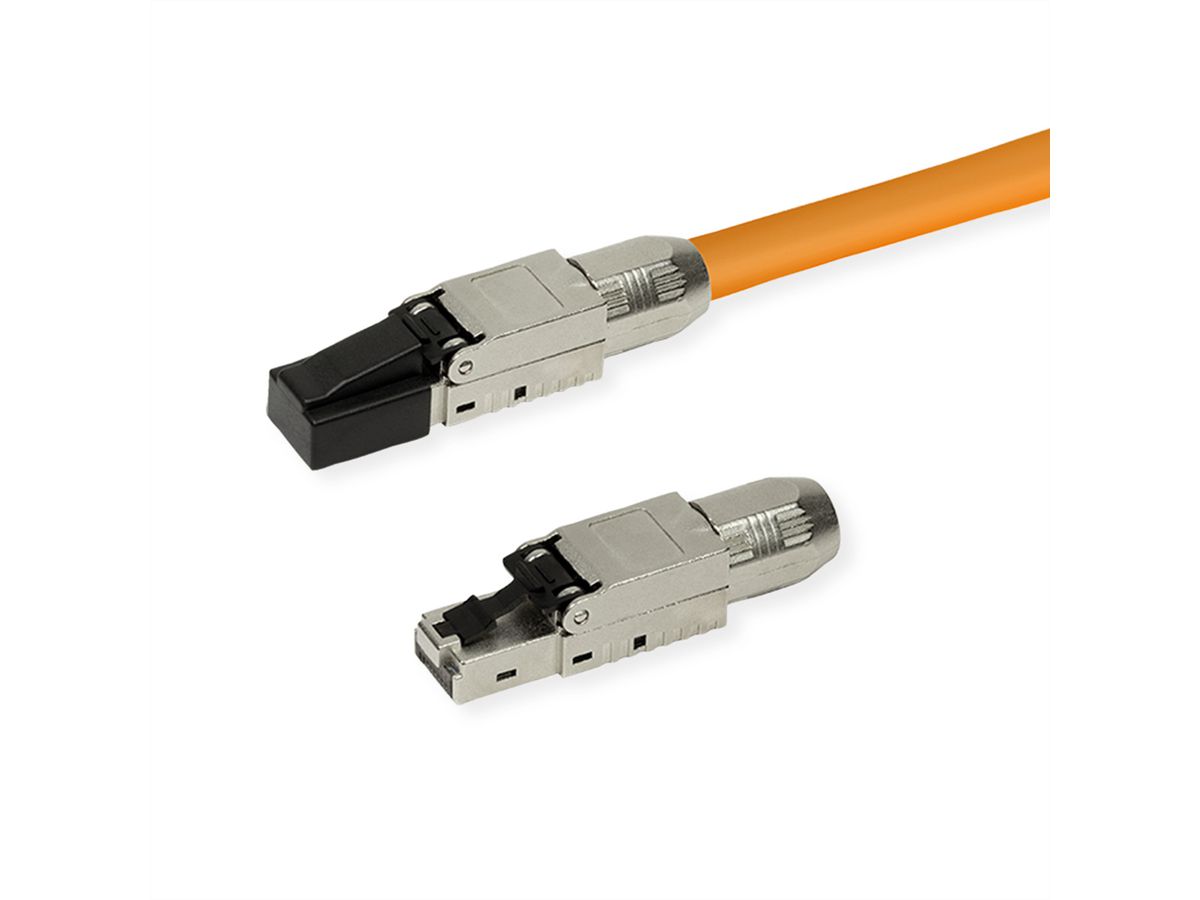

• Strain relief with cable tie and black transparent dust cup and boot
• Color: silver

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Shield contacts	ja
separate strain relief	yes
Height	13.4 mm
Width	14.15 mm
Depth	56.3 mm
Weight	20.7 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	10 mm
Depth of packaging (single piece)	60 mm
Package weight (single piece)	0.03 kg

Downloads

Product data sheet - English (42.3 KB)

Download

Manufacturer data sheet - English (281.8 KB)

Download
