ROLINE Field Plug Cat.6A (Class EA), UTP, white

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170324
Brand / Manufacturer	ROLINE
Manuf. item no.	21.17.0324
EAN	7630049625044
Item weight	0.005 kg

Description

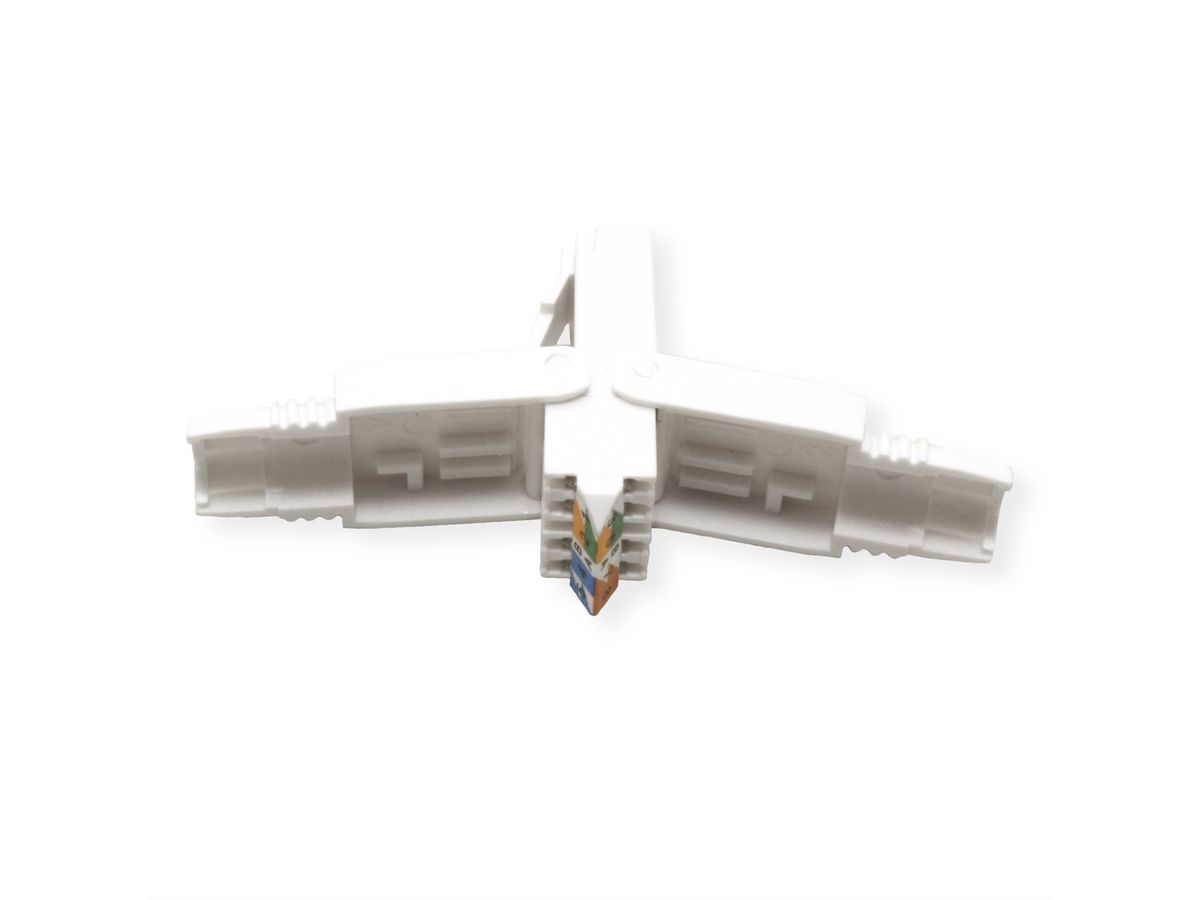

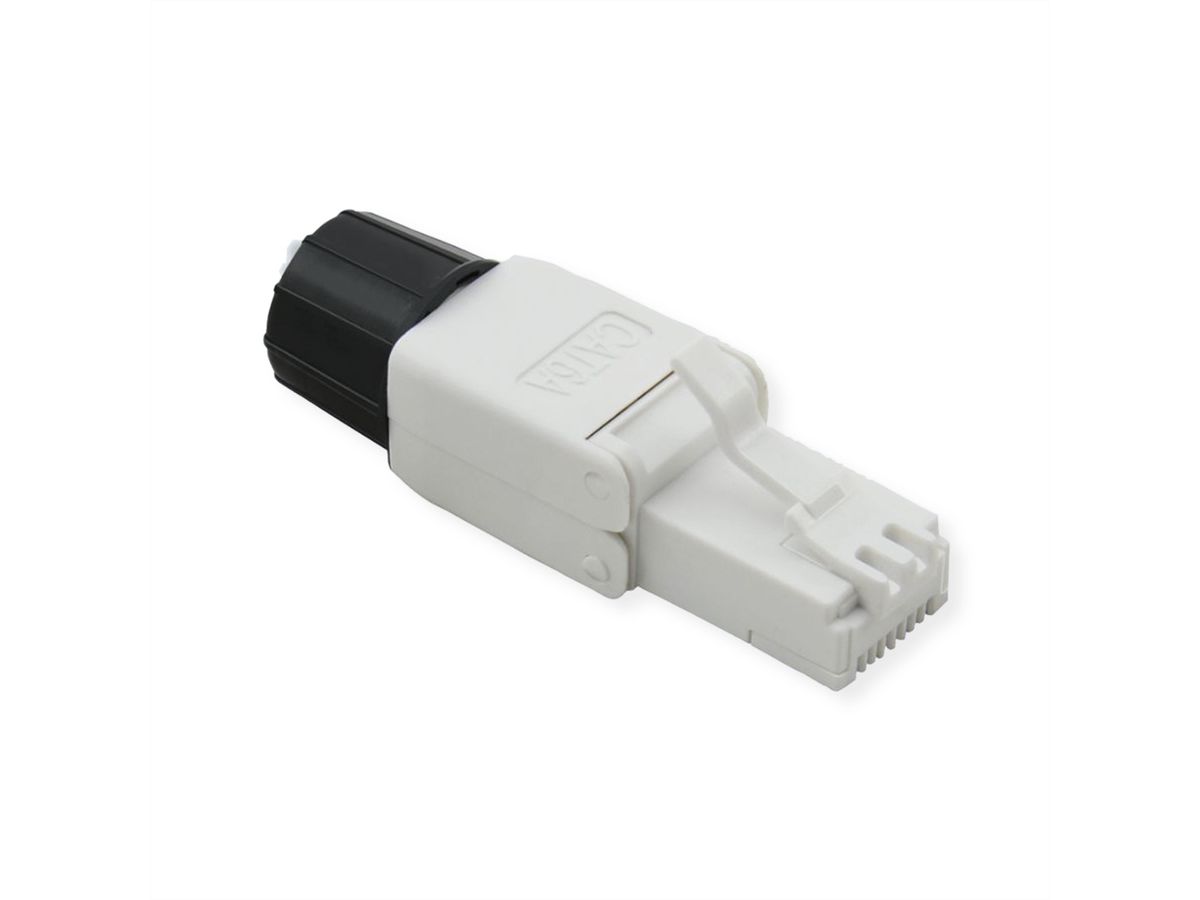

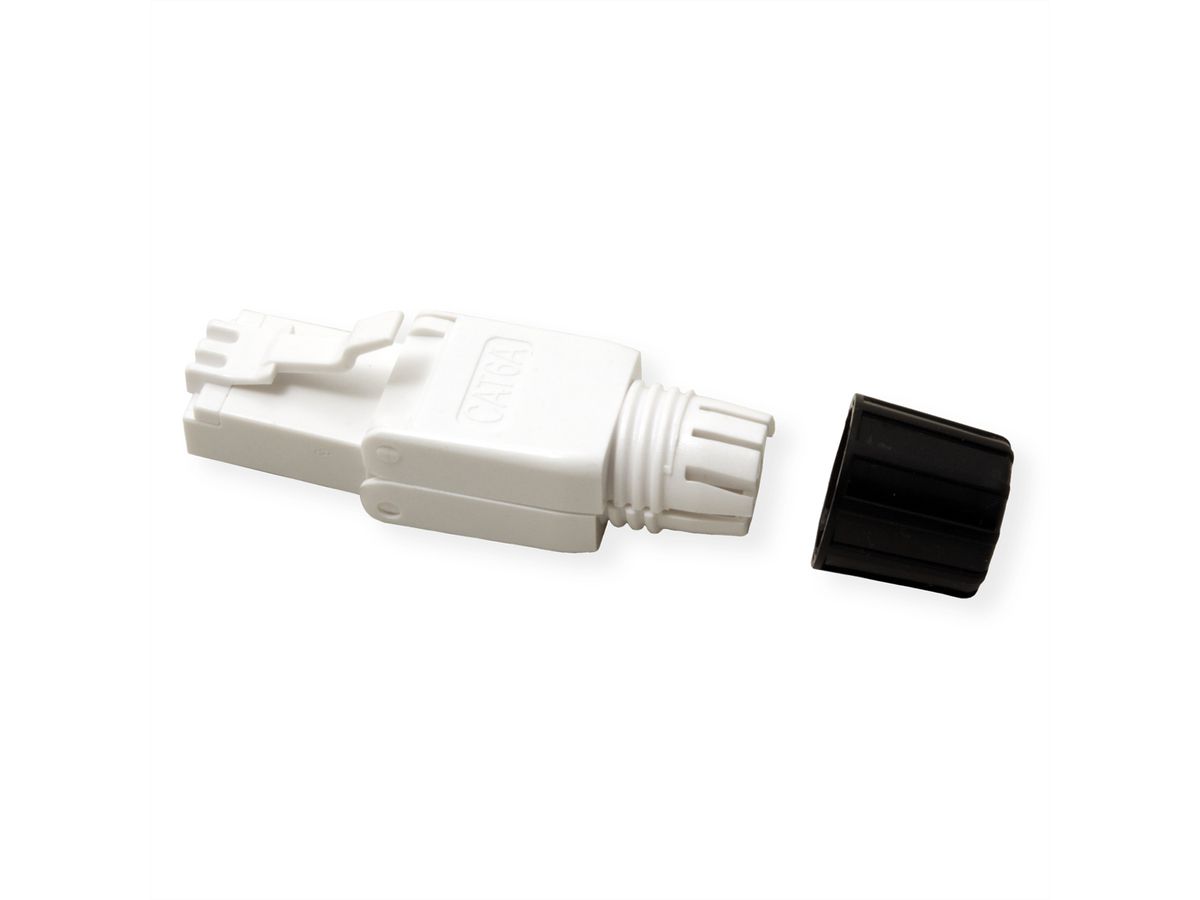

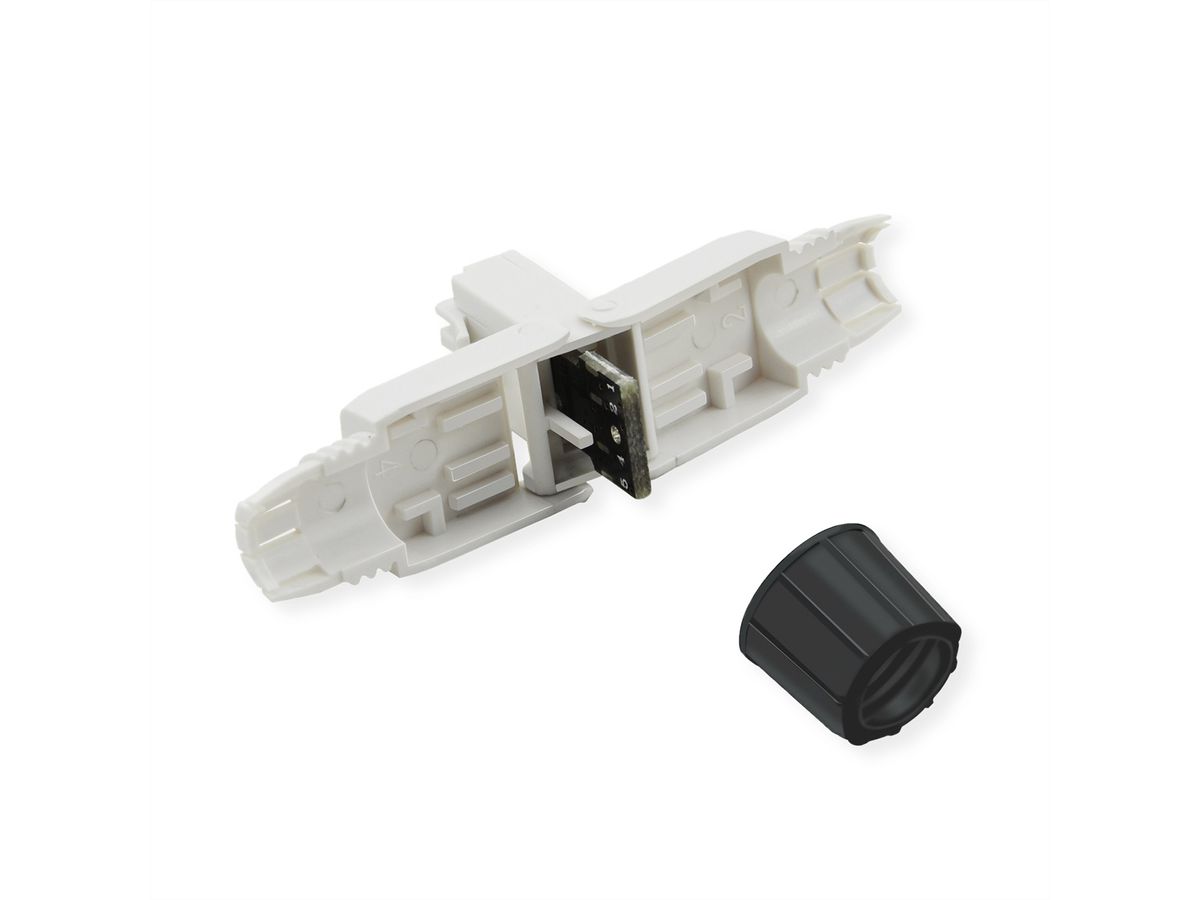

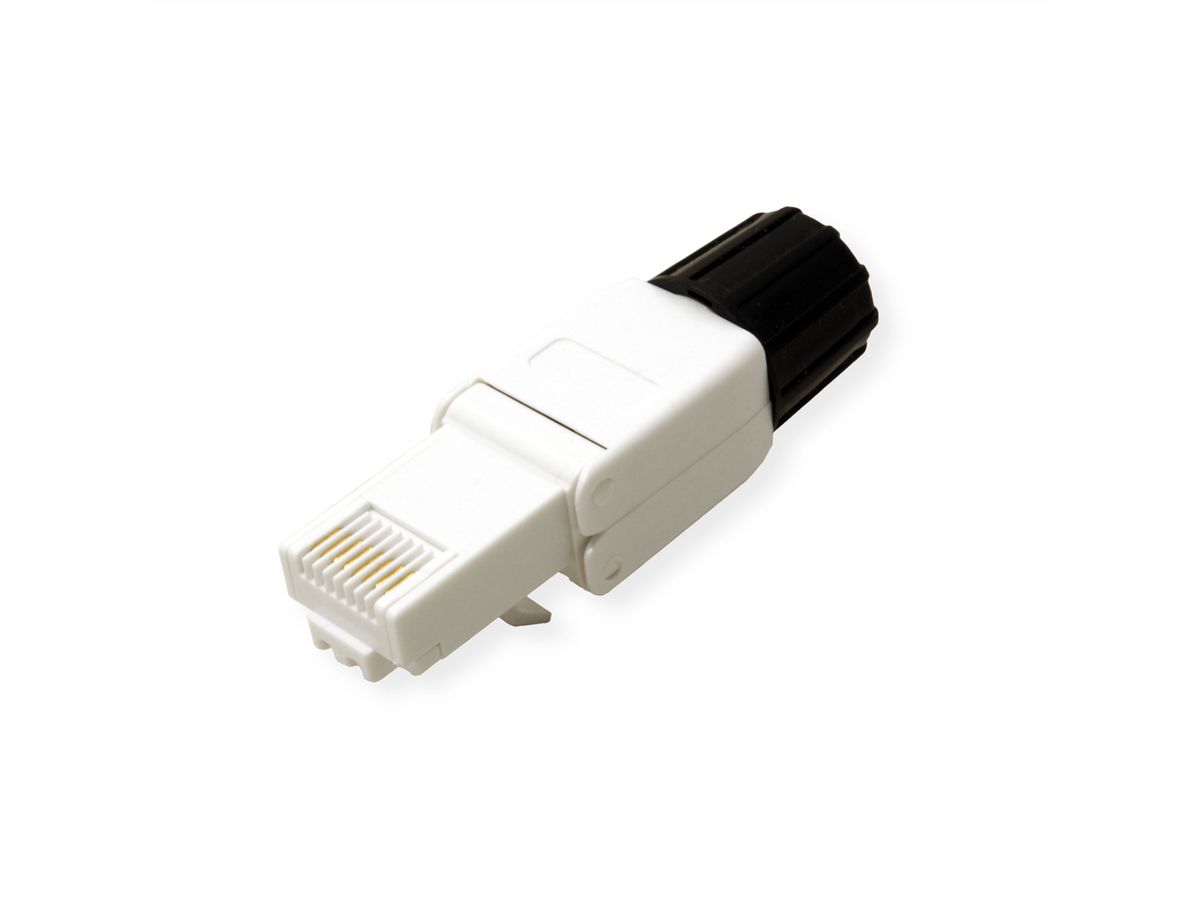

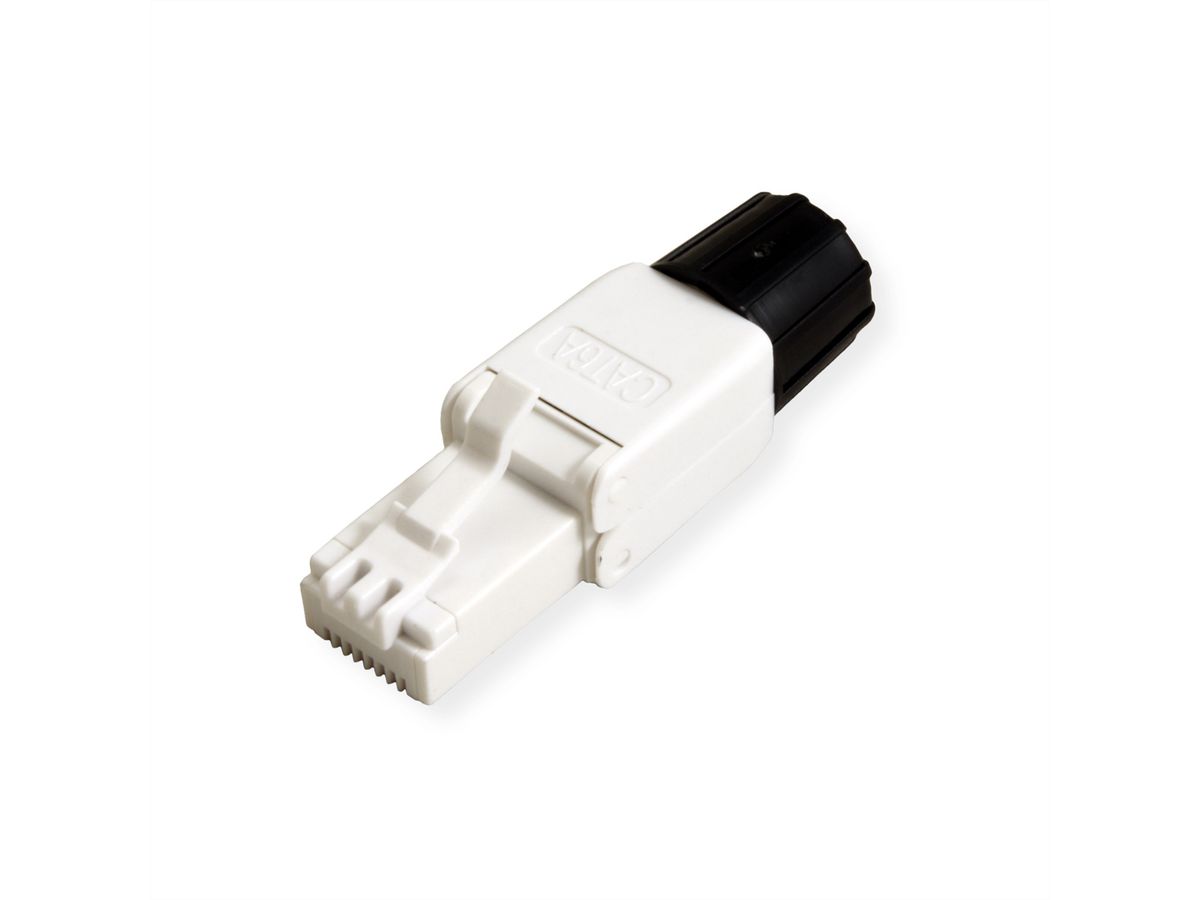

Fast and easy tool-free installable unshielded RJ45 connector
Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7

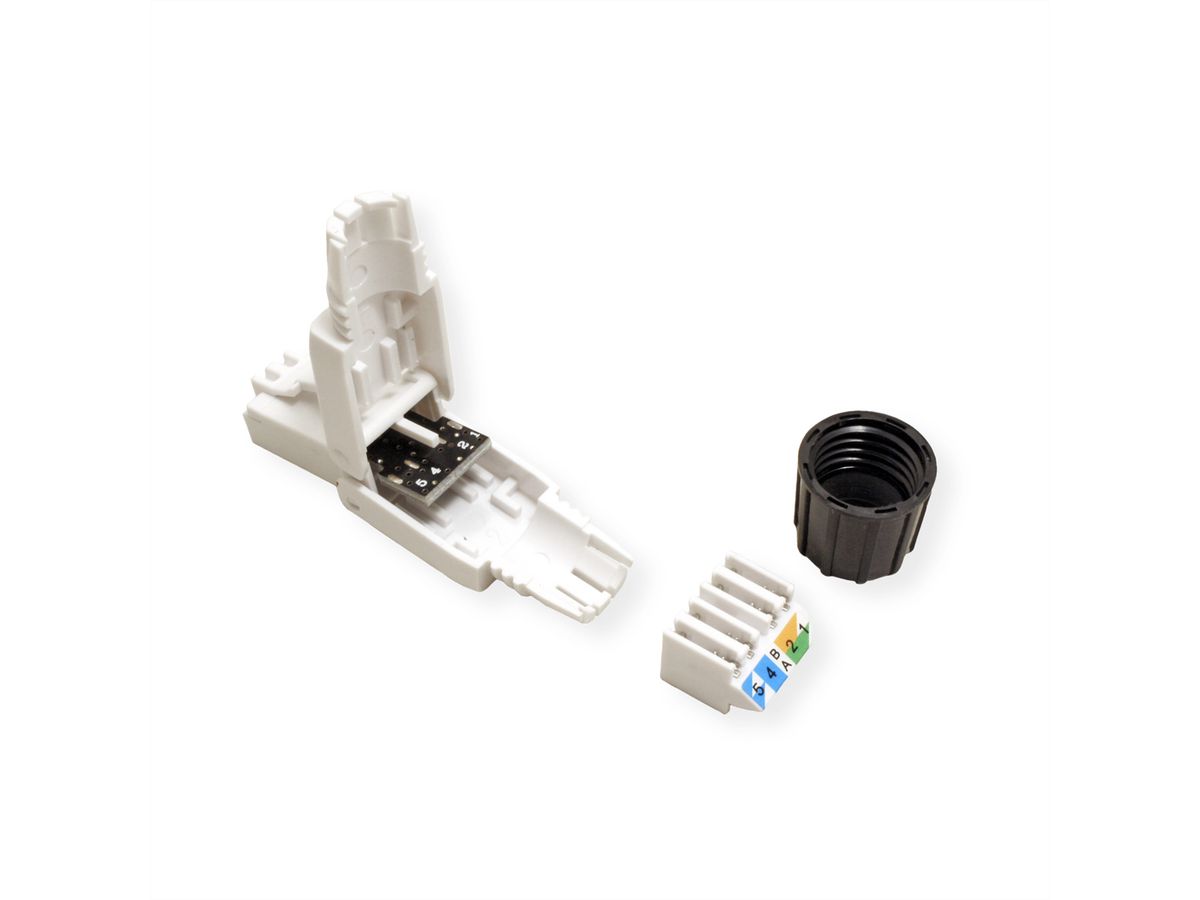

Compact cable manager for round Solid cable AWG 22-24(1/0.41-1/0.575mm)
For cable with outer diameter OD: 5.0 - 7.5mm
Pair management according to TIA 568B and TIA 568A colour codes
Plastic housing
Strain relief with cable tie and black transparent dust cup and boot

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	white
Shield type	Not screened
Transfer quality	Cat6A / Class EA
separate strain relief	yes
Height	15.7 mm
Width	16 mm
Depth	69 mm
Weight	5.3 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	10 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.005 kg
