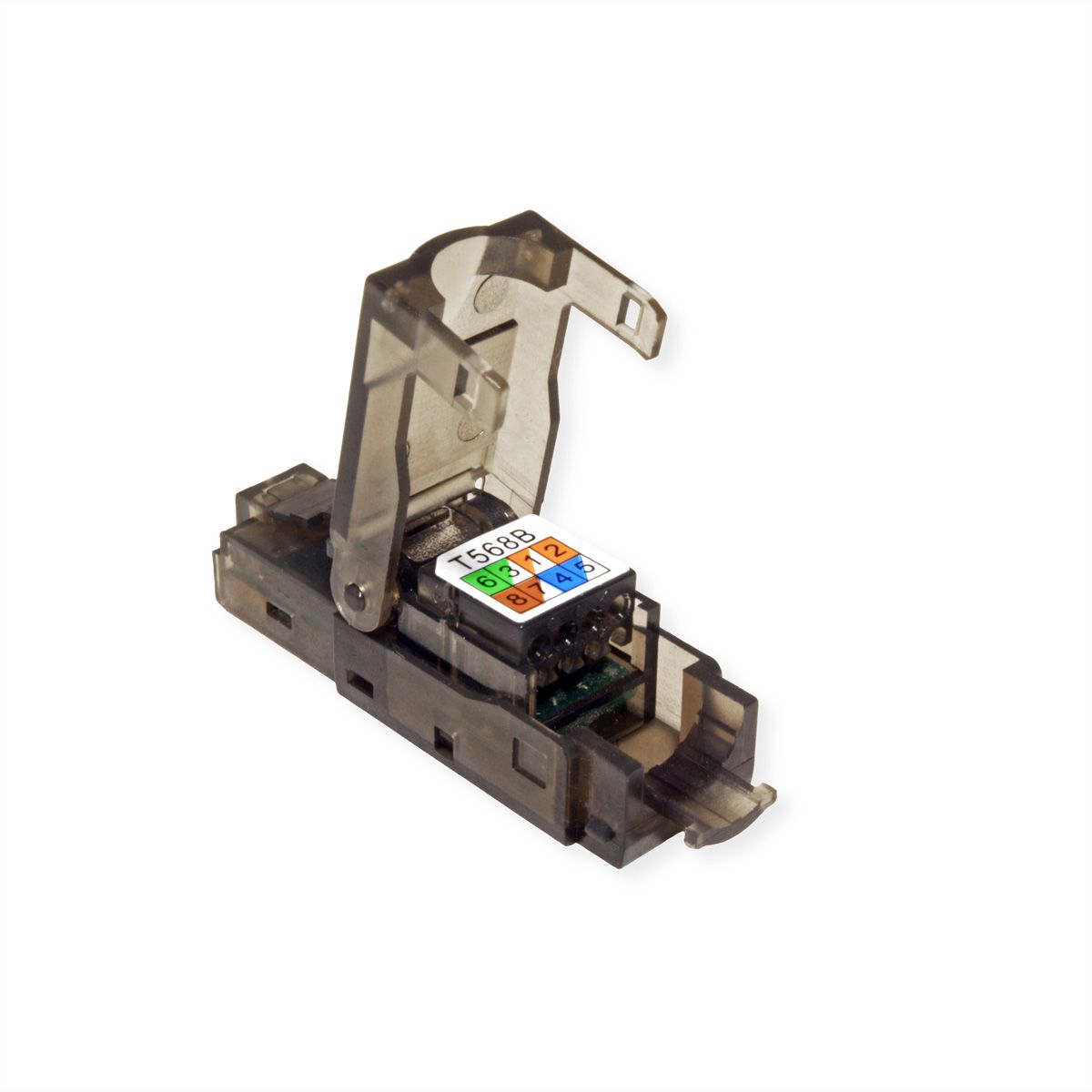

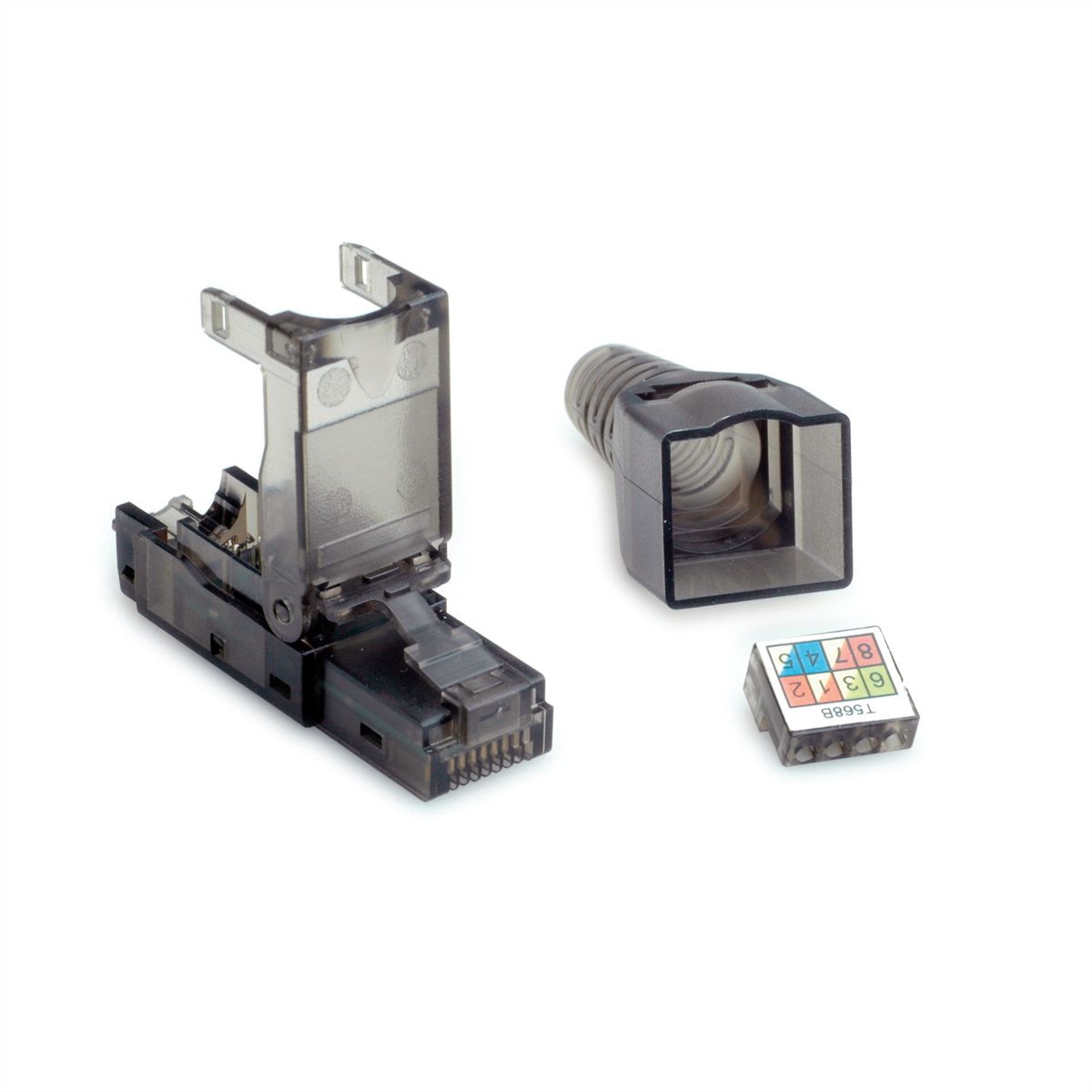

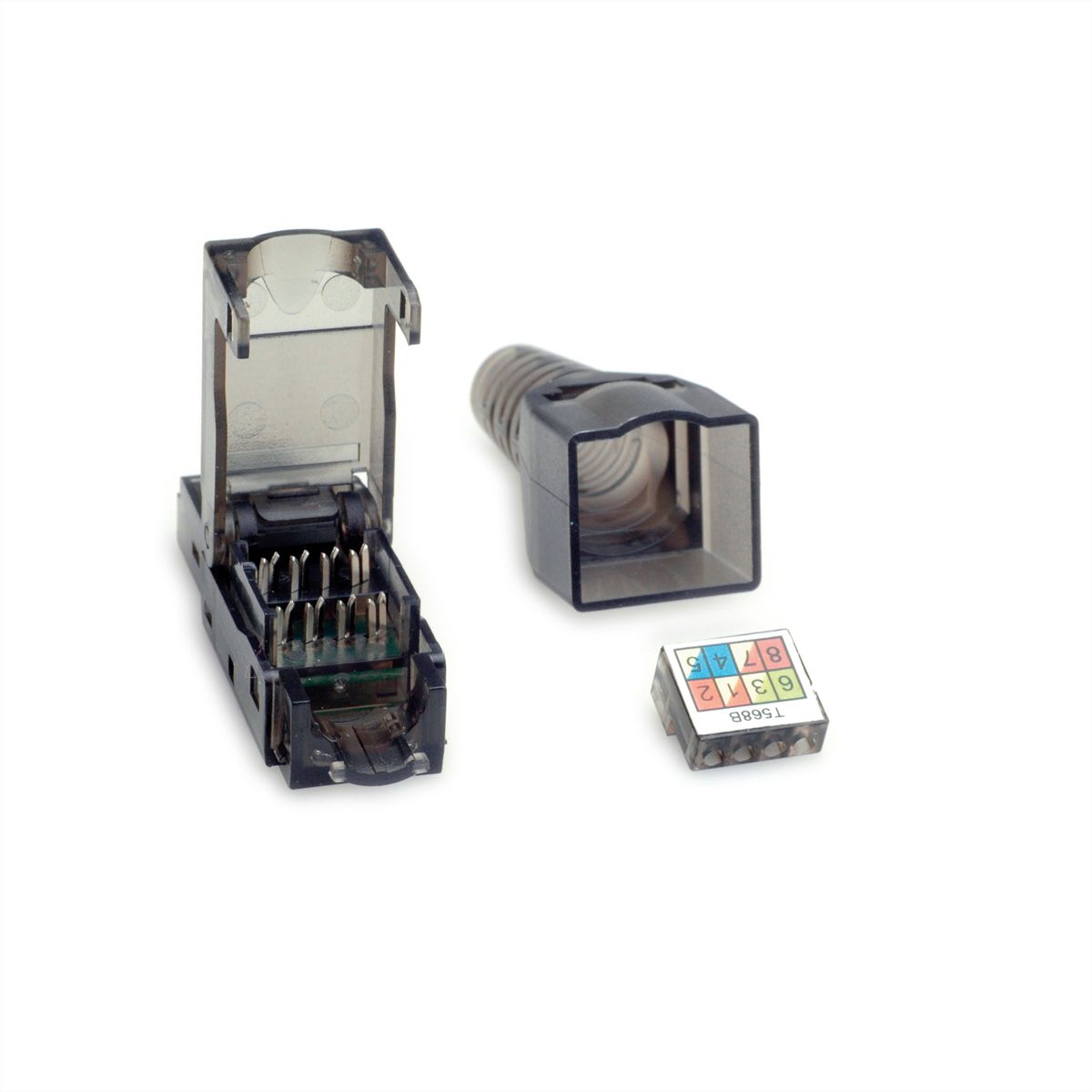

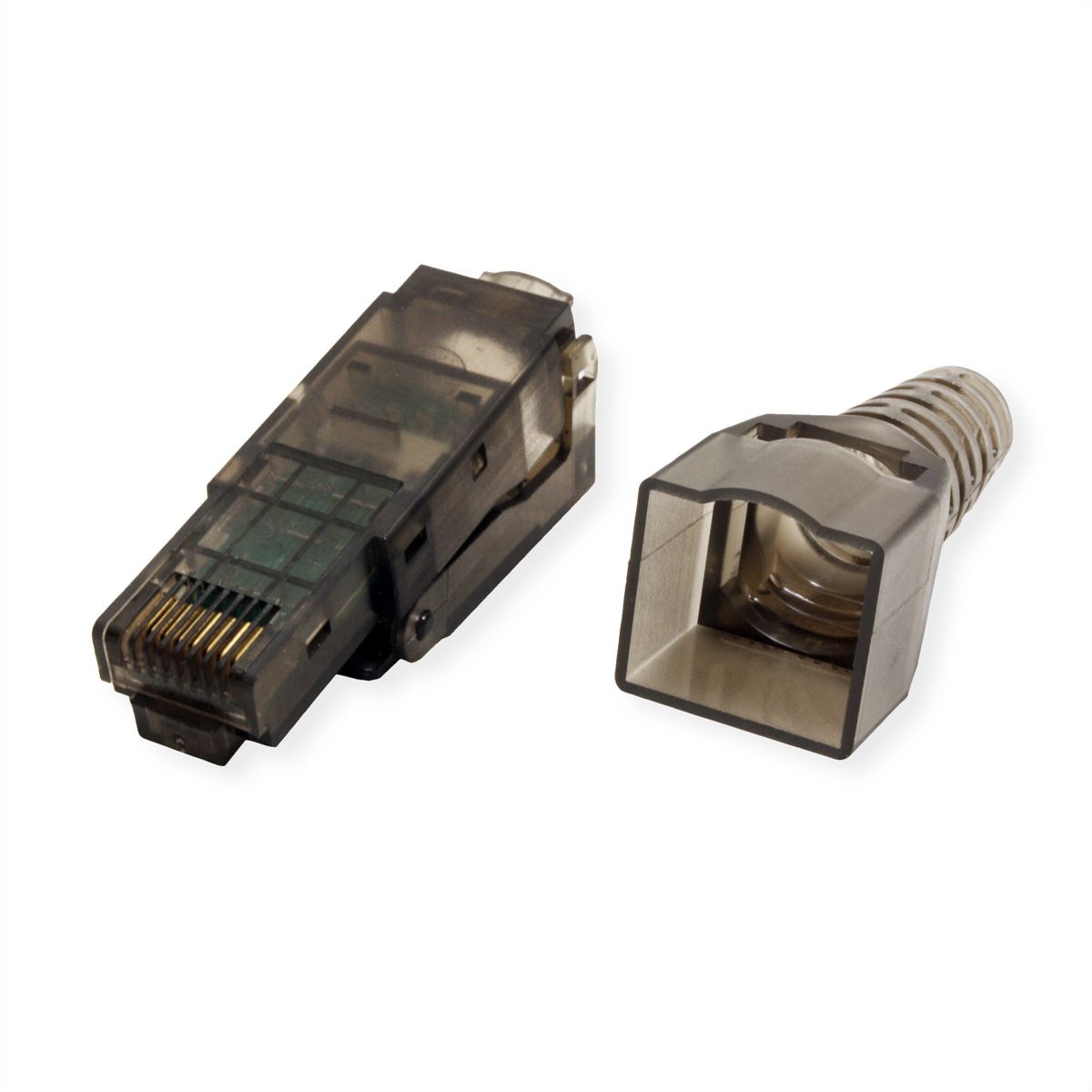

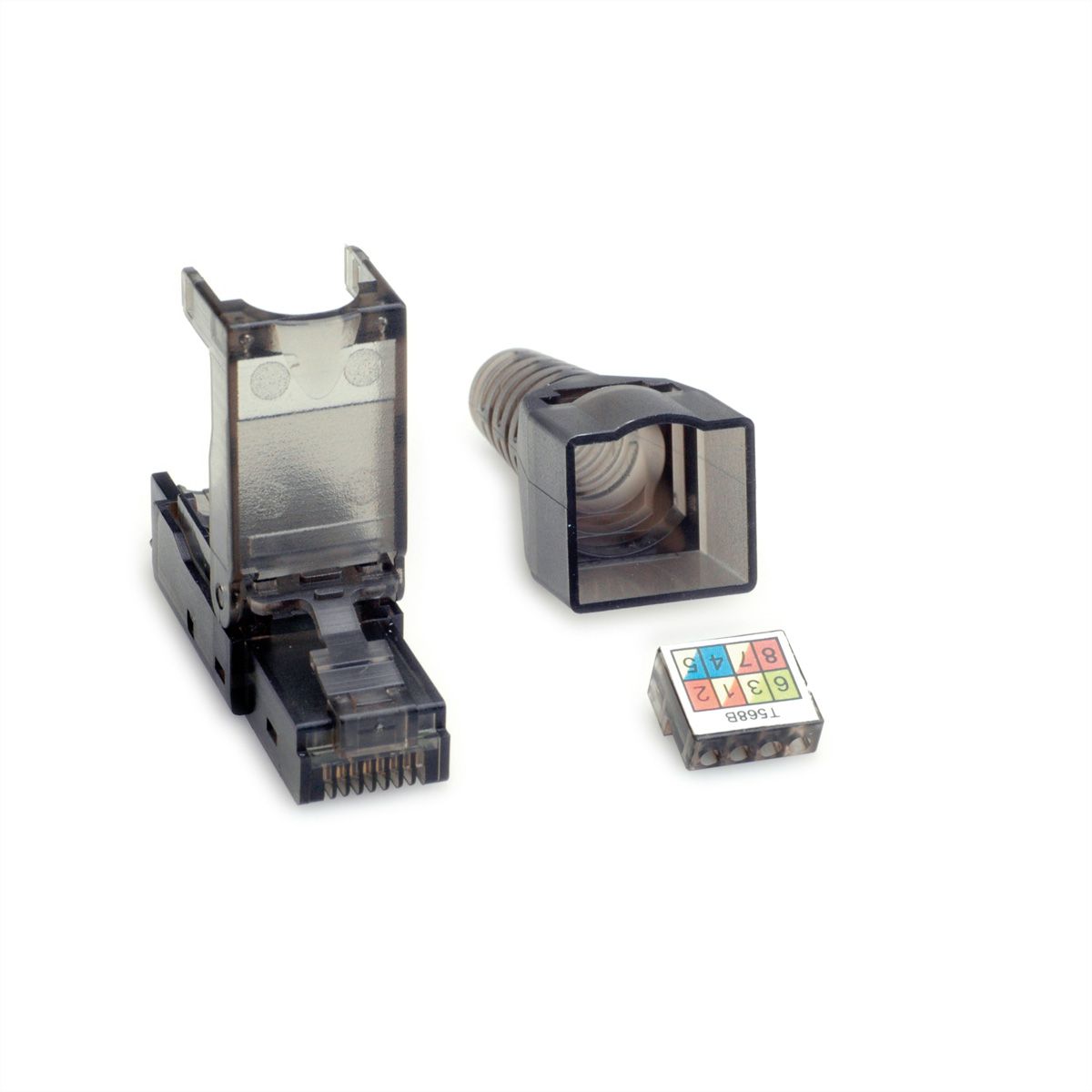

Description

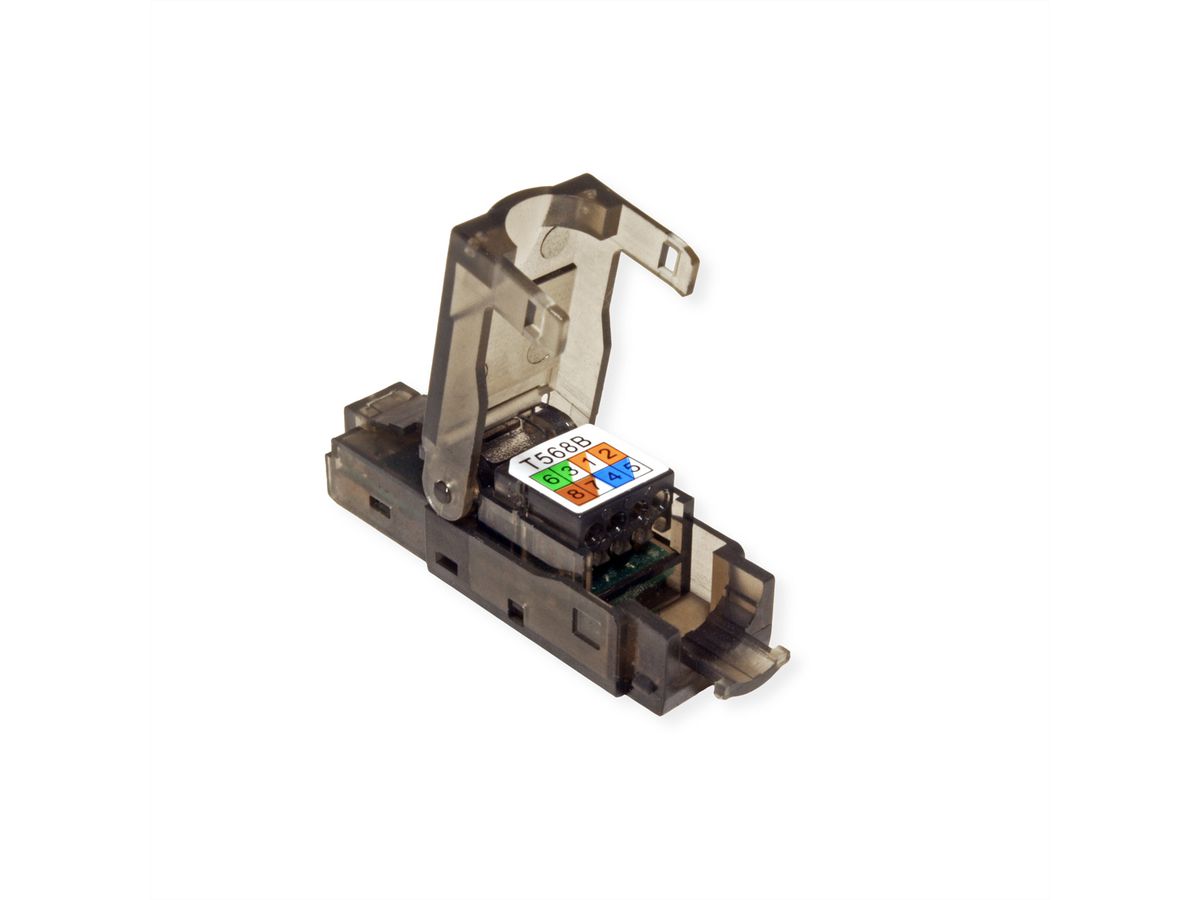

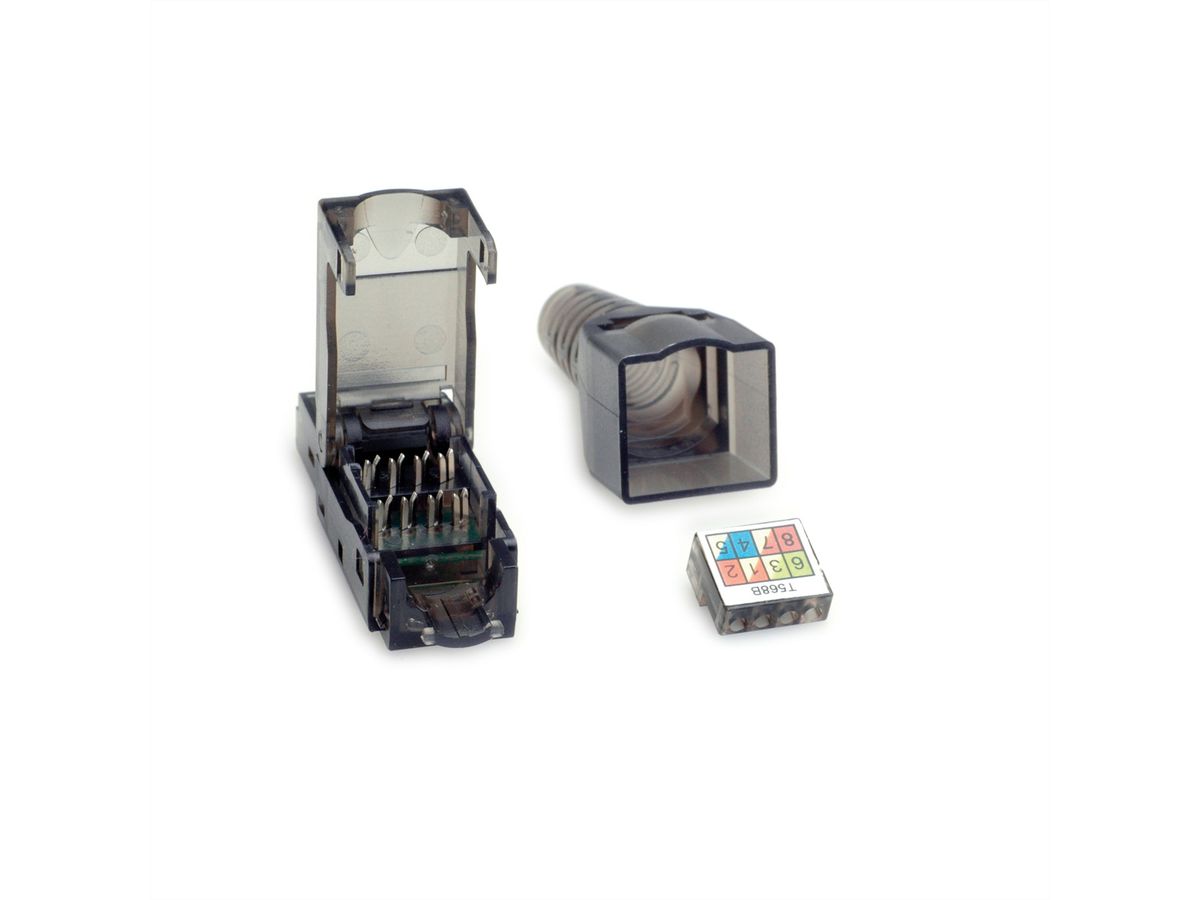

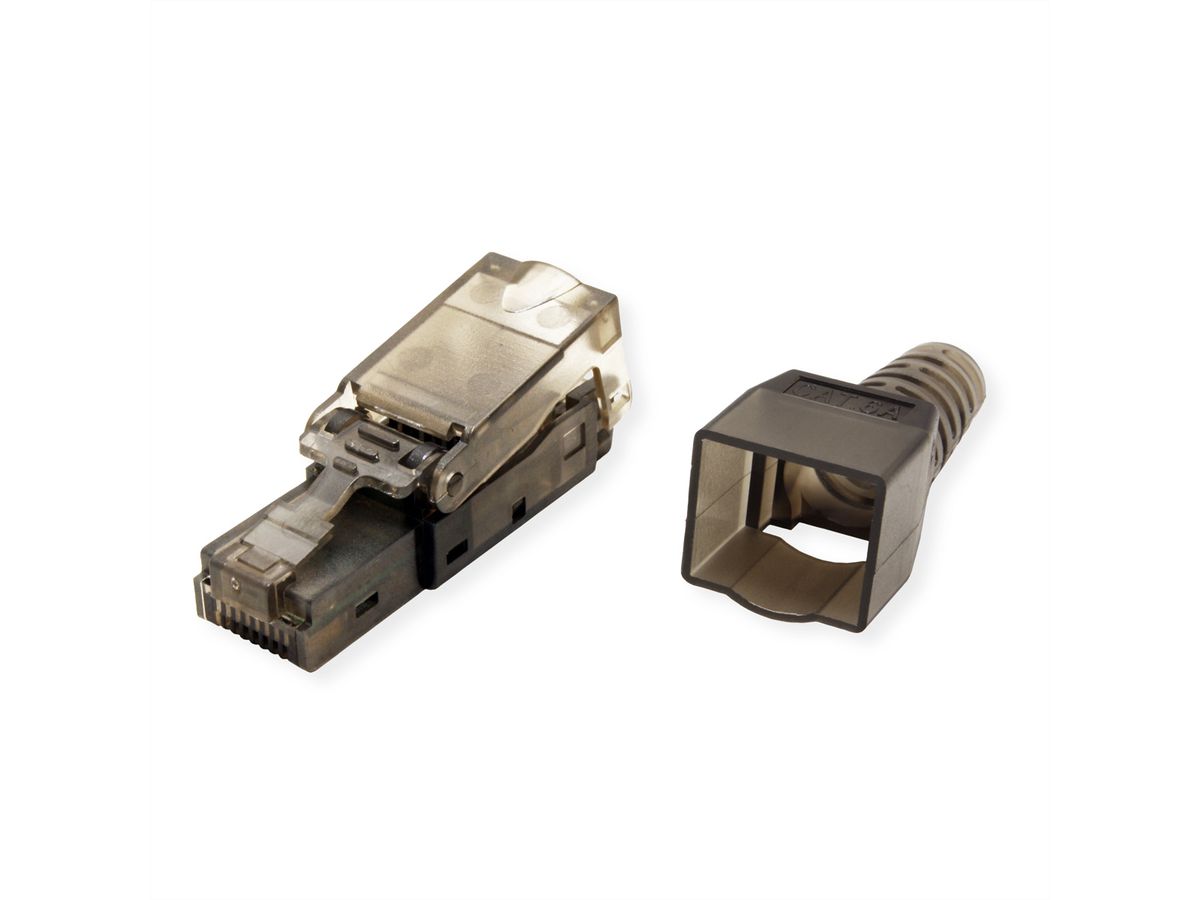

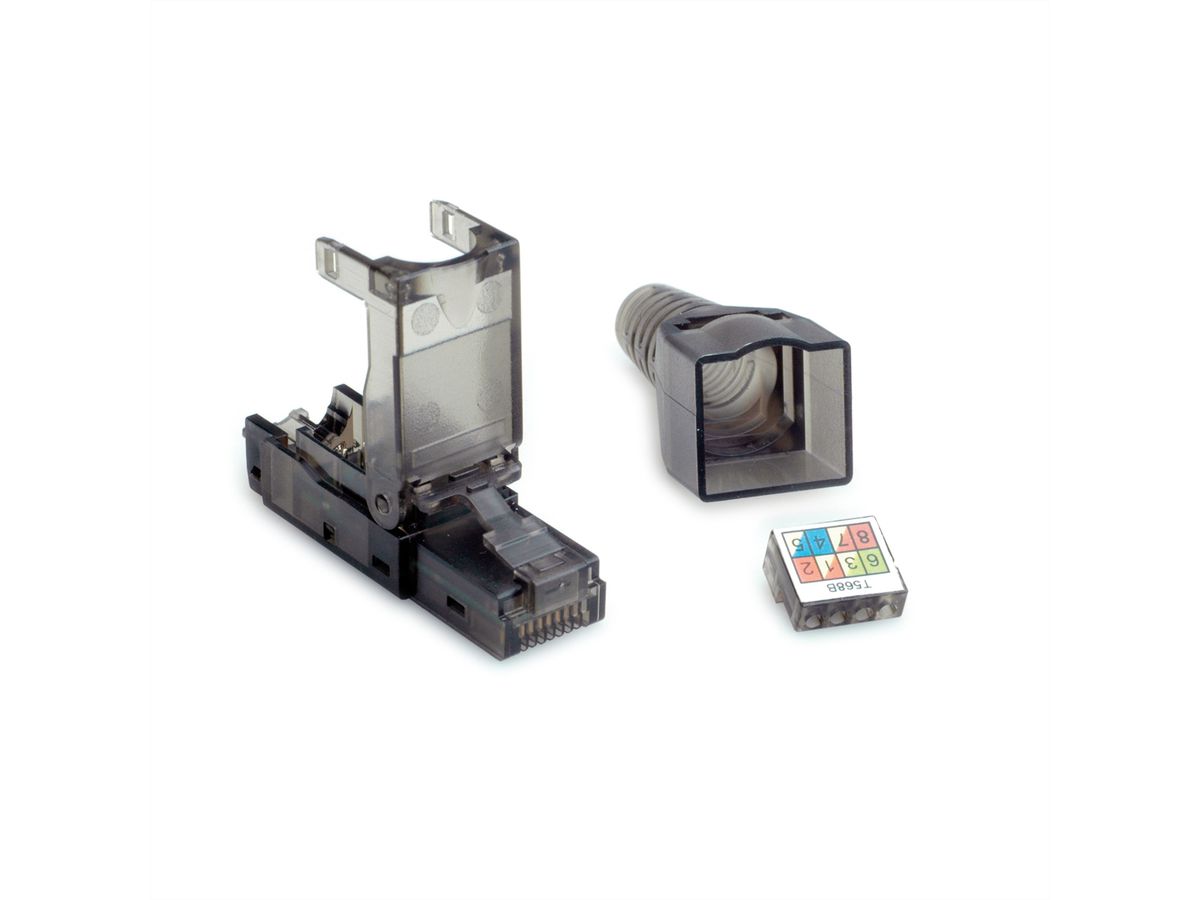

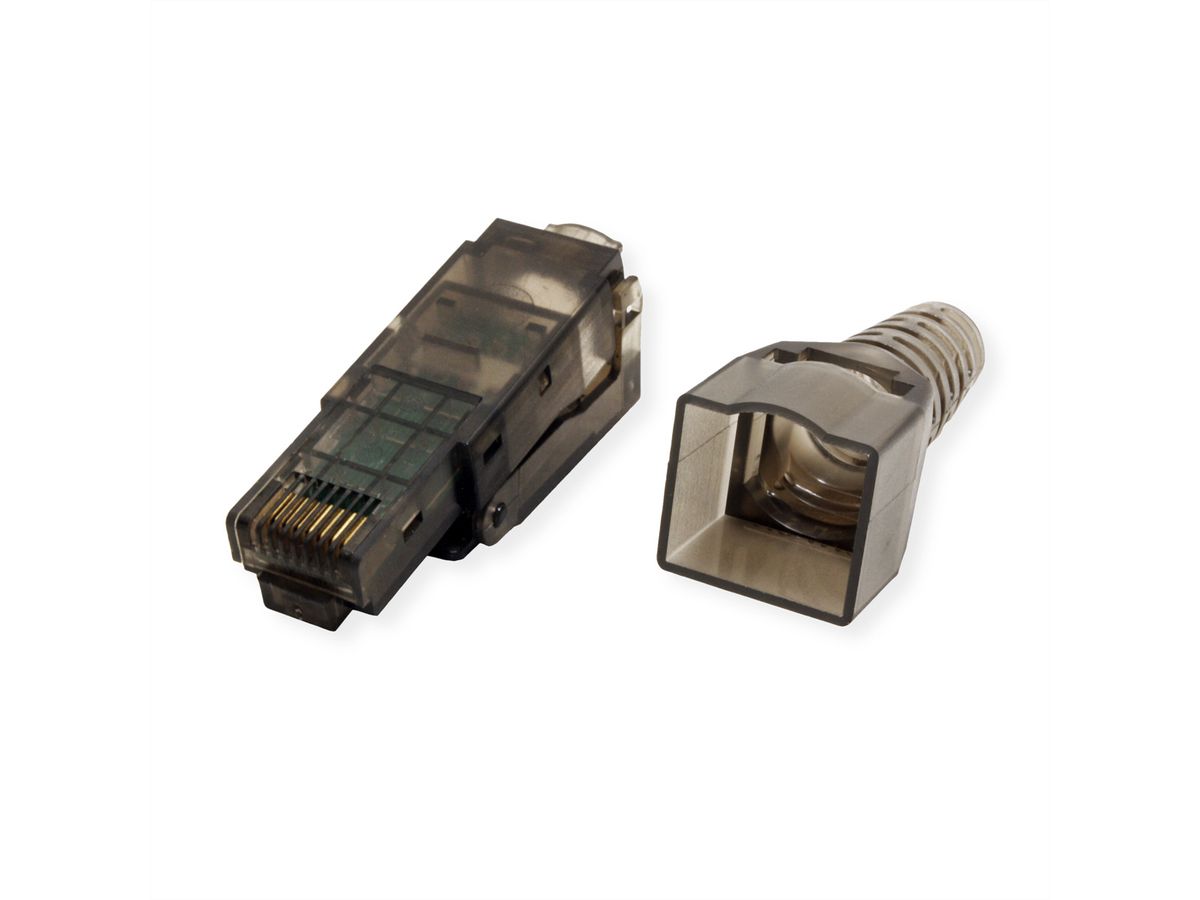

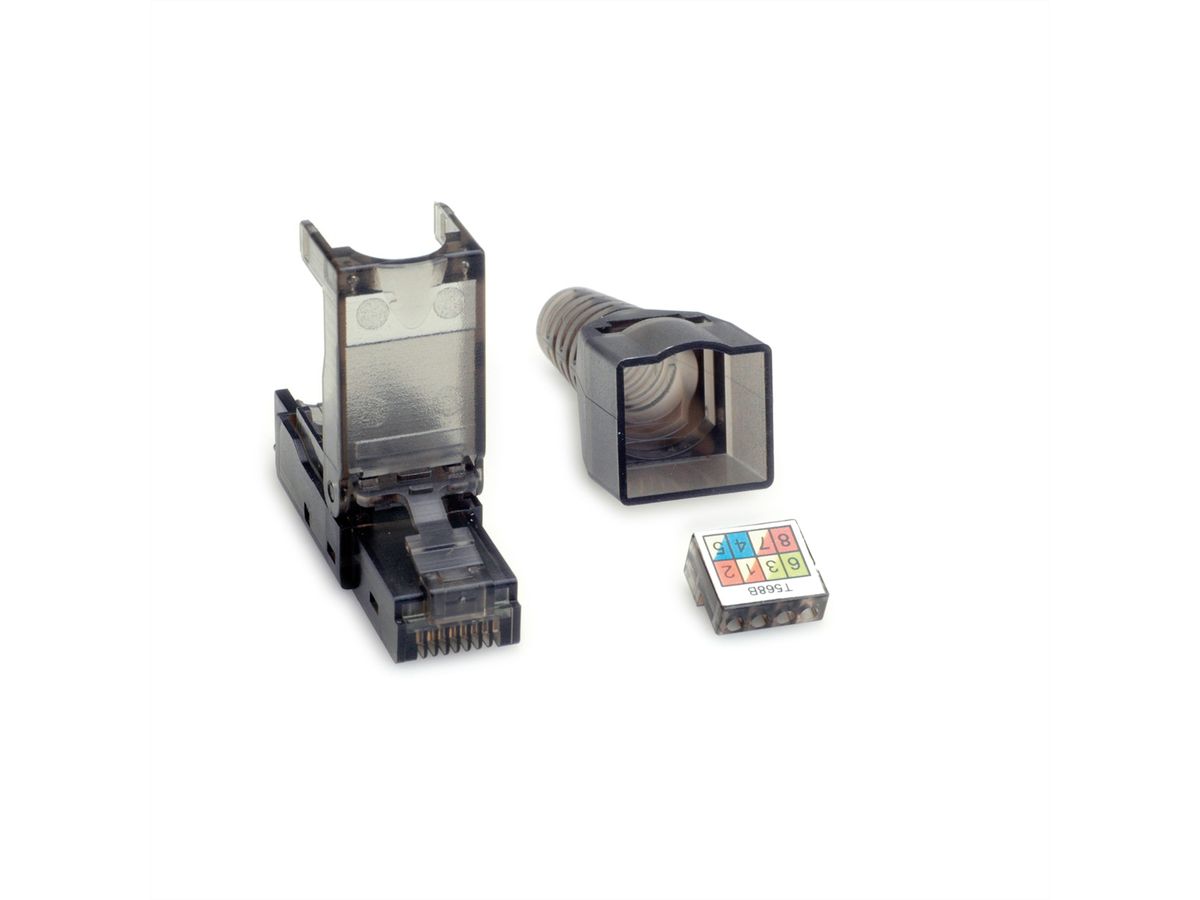

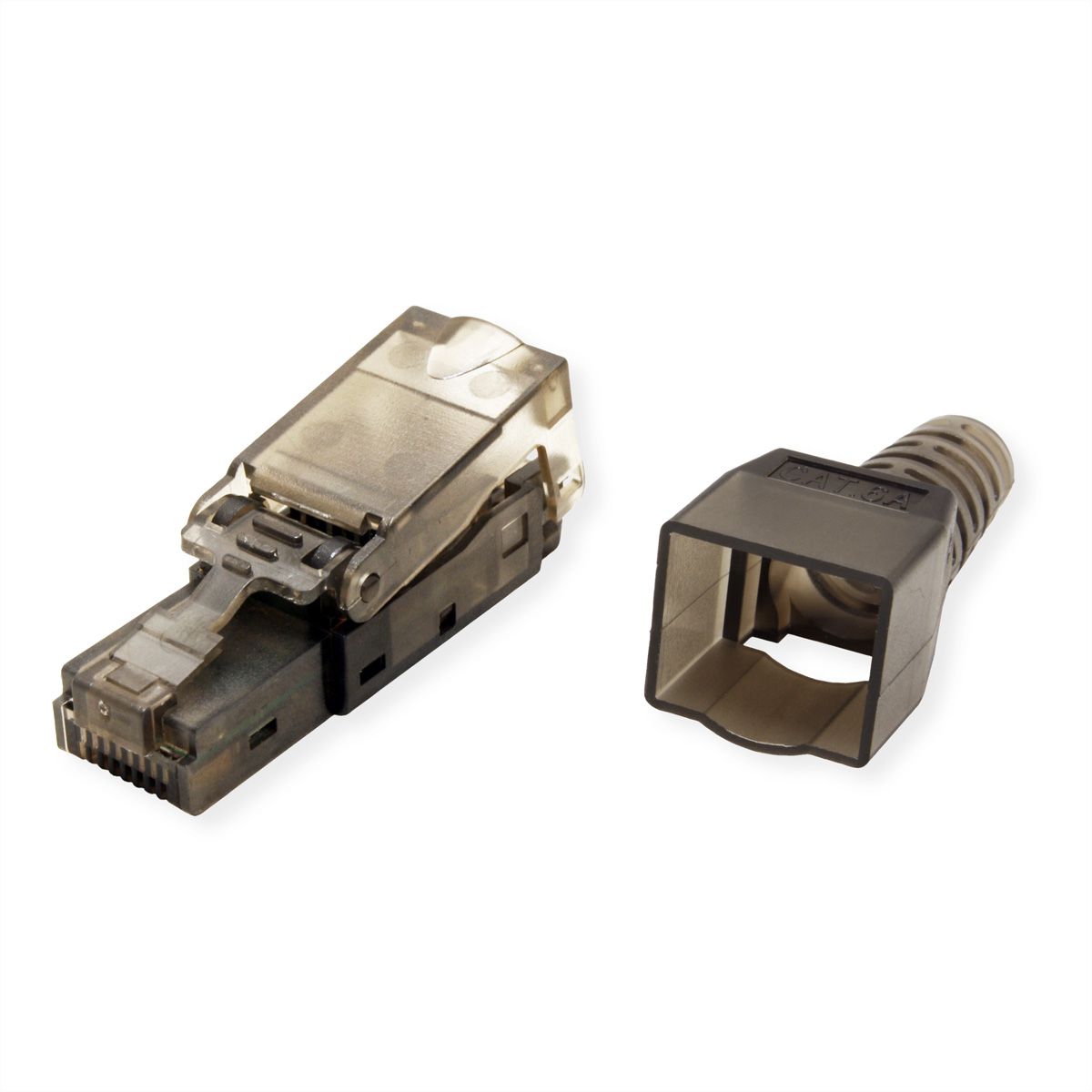

• Fast and easy tool-free installable unshielded RJ45 connector
• Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
• Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
• For cable with outer diameter OD: 6.0 - 9.0mm

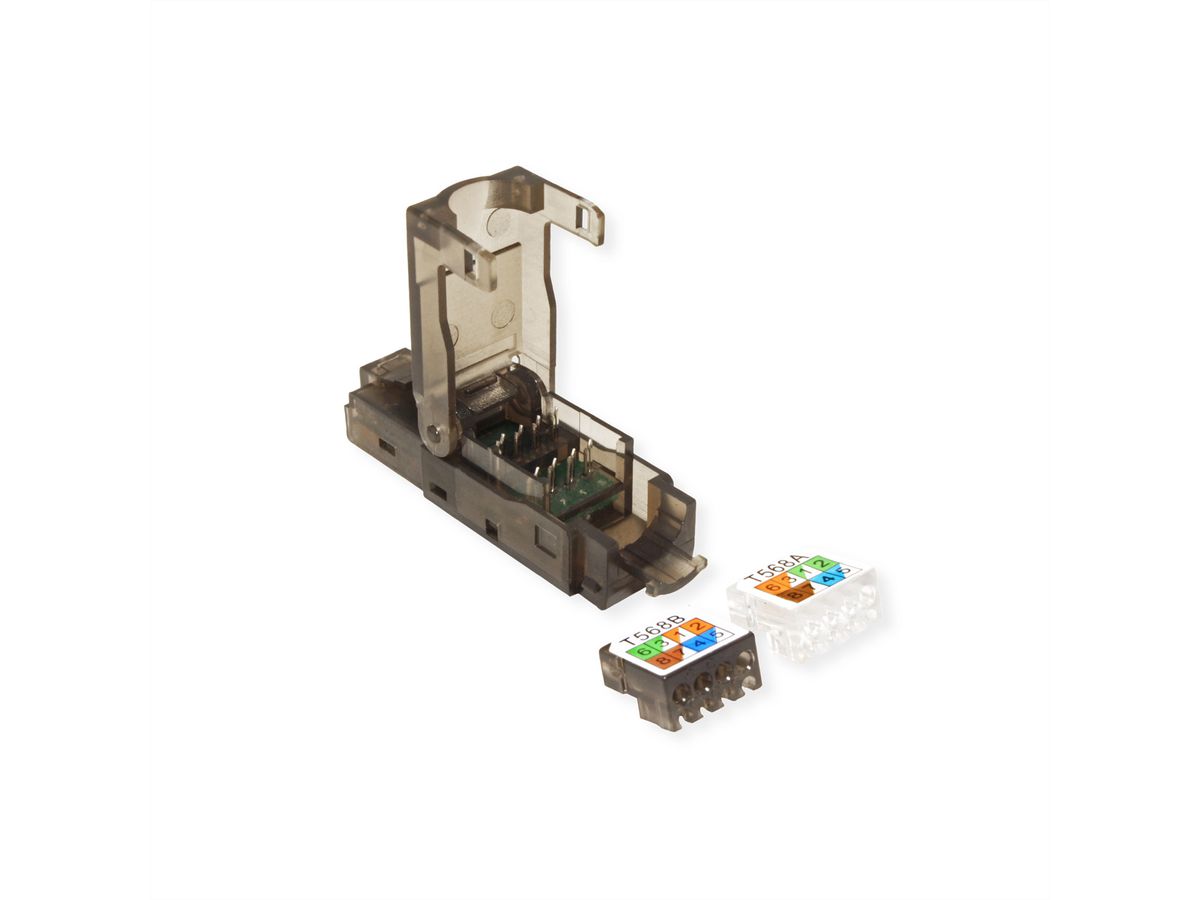

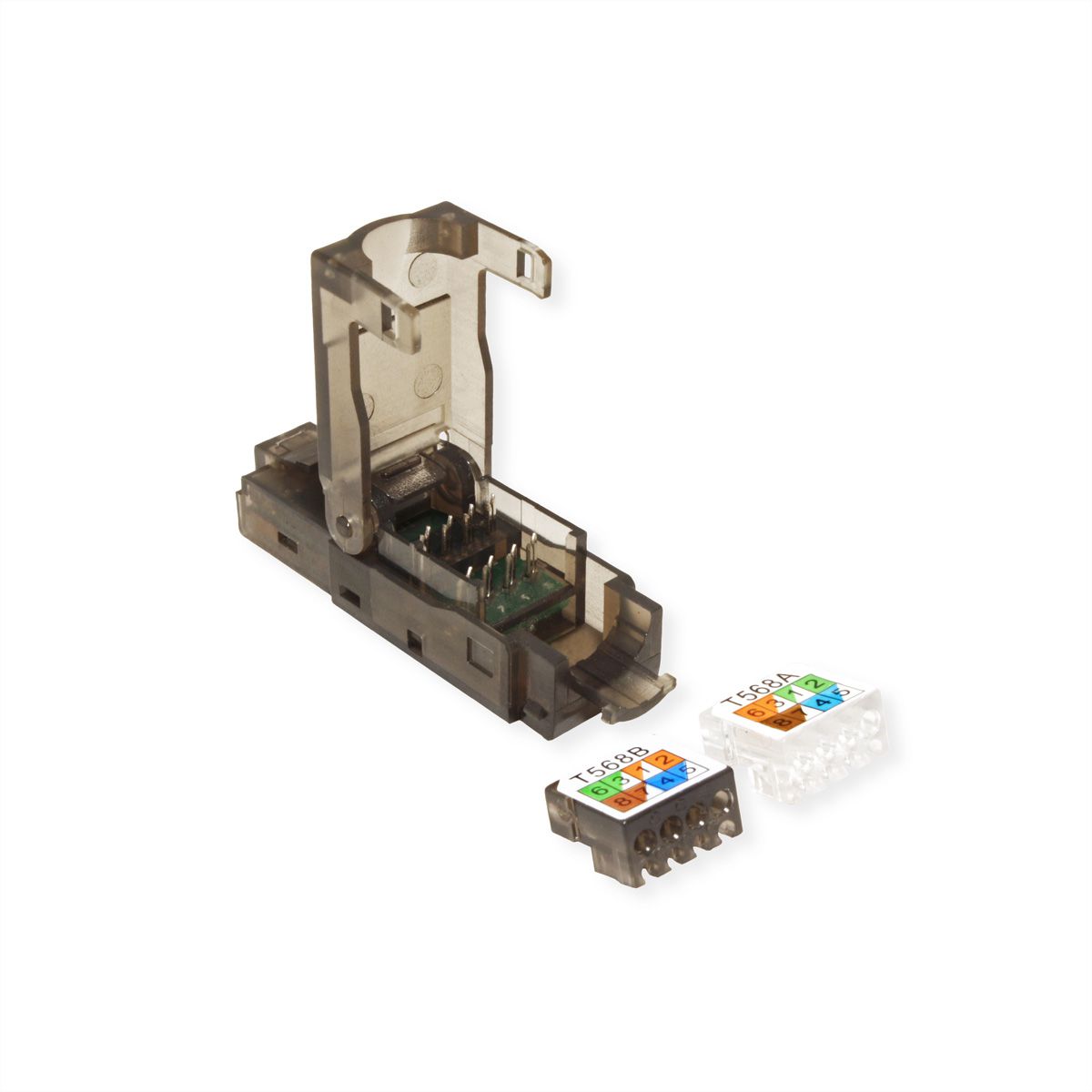

• Pair management according to TIA 568B and TIA 568A colour codes
• Strain relief with cable tie and black transparent dust cup and boot
• Color: Transparent black

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	transparent
Shield type	Not screened
Transfer quality	Cat6A / Class EA
separate strain relief	yes
Height	15.3 mm
Width	13.9 mm
Depth	69.7 mm
Weight	9.9 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.02 kg
Shield contacts	ja

Downloads

Product data sheet - English (43.2 KB)

Download

Manufacturer data sheet - English (81.2 KB)

Download
