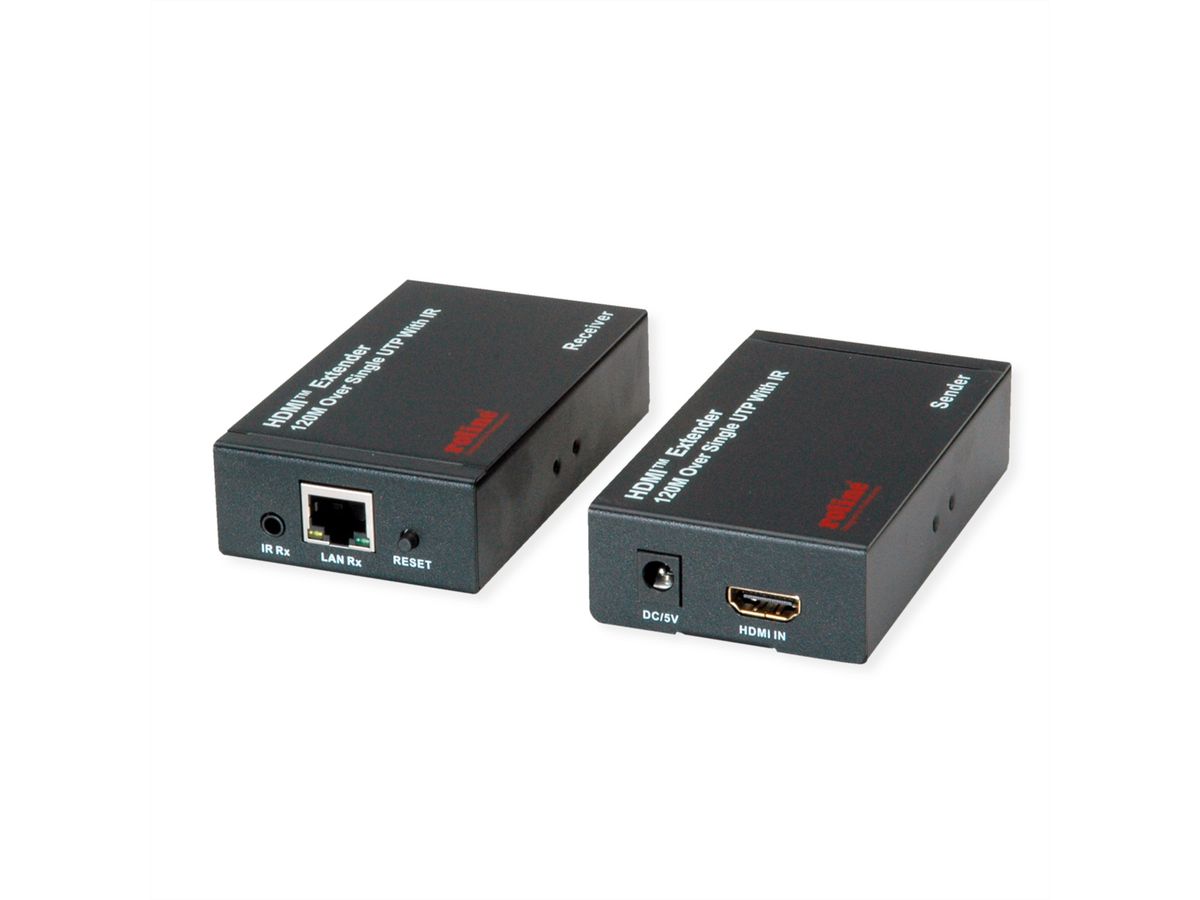

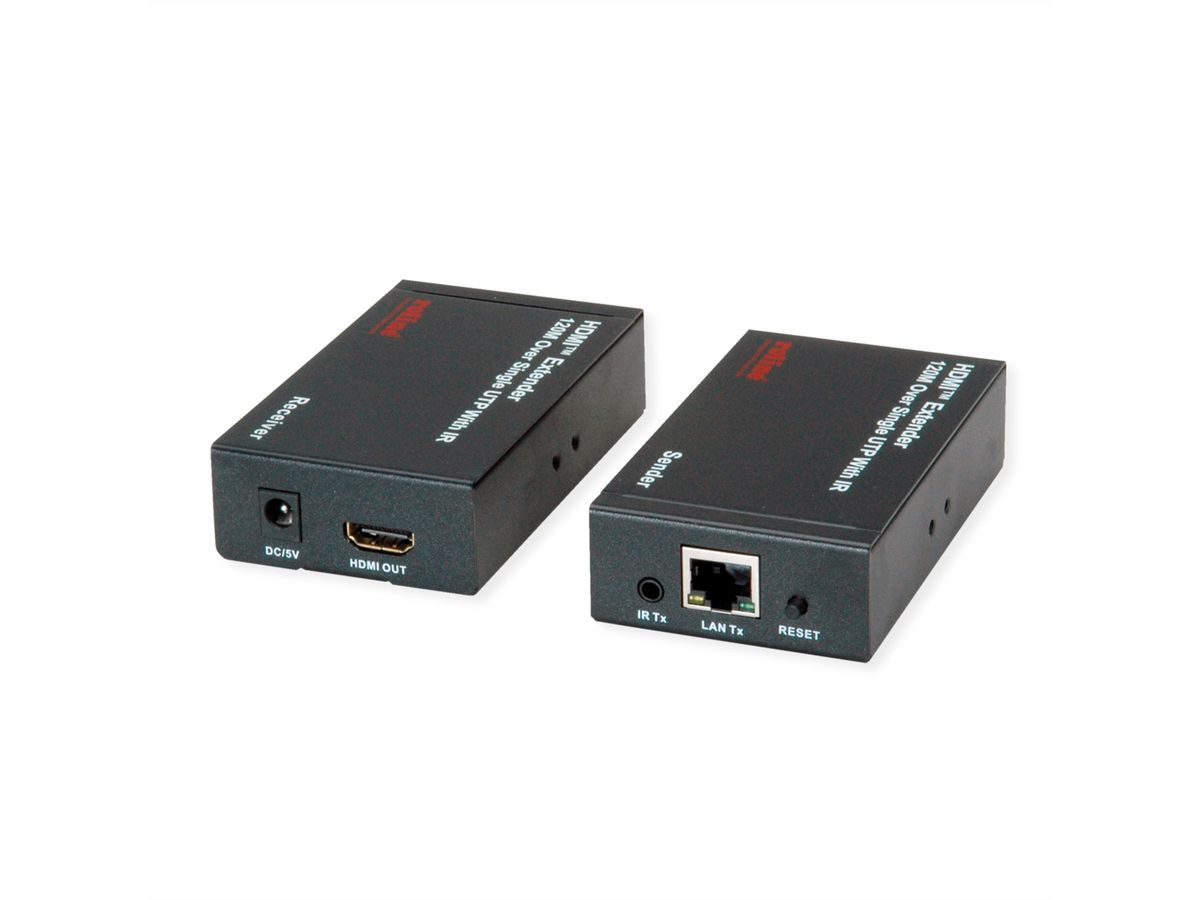

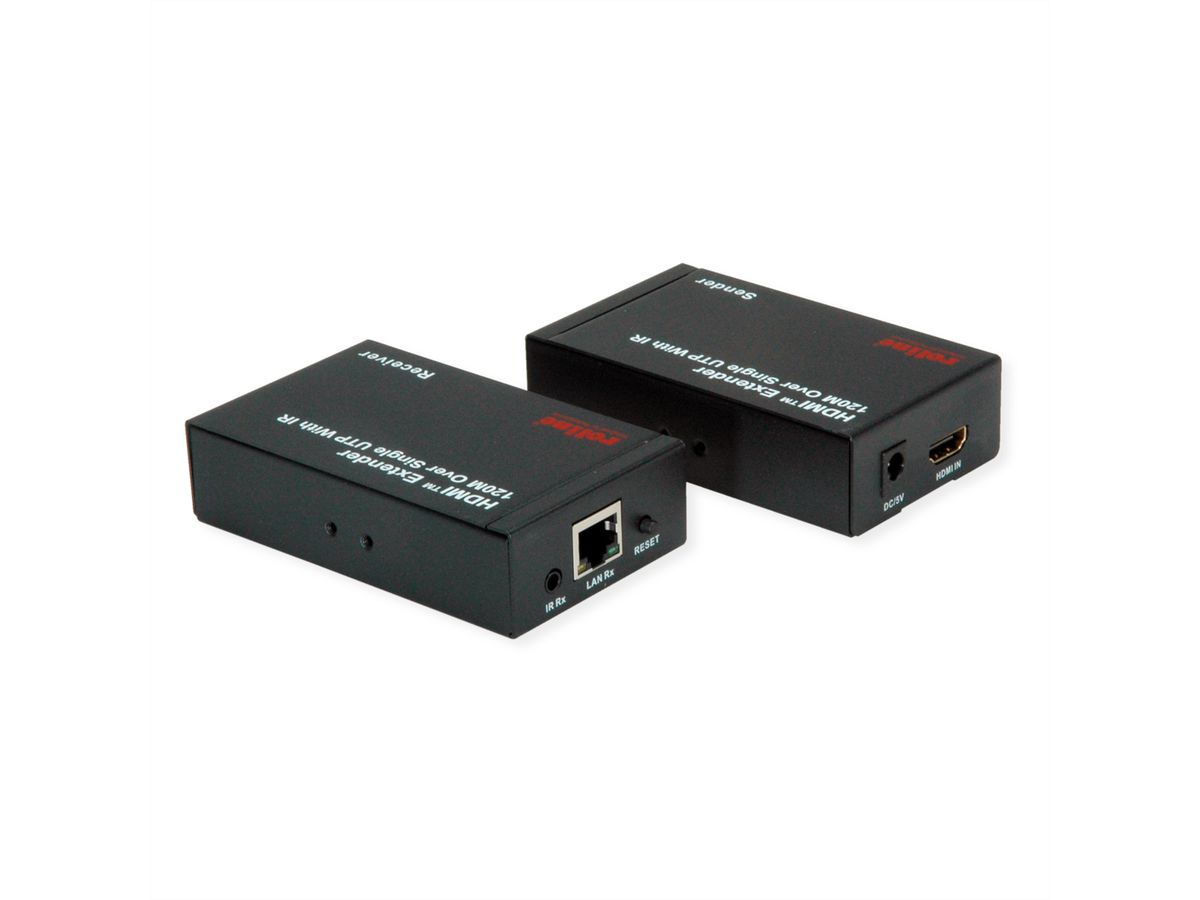

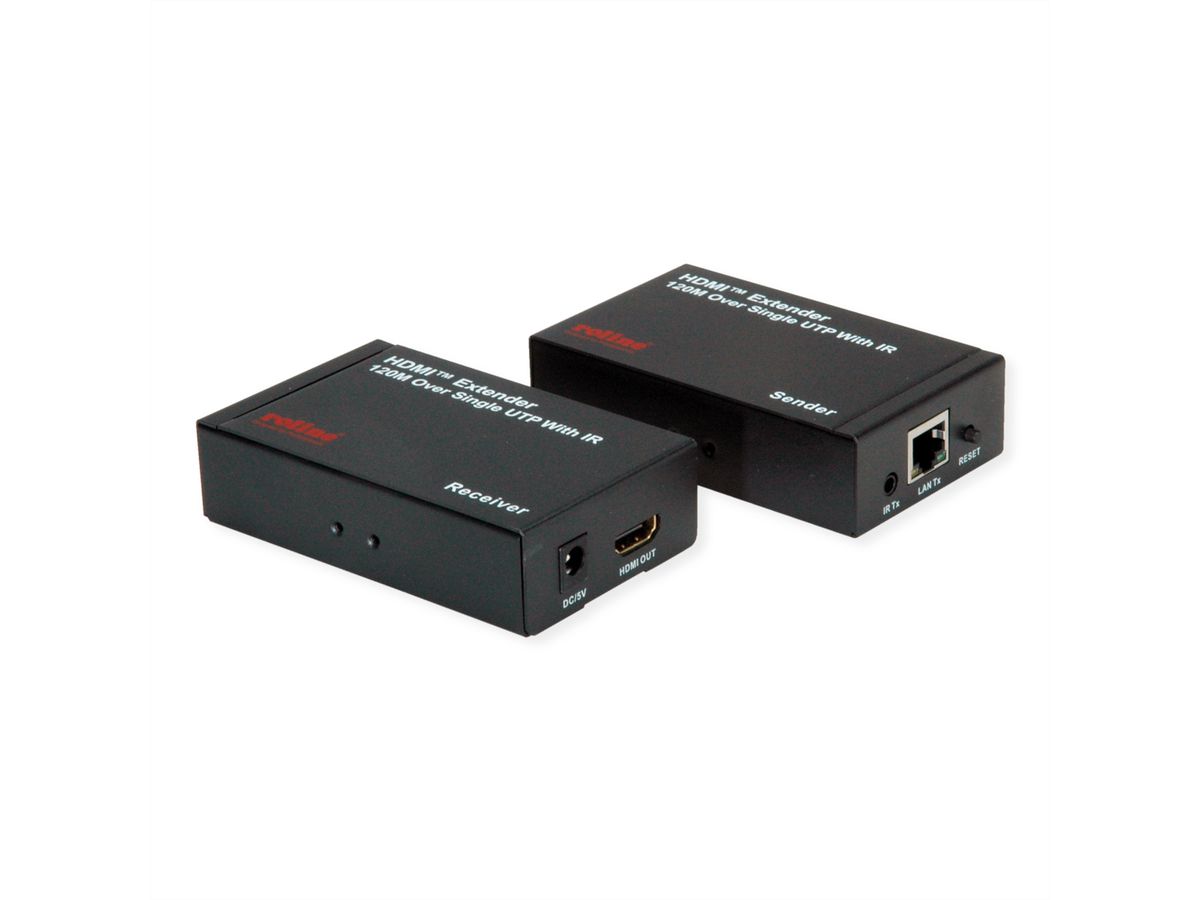

ROLINE HDMI over IP Extender, 1080P, 120 m, W/IR

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14013641
Brand / Manufacturer	ROLINE
Manuf. item no.	14.01.3641
EAN	7630049633384
Item weight	0.75 kg

Description

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with Full HD via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.

Easily connect the transmitter and the receiver unit with a twisted pair cable with Cat5e or higher
Max. distance is 120m
Max. resolution is 1920x1080
External infrared emitters - allow using the remote control of the source device
Metal housing

Dimensions (TX, RX each): 25 x 58 x 99 mm
Weight: TX: 148g, RX: 143 g

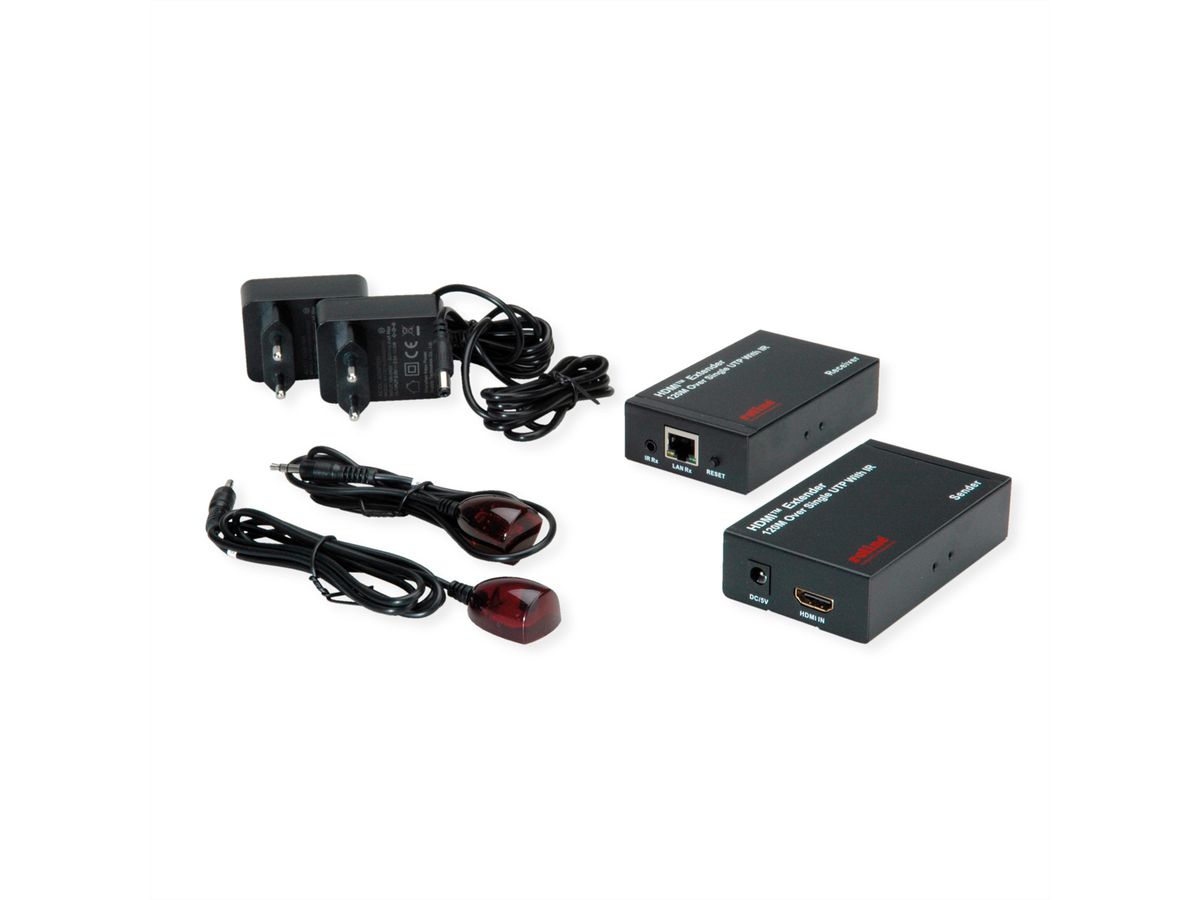

Contents: 1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapter, 4x Mounting Ears, 1x User Manual

Specifications

Manufacturer	ROLINE
Product group	Video Extender
Product type	HDMI Extender
Colour	black
Scope of delivery	1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapters, 4x Mounting Ears, 1x User Manual
Interface	HDMI
Audio	HDMI
Inputs	1
Outputs	1
Max. distance	120 m
Video input	HDMI
Audio input	HDMI
Video output	HDMI
Audio output	HDMI
Video band width	4.95 Gbps
Max. resolution (nom.)	1920 x 1080
Max. resolution	1920 x 1080 @60Hz (2K, Full HD)
Dimensions (HxWxD)	25 x 58 x 99 mm
Power supply unit	2x
Power supply output	DC 5V 2A
Technical particularity	External infrared emitters allow using the remote control of the source device
Operating temperature min.	0 °C
Operating temperature max.	50 °C
Storage temperature min.	-10 °C
Storage temperature max.	80 °C
Height	25 mm
Width	58 mm
Depth	99 mm
Weight	291 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	200 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.75 kg
