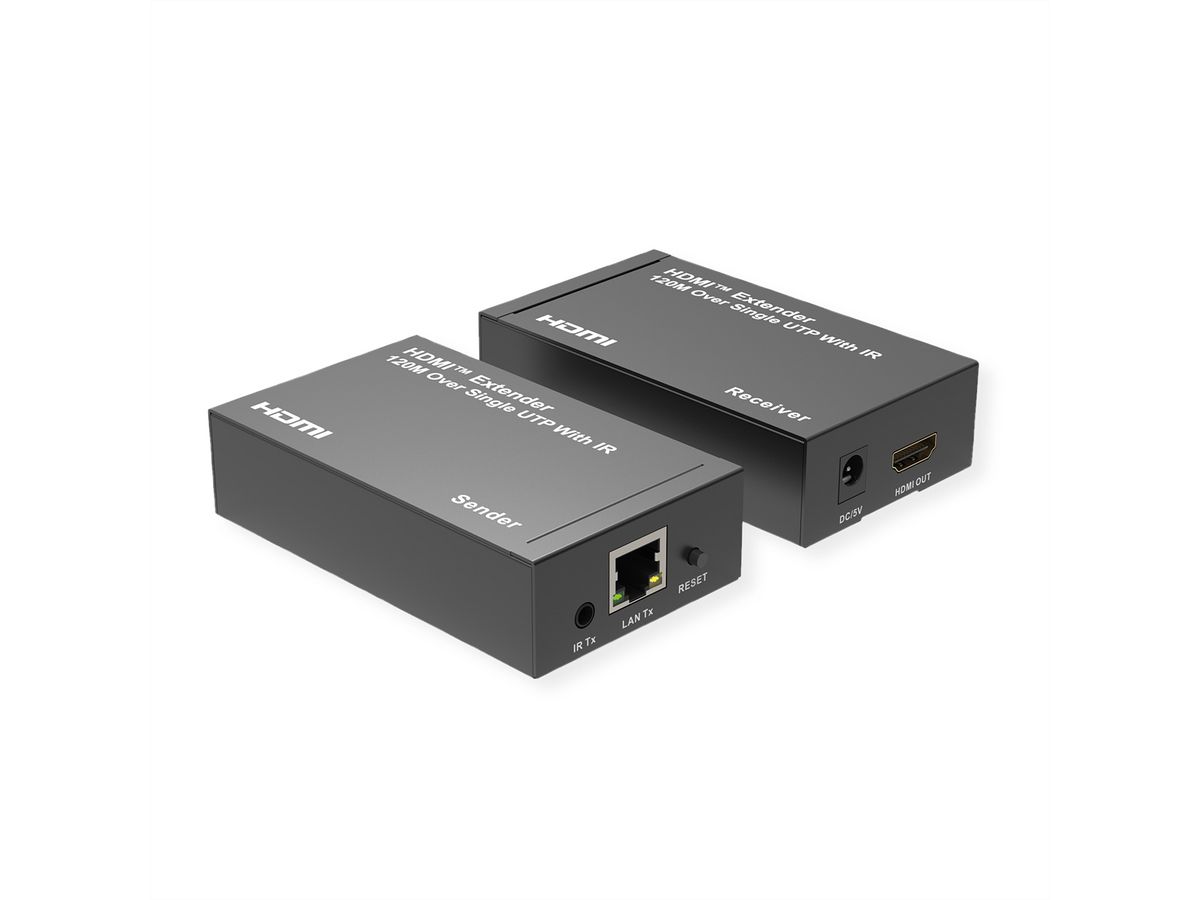

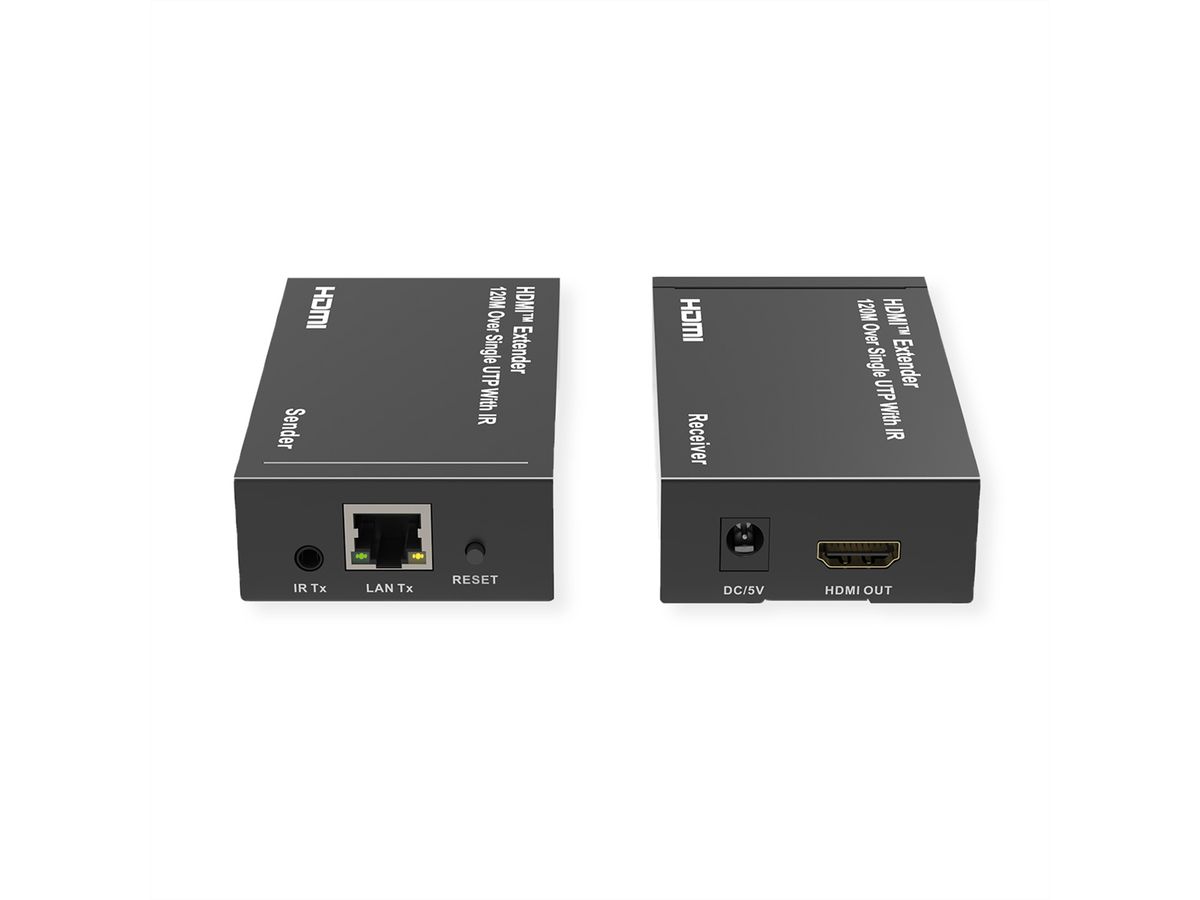

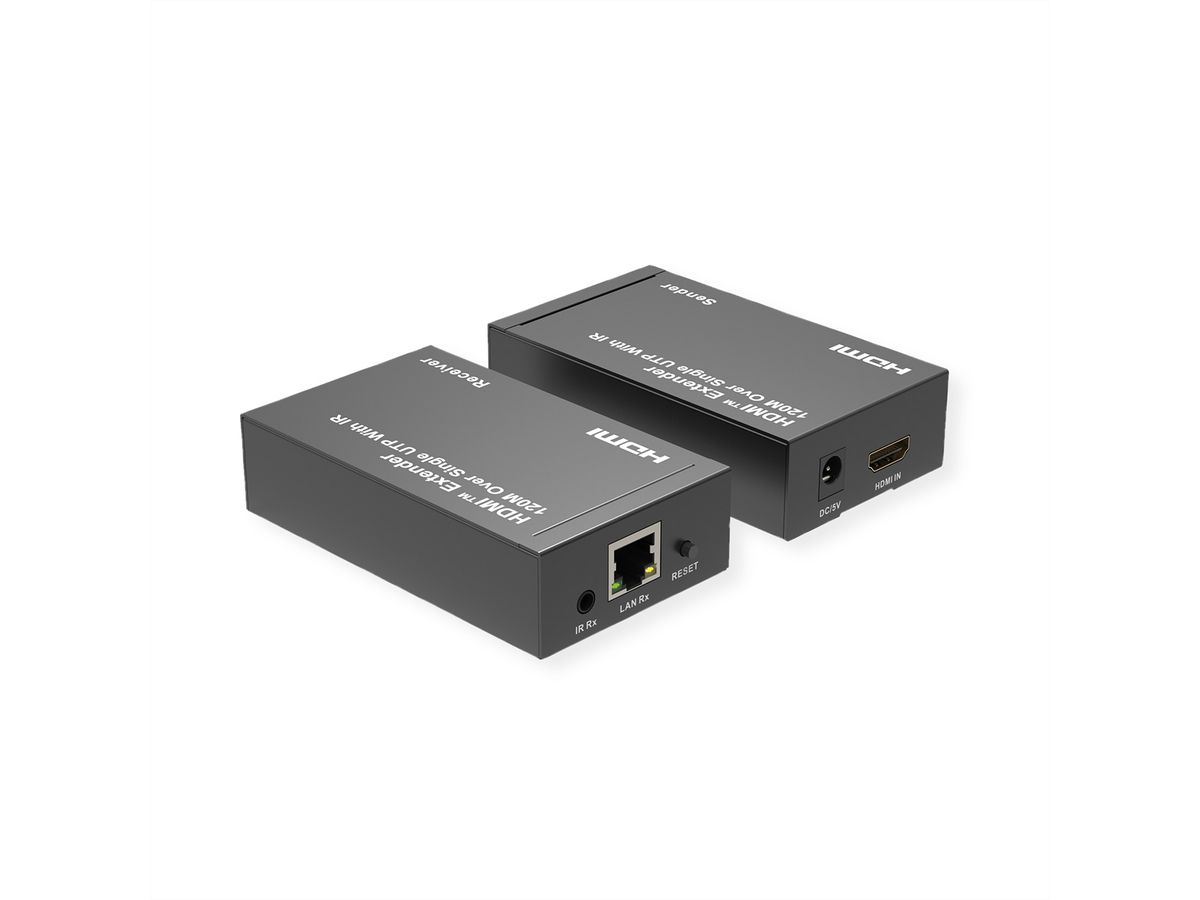

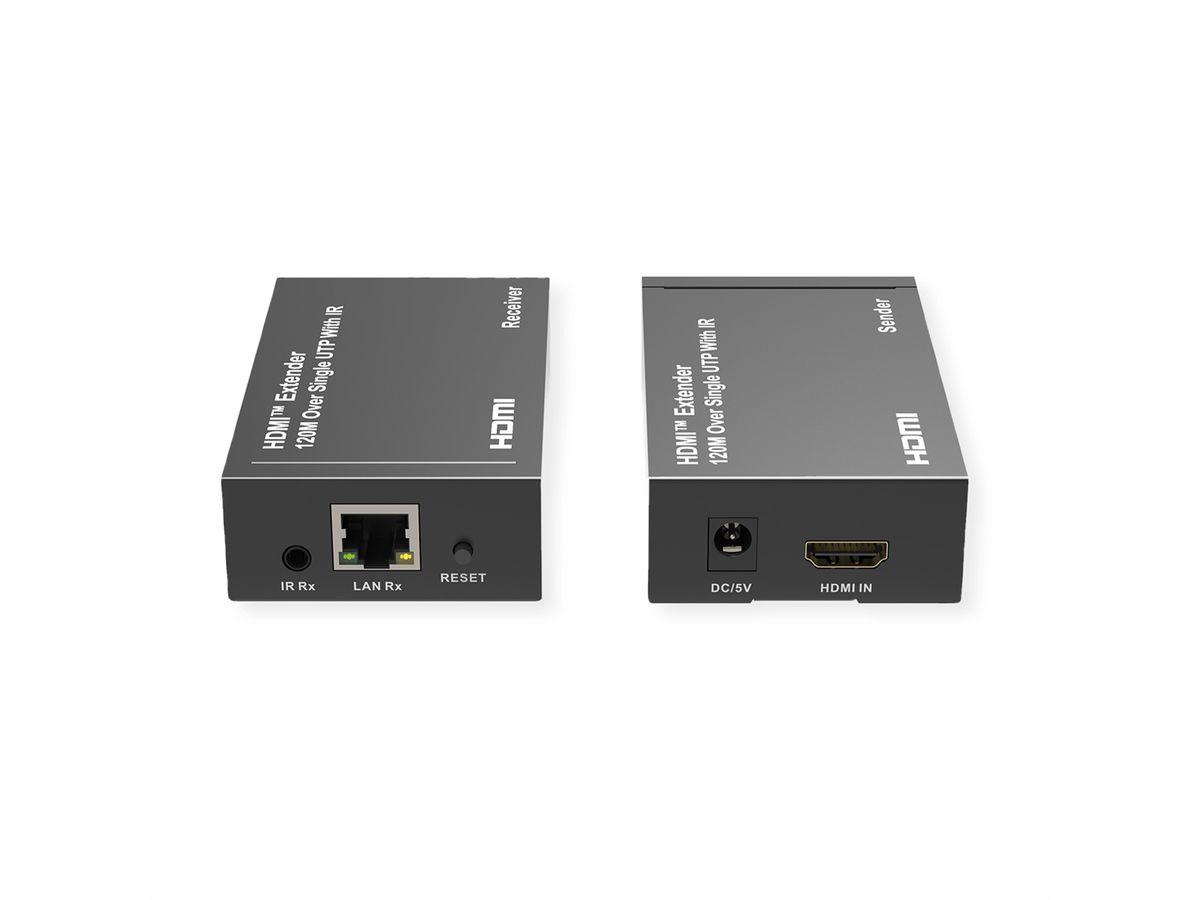

ROLINE HDMI over IP Extender, 1080P, 120 m, W/IR
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 14013641 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 14.01.3641 |
| EAN | 7630049633384 |
| Item weight | 0.75 kg |
:strip_icc():strip_exif()/bilder/icons/icon_resolution_2k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_1080p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

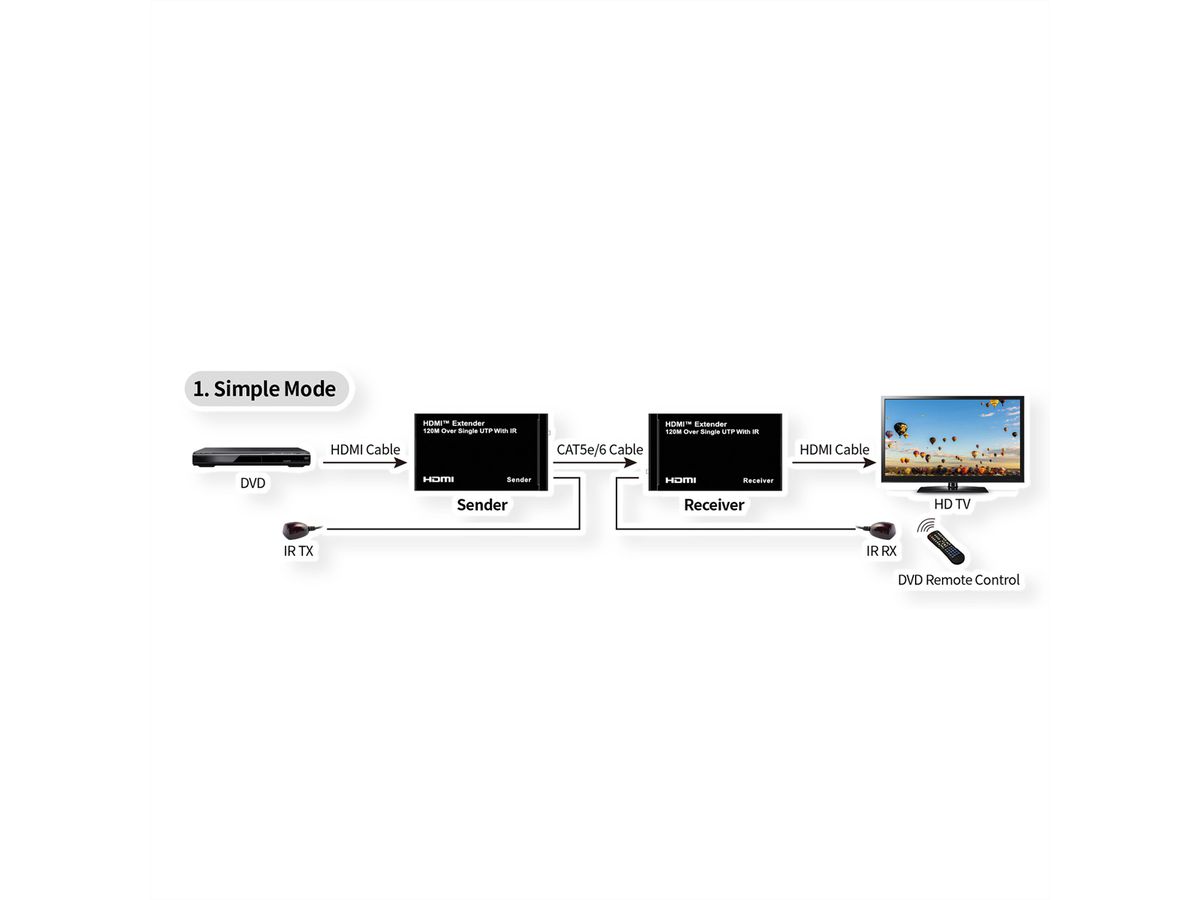

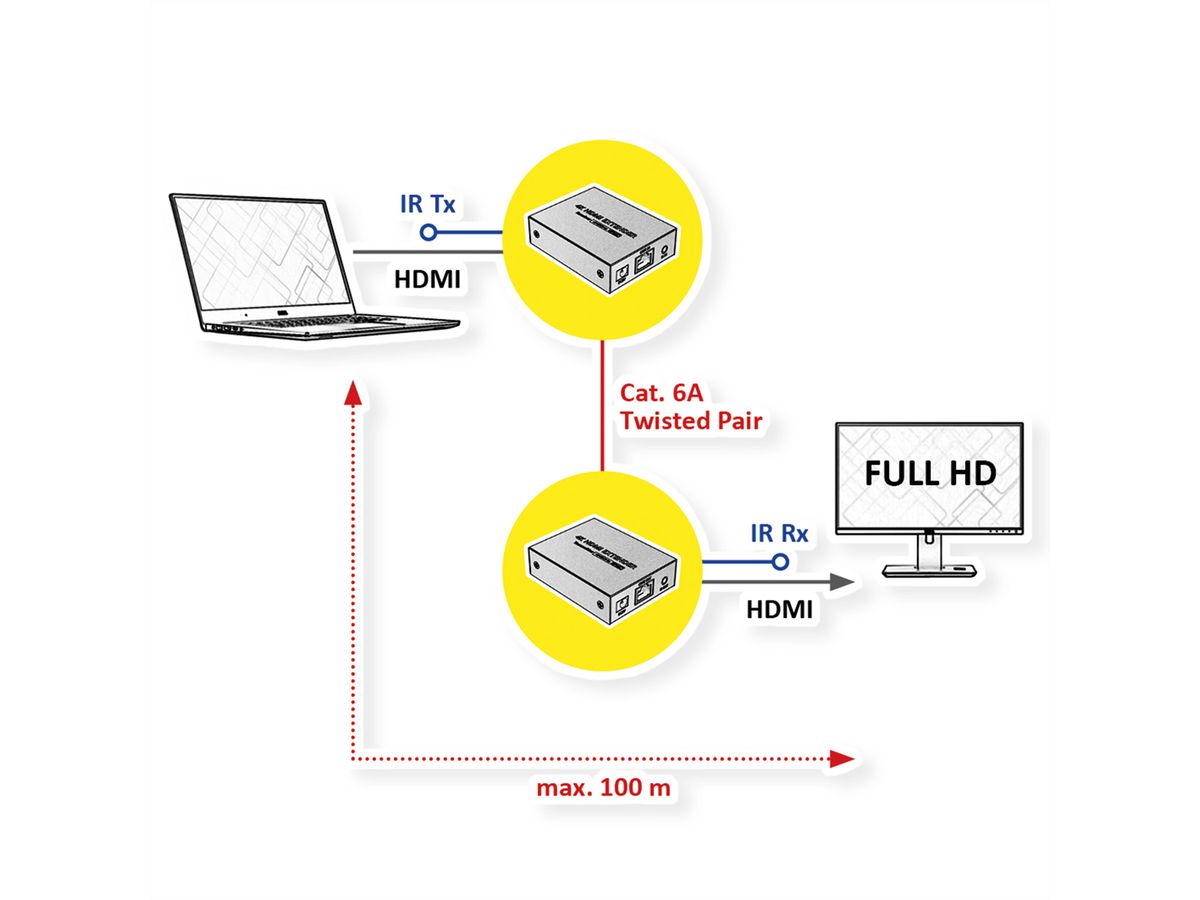

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with Full HD via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.
- Easily connect the transmitter and the receiver unit with a twisted pair cable with Cat5e or higher
- Max. distance is 120m
- Max. resolution is 1920x1080
- External infrared emitters - allow using the remote control of the source device
- Metal housing
- Dimensions (TX, RX each): 25 x 58 x 99 mm
- Weight: TX: 148g, RX: 143 g
- Contents: 1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapter, 4x Mounting Ears, 1x User Manual
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Video Extender |
| Product type | HDMI Extender |
| Colour | black |
| Scope of delivery | 1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapters, 4x Mounting Ears, 1x User Manual |
| Interface | HDMI |
| Audio | HDMI |
| Inputs | 1 |
| Outputs | 1 |
| Max. distance | 120 m |
| Video input | HDMI |
| Audio input | HDMI |
| Video output | HDMI |
| Audio output | HDMI |
| Video band width | 4.95 Gbps |
| Max. resolution (nom.) | 1920 x 1080 |
| Max. resolution | 1920 x 1080 @60Hz (2K, Full HD) |
| Dimensions (HxWxD) | 25 x 58 x 99 mm |
| Power supply unit | 2x |
| Power supply output | DC 5V 2A |
| Technical particularity | External infrared emitters allow using the remote control of the source device |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 50 °C |
| Storage temperature min. | -10 °C |
| Storage temperature max. | 80 °C |
| Height | 25 mm |
| Width | 58 mm |
| Depth | 99 mm |
| Weight | 291 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 200 mm |
| Depth of packaging (single piece) | 200 mm |
| Package weight (single piece) | 0.75 kg |
