ROLINE Industrial Switch, 7x RJ-45, 1x SC, unmanaged

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21131152
Brand / Manufacturer	ROLINE
Manuf. item no.	21.13.1152
EAN	7611990176700
Item weight	0.639 kg

Description

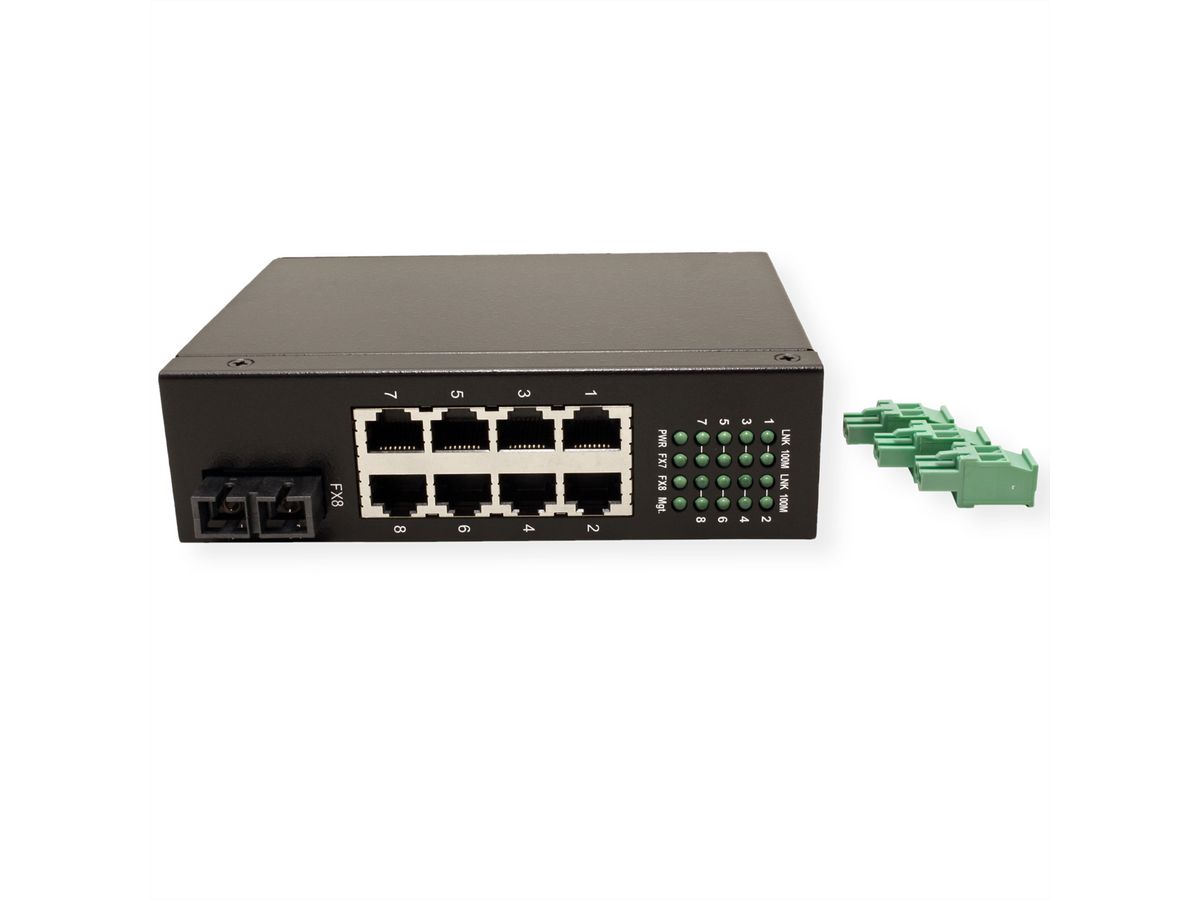

Fast Ethernet switch with 7x 10/100Base-T ports and 1x 100Base-FX port
Wide operating temperature range for temperature critical

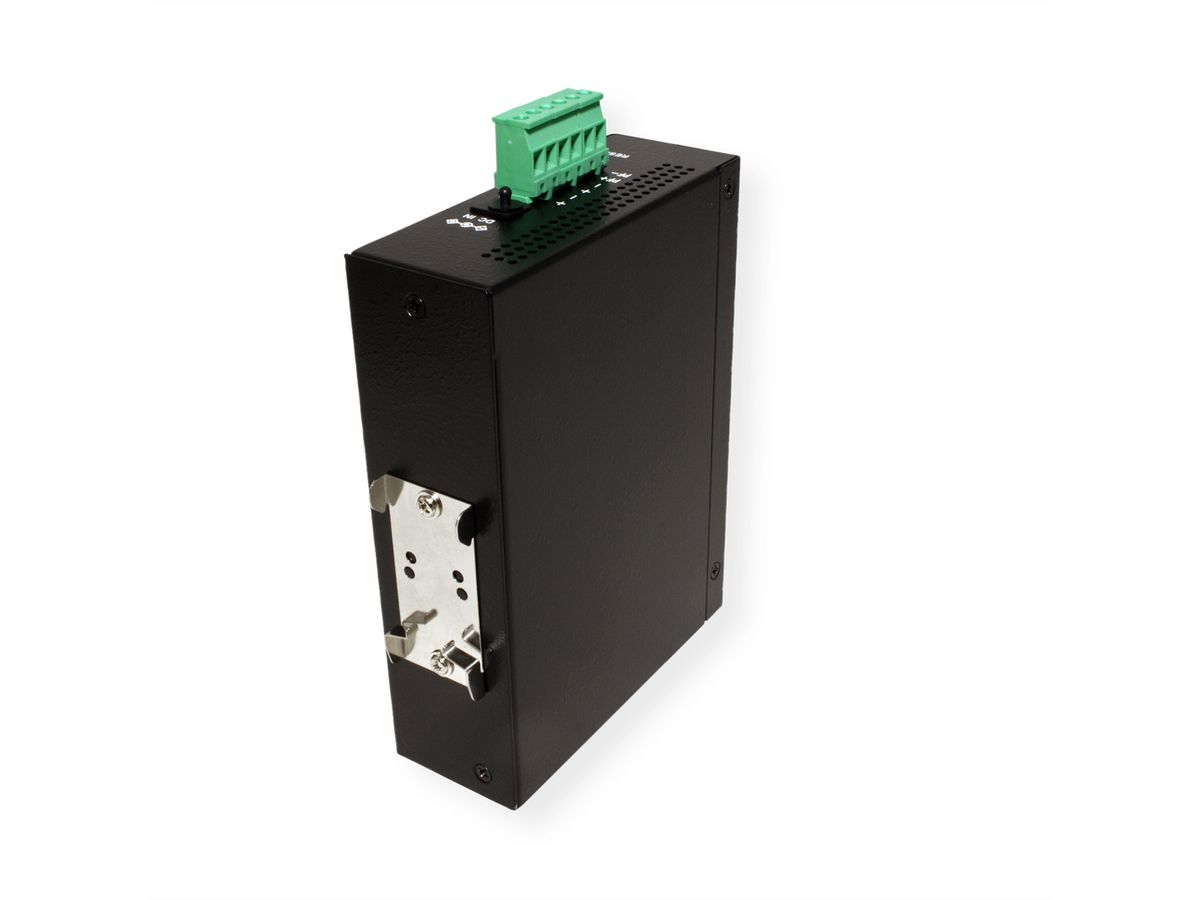

Support DIN rail mounting
Industrial-rated Emission and Immunity performance
Provides wire speed store-and-forward switching
Supports IEEE 802.3x flow control for full-duplex operation
Supports Back-pressure flow control for half-duplex operation
Power: Input: 7 - 30V DC, Consumption: 6.5W (max.)

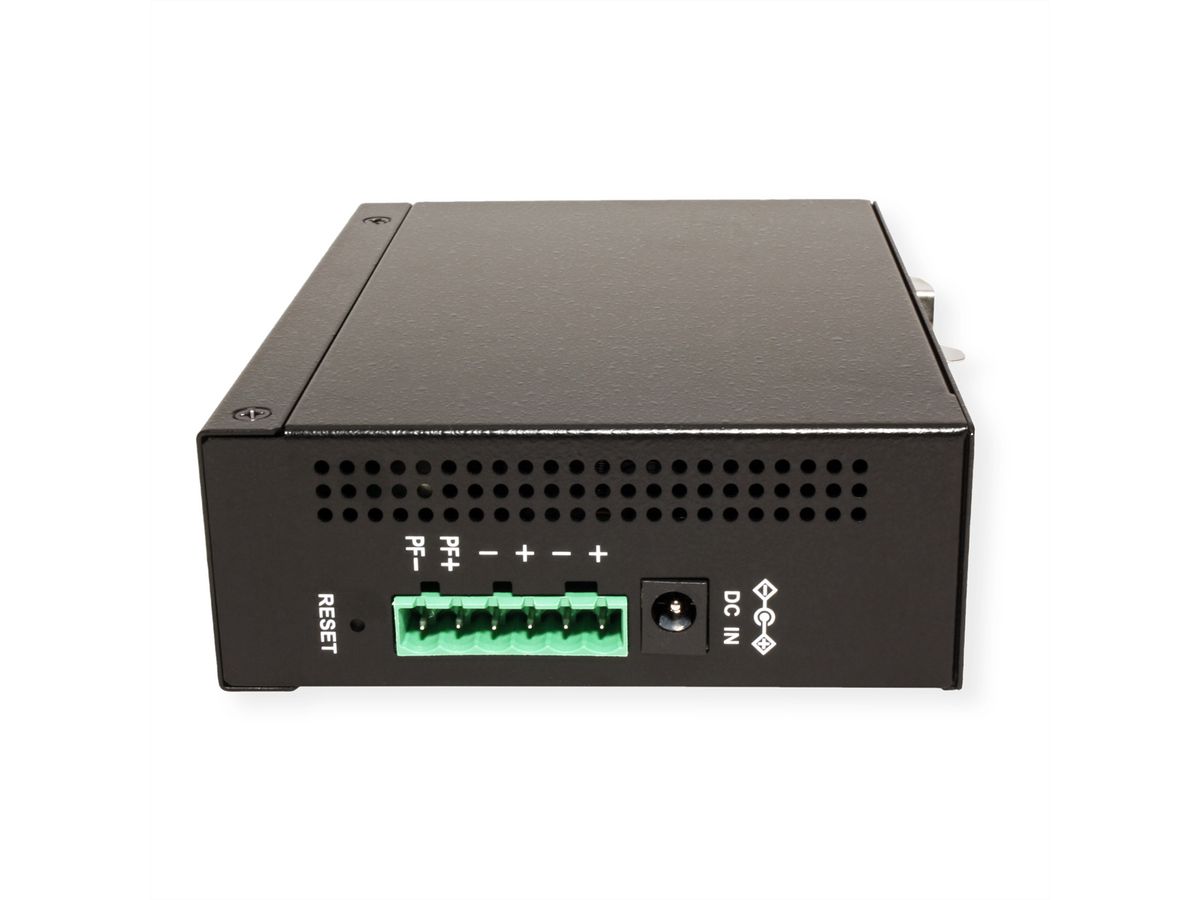

DC Input via terminal block or DC power jack (6.3mm/2.0mm)
Operating Temperature: - 20 °C - +70 °C
Dimensions: 140 X 106.5 X 40mm (WxDxH)
As according Power Supply Unit we recommend 21.13.1226

Specifications

Manufacturer	ROLINE
Product group	Network Switches
Product type	Fast Ethernet Switch
Colour	black
Network standard	Fast Ethernet
LAN (Mbps)	10/100
Quantity of ports	8
Fast Ethernet Ports RJ-45	7
Fast Ethernet Ports Fibre	1
Mounting form	DIN Rail
Management	no
Stackable	no
Dimensions (HxWxD)	106 x 40 x 140 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Operating temperature min.	-20 °C
Operating temperature max.	70 °C
Height	106 mm
Width	40 mm
Depth	140 mm
Weight	547.17 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.639 kg
