Description

• Quick and simple installation
• Meets VESA 75/100/200x100
• Wall mount fixing
• Material: steel
• Colour: black

TV size: 25 - 81 cm (10"- 32")
Load capacity: up to 20 kg

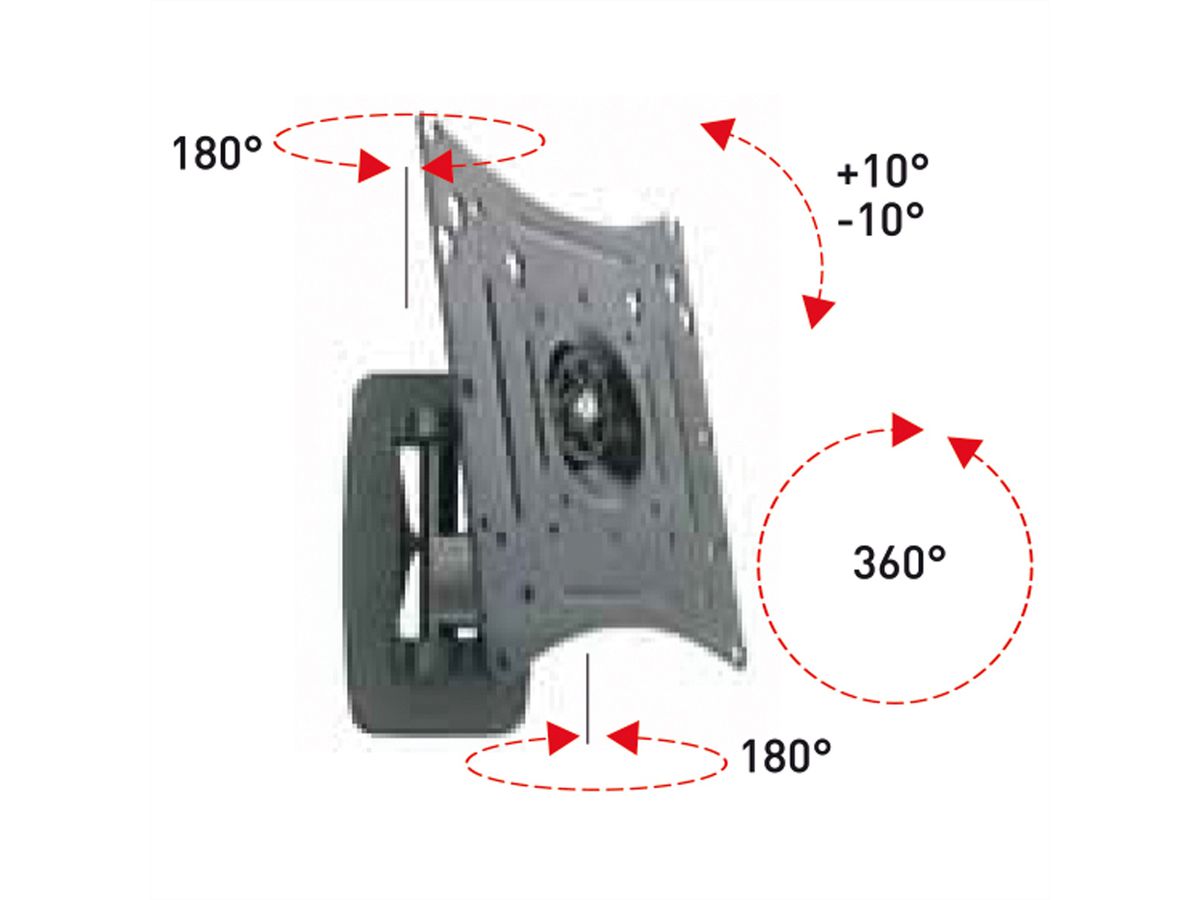

No. of pivots: 4
Max. arm length: 12,2 cm
Tiltable up and down: 20°

Specifications

Manufacturer	ROLINE
Product group	LCD-Monitor arms
Product type	Monitor Arms, wall mount
Colour	black
Maximum weight capacity	25 kg
Quantity of pivots	4
Fixing	Wandmontage
Adjustments	Adjustable spring gauge
Inclinable	yes
Rotatable	yes

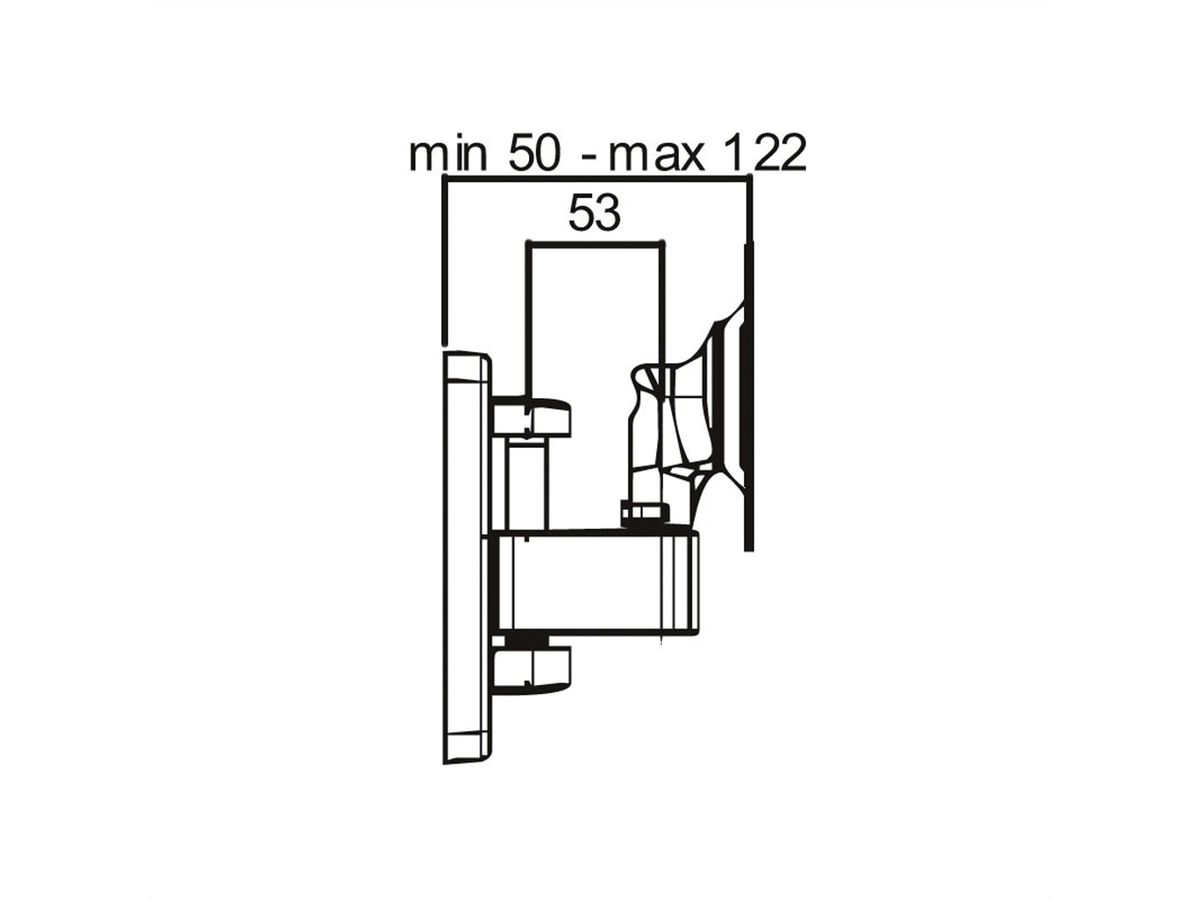

Wall distance	5 cm
Number of monitors	1
Max. Screen diagonal (cm)	100 cm
Max. Screen diagonal (inch)	40 inch
Min. Screen diagonal (cm)	25 cm
Min. Screen diagonal (inch)	10 inch
VESA 75 x 75 mm	yes
VESA 100 x 100 mm	yes
VESA 200 x 100 mm	yes
VESA 200 x 200 mm	yes
Material group	metal
Weight	1334.4 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	260 mm
Depth of packaging (single piece)	250 mm
Package weight (single piece)	1.49 kg

Downloads

Product data sheet - English (45.5 KB)

Download

Technical drawing - English (633.6 KB)

Download
