Description

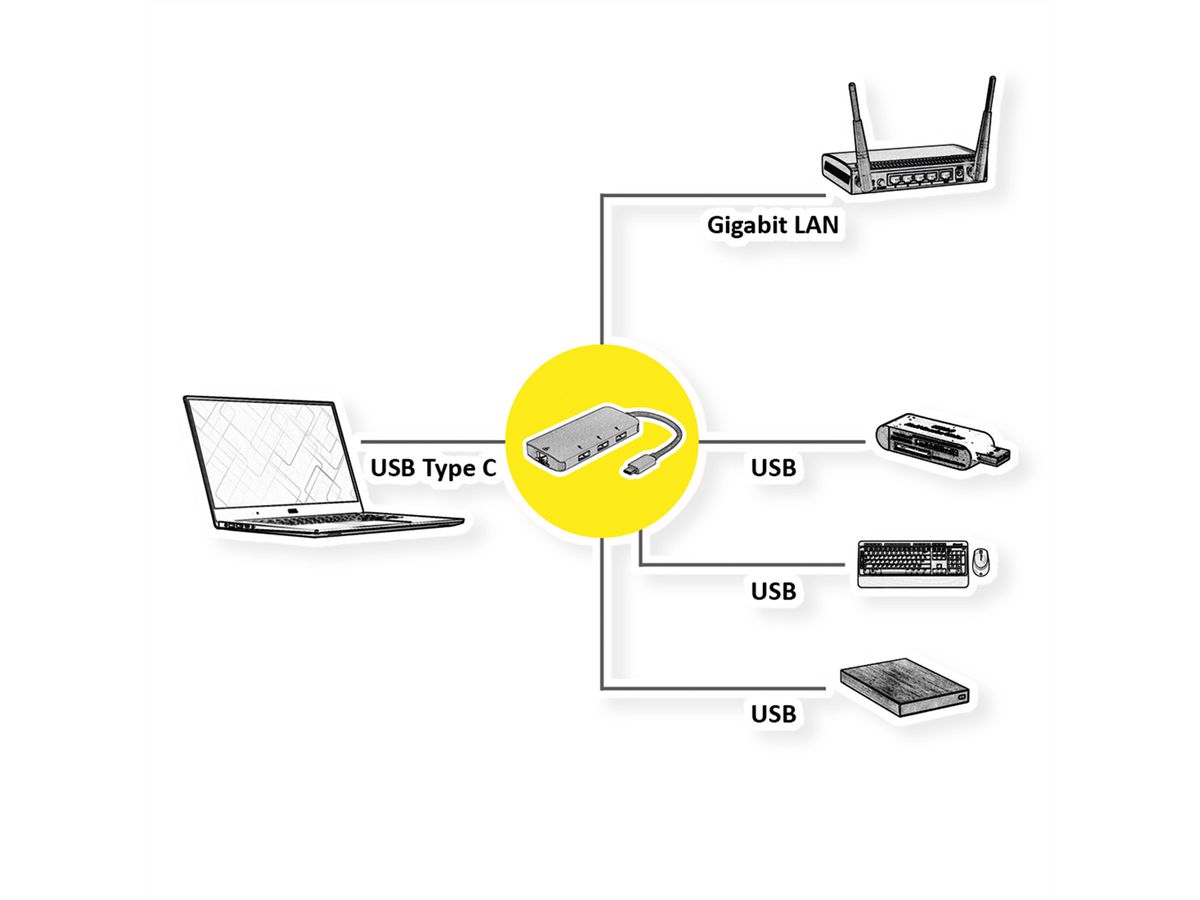

With this converter you can connect your MacBook, Ultrabook, Laptop/Notebook or PC with USB Type C interface to a Gigabit Ethernet network and up to three USB 3.0 / USB 3.2 Gen 1 Type A devices.

• Supports USB 3.0 / USB 3.2 Gen 1, compatible with USB 2.0 and 1.1
• Easy installation - just plug the converter into the USB port, connect the LAN cable - ready
• Supports Gigabit Ethernet with auto-negotiation, auto-MDI/-MDIX and half/full duplex
• LED indicators for link and speed
• Additional USB hub function with 3x USB 3.0 / USB 3.2 Gen 1 ports
• Power supply via USB interface

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	ROLINE
Product group	Network adapters
Product type	Gigabit Ethernet Converter
Colour	Aluminium
Length	0.1 m
Scope of delivery	Converter
BUS system	USB
LAN (Mbps)	10/100/1000
Quantity of ports	1
Connection ports	1x RJ-45 F, 1x USB Type C M, 1x USB 3.0 Type A F
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Full duplex	yes
Wake on LAN	no
Network topology	Ethernet
Operating System	Windows XP / 7 / 8, Mac OS 10
Technical particularity	LED for Link and Gigabit Mode
Dimensions (HxWxD)	45 x 13 x 95 mm
Height	45 mm
Width	13 mm
Depth	95 mm
Weight	65 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	110 mm
Depth of packaging (single piece)	140 mm
Package weight (single piece)	0.095 kg

Downloads

Product data sheet - English (44.9 KB)

Download

User manual - Deutsch (529.3 KB)

Download

User manual - English (399.2 KB)

Download
