Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26100205 |
|---|---|
| Brand / Manufacturer | SCHROFF |
| Manuf. item no. | 10238151 |
| EAN | 4036088000102 |
| Item weight | 7.874 kg |
| Height | |
| Depth |
:strip_icc():strip_exif()/logos/schroff.png "SCHROFF")

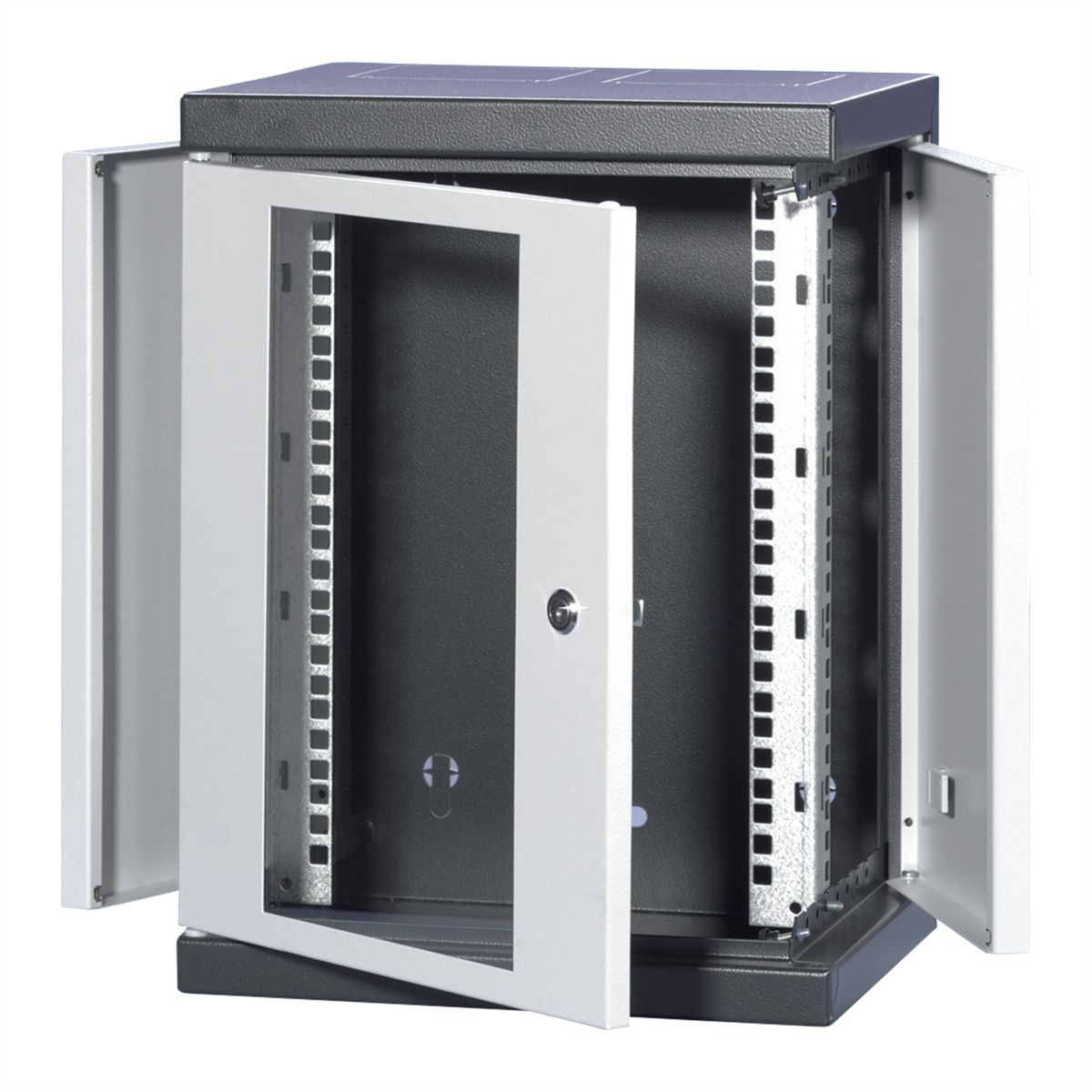

- Base enclosure in RAL 7016, base and roof in RAL 9006 RAL 9006 - Removable doors and side panels - therefore optimum accessibility during installation - Prefabricated cable entries from above or below, supplied brush strip for sealing the cable entry - Enclosed C-profiles (can be mounted in 25 mm increments) for strain relief - Features: - C-shaped base enclosure - Glass door with security lock - Side panels - 2 pcs. 19" angle profiles - 1 C-profile for cable retention - 2 brush strips
Optional accessories (please order separately) - Earthing kit 26.10.0208 for standard-compliant earthing in accordance with VDE standard - Mounting material 26.10.0199 for wall mounting - Mounting material 26.14.0010 for 10" components consisting of 32 pcs. cage nuts, M6 pan-head screws and plastic washers - 10" device carrier 26.10.0130 - 10" cable guide 26.10.0115 incl. 3 cable eyelets - horizontal cable guide - 10" socket strip without switch 26.14.0222 with 4 inserts
| Manufacturer | SCHROFF |
|---|---|
| Product group | 19"-/10"-Cabinet |
| Product type | 10" cabinet |
| Colour | grey |
| Height units | 4 U |
| Maximum rack depth supported | 160 mm |
| delivery condition | fully assembled |
| Server cabinet | no |
| Socket | no |

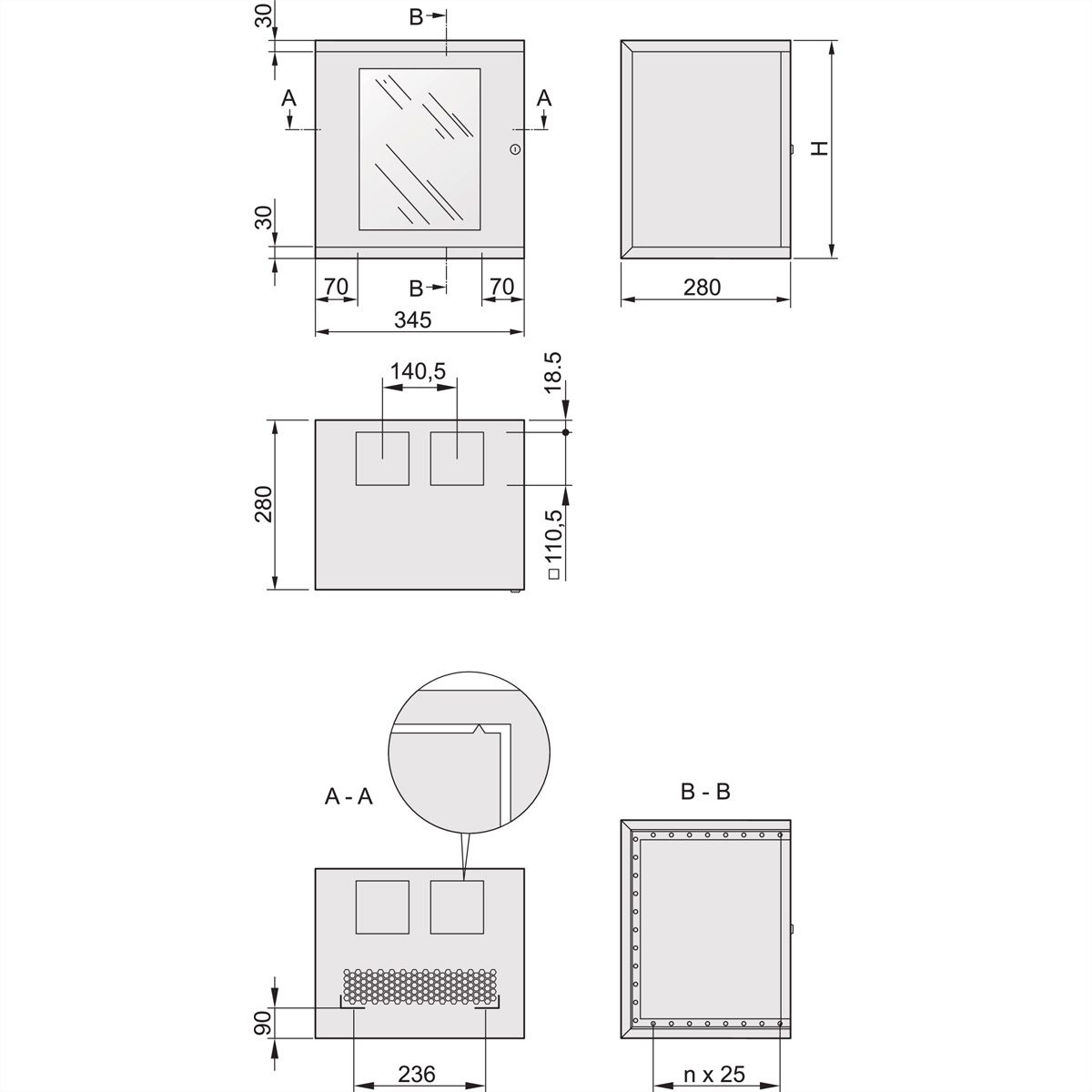

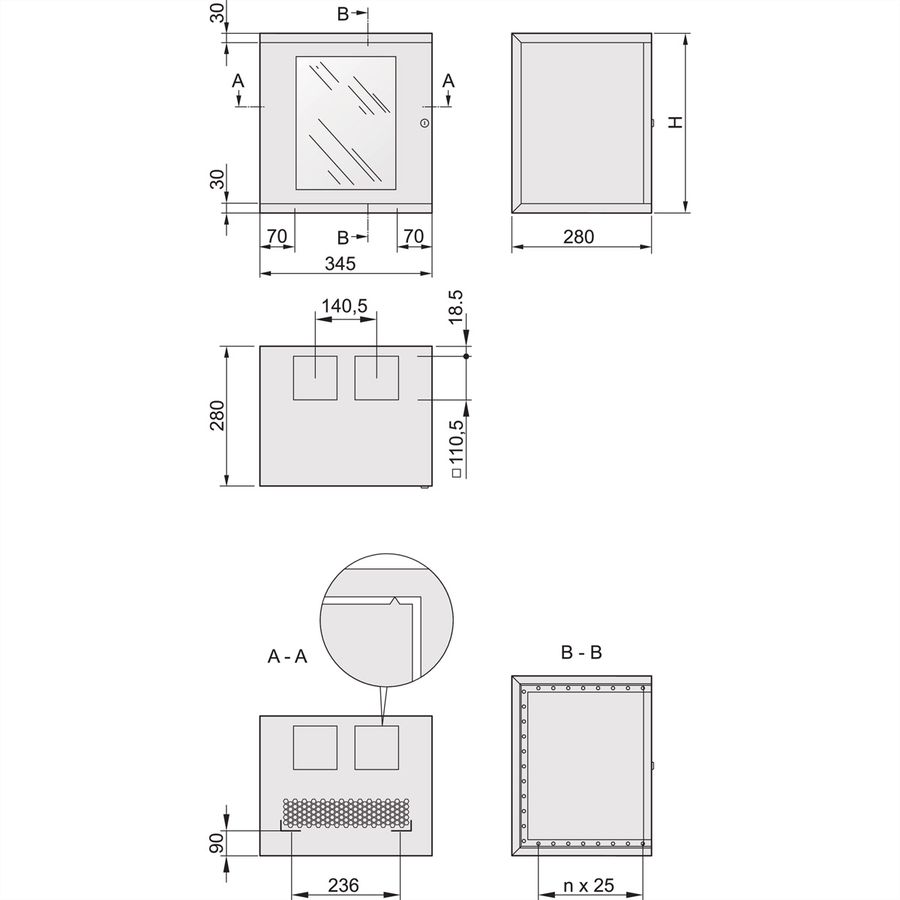

| Dimensions (HxWxD) w/o socket | 262 x 345 x 280 mm |
| Protection class (IP Code) | IP20 |
| Front | Glass door with frame |
| Backside | Plug door |
| Side panel | Steel door |
| 19" level | Ahead |
| Roof | Closed |
| Roof raised | no |
| Floor | Closed |
| Ventilation | Passive |
| Grounding set mounted | no |
| Fan ready | no |
| RAL colour | RAL 7016 Anthracite grey |
| Height | 262 mm |
| Width | 345 mm |
| Depth | 280 mm |
| Height of packaging (single piece) | 320 mm |
| Width of packaging (single piece) | 360 mm |
| Depth of packaging (single piece) | 470 mm |
| Package weight (single piece) | 7.874 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/nvent_schroff.png)
The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.
The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
