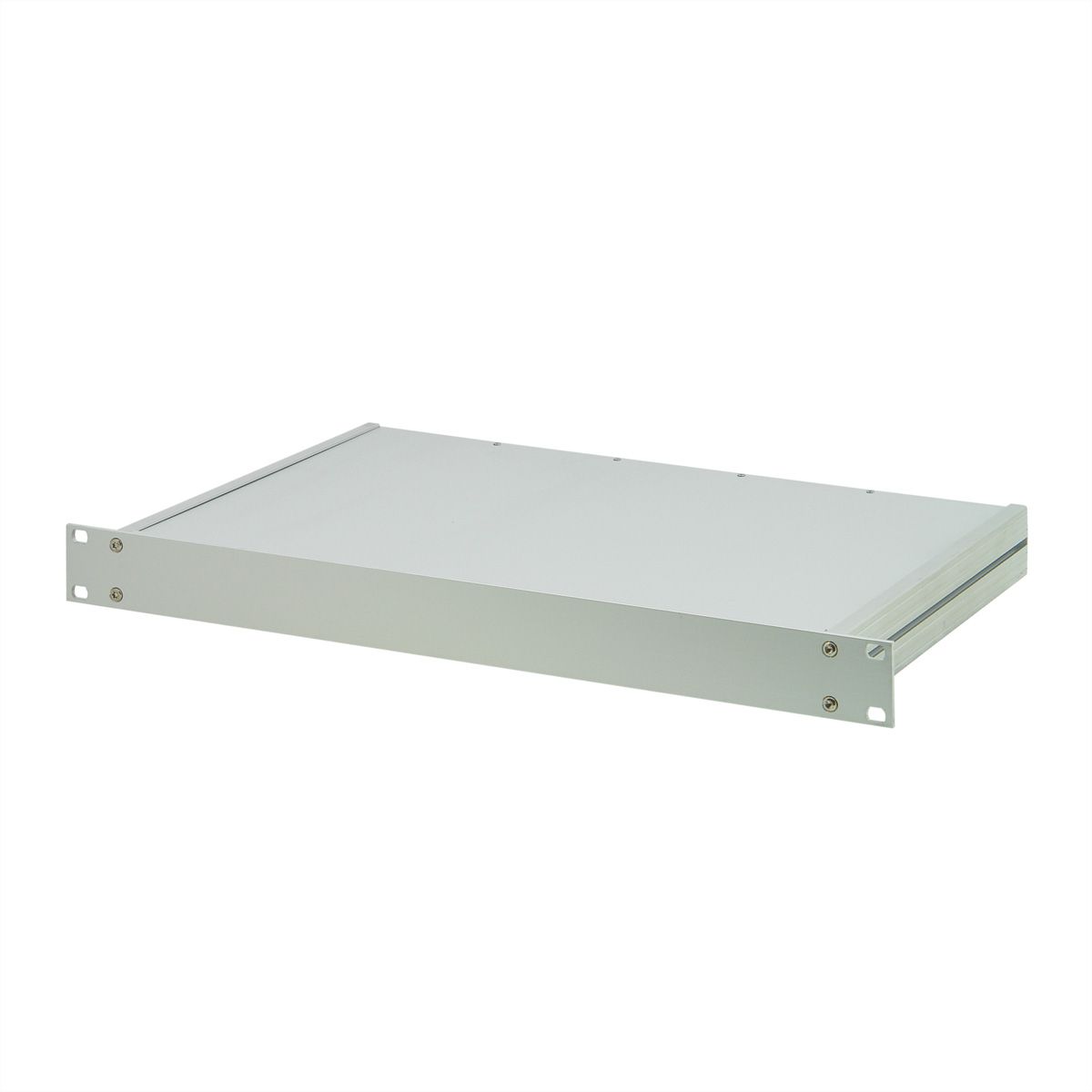

SCHROFF MultipacPRO 19" Chassis, Aluminum, Plain Top and Base, 1 U, 280 mm

SCHROFF MultipacPRO 19" Chassis, Aluminum, Plain Top and Base, 1 U, 280 mm

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 26152809
Brand / Manufacturer SCHROFF
Manuf. item no. 20860602
EAN 4036088027857
Item weight 1.596 kg

Description

MultipacPro 19" slide-in unit, made of aluminium, with closed top and bottom panels, 1 U, 280 mm

MULTIPAC PRO 1U 280D COVER P

Complete plug-in unit made of aluminium - Rear panel can be removed for easy processing - EMC shielding of approx. 30 dB(A) at 1 GHz (without additional shielding material) - In accordance with IEC 60297-3-100, -101, -105 - 19" and ATX power supply units can be installed up to a clear height of 35 mm in 1 U of enclosure height

Specifications

Manufacturer SCHROFF
Product group SCHROFF 19" cabinets & expansion parts
Product type Multipac
Height units 1 U
Depth 280 mm
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 290 mm
Depth of packaging (single piece) 560 mm
Package weight (single piece) 1.596 kg

Downloads

Manufacturer data sheet - Deutsch (370.4 KB)

Download

Manufacturer data sheet - English (369.3 KB)

Download

Manufacturer data sheet - English (977.1 KB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
