SCHROFF VME64x System, 10 U, 21 Slot, 2 Open Frame PSUs

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/09/2024

Product is a shipping prodcut! Shipping costs may arise!

Item no.	26152180
Brand / Manufacturer	SCHROFF
Manuf. item no.	20836220
EAN	4036088051630
Item weight	32 kg

Description

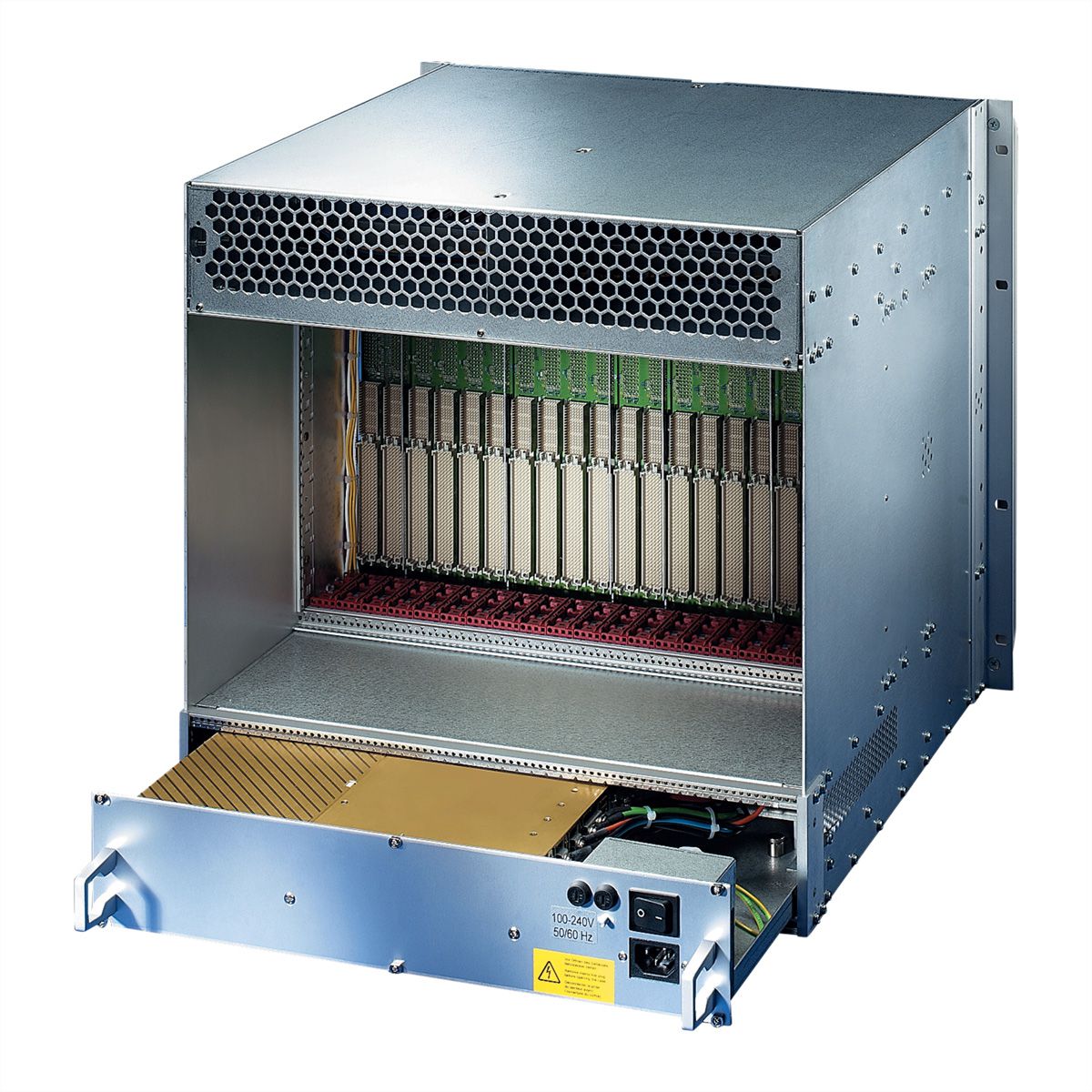

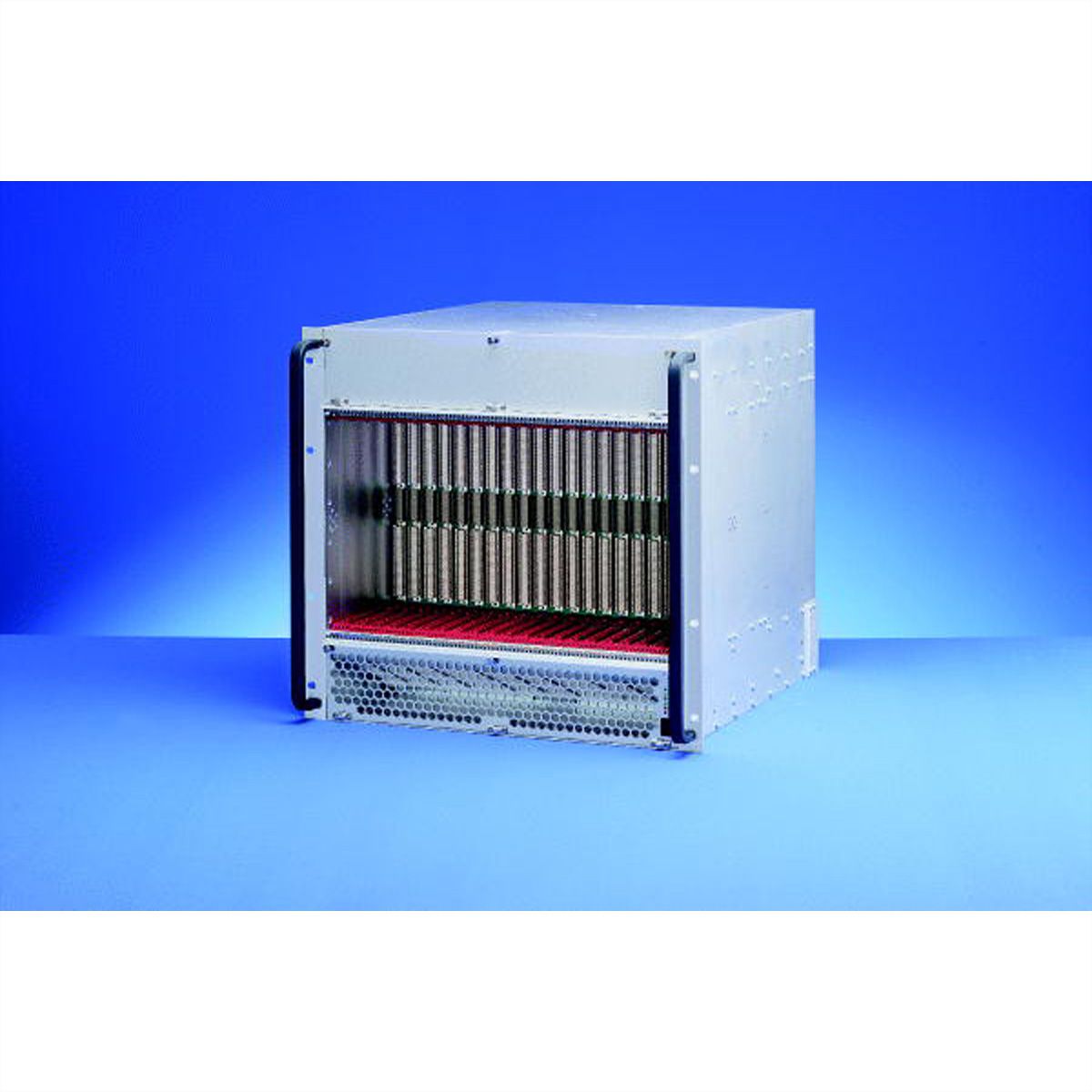

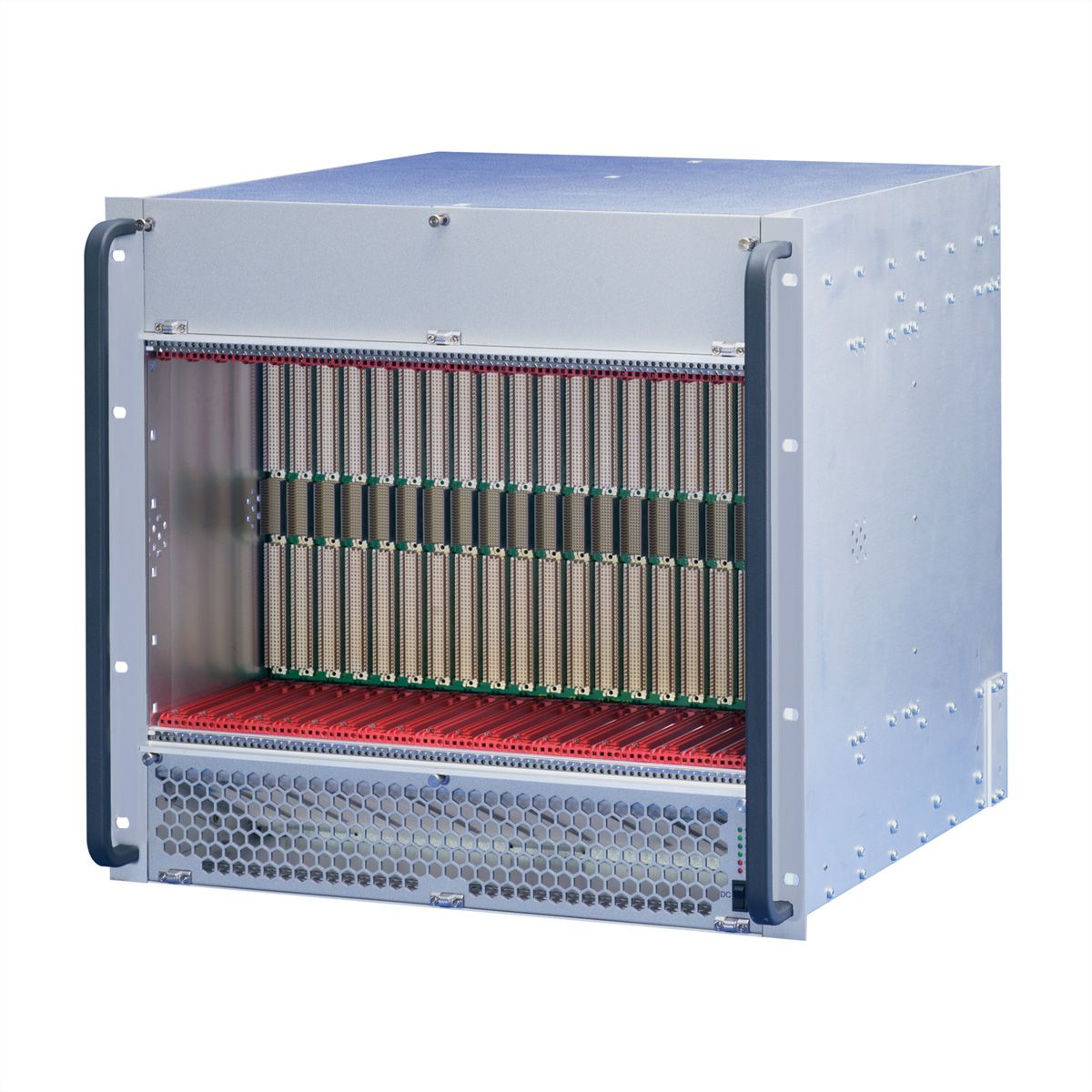

VME64x system, 10 U, 21 slot, 2 open-frame power supply units

SUBR 10U 84HP 21SL VME64X V2

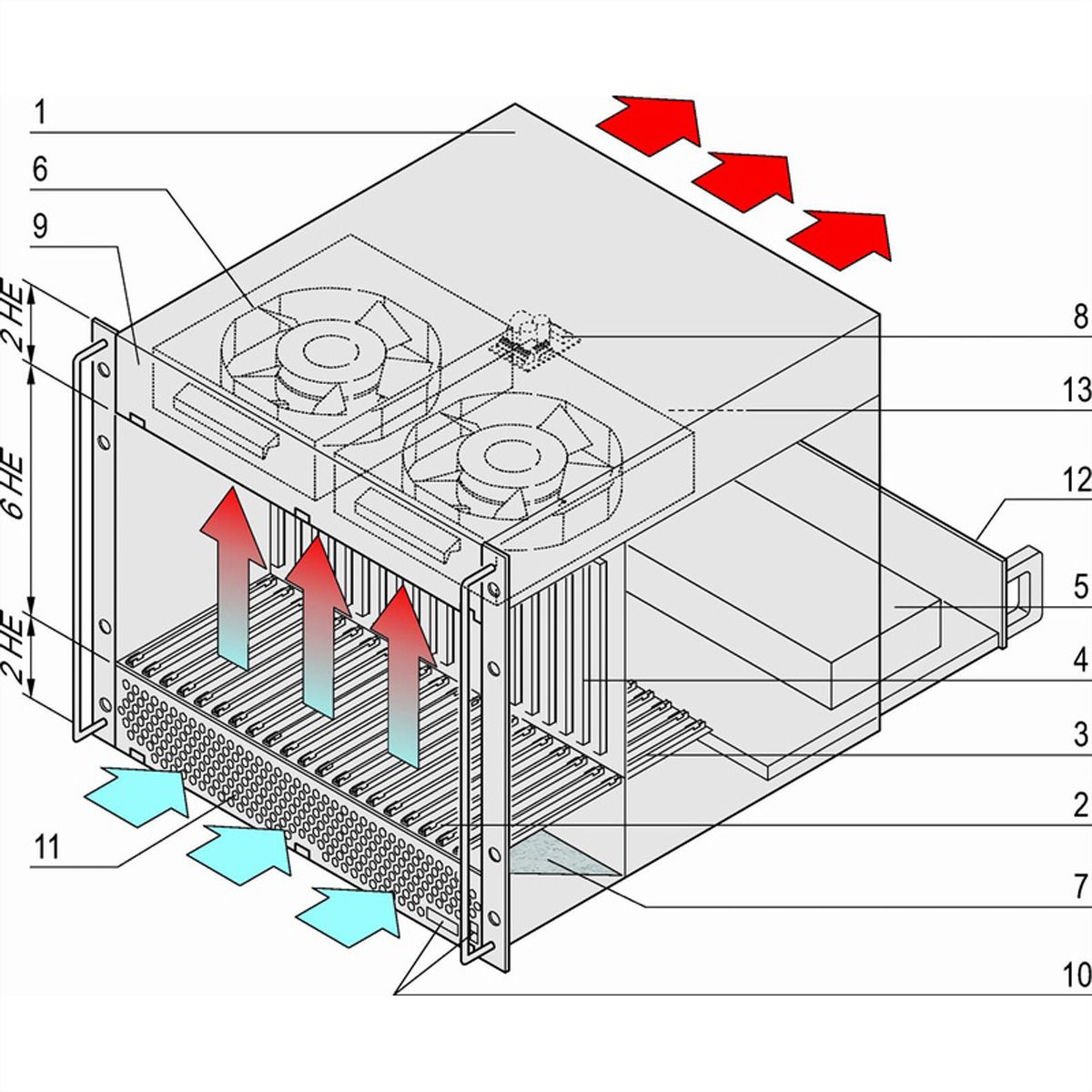

System in accordance with IEC 60297-3-101, -102, -103, IEEE 1101.1, 1101.10/11), backplane compliant with VITA 1. 1-1997 - System for vertical card installation with card formats - Front: 6 U, 160 mm deep - Rear, rear I/O: 6 U, 80 mm deep - Backplane: VME64x21 slot, 6+1 U, with P0 connector - Power supply unit, open frame, 1000 W - Heat dissipation with two extendable fan units from front to rear, temperature-monitored with Fan Control Module (FCM) - Display module for DC operating voltages, fan and temperature alarm

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	VME PRO systems
Height units	10 U
Height	443.7 mm
Depth	456.5 mm
