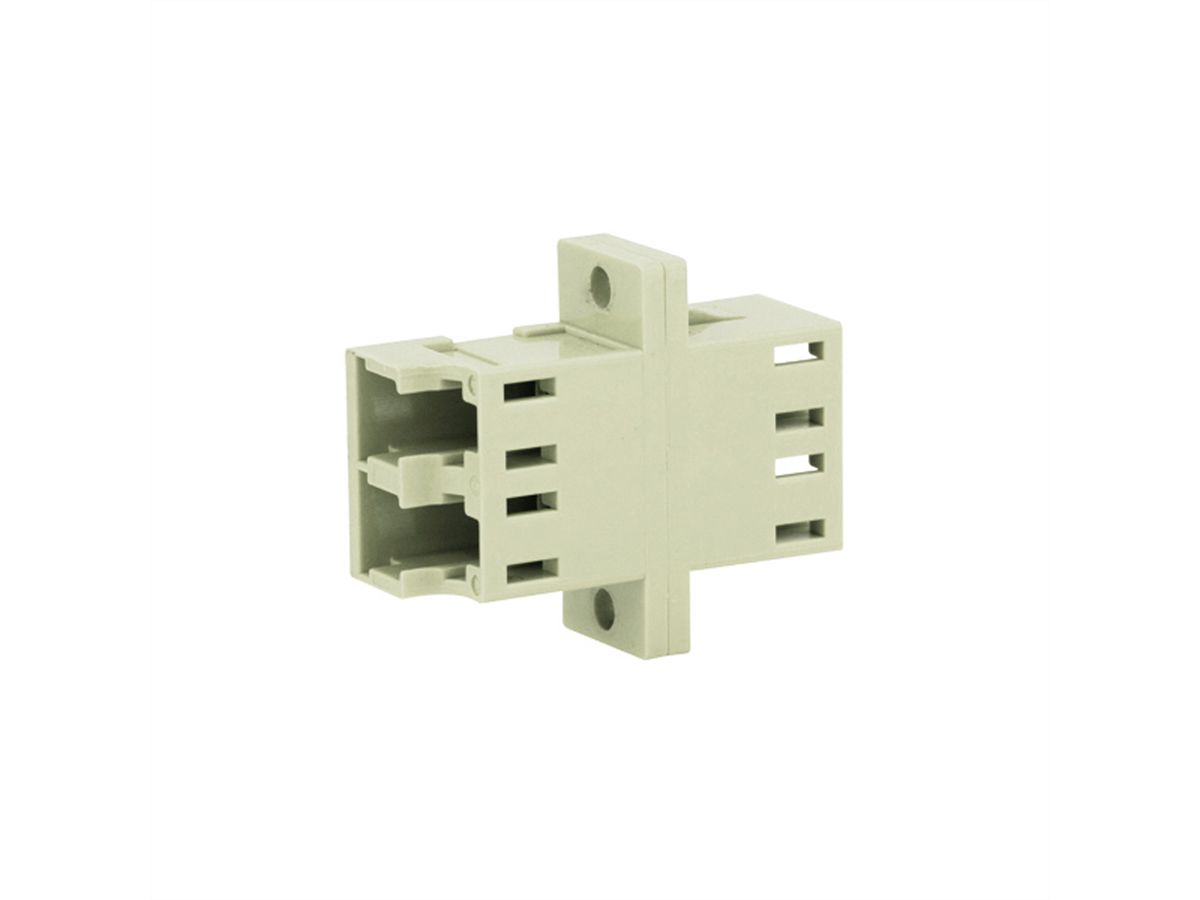

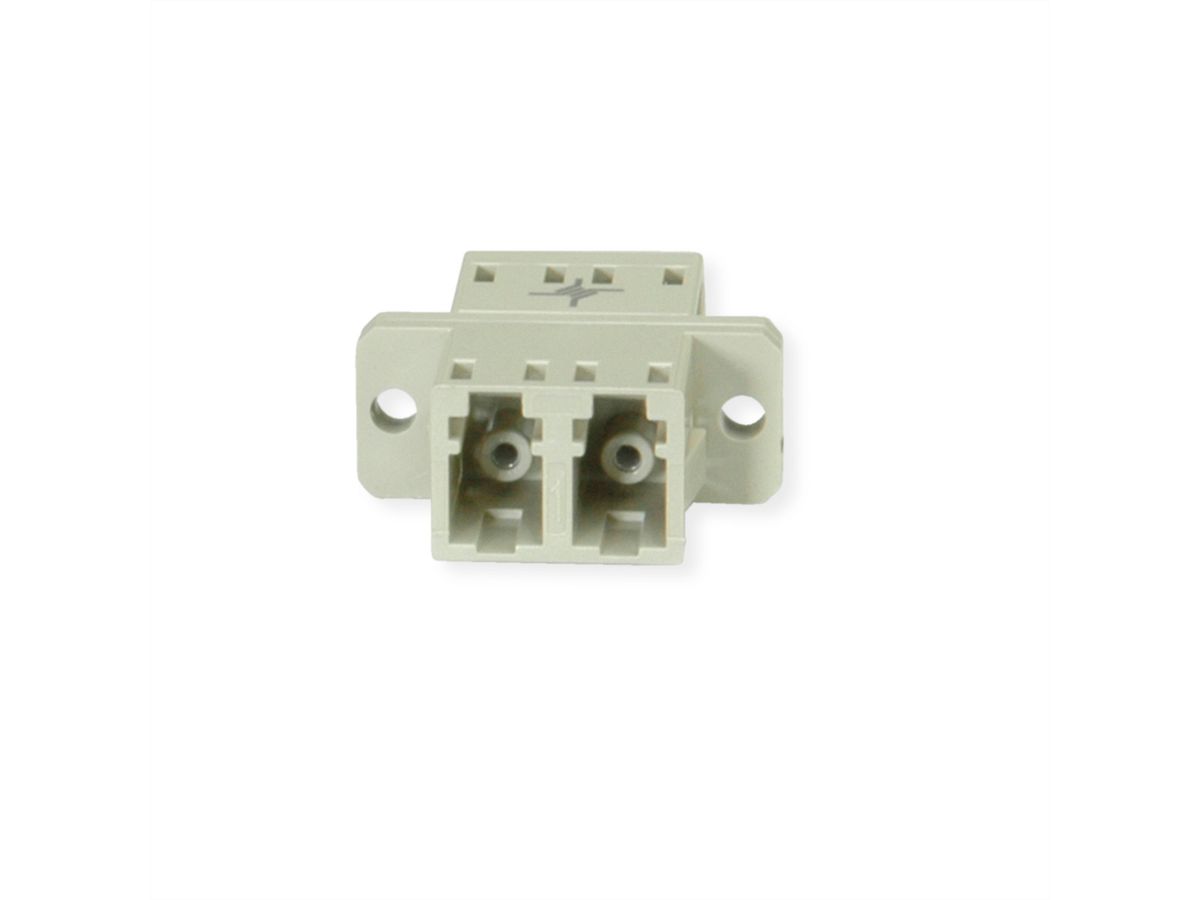

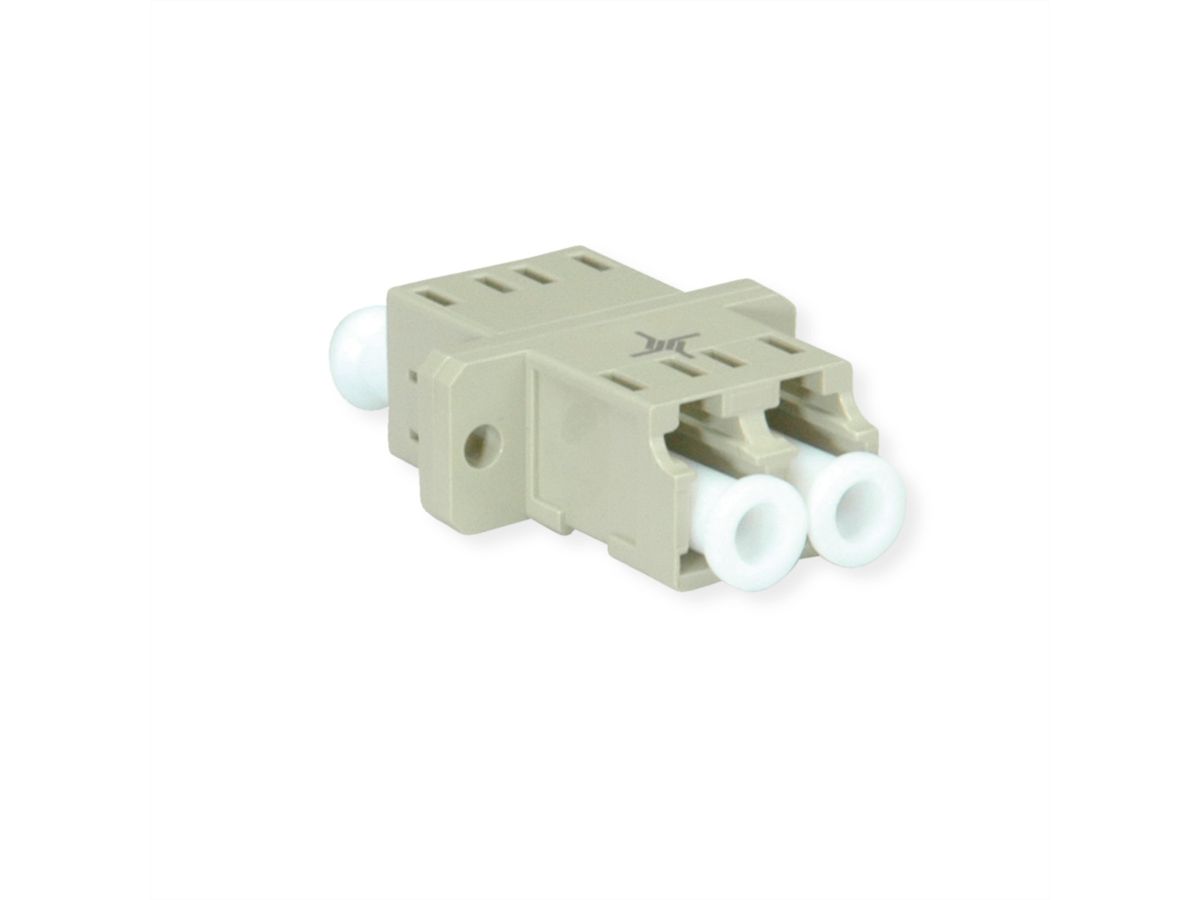

TELEGÄRTNER LC/APC Duplex adaptor, multimode, cramic sleeve, plastic housing, beige, Z77
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21173168 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100007150 |
| EAN | 4018359414412 |
| Item weight | 0.005 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
LC duplex adapter, multimode, ceramic sleeve, plastic housing, screw-snap mounting
Durable, precise and reliable: Telegärtner fiber optic connectors with ferrule and coupling sleeve made of zirconia ceramics exceed the specifications of the relevant international standards. The APC types (Angled Physical Contact) with 8° angled polished ferrules offer return loss values of more than 60 dB and meet highest expectations.
- Available for Singlemode and Multimode
- For 0.9 mm fibers and 3.2 mm cordage
- Multimode 50 µm, 62,5 µm, 200 µm and 980 µ
- Singlemode 9 µm
Remark: Picture similar
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Network Passive Components |
| Product type | Fiber optic connectors |
| Colour | beige |
| Min. return loss | 60 dB |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 75 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 90 °C |
| Height | 9.3 mm |
| Width | 22 mm |
| Depth | 25.8 mm |
| Weight | 3 g |
| Height of packaging (single piece) | 40 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 110 mm |
| Package weight (single piece) | 0.005 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
