VALUE KVM Extender over Cat. 6/6A, HDMI, 4K@60Hz, max. 120m

New products

VALUE KVM Extender over Cat. 6/6A, HDMI, 4K@60Hz, max. 120m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 14993044
Brand / Manufacturer VALUE
Manuf. item no. 14.99.3044
EAN 7630049633445
Item weight 1 kg
VALUE

Description

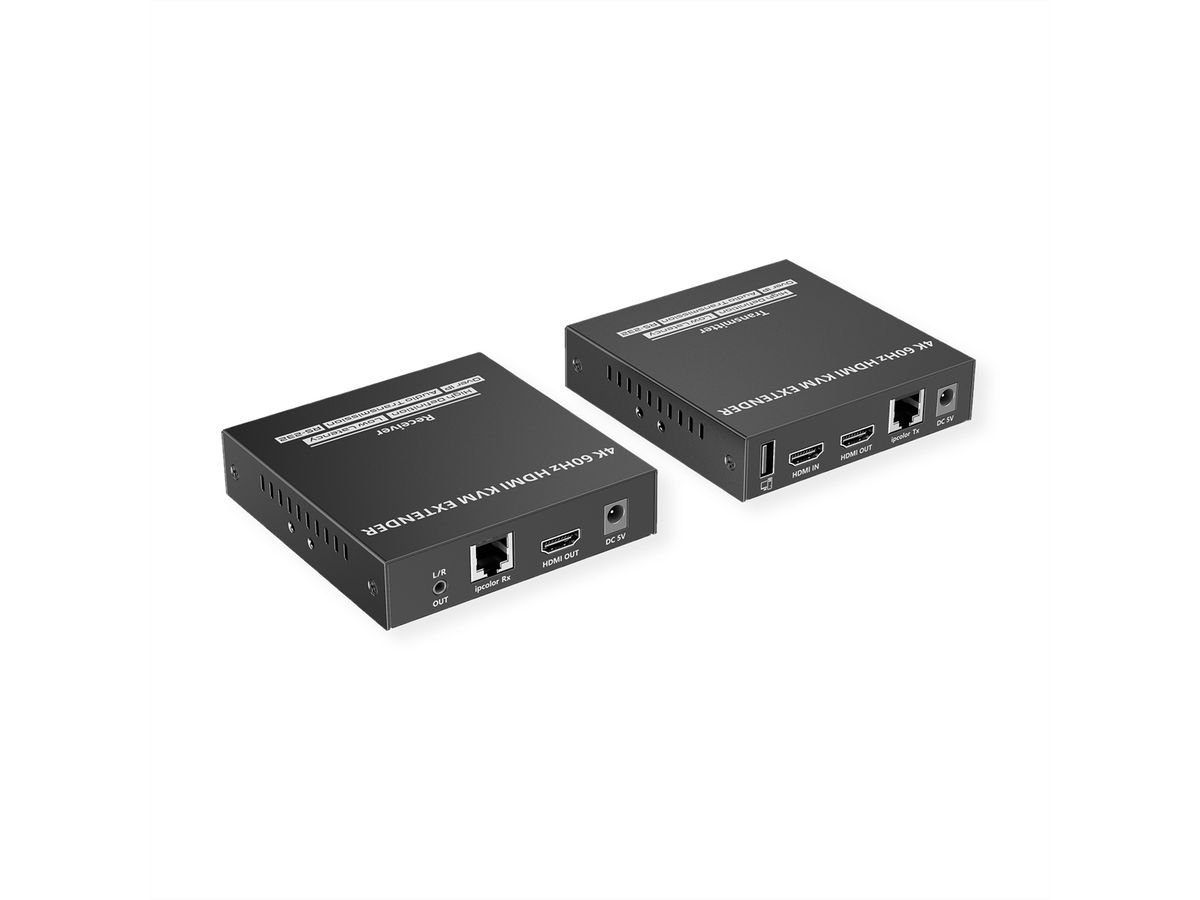

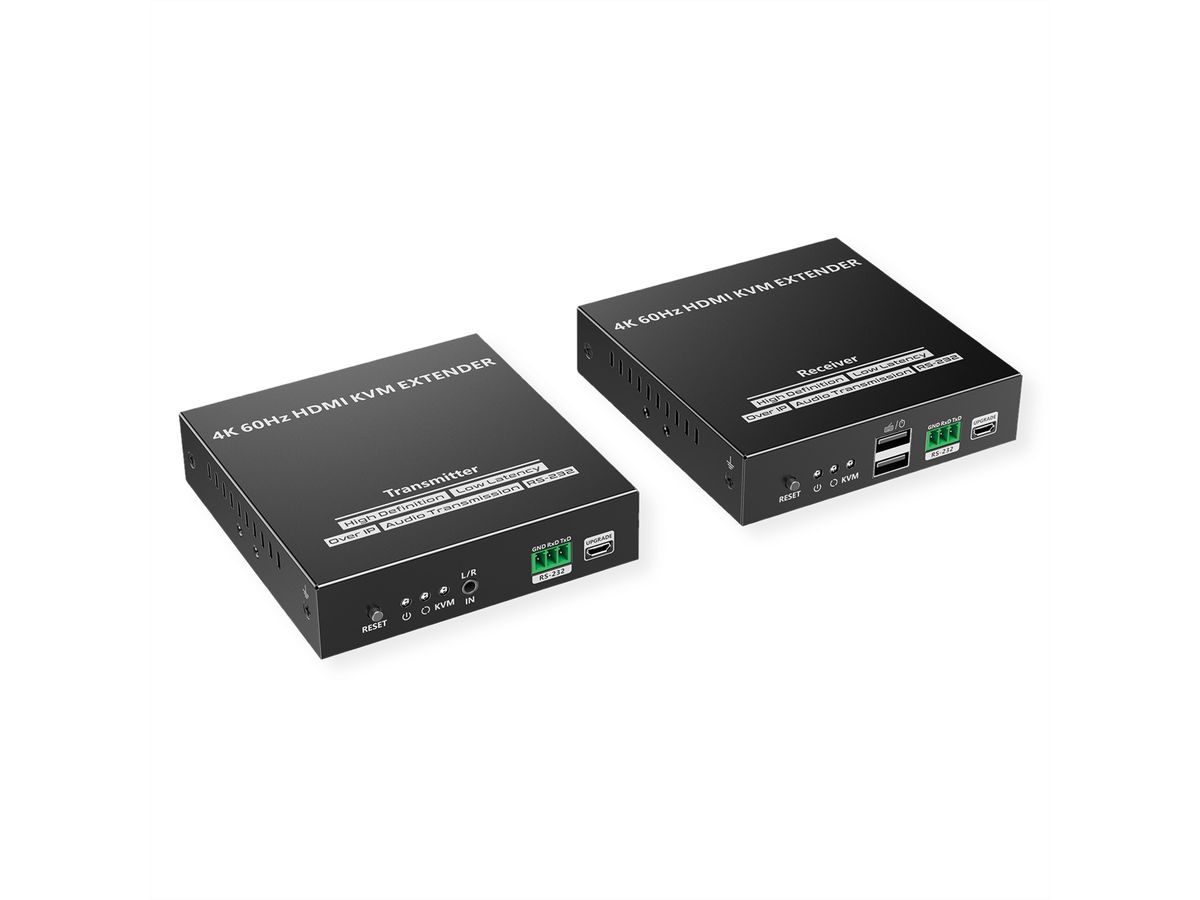

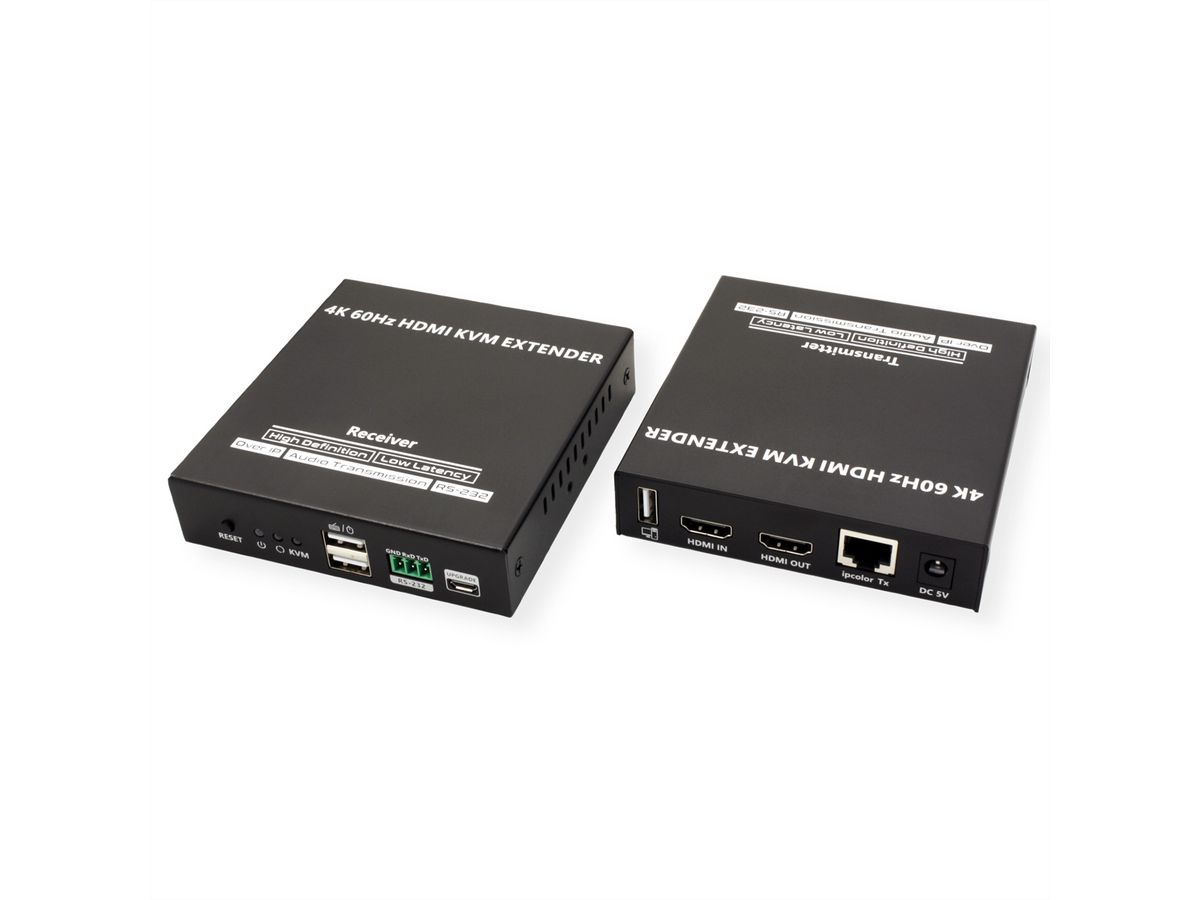

This is a 4K@60Hz HDMI KVM Extender Kit consisting of a transmitter and a receiver using ipcolor STREAM technology for high definition transmission with low latency. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 and higher network cables, supporting one-to-one connection, one-to-many connection via a gigabit switch and even switch cascading. It also supports HDMI Loop-Out and RS-232 Passthrough and can be used in meetings, home entertainment, educational presentations and other areas.

  • Up to 3840 x 2160 @60Hz resolution, backwards compatible
  • Transmission distance up to 120 meters, with Cat. 6 or above network cables

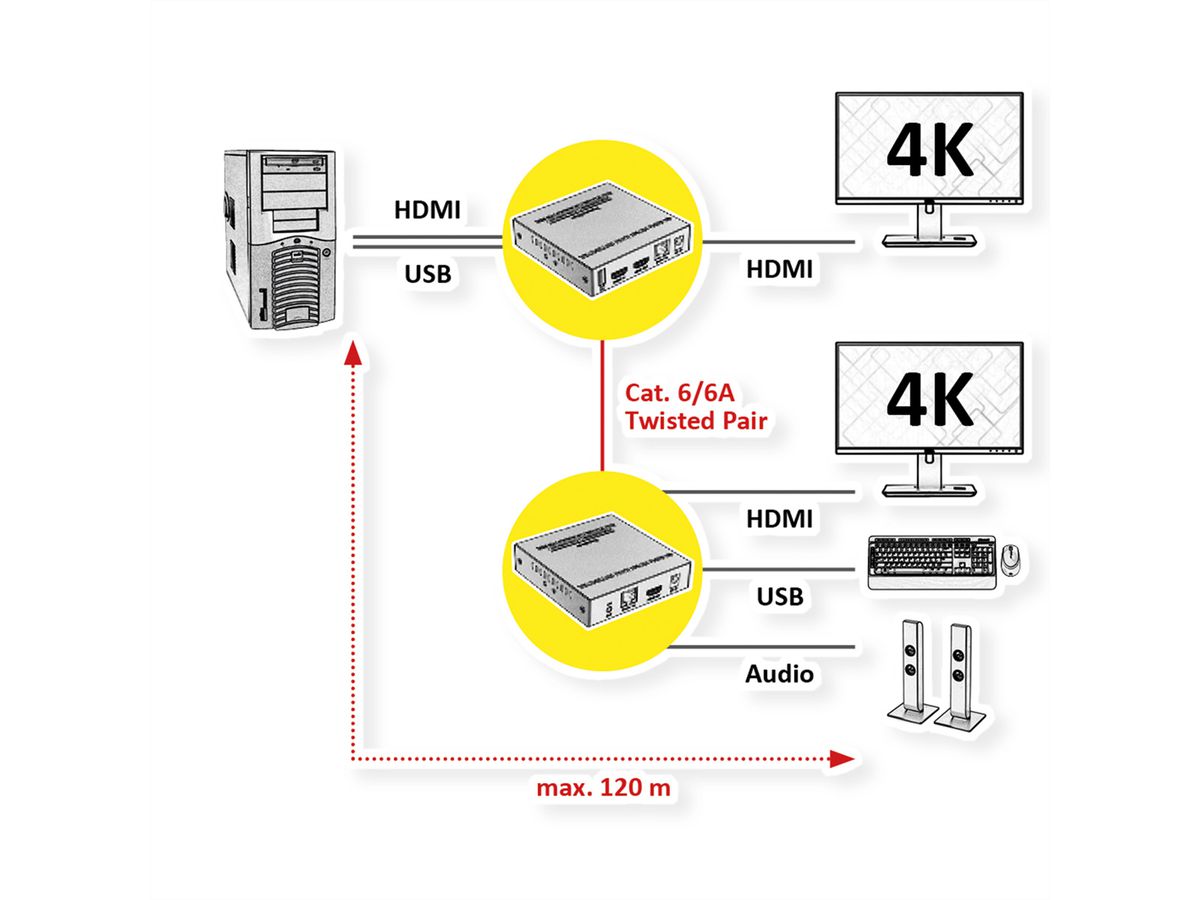

  • Connections: one-to-one, one-to-many using a gigabit switch and cascading of gigabit switches
  • ipcolor STREAM technology enables high-resolution and low-latency transmission
  • Supports RS-232 passthrough
  • Transmitter supports HDMI loop out
  • Stable metal housing

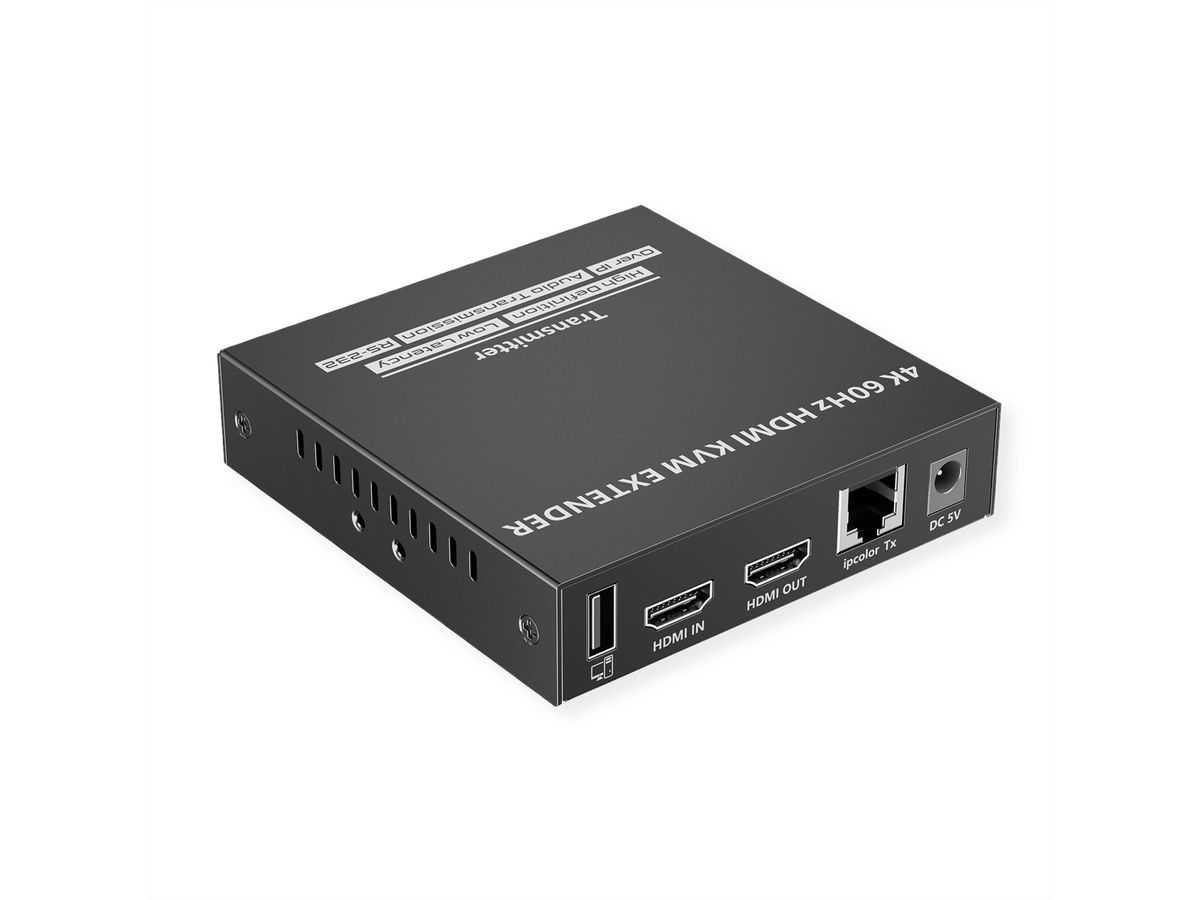

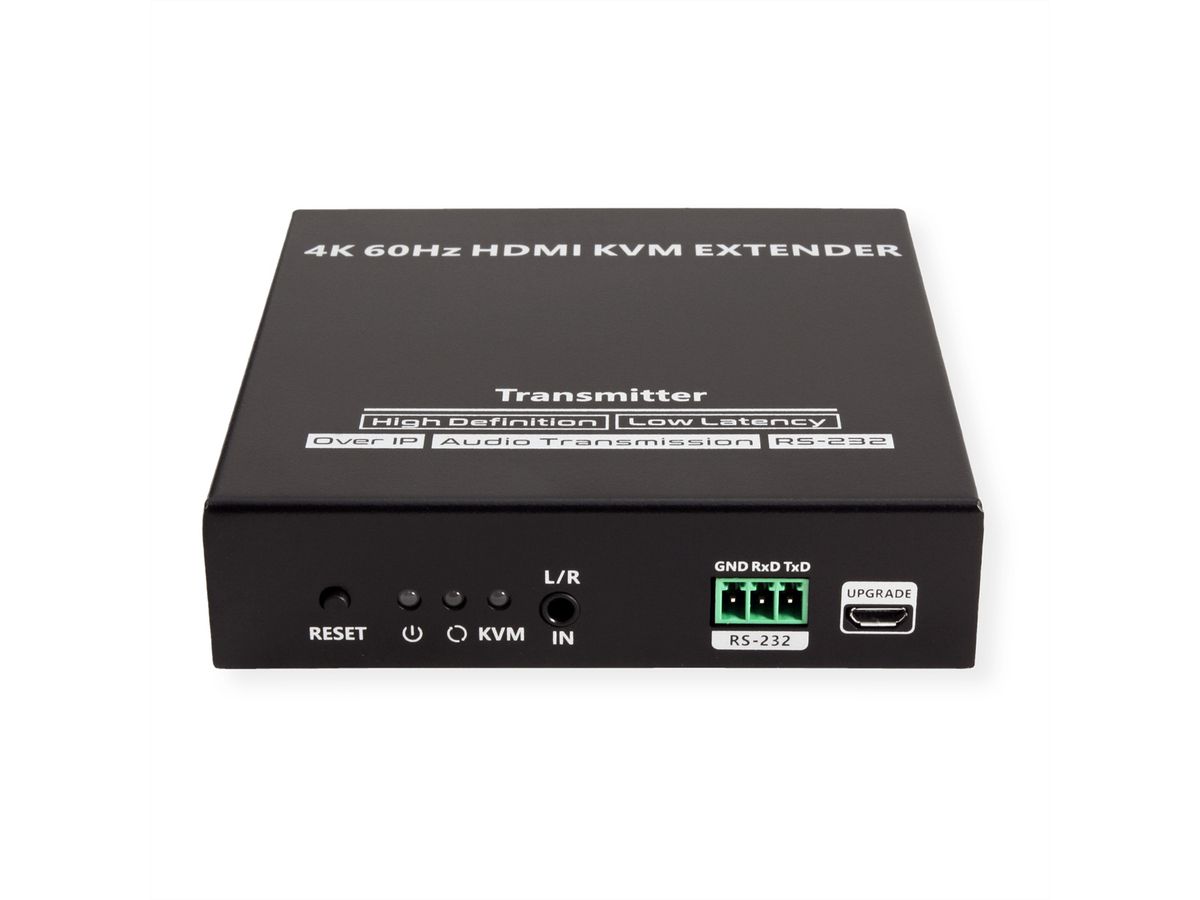

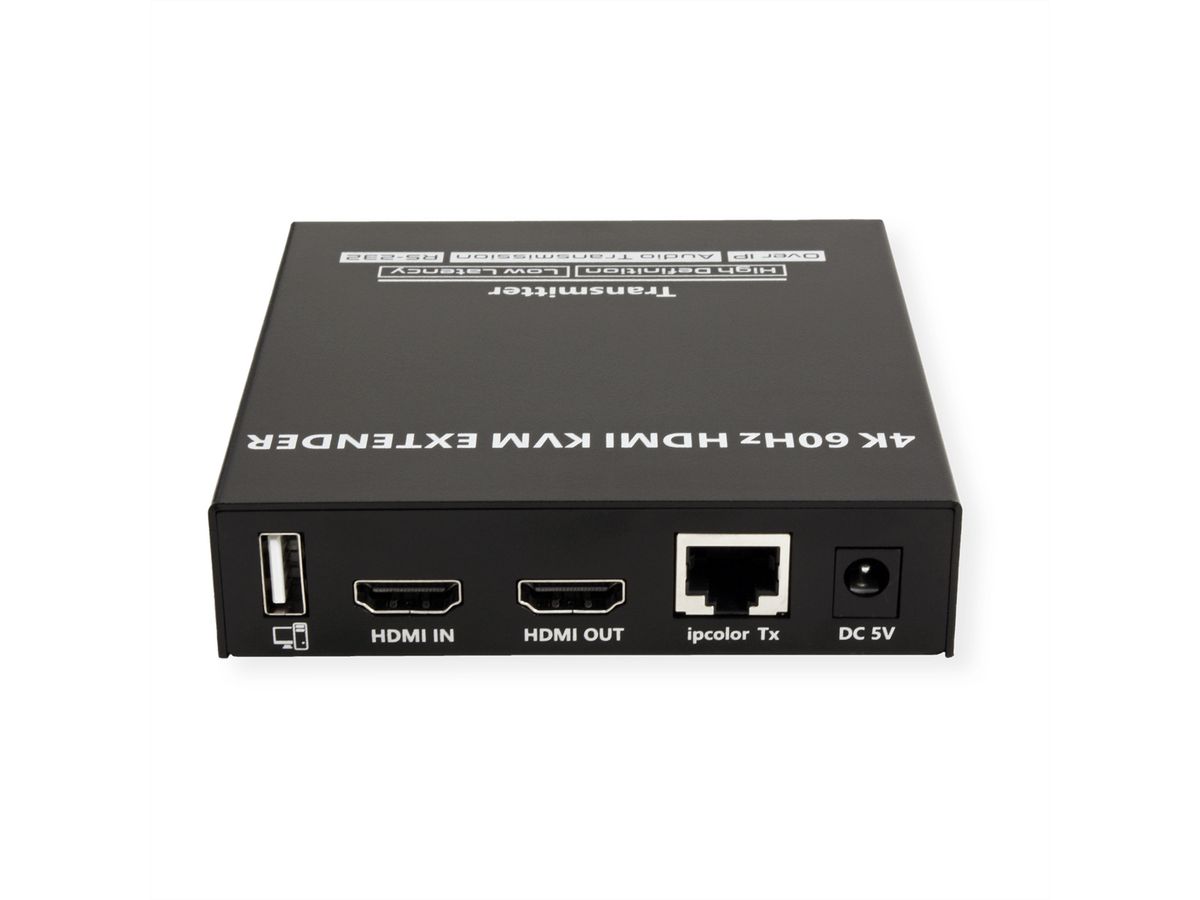

  • Transmitter (TX) ports: 1x HDMI in, 1x HMDI loop out, 1x RJ-45, 1x USB A, 1x USB Micro B (for firmware update), 1x RS-232, 1x 3.5mm in, 1x DC 5V

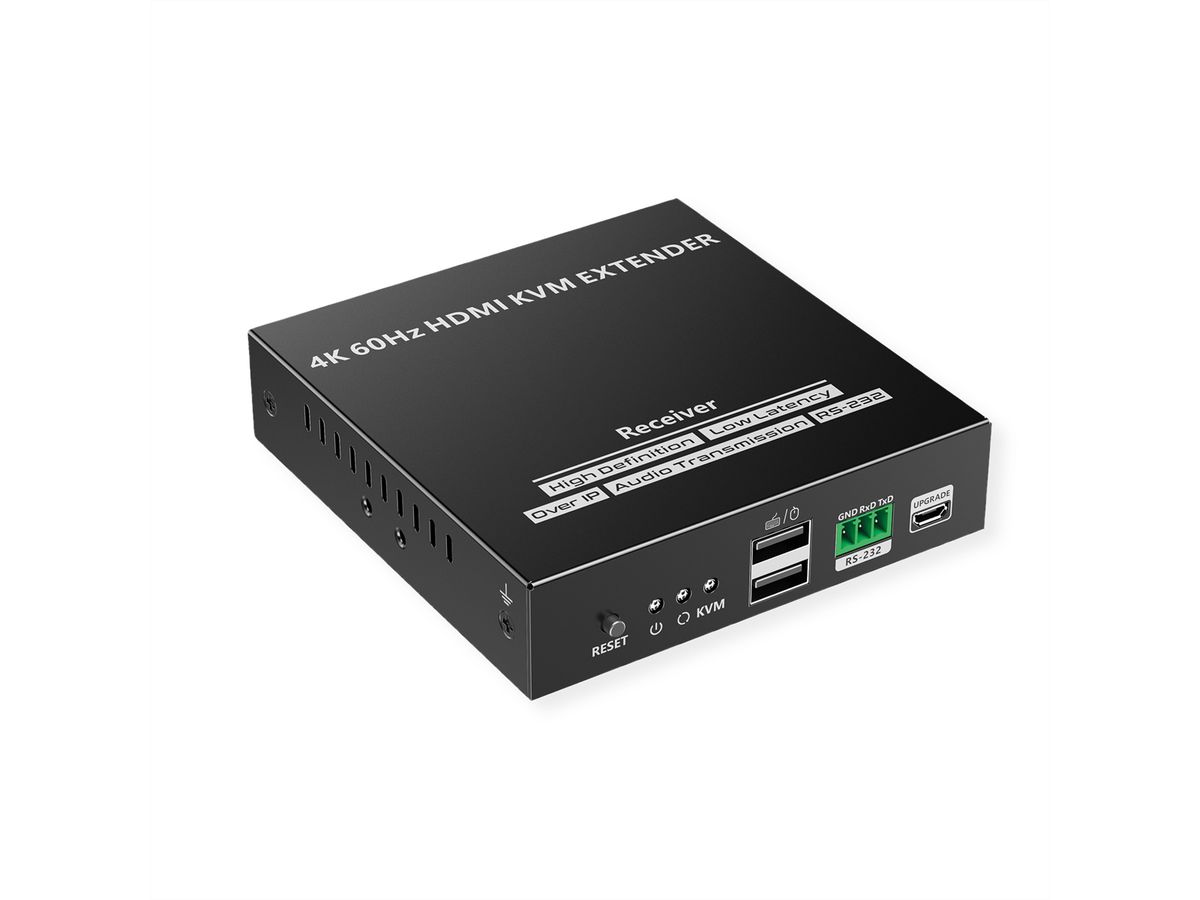

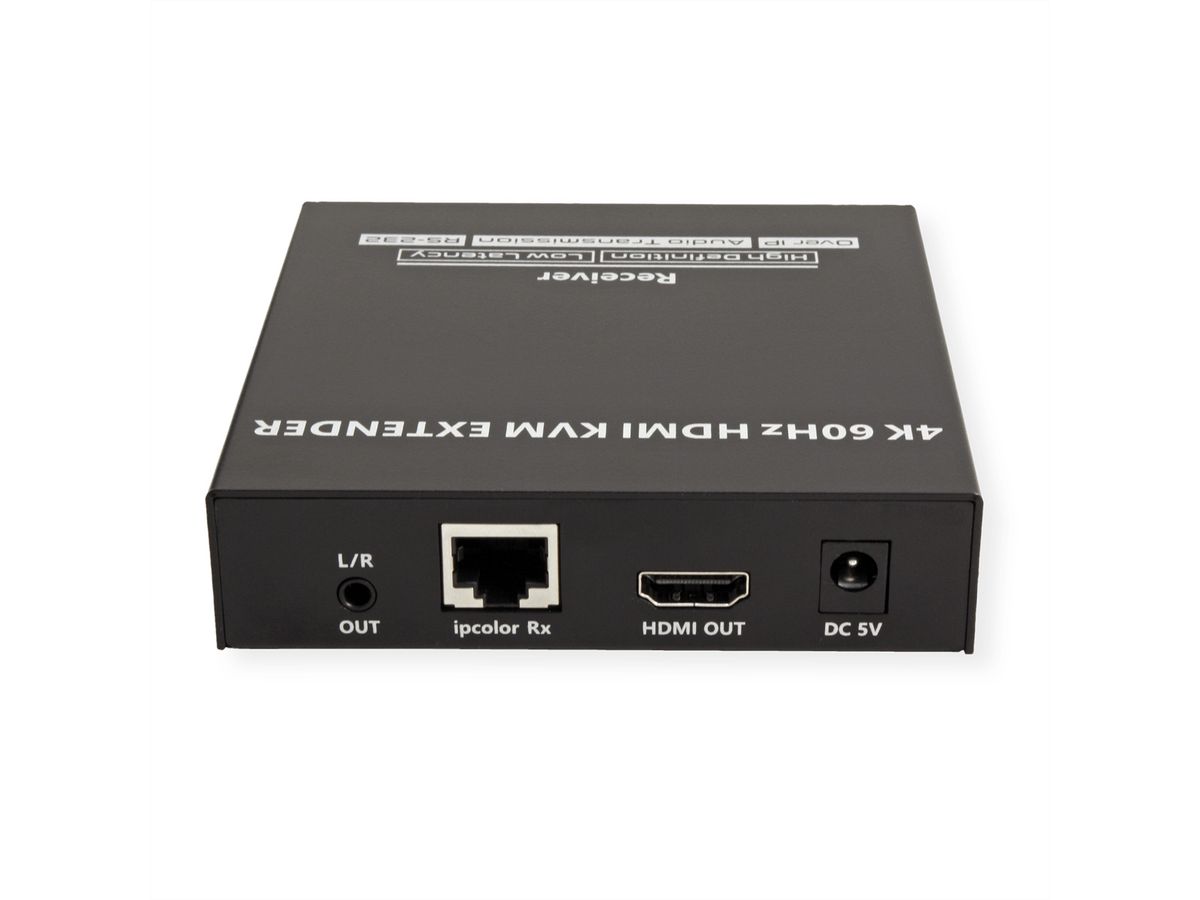

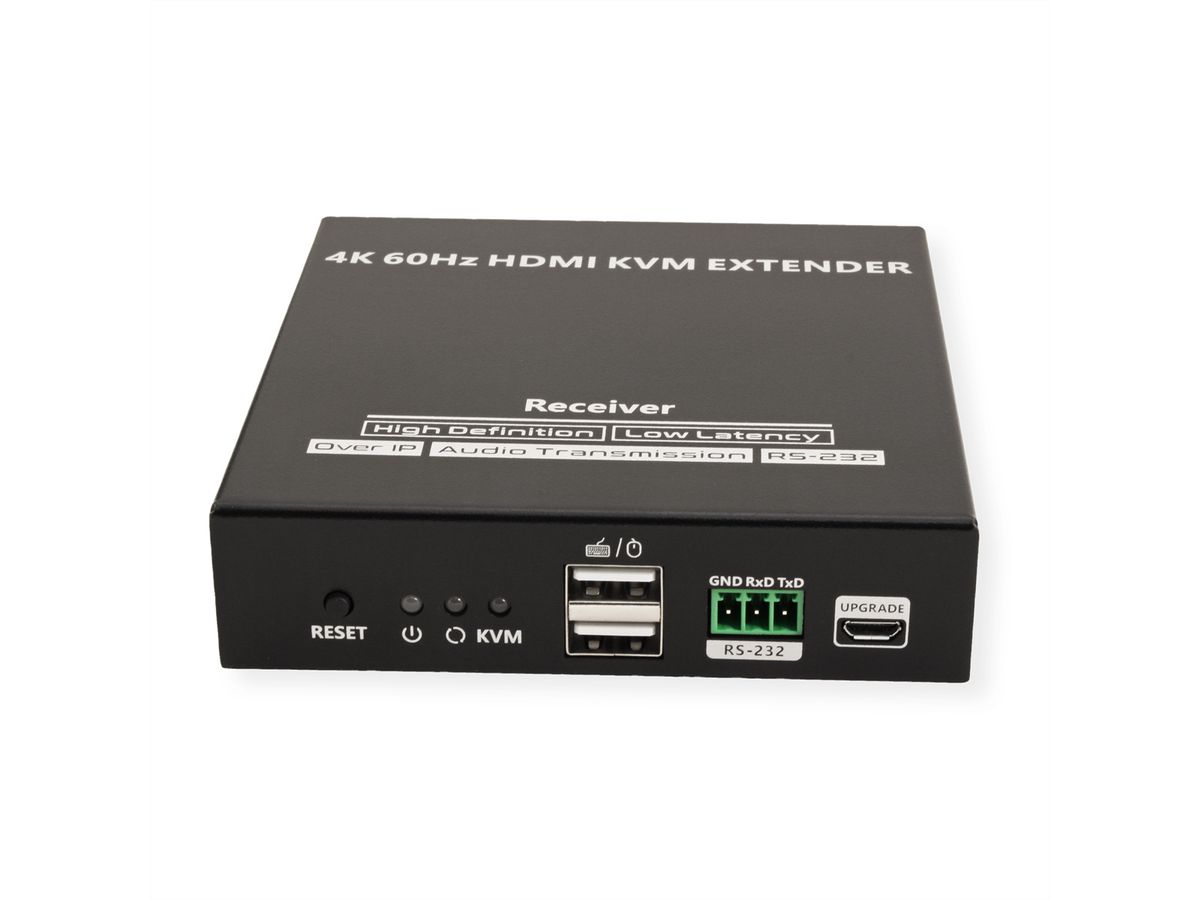

  • Receiver (RX) ports: 1x HDMI out, 1x RJ-45, 2x USB A, 1x USB Micro B (for firmware update), 1x RS-232, 1x 3.5mm out, 1x DC 5V
  • Dimensions Transmitter/Receiver (each): 21 x 103 x 106mm
  • Weight: Transmitter 315g, Receiver 307g

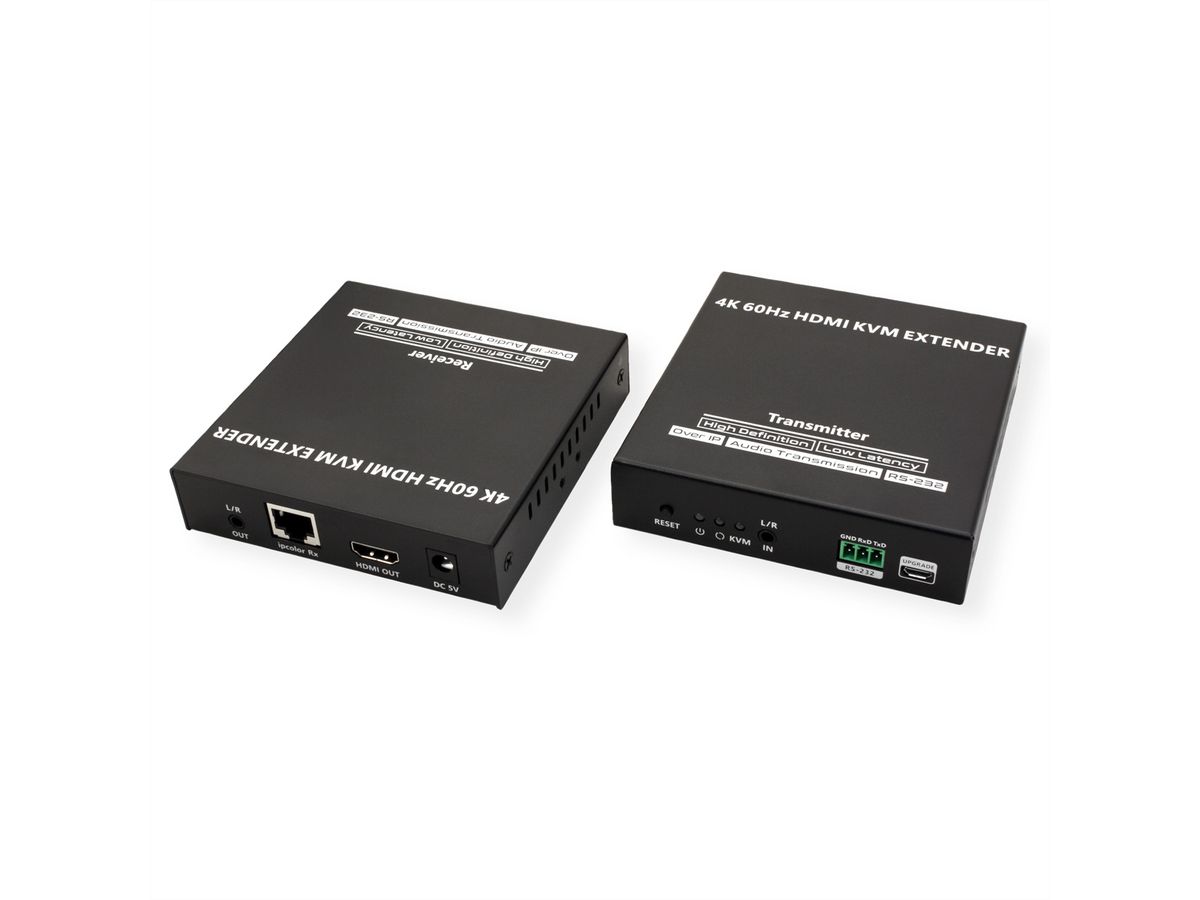

  • Contents: 1x Transmitter, 1x Receiver, 2x Power Adapter DC 5V 2A, 1x USB Cable A-A, 4x Mounting Ears, 2x Terminal block (RS-232), 1x User Manual

Specifications

Manufacturer VALUE
Product group KVM (IP) extensions
Product type KVM-Extender, HDMI
Colour black
Scope of delivery 1x Transmitter, 1x Receiver, 2x Power Adapter DC 5V 2A, 1x USB Cable A-A, 4x Mounting Ears, 2x Terminal block (RS-232), 1x User Manual
Audio Stereo Audio
Max. distance 120 m
PC/Switch: monitor connection HDMI
PC/Switch: mouse/keyboard connection USB
Remote Console: Monitor connection HDMI
Remote Console: Mouse/Keyboard connection USB
Max. distance local-remote unit 120 m
Max. resolution (nominal) 3840 x 2160@60Hz
Colour (Design profile) black
Material (casing) metal
Dimensions (HxWxD) 21 x 103 x 106 mm
Power supply unit required yes
Power supply output DC 5V 2A
Operating temperature min. -20 °C
Operating temperature max. 60 °C
Storage temperature min. -30 °C
Storage temperature max. 70 °C
Height 21 mm
Width 103 mm
Depth 106 mm
Weight 622 g
Height of packaging (single piece) 90 mm
Width of packaging (single piece) 180 mm
Depth of packaging (single piece) 250 mm
Package weight (single piece) 1 kg
Max. distance PC-extension unit (local unit) 5m
Max. distance extension unit (remote unit)-console 5m
