VALUE KVM Extender over Cat. 6/6A, HDMI, 4K@30Hz, max. 40m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14993043
Brand / Manufacturer	VALUE
Manuf. item no.	14.99.3043
EAN	7630049633438
Item weight	0.5 kg

Description

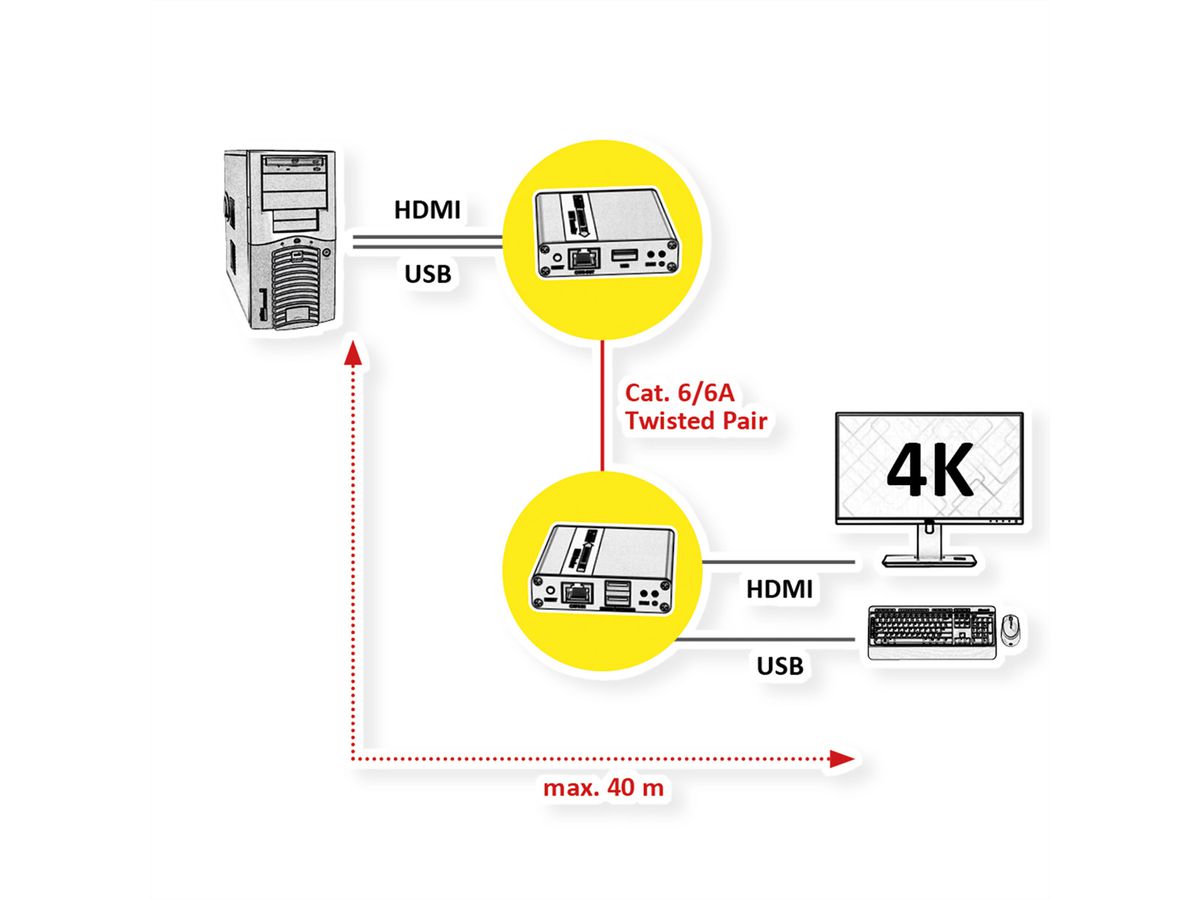

KVM Extension over a Cat. 6/6A/7 network cable of up to 70 meters at a resolution of 1080p@60Hz and up to 40 meters at a resolution of 4K@30Hz - perfect for advertising, monitoring systems, home entertainment, conferences, etc.

Supports KVM functionality
Resolution up to 4K@30Hz
Transmission distance: 1080p@60Hz up to 70m, 4K@30Hz up to 40m, by using Cat. 6 or higher network cables
Supports HDR10
Automatically adjusts parameters to match different network cables and achieve the best display performance
No latency
Plug & Play

Supports PoC (Power over Cable) - receiver is supplied via the transmitter

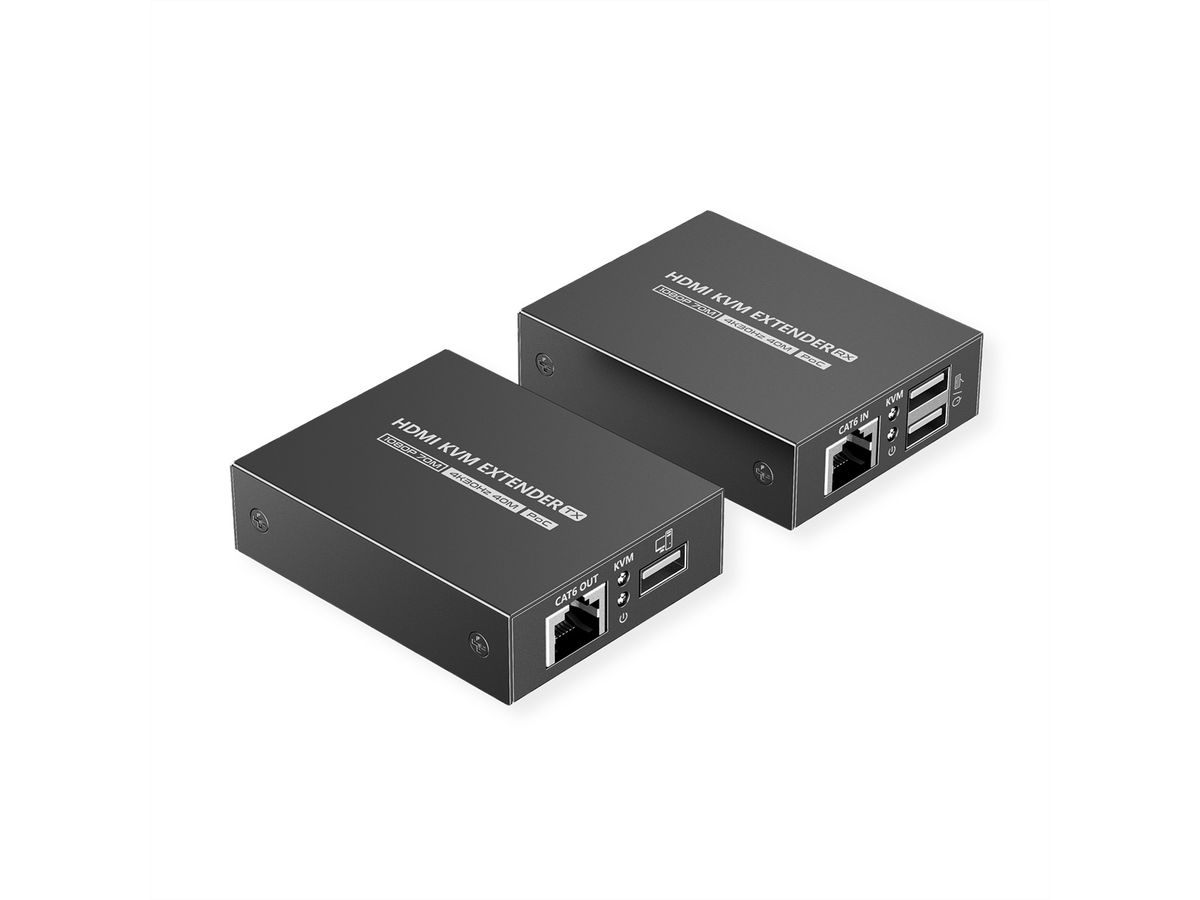

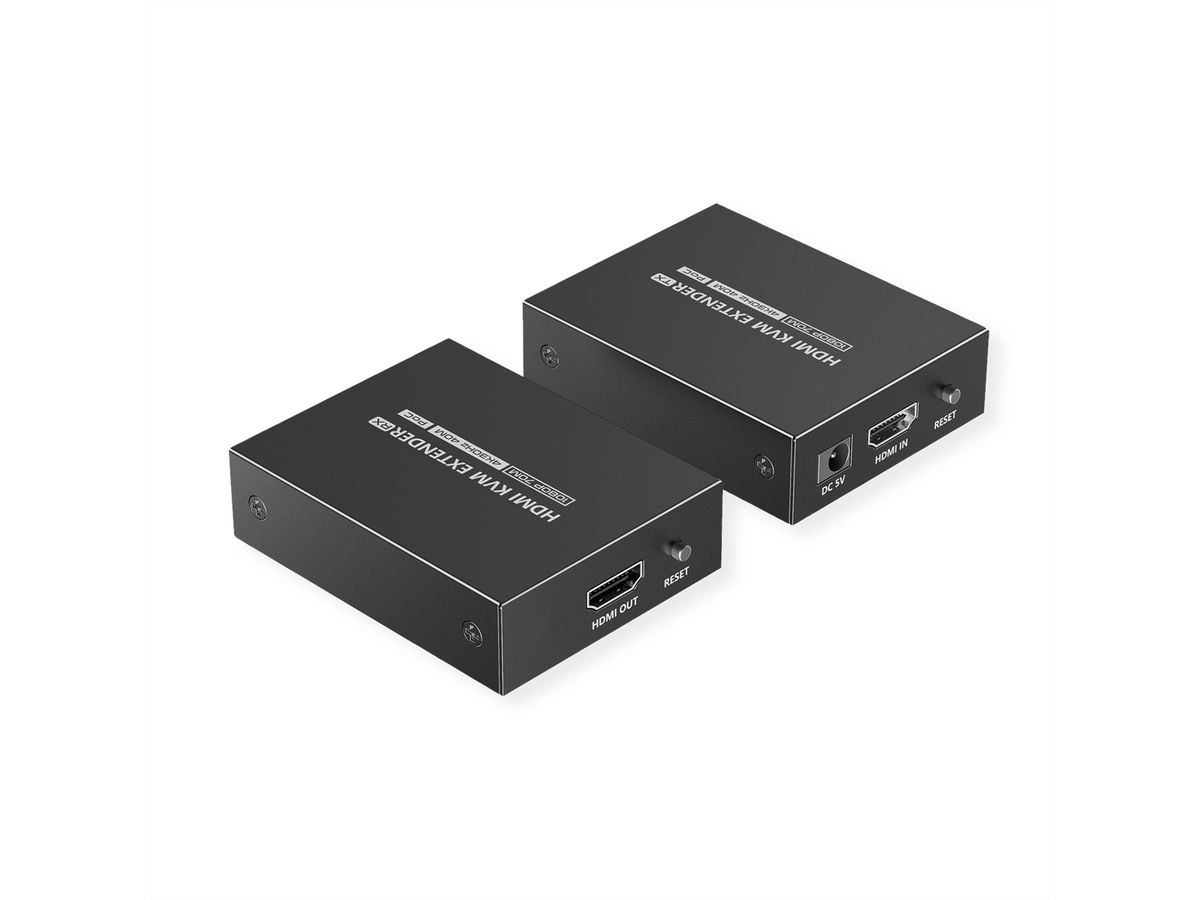

Transmitter (TX) ports: 1x HDMI, 1x RJ-45, 1x USB A
Receiver (RX) ports: 1x HDMI, 1x RJ-45, 2x USB A
Dimensions Transmitter/Receiver (each): 20 x 60 x 75 mm
Weight Transmitter/Receiver (each): 123 g
Contents: Transmitter, Receiver, Power Supply DC 5V 2A, USB Cable A-A, User Manual

Specifications

Manufacturer	VALUE
Product group	KVM (IP) extensions
Product type	KVM-Extender, HDMI
Colour	black
Scope of delivery	Transmitter, Receiver, Power Supply DC 5V 2A, USB Cable, User Manual
Inputs	2
Outputs	3
Max. distance	40 m
PC/Switch: monitor connection	HDMI
PC/Switch: mouse/keyboard connection	USB
Remote Console: Monitor connection	HDMI
Remote Console: Mouse/Keyboard connection	USB
Max. distance local-remote unit	40
Max. resolution (nominal)	3840 x 2160 @30Hz (max.)
Colour (Design profile)	black
Material (casing)	metal
Dimensions (HxWxD)	20 x 60 x 75 mm
Power supply unit required	yes
Power supply output	DC 5V 2A
Operating temperature min.	-20 °C
Operating temperature max.	60 °C
Storage temperature min.	-30 °C
Storage temperature max.	70 °C
Height	20 mm
Width	60 mm
Depth	75 mm
Weight	246 g
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	280 mm
Depth of packaging (single piece)	320 mm
Package weight (single piece)	0.5 kg

Downloads

Product data sheet - English (55.0 KB)

Download

User manual - Deutsch (372.8 KB)

Download

User manual - English (367.3 KB)

Download

User manual - Français (355.1 KB)

Download
