Description

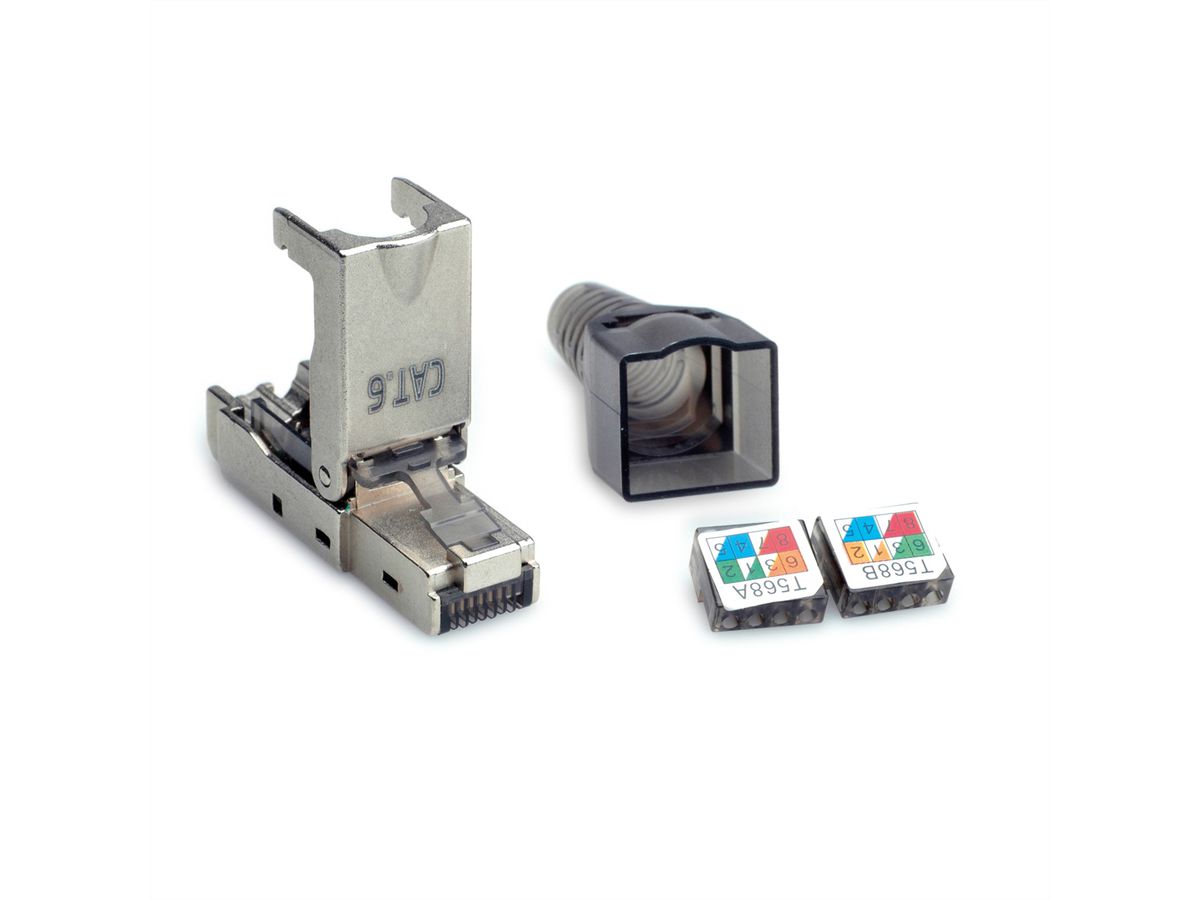

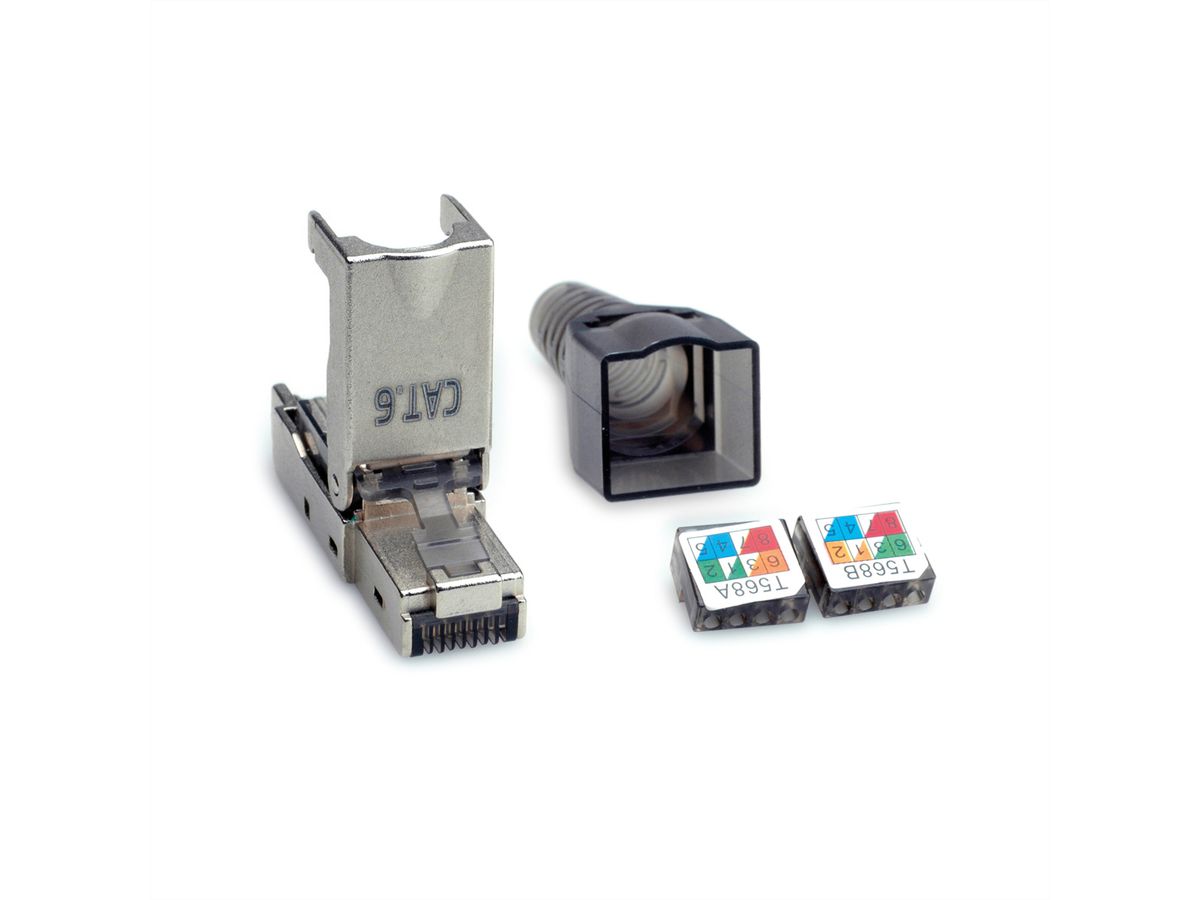

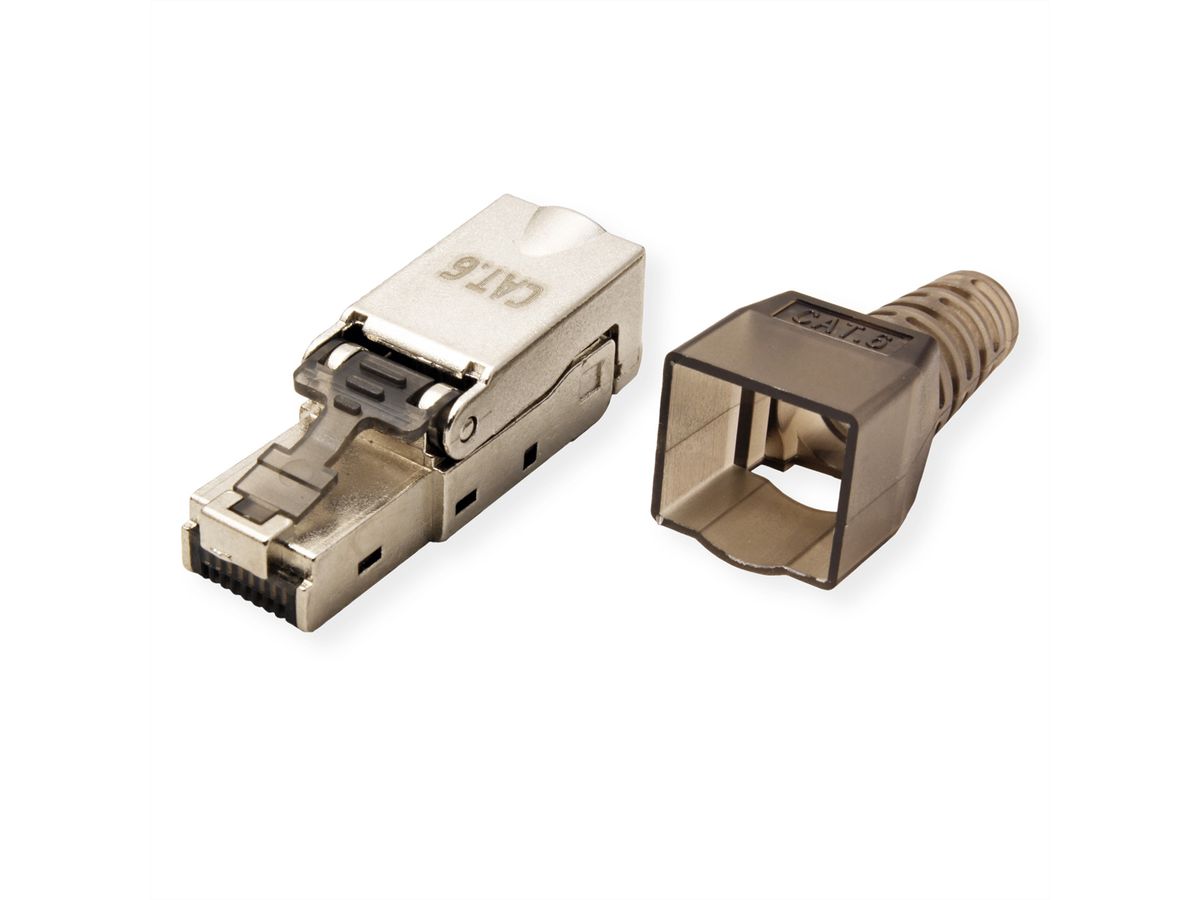

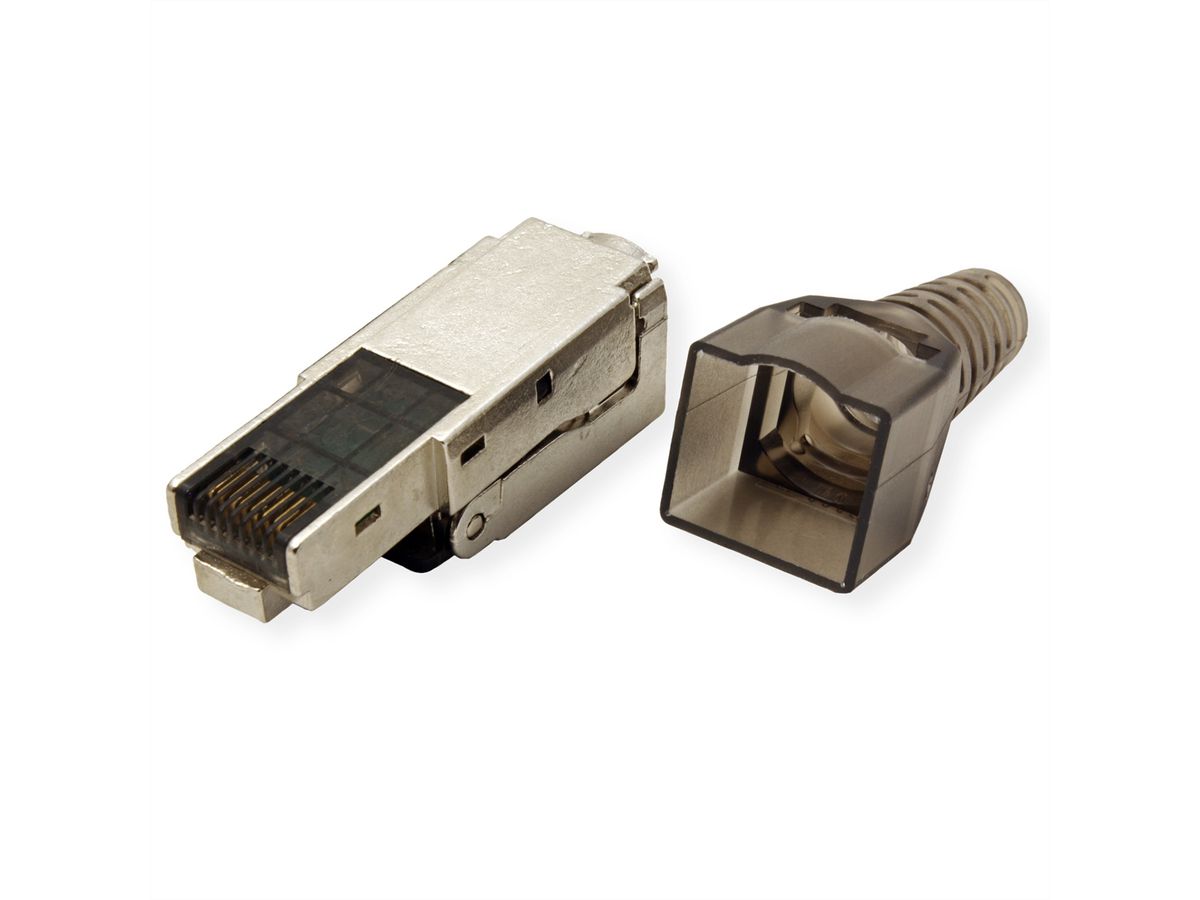

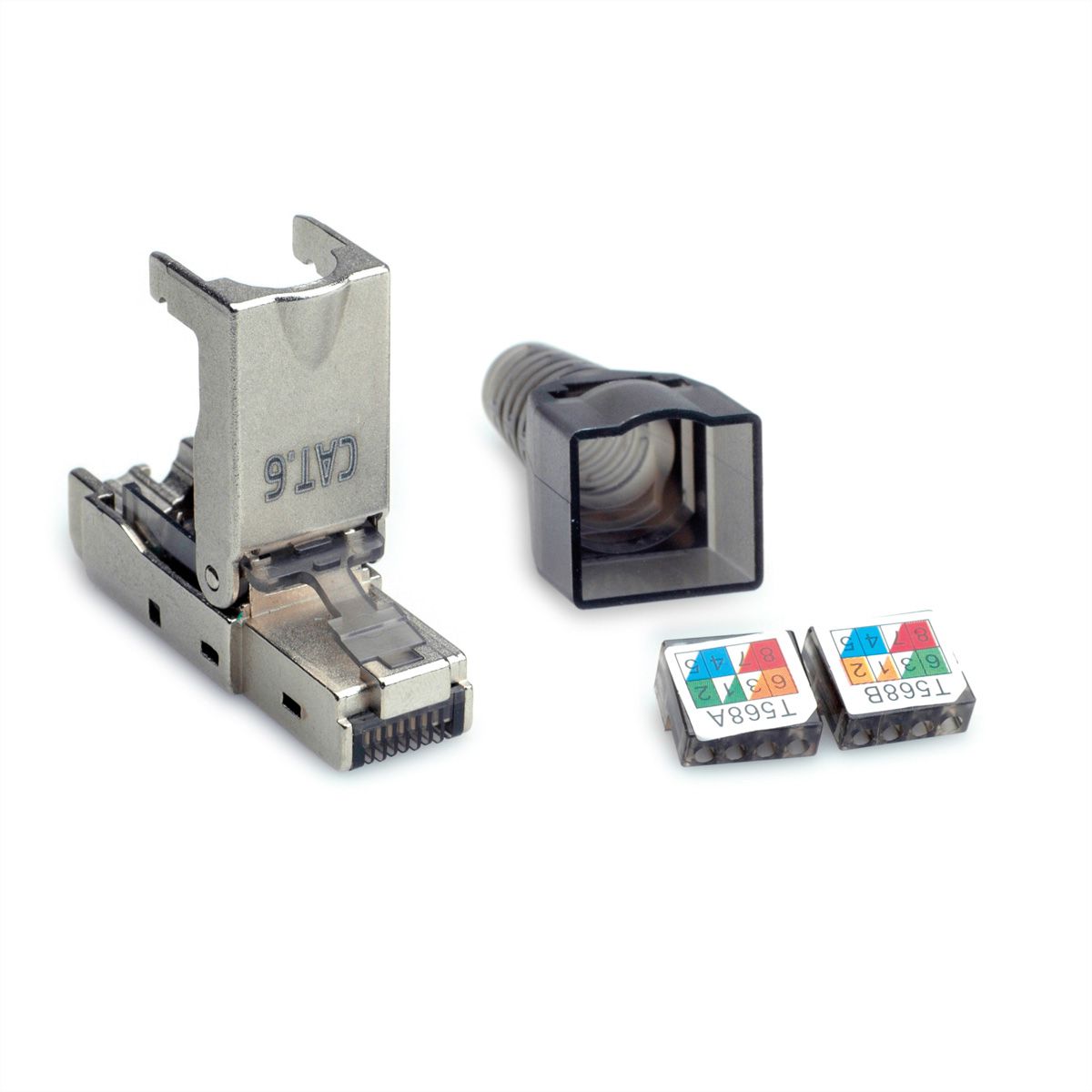

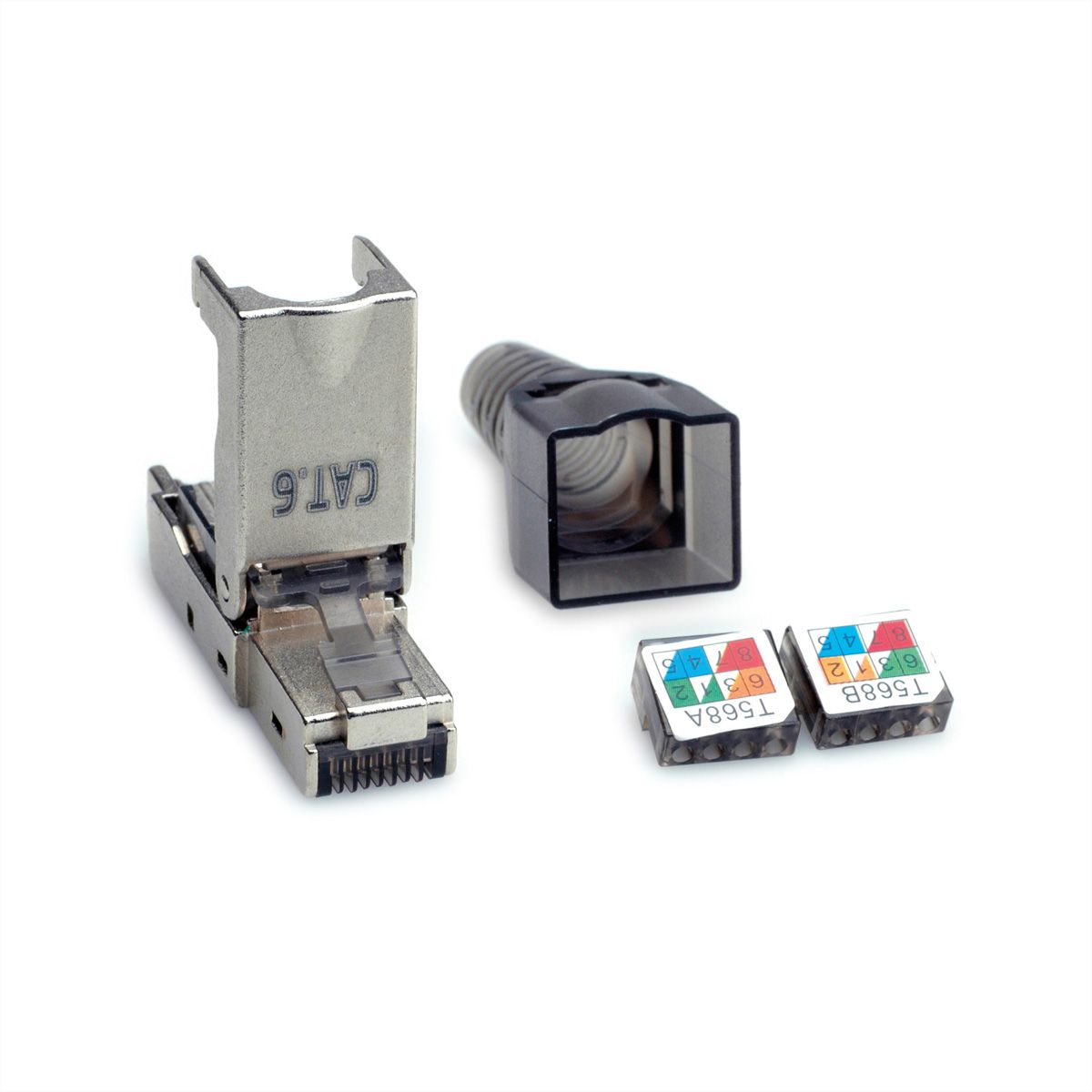

• Fast and easy tool-free installable shielded RJ45 connector
• Cat.6/Class E performance according to ISO/IEC11801 and IEC60603-7
• Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
• For cable with outer diameter OD: 6.0 - 9.0mm

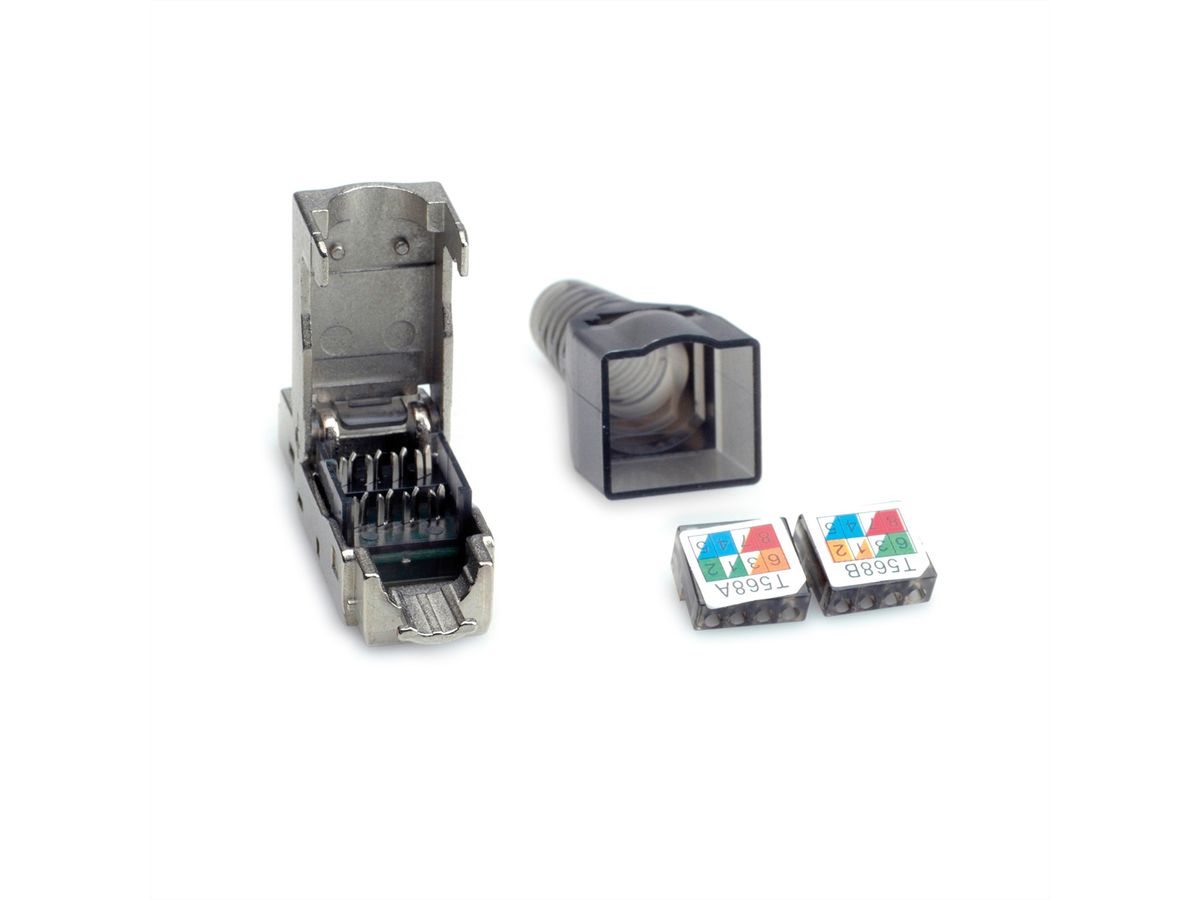

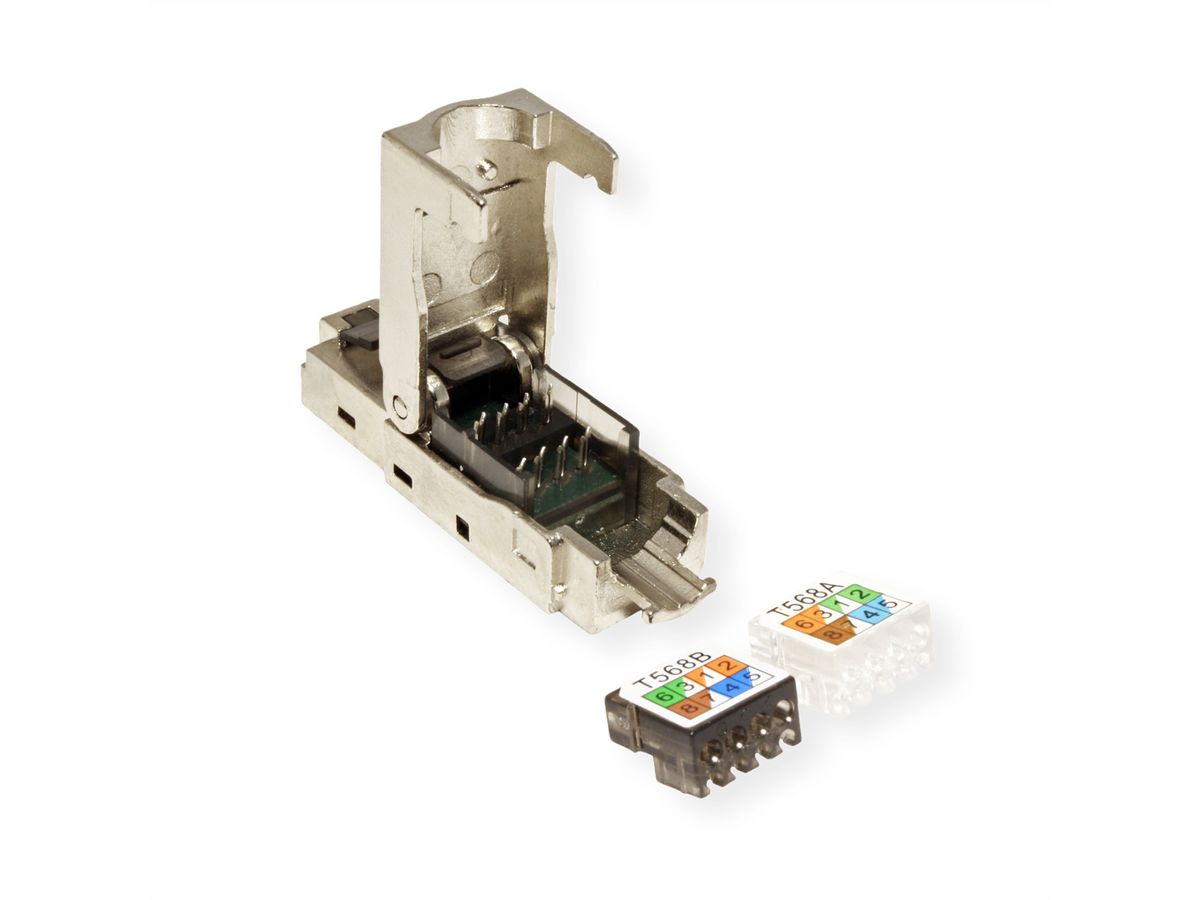

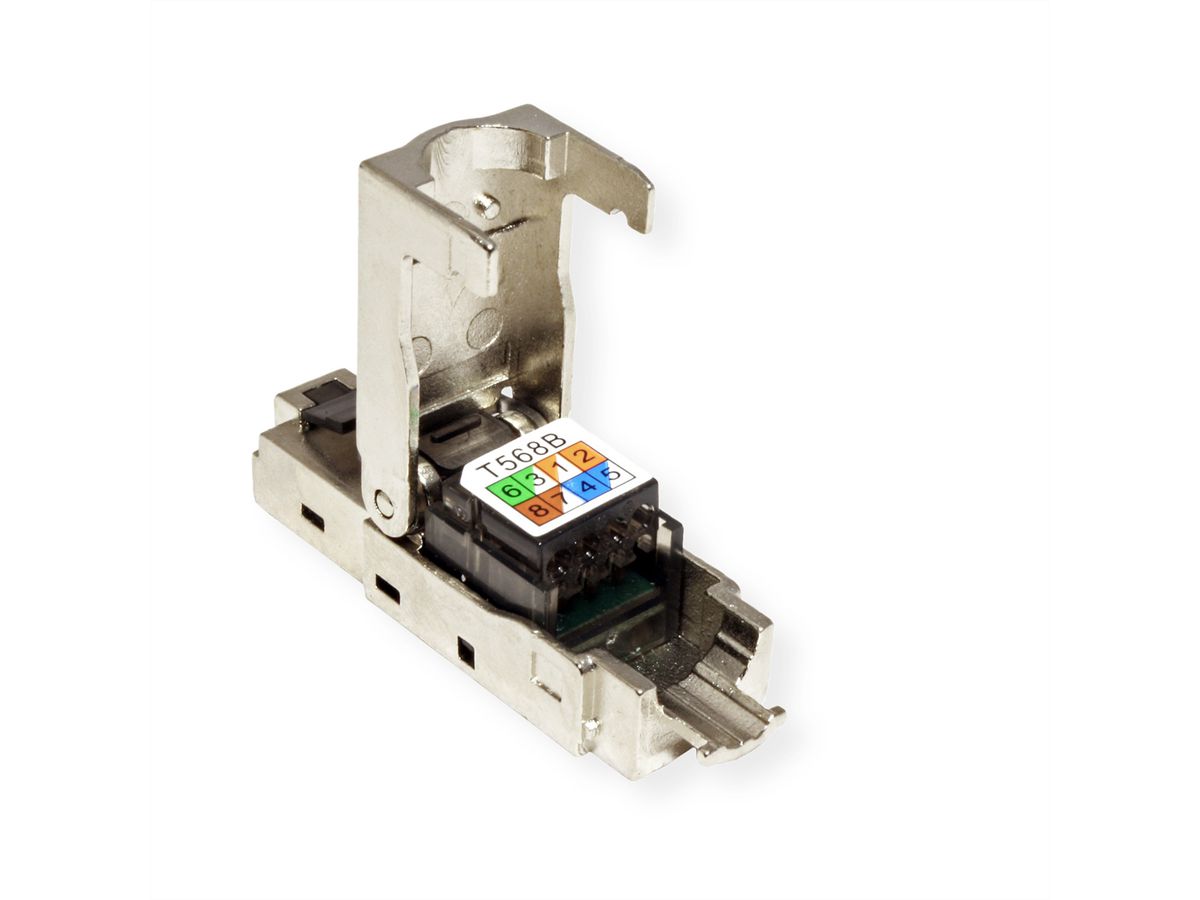

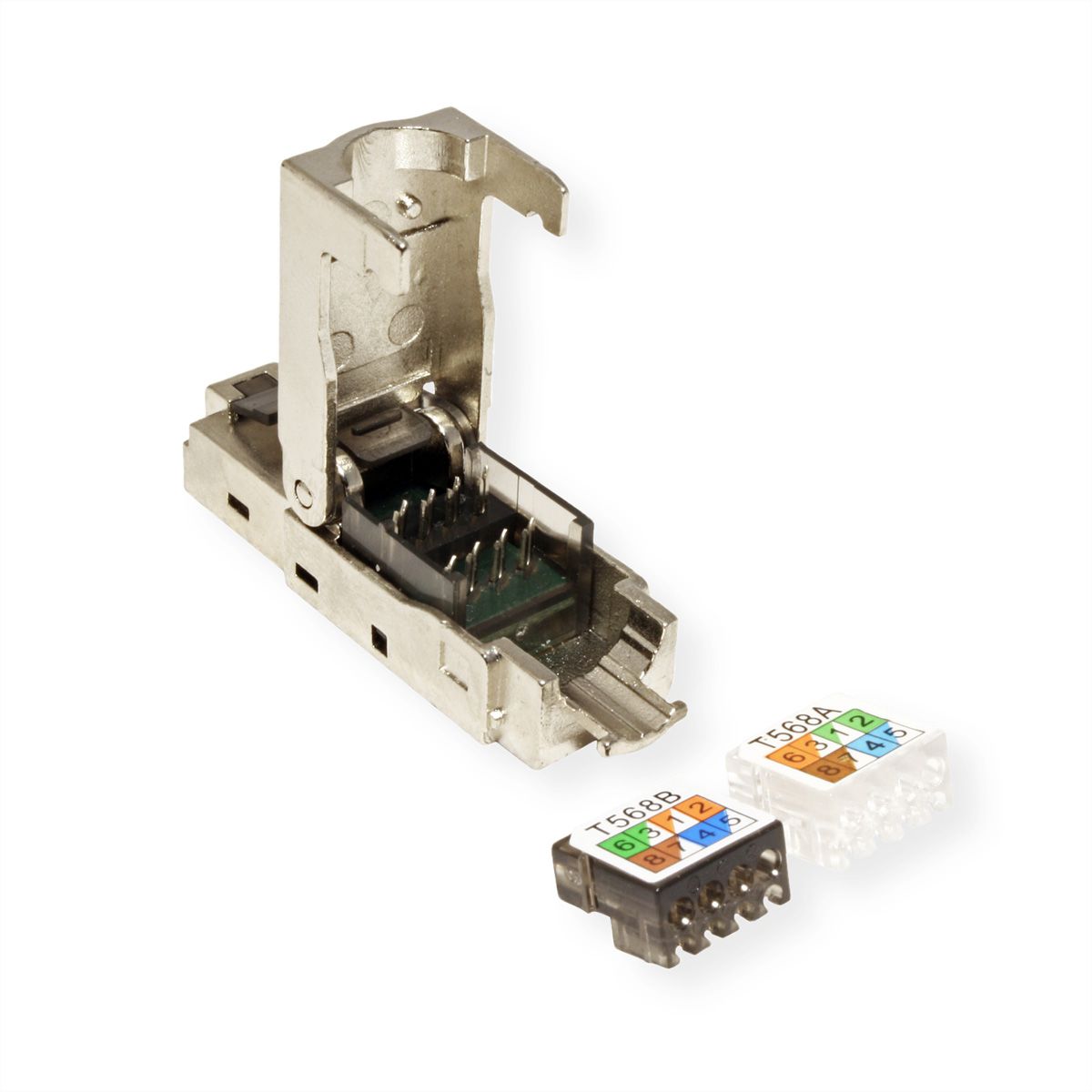

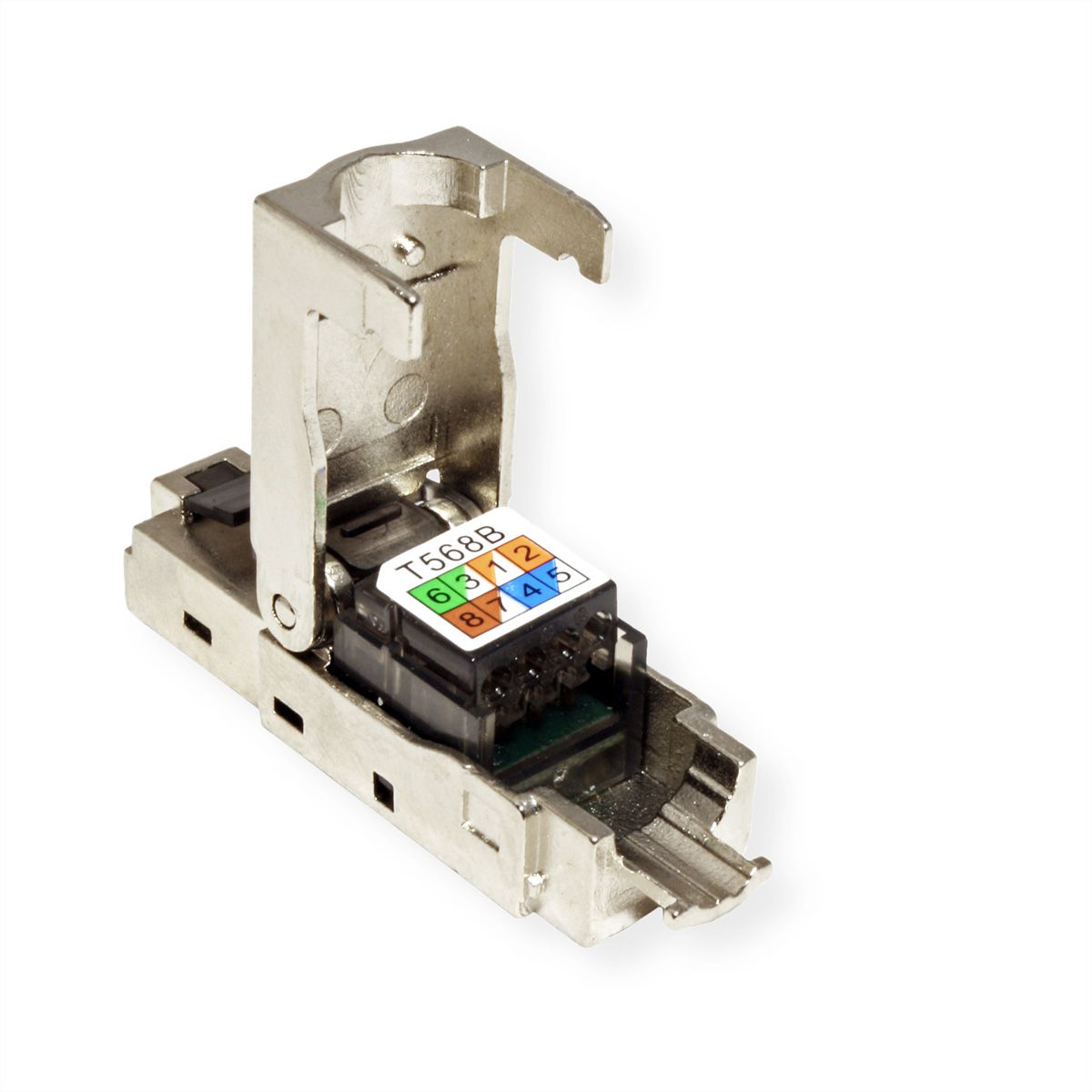

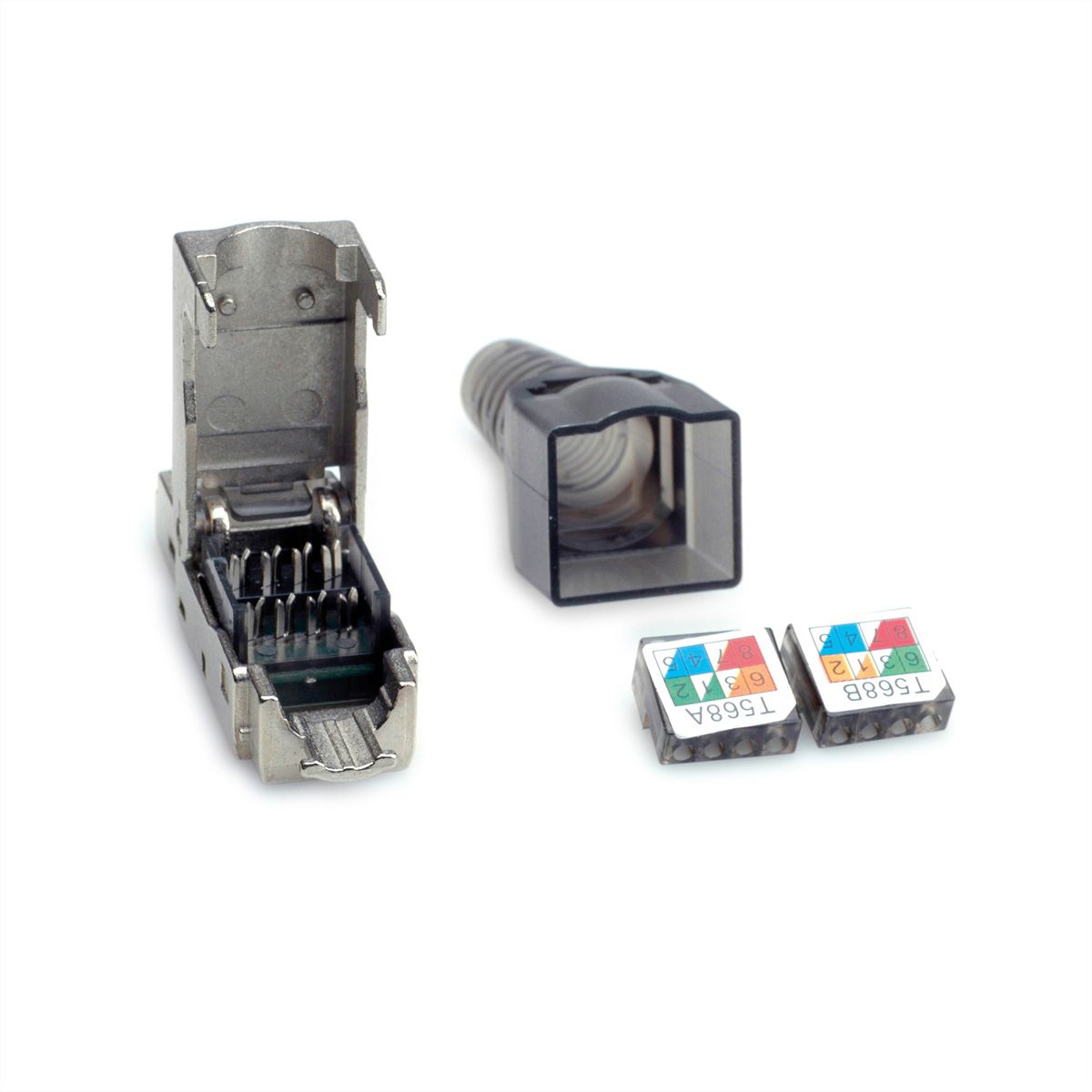

• Pair management according to TIA 568B and TIA 568A colour codes
• Robust zinc die-cast housing

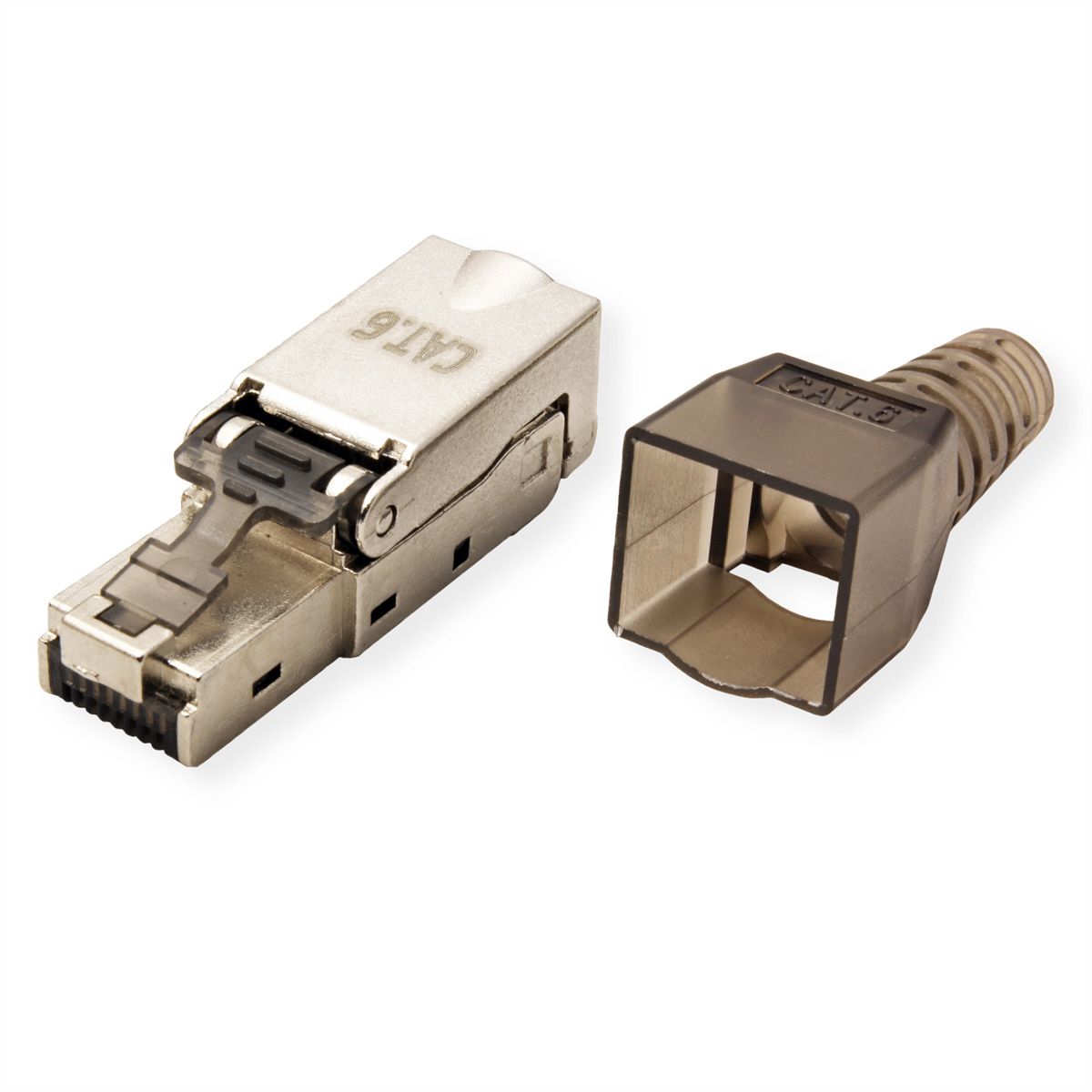

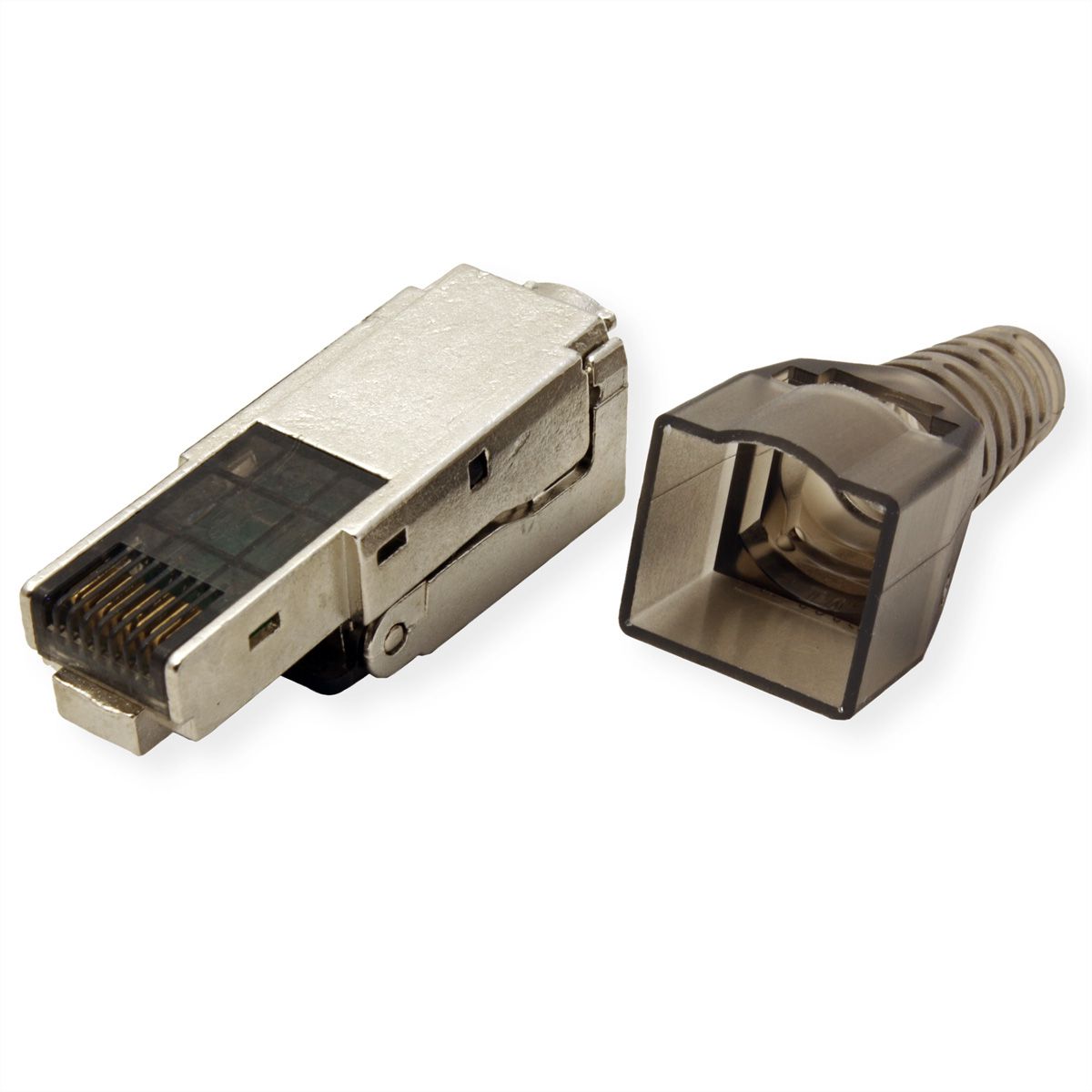

• Strain relief with cable tie and black transparent dust cup and boot
• Color: silver

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	silver
Shield type	Screened
Transfer quality	Cat6 / Class E
Shield contacts	ja
separate strain relief	yes
Height	15.3 mm
Width	14.1 mm
Depth	67.8 mm
Weight	20.3 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	10 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.022 kg

Downloads

Product data sheet - English (46.4 KB)

Download

Manufacturer data sheet - English (81.4 KB)

Download
