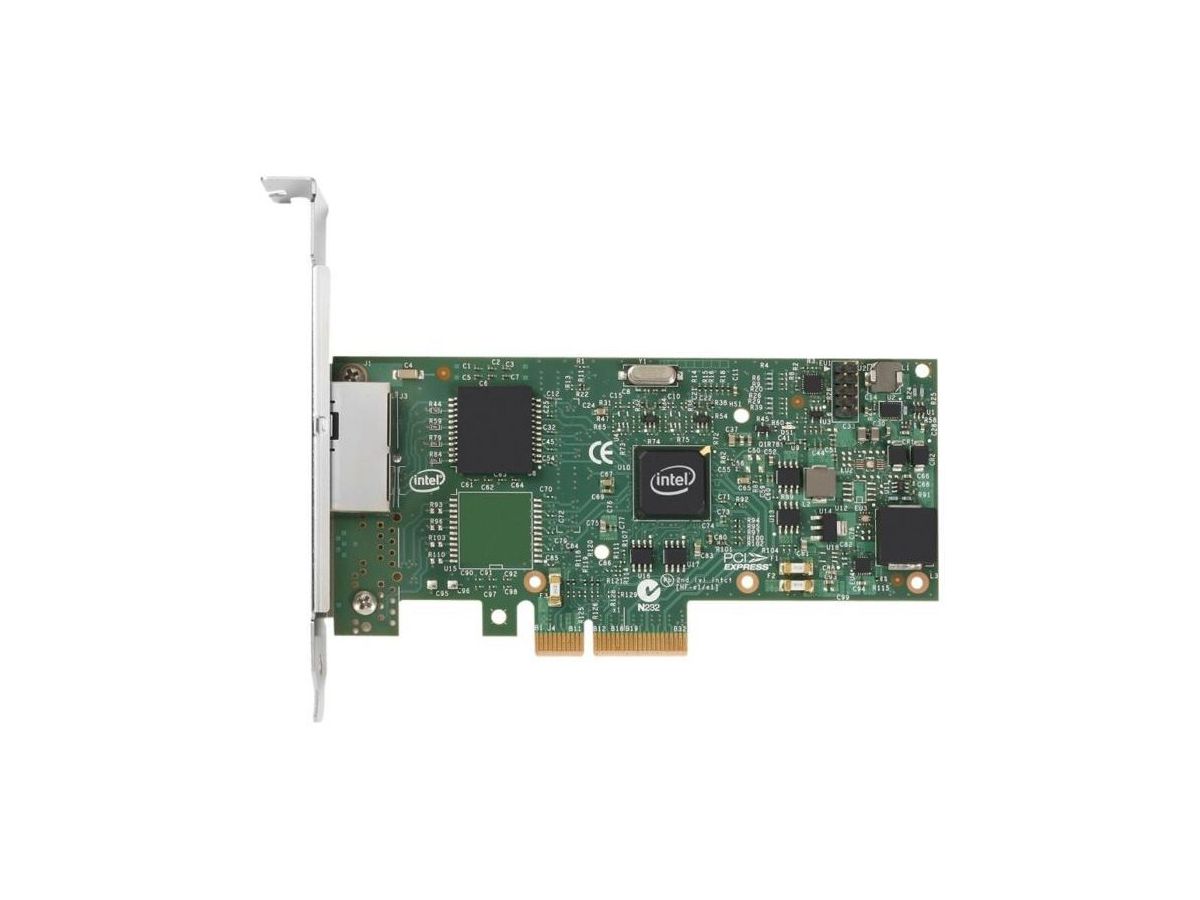

Intel I350-T2V2 Ethernet 1000 Mbit/s Intern
Meld u aan om onze prijzen te bekijken en bestellingen te kunnen plaatsen. Levering uitsluitend aan industriële, commerciële, ambachtelijke, openbare instellingen, autoriteiten en vergelijkbare organisaties. Geen verkoop aan particulieren!
Inloggen| Art. nr. | 514242239 |
|---|---|
| Merk / Fabrikant | INTEL |
| Fabrikant artikel nr. | I350T2V2BLK |
| EAN | 5032037066105 |
| Gewicht artikel | 0,167 kg |
:strip_icc():strip_exif()/logos/intel.png "INTEL")
Beschrijving
Intel I350-T2V2. Intern. Connectiviteitstechnologie: Bedraad, Hostinterface: PCI Express, Interface: Ethernet. Maximale overdrachtssnelheid van gegevens: 1000 Mbit/s
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed. Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth. Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Specificaties
| Producent | INTEL |
|---|---|
| Produkt type | Netwerkkaarten |
Poorten & interfaces
| Connectiviteitstechnologie | Bedraad |
|---|---|
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
Gewicht en omvang
| Breedte | 68,9 mm |
|---|---|
| Diepte | 135,4 mm |
| Hoogte | 120 mm |
Energie
| Typisch stroomverbruik | 5 W |
|---|
Eisen aan de omgeving
| Temperatuur, in bedrijf | 0 - 55 °C |
|---|---|
| Temperatuur bij opslag | -40 - 70 °C |
| Luchtvochtigheid bij opslag | 35 - 90 procent |
Netwerk
| Maximale overdrachtssnelheid van gegevens | 1000 Mbit/s |
|---|---|
| Netwerkstandaard | IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000BaseT(X) |
| Full duplex | Ja |
| Ondersteunde netwerkprotocollen | TCP, UDP, IP |
| Maximale afstand | 100 m |
| LAN controller | Intel® I350 |
Verpakking
| Gebruikershandleiding | Ja |
|---|
Overige specificaties
| Chipset | Intel I350 |
|---|---|
| Soort kabel | Cat 5 up to 100m |
| Compatibele besturingssystemen | Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*,, VMware ESX/ESXi* |
| Intel® Virtual Machine Device Queues (VMDq) | Ja |
| PCI-SIG* SR-IOV Capable | Ja |
| On-chip QoS and Traffic Management | Ja |
| Intel® Flexible Port Partitioning | Ja |
| Storage-over-ethernet | Ja |
| Lage halogeen opties beschikbaar | Nee |
| Intelligent Offloads | Ja |
| iWARP/RDMA | Nee |
| Intel® Ethernet Power Management | Ja |
| Intel® Virtualization Technology for Connectivity (VT-c) | Ja |
| Soort aansluiting | PCIe v2.1 (5.0GT/s) |
| Halogeen vrij | Nee |
| Marktsegment | SRV |
| Producttype | Network Interface Card |
| Thermal Design Power (TDP) | 4,4 W |
| Ethernet-adapter ARK ID | 84804 |
| Opslag via ethernet | iSCSI, NFS |
| Steunhoogte | Low Profile and Full Height |
| Lanceringsdatum | Q3'14 |
| Kaartkabeldrager netwerkinterface | Copper |
| Kaarttype netwerkinterface | Server |
| URL productsamenvatting | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
| Status | Launched |
| Laatste wijziging | 63903513 |
| Productfamilie | Intel Gigabit server adapter |
| Productserie | Intel® I350 |
| Productcodenaam | Powerville |
Design
| Intern | Ja |
|---|---|
| Aanbevolen gebruik | Server |
| PCI Card form factor | Full-height (low-profile) |
