Beschrijving

Industriële voeding met DIN-rail montage - Levert tot 120 Watt vermogen (48V, 2,5A) - Ingebouwde actieve power factor controller (PF > 0,93) - Metalen behuizing

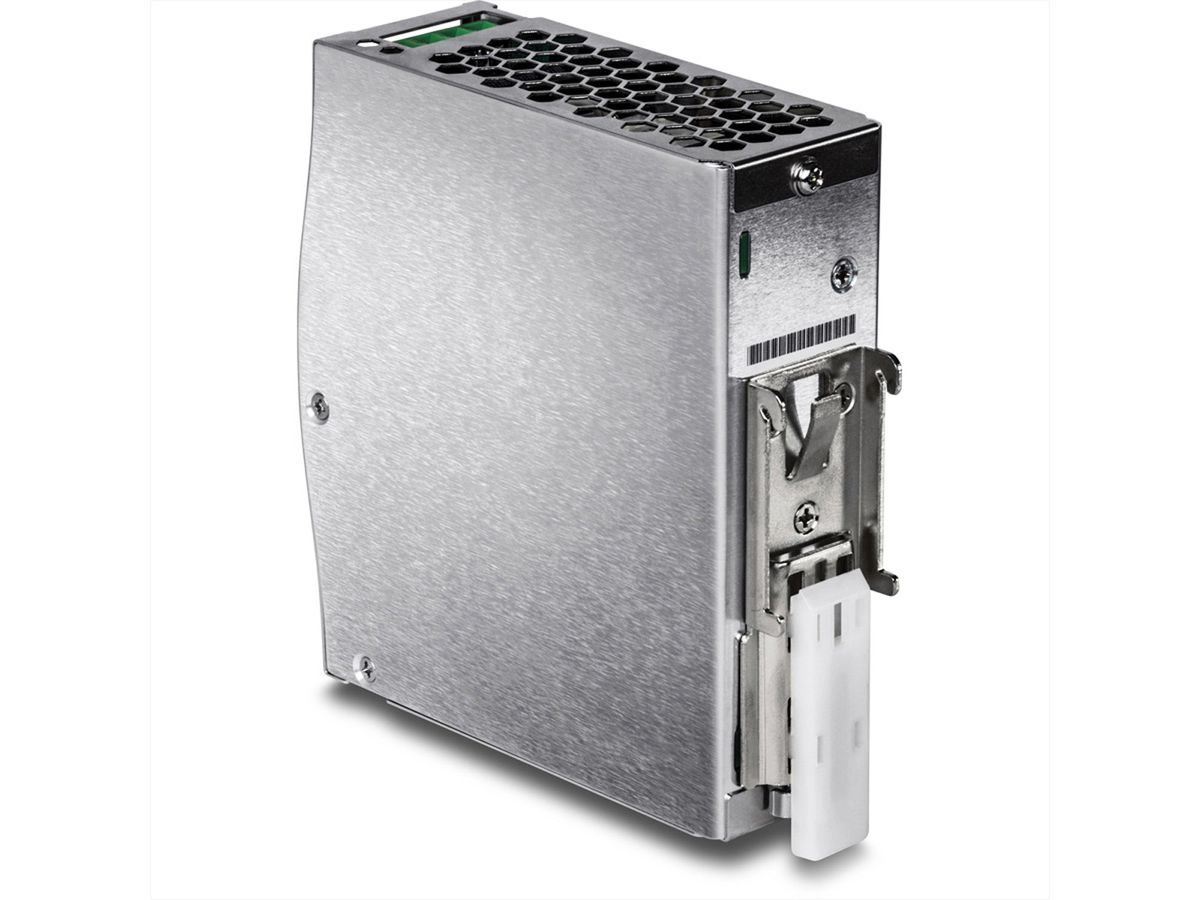

• Industriële voeding met geïntegreerde DIN-railhouder
• Levert tot 120 watt vermogen (48 V, 2,5 A)
• Ingebouwde actieve arbeidsfactorregelaar (PF > 0,93)
• Bescherming tegen kortsluiting/overbelasting/overspanning/oververhitting
• Zeer efficiënt ontwerp (91%)
• UL 508-gecertificeerd
• Inbrandtest onder volledige belasting (100%)
• Extreem -25 tot 70 °C bedrijfstemperatuurbereik

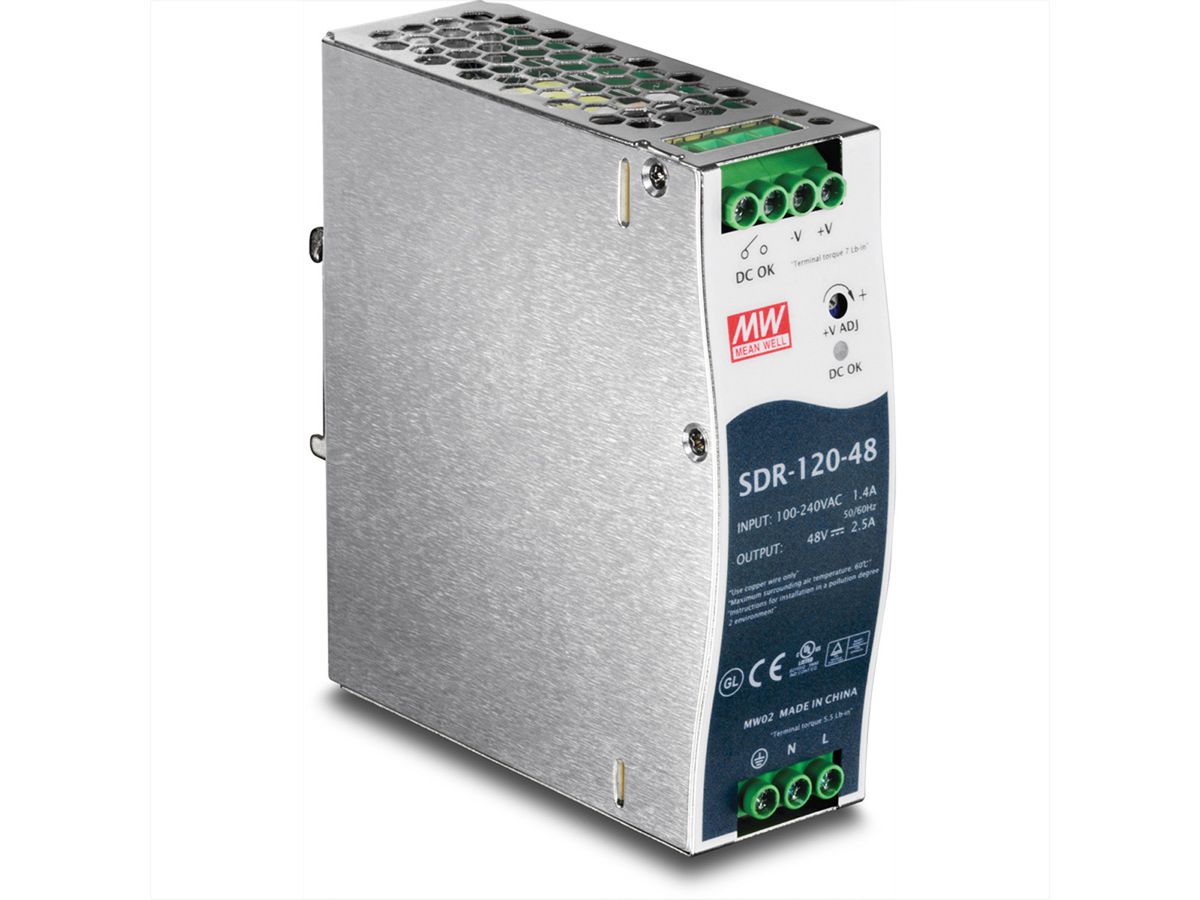

De zeer efficiënte 120 W single-output industriële DIN-rail voeding van TRENDnet, model TI-S12048, levert tot 120 watt (48 V, 2,5 A) stroom aan industriële PoE-apparatuur zoals switches, netwerkcamera's en Wi-Fi-toegangspunten . Deze voeding biedt actieve PFC, een geïntegreerde DIN-railhouder en overbelastingsbeveiliging.

TRENDnet’s high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection. 120 Watt Power Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points Active PFC The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power Overload Protection Overload/short circuit/over voltage/over temperature protection Full Load Test This power supply undergoes a 100 % full load burn-in test Passive Cooling Cooling by free air convection DIN-Rail Mount Metal enclosure with integrated DIN-rail mount Extreme Temperatures Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F) Safety Certifications Certified for UL 508 and TUV EN60950-1 Electro Magnetic Emission/Immunity Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved Vibration Resistant Rated for vibration LED Indicator LED indicator confirms power to the unit
